Models

Parts

product name

LG JE1590WC.AMWEGEU

Model: JE1590WC.AMWEGEU

Save Part Not Listed?
product name

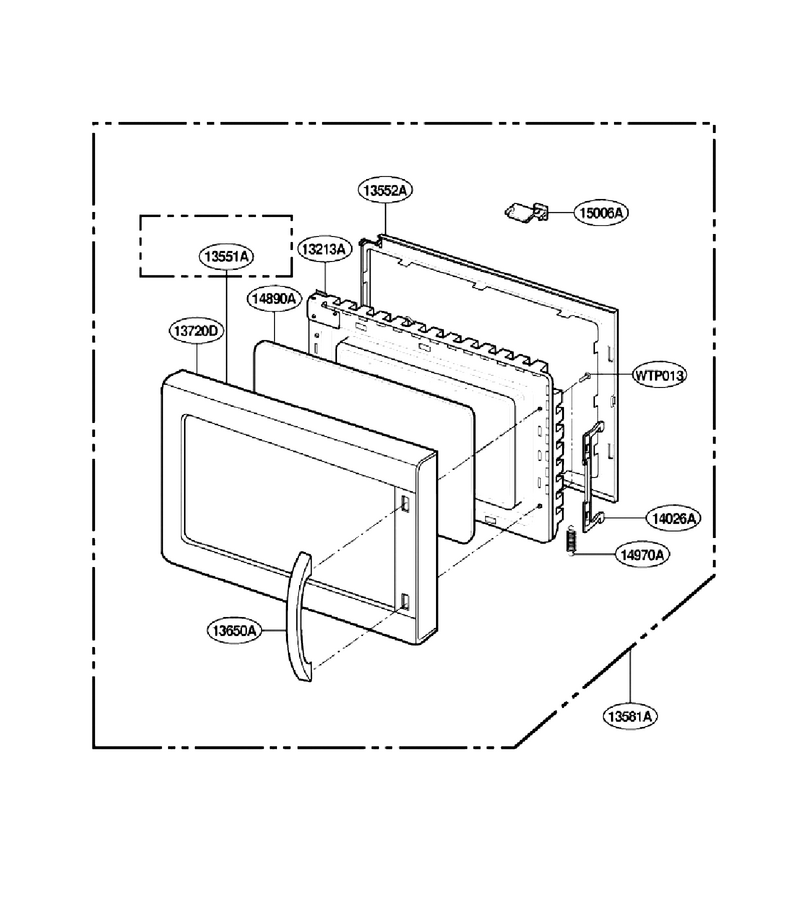

Door Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
13213A
Microwave Door Frame L-G-3213W0A002C
...
13552A
Choke Cover L-G-3552W0A002A
...
13581A
Door Assembly L-G-3581W0A003X
...
13650A
Handle,?do L-G-3650W1A035A
...
13720D
Door Panel L-G-3720W0D149C
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14890A
Window,glass L-G-4890W1A007F
...
14970A
Spring L-G-4970WRA001F
...
15006A
Transformer L-G-5006W3A017A

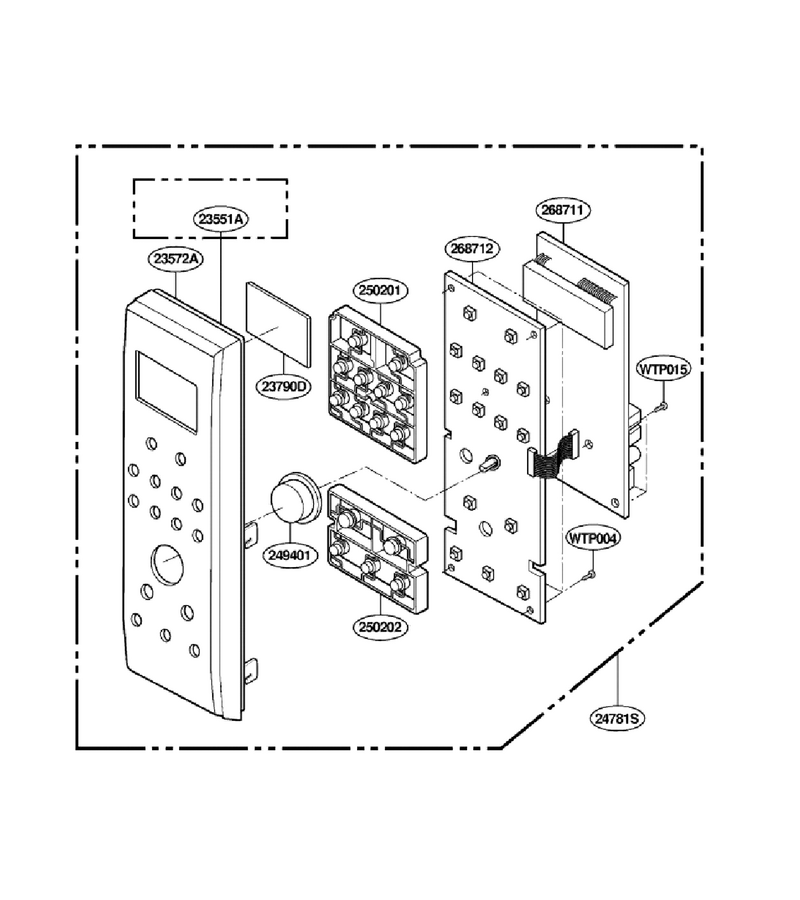

Controller Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
WTP015
Microwave Screw L-G-1TPL0402618
...
23572A
Panel,control L-G-3572W0A212A
...
23790D
Window,display L-G-3790W2D026A
...
24781S
Controller Assy,[semi Micom] L-G-4781W1S084E
...
249401
Knob L-G-4940W2A028A
...
250201
Button L-G-5020W2A144A
...
250202
Button L-G-5020W2A146A
...
268711
Pcb Assembly,sub L-G-6871W2S219A
...
268712
Pcb Assembly,sub L-G-6871W2S220A

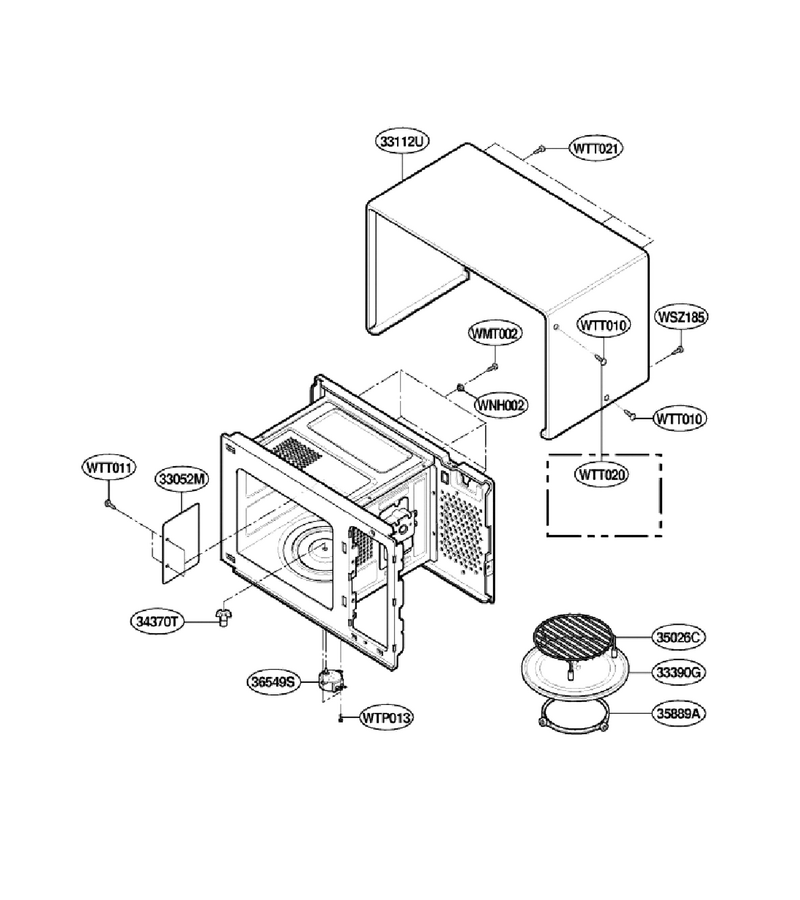

Oven Cavity Parts

...
...
WMT002
Screw L-G-1MTC0402432
...
WNH002
Nut L-G-1NHA0400018
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT011
Microwave Tapping Screw L-G-1TTG0402632
...
WTT021
Microwave Screw L-G-1TTL0402418
...
33052M
Canopy L-G-3052W3M022A
...
33112U
Case,u Bending L-G-3112W0U036D
...
33390G
Microwave Glass Turntable Tray L-G-1B71961E
...
34370T
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
35026C
Microwave Cooking Rack L-G-5026W1A035D
...
35889A
Microwave Turntable Tray Support L-G-5889W2A017A
...
36549S
Microwave Turntable Motor L-G-6549W1S013A

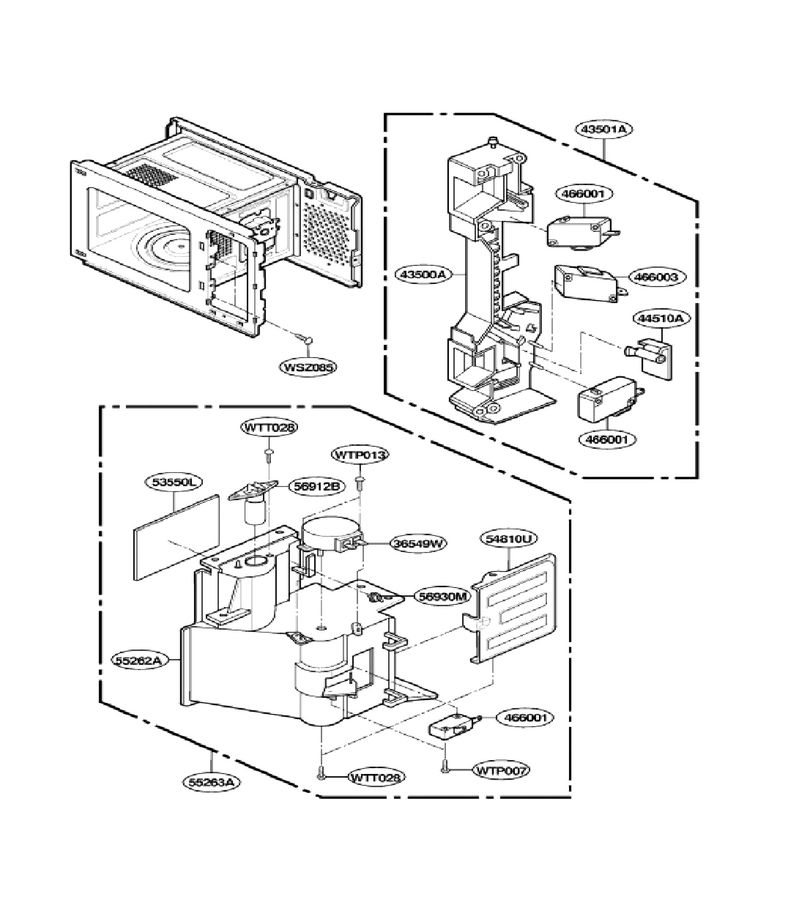

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTP007
3.0x16mm Tap L-G-1TPL0303118
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
36549W
Circulating Motor L-G-6549WRS001P
...
43500A
Microwave Door Latch Holder L-G-3500W1A013A
...
43501A
Microwave/hood Holder Locker Assembly L-G-3501W1A019A
...
44510A
Lever L-G-4510W4A005A
...
53550L
Microwave Lamp Cover L-G-3550W3L001A
...
54810U
Bracket L-G-4810W2U002A
...
55262A
Air Duct Cover L-G-3550W1A093A
...
56912B
Microwave Light Bulb L-G-6912W3B002E
...
56930M
Thermostat L-G-6930WRT003A
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

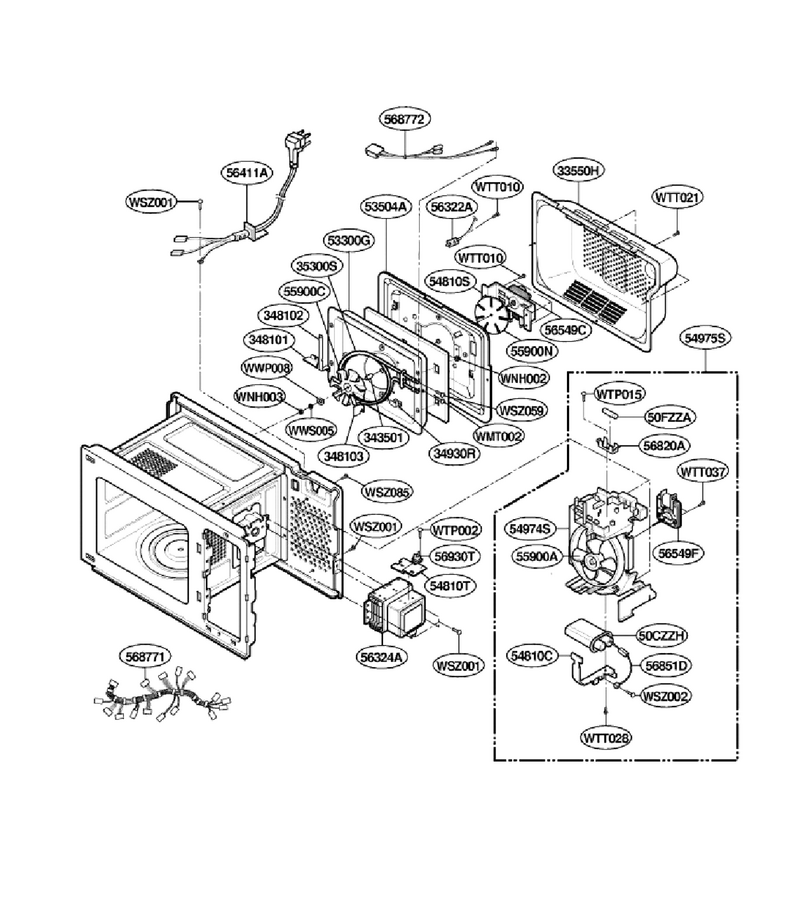

Interior Parts

...
...
WMT002
Screw L-G-1MTC0402432
...
WNH002
Nut L-G-1NHA0400018
...
WNH003
Drawer Nut L-G-4B71028B
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ059
Screw L-G-4000W4A001A
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTP002
Screw L-G-1TPL0302018
...
WTP015
Microwave Screw L-G-1TPL0402618
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WWP008
Washer L-G-1WPL0500032
...
WWS005
Washer L-G-1WSD0400032
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002H
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930R
Holder L-G-4930W3A014A
...
35300S
Microwave Convection Element L-G-5300W1S006A
...
53300G
Plate L-G-3300W1G088A
...
53504A
Plate L-G-3300W1G087A
...
54810C
Bracket L-G-4810W4C003A
...
54810S
Bracket L-G-3B72717A
...
54974S
Microwave Guide L-G-4974W1S046A
...
55900A
Blower Fan L-G-2B72279B
...
55900C
Fan Blade L-G-5900W3A004B
...
55900N
Fan Blade L-G-3B72559A
...
56322A
Microwave Thermistor L-G-6322W2A001A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
(56411a) Part L-G-6411W1A019K
...
56549C
Motor L-G-2B72066G
...
56549F
Circulating Motor L-G-6549W2F017N
...
56820A
Holder L-G-4930W3B025B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001A
...
343501
Ring Shaft L-G-4B73725A
...
348101
Bracket L-G-4810W3H003A
...
348102
Bracket L-G-4810W3H002A
...
348103
Bracket L-G-4810W3H004A
...
568771
Connector Assembly L-G-6877W1A301A
...
568772
Harness,single L-G-6877W2A002C

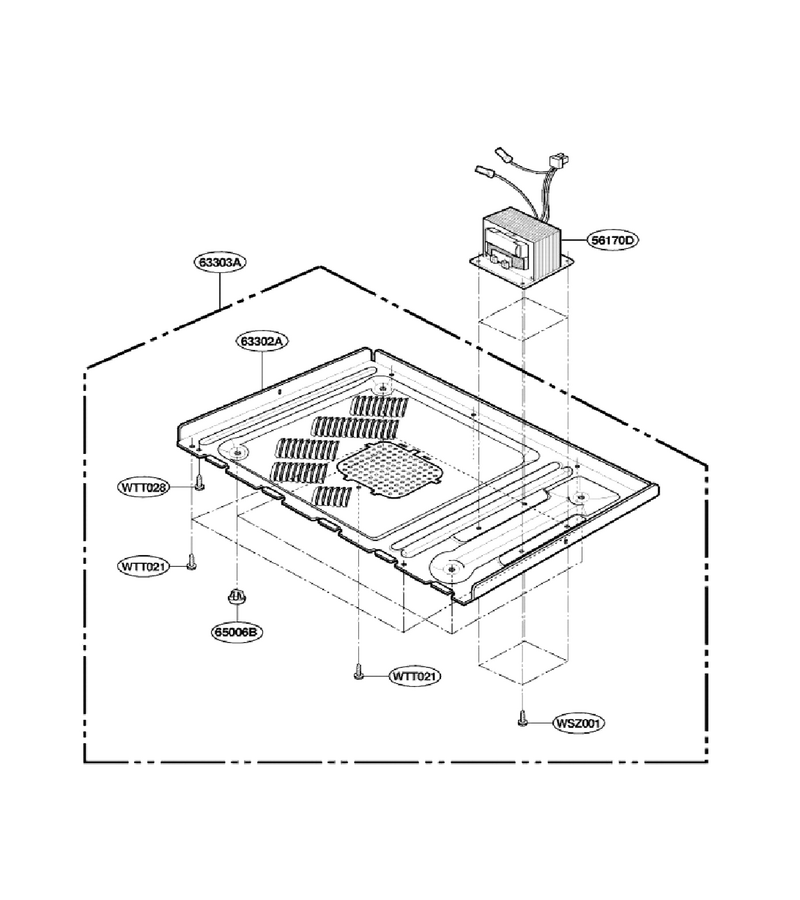

Base Plate Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D023J
...
63302A
Base Plate L-G-3302W0A022A
...
63303A
Plate Assembly,base L-G-3303W1A045B
...
65006B
Cap L-G-5006W3A016B

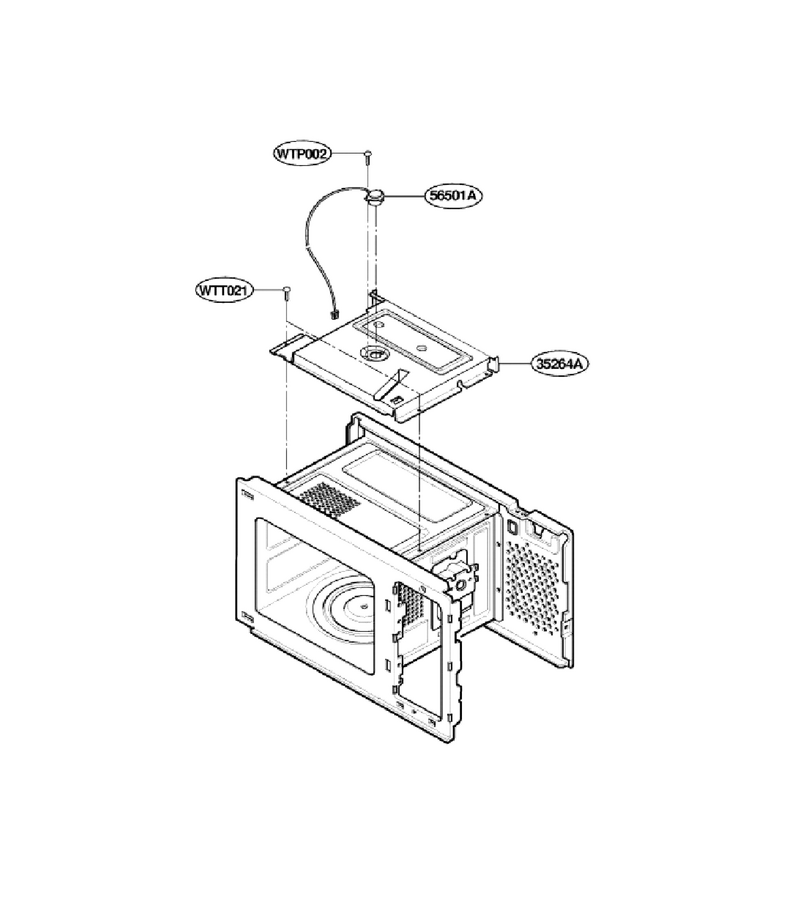

Sensor Parts

...
...
WTP002
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
35264A
(35264a) Guide,air L-G-5264W1A015A
...
56501A
Humidity Sensor L-G-6501W1A004A
