LG JE1590CH.ABSEGEU

Model: JE1590CH.ABSEGEU

Save Part Not Listed?
product name

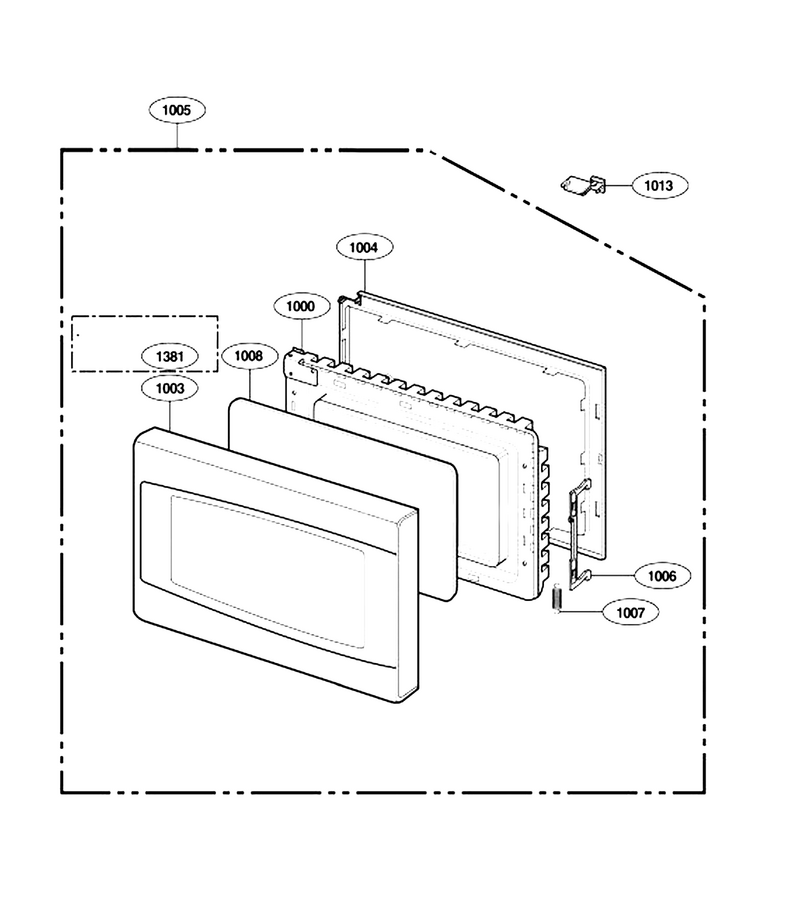

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W0A002C
...
1003
Panel,door L-G-3720W0D341C
...
1004
Choke Cover L-G-3552W0A002A
...
1005
Door Assembly L-G-3581W0A101G
...
1006
Latch L-G-4026W2A012A
...
1007
Spring L-G-4970WRA001B
...
1008
Window,glass L-G-4890W1A029J
...
1013
Transformer L-G-5006W3A017A

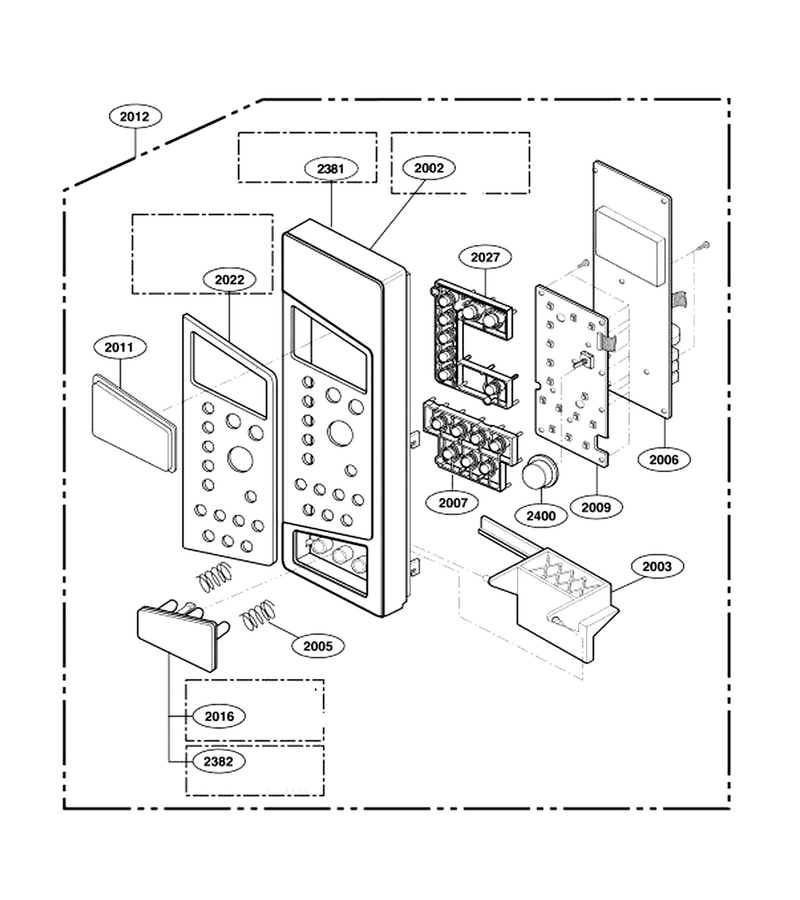

Controller Parts

...
...
2002
Panel,control L-G-3720W0C188C
...
2003
Lever L-G-4510W1A015A
...
2005
Microwave Door Release Button Spring L-G-4B72023A
...
2006
Pcb Assembly,sub L-G-6871W1S281A
...
2007
Button L-G-5020W1A223C
...
2009
Pcb Assembly,sub L-G-6871W1S282A
...
2011
Window,display L-G-3790W1A064A
...
2012
Controller Assembly,tact Dial L-G-4781W0S034C
...
2016
Button L-G-5020W1A225C
...
2022
Decor,control Panel L-G-3806W1A109C
...
2027
Button L-G-5020W1A224C
...
2381
Parts Assembly L-G-AGM34208803
...
2400
Knob L-G-4940W1A118C

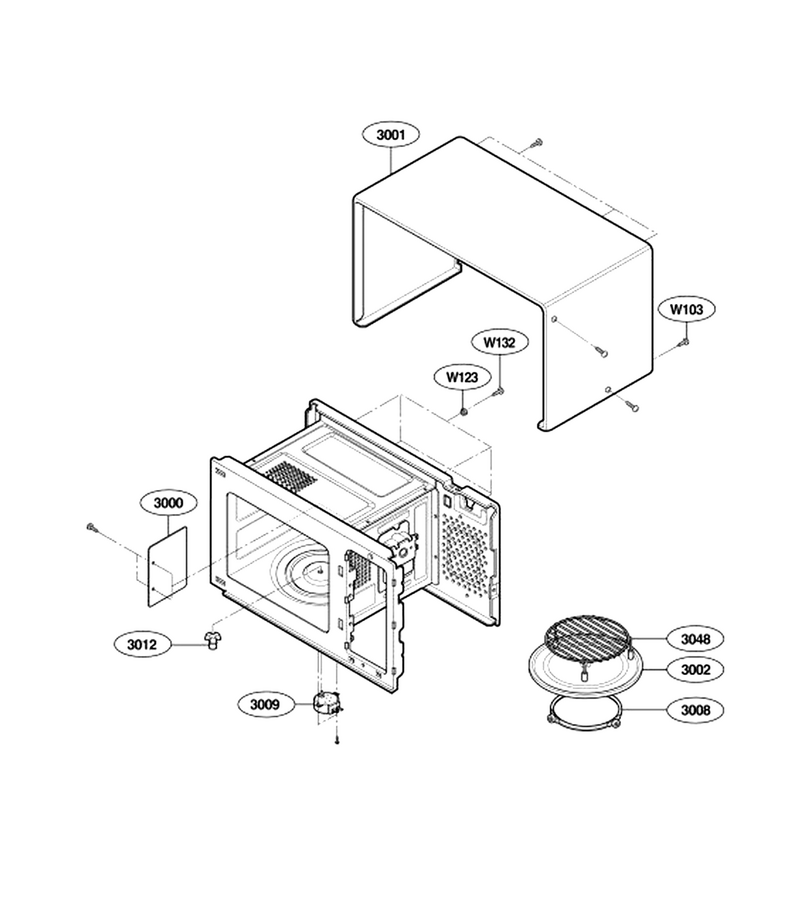

Oven Cavity Parts

...
...
W123
Nut L-G-1NHA0400018
...
W132
Screw L-G-1MTC0402432
...
W103
Screw L-G-1SZZW2A002A
...
3000
Canopy L-G-3052W3M022A
...
3001
Case,flat L-G-3112W0F010G
...
3002
Microwave Glass Turntable Tray L-G-1B71961E
...
3008
Microwave Turntable Tray Support L-G-5889W2A017A
...
3009
Microwave Turntable Motor L-G-6549W1S013A
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3048
Shelf L-G-5026W1A050D

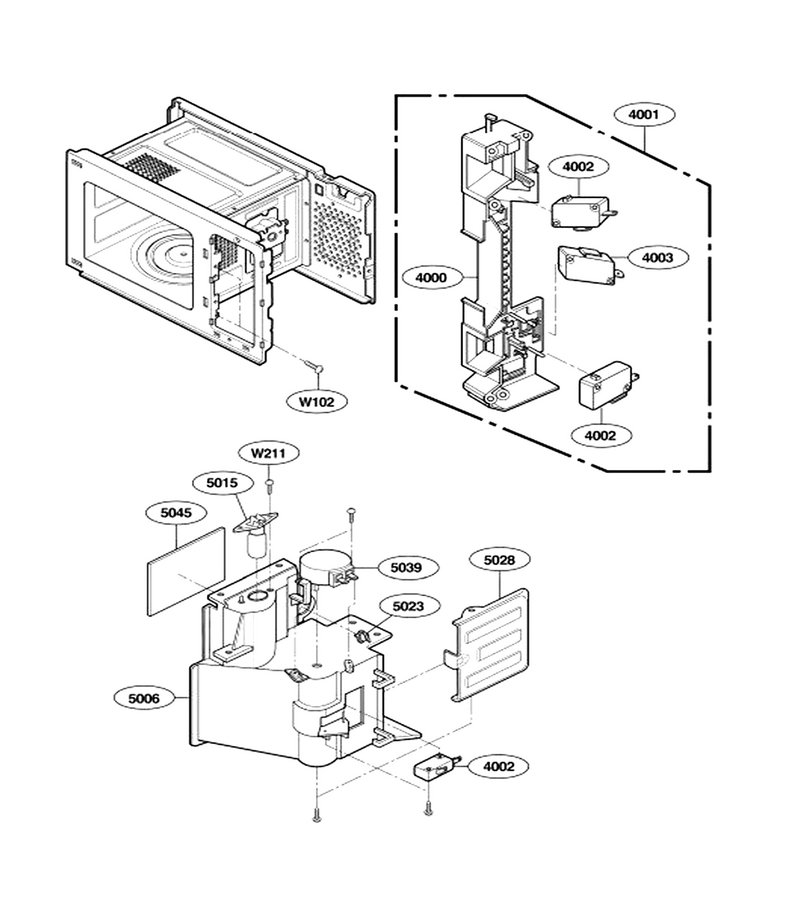

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Latch Board L-G-3500W1A008A
...
4001
Microwave Door Latch Housing And Interlock Swit... L-G-3501W1A003U
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
5006
Air Duct Cover L-G-3550W1A093A
...
5015
Microwave Light Bulb L-G-6912W3B002E
...
5023
Microwave Thermostat L-G-6930W1A003D
...
5028
Bracket L-G-4810W2U002A
...
5039
Circulating Motor L-G-6549WRS001P
...
5045
Microwave Lamp Cover L-G-3550W3L001A

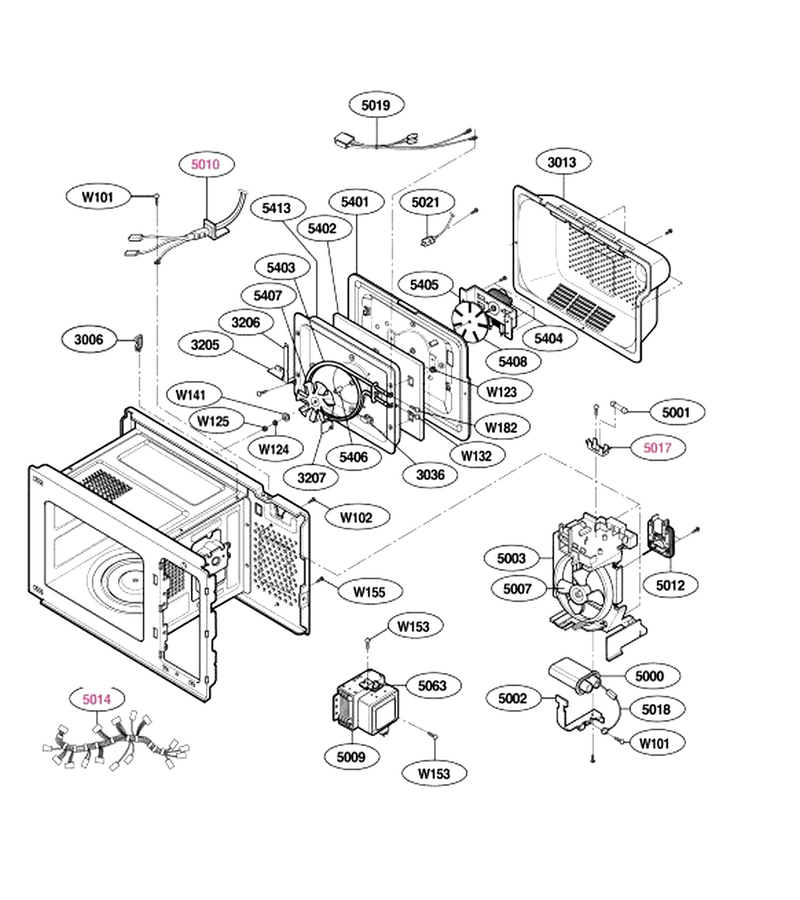

Interior Parts (i)

...
...
W182
Screw L-G-4000W4A001A
...
W155
Screw,customized L-G-1SZZW2A002D
...
W153
Screw,taptite L-G-1SPF0302018
...
W141
Washer L-G-1WPL0500032
...
W124
Washer L-G-1WSD0400032
...
W132
Screw L-G-1MTC0402432
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W123
Nut L-G-1NHA0400018
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
3006
Holder L-G-4B72944B
...
3013
Microwave Convection Fan Motor Cover, Rear L-G-3550W1A090A
...
3036
Holder L-G-4930W3A014A
...
3205
Bracket L-G-4810W3H003A
...
3206
Bracket L-G-4810W3H002A
...
3207
Bracket L-G-4810W3H004A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W4C003A
...
5003
Microwave Guide L-G-4974W1S046A
...
5007
Blower Fan L-G-2B72279B
...
5009
Microwave Magnetron L-G-6324W1A001H
...
5010
Power Cord Assembly L-G-6411W2A002Z
...
5012
Circulating Motor L-G-6549W2F017N
...
5014
Harness,single L-G-6877W1A301B
...
5017
Holder L-G-4930W3B025B
...
5018
Cable,assembly L-G-6021W3B001U
...
5019
Harness,single L-G-6877W2A002C
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5063
Bracket Assembly L-G-4811W3A016A
...
5401
Plate L-G-3300W1G087A
...
5402
Glass L-G-5290W1A001B
...
5403
Microwave Convection Element L-G-5300W1S006A
...
5404
Motor L-G-2B72066G
...
5405
Bracket L-G-3B72717A
...
5406
Ring Shaft L-G-4B73725A
...
5407
Fan Blade L-G-5900W3A004B
...
5408
Fan Blade L-G-3B72559A
...
5413
Plate L-G-3300W1G088A

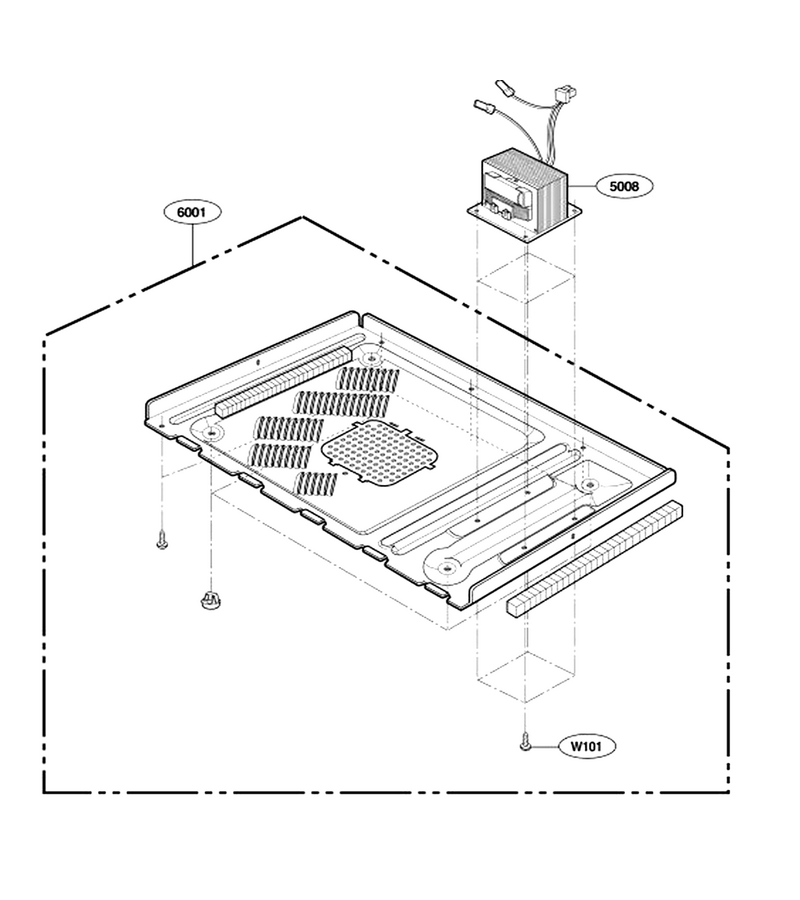

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5008
Microwave High-Voltage Transformer L-G-6170W1D023J
...
6001
Plate Assembly,base L-G-3303W1A045B

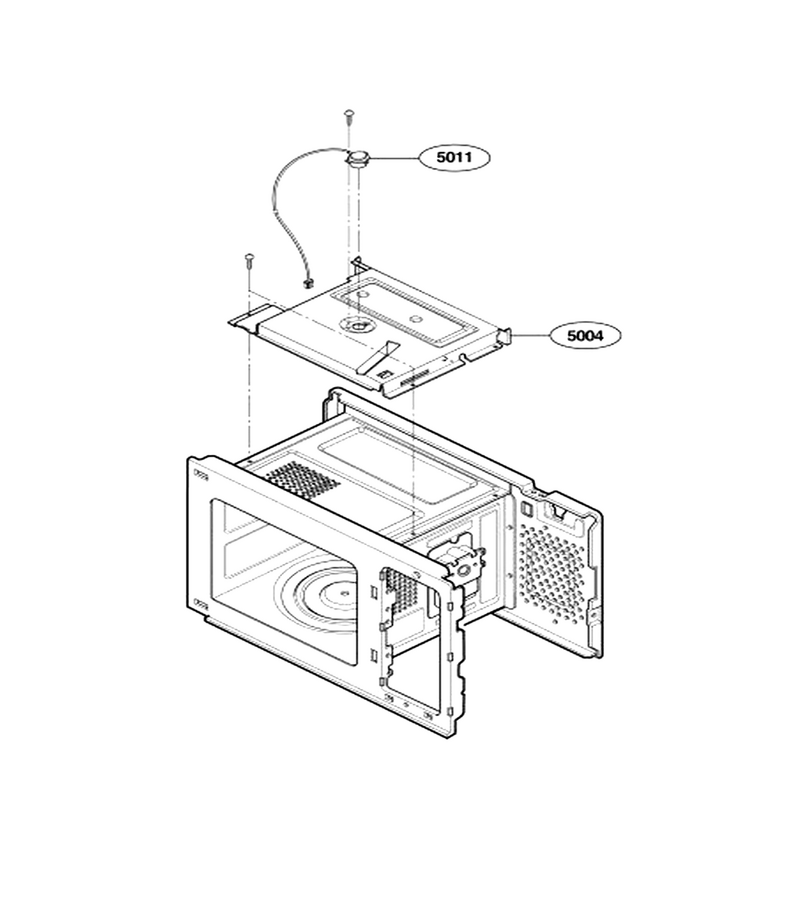

Sensor Parts

...
...
5004
Guide,air L-G-5264W1A015E
...
5011
Humidity Sensor L-G-6501W1A004A
