LG JE1590BH.ABKEGEU

Model: JE1590BH.ABKEGEU

Save Part Not Listed?
product name

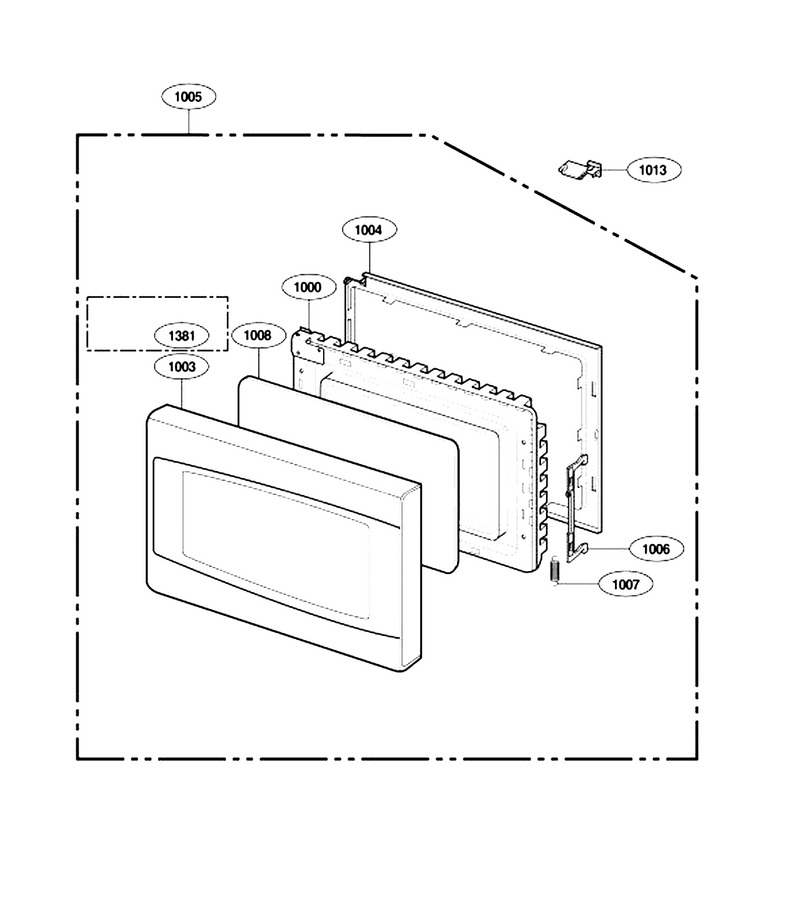

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W0A001K
...
1003
Panel,door L-G-3720W0D194P
...
1004
Cover,choke L-G-3552W0A004B
...
1005
Door Assembly L-G-3581W1A439A
...
1006
Latch L-G-4026W2A016A
...
1007
Spring L-G-4970WRA001B
...
1008
Window,glass L-G-4890W1A029J
...
1013
Transformer L-G-5006W3A017A

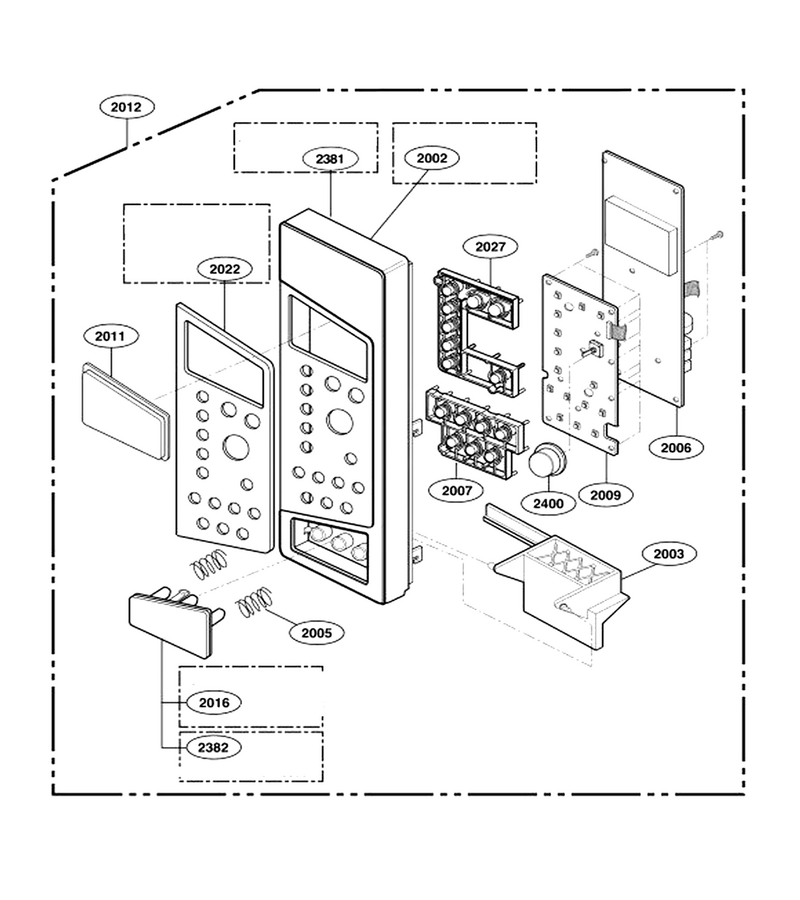

Control Parts

...
...
2002
Panel,control L-G-3572W0A238E
...
2003
Lever L-G-4510W3L003A
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Pcb Assembly,sub L-G-6871W1S197D
...
2007
Button L-G-5020W1A010E
...
2009
Pcb Assembly,sub L-G-6871W1S282A
...
2011
Window,display L-G-3790W1A064A
...
2012
Controller Assembly,tact Dial L-G-4781W0S034B
...
2016
Button L-G-5020W1A225B
...
2022
Decor,control Panel L-G-3806W1A109B
...
2027
Button L-G-5020W1A224B
...
2381
Parts Assembly L-G-383EW5A192K
...
2400
Knob L-G-4940W1A118B

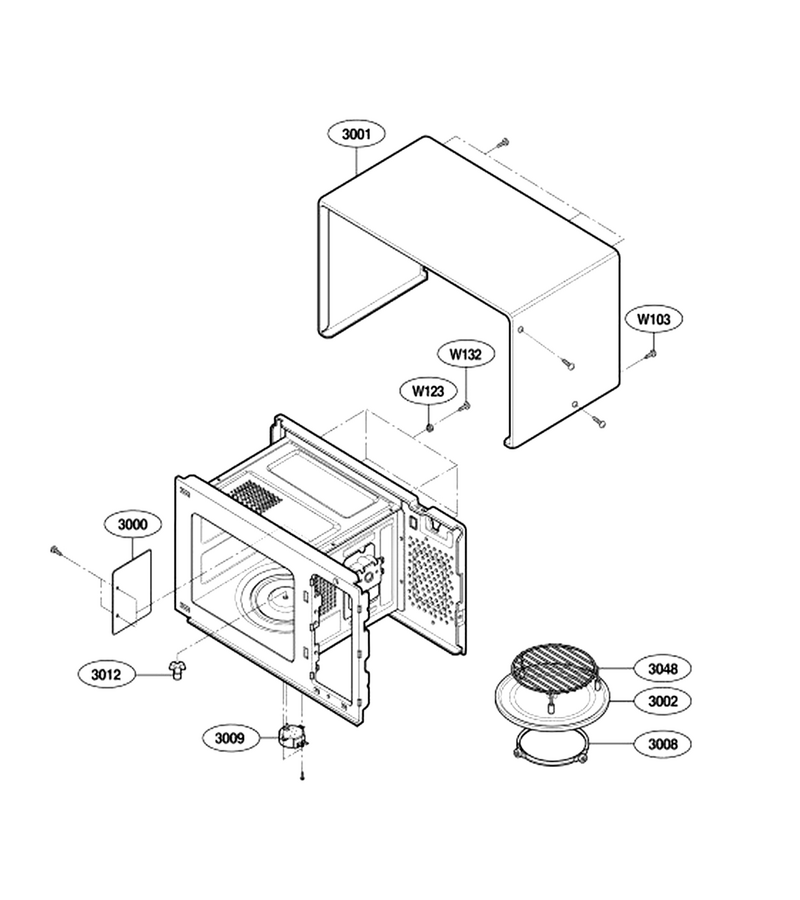

Oven Cavity Parts

...
...
W123
Nut L-G-1NHA0400018
...
W132
Screw L-G-1MTC0402432
...
W103
Screw L-G-1SZZW2A002A
...
3000
Canopy L-G-3052W3M011F
...
3001
Case,u Bending L-G-3112W0U072A
...
3002
Tray,glass L-G-3390W1G009D
...
3008
Turntable Assembly L-G-5889W2A014A
...
3009
Microwave Turntable Motor L-G-6549W1S011B
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3048
Shelf L-G-5026W1A050D

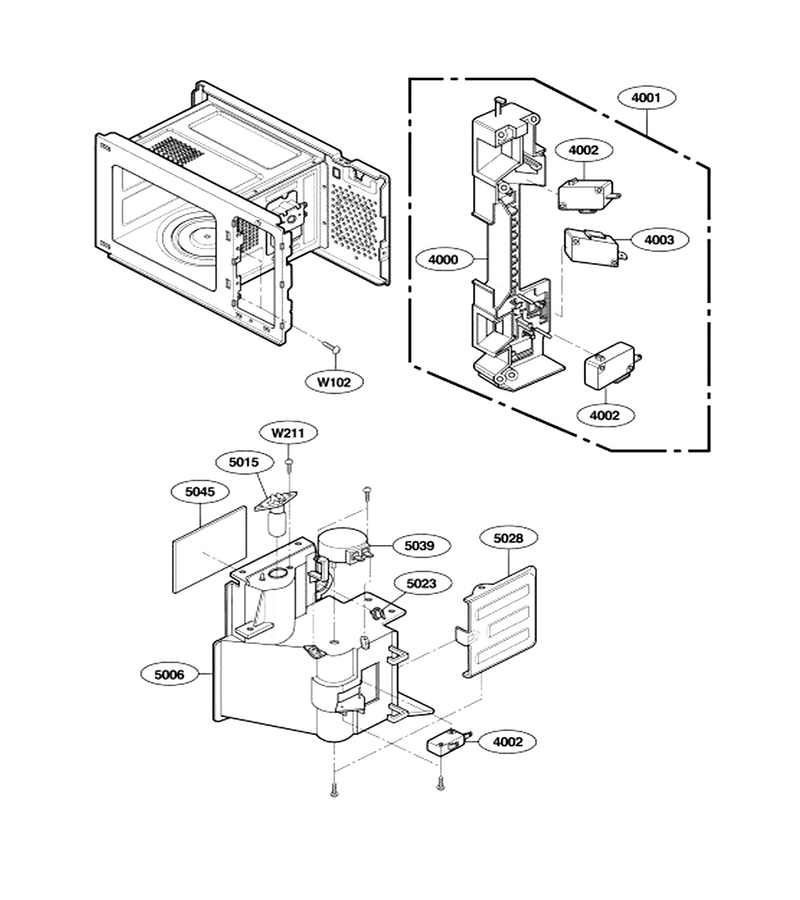

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Board L-G-3500W1A018A
...
4001
Microwave Door Latch Housing And Interlock Swit... L-G-3501W1A003U
...
4002
Switch,micro L-G-6600W1K003D
...
4003
Switch,micro L-G-6600W1K003C
...
5006
Air Duct Cover L-G-3550W1A093A
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5023
Microwave Thermostat L-G-6930W1A003D
...
5028
Bracket L-G-4810W2U002A
...
5039
Circulating Motor L-G-6549WRS001P
...
5045
Microwave Lamp Cover L-G-3550W3L001A

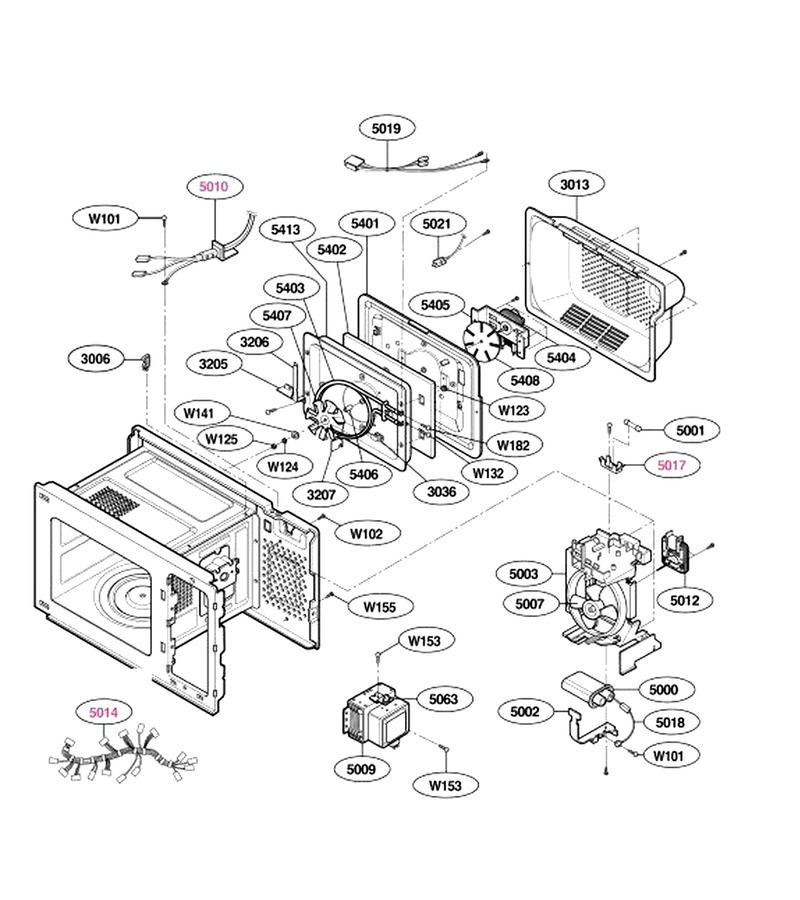

Interior Parts (i)

...
...
W182
Screw L-G-4000W4A001A
...
W155
Screw,customized L-G-1SZZW2A002D
...
W153
Screw,taptite L-G-1SPF0302018
...
W141
Washer L-G-1WPL0500032
...
W124
Washer L-G-1WSD0400032
...
W132
Screw L-G-1MTC0402432
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W123
Nut L-G-1NHA0400018
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
3006
Holder L-G-4930W3B029A
...
3013
Microwave Convection Fan Motor Cover, Rear L-G-3550W1A090A
...
3036
Holder L-G-4930W3A014A
...
3205
Bracket L-G-4810W3H003A
...
3206
Bracket L-G-4810W3H002A
...
3207
Bracket L-G-4810W3H004A
...
5000
Capacitor,high Voltage L-G-0CZZW1H001P
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord L-G-6411W1A002H
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005P
...
5014
Harness L-G-6877W1A359B
...
5017
Holder L-G-4930W3B025B
...
5018
Microwave High-Voltage Diode L-G-6021W3B001R
...
5019
Harness,single L-G-6877W2A002C
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5063
Bracket Assembly L-G-4811W3A016A
...
5401
Plate L-G-3300W1G087A
...
5402
Glass L-G-5290W1A001B
...
5403
Microwave Convection Element L-G-5300W1S006A
...
5404
Motor L-G-2B72066G
...
5405
Bracket L-G-3B72717A
...
5406
Ring Shaft L-G-4B73725A
...
5407
Fan Blade L-G-5900W3A004B
...
5408
Fan Blade L-G-3B72559A
...
5413
Plate L-G-3300W1G088A

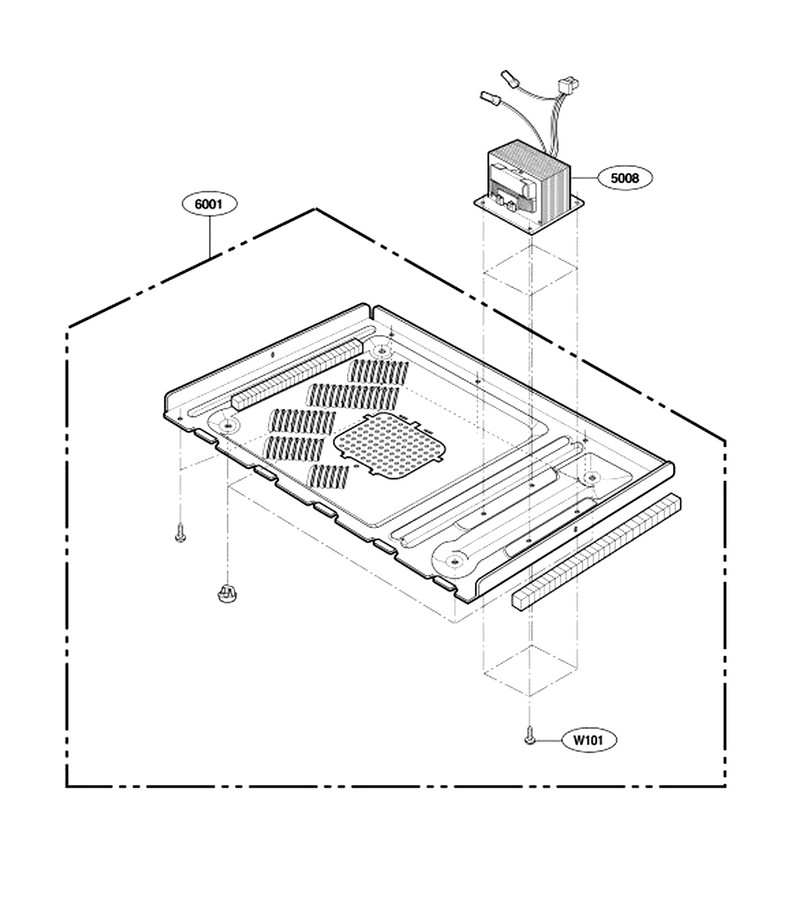

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5008
Microwave High-Voltage Transformer L-G-6170W1D012G
...
6001
Plate Assembly,base L-G-3303W1A045B

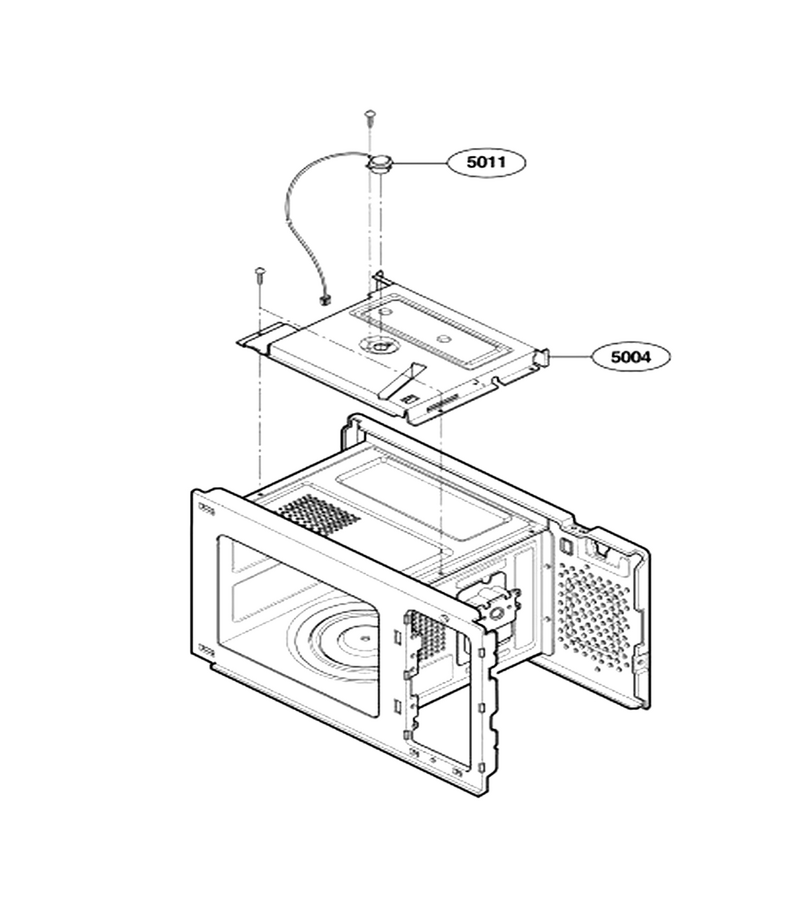

Sensor Parts

...
...
5004
Bracket,sensor L-G-4810W1A254A
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
