product name

LG JE1460WF-002.CWHEGEU

Model: JE1460WF-002.CWHEGEU

Save Part Not Listed?
product name

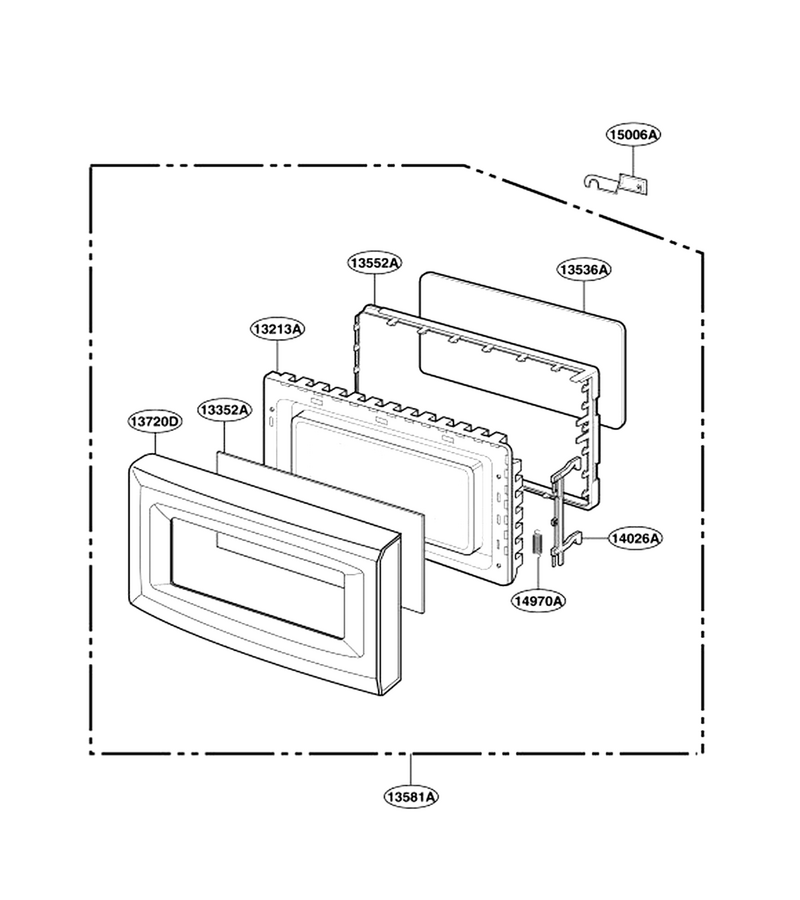

Door Parts

...
...
13213A
Door Frame L-G-3213W1A031B
...
13352A
Screw L-G-3352W2A047A
...
13536A
Seal Tape L-G-3536WRA001M
...
13552A
Cover L-G-3552W1A028A
...
13581A
Door Assy L-G-3581W1A235D
...
13720D
Panel,[door] L-G-3720W0D166D
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Cap L-G-5006W3A010A

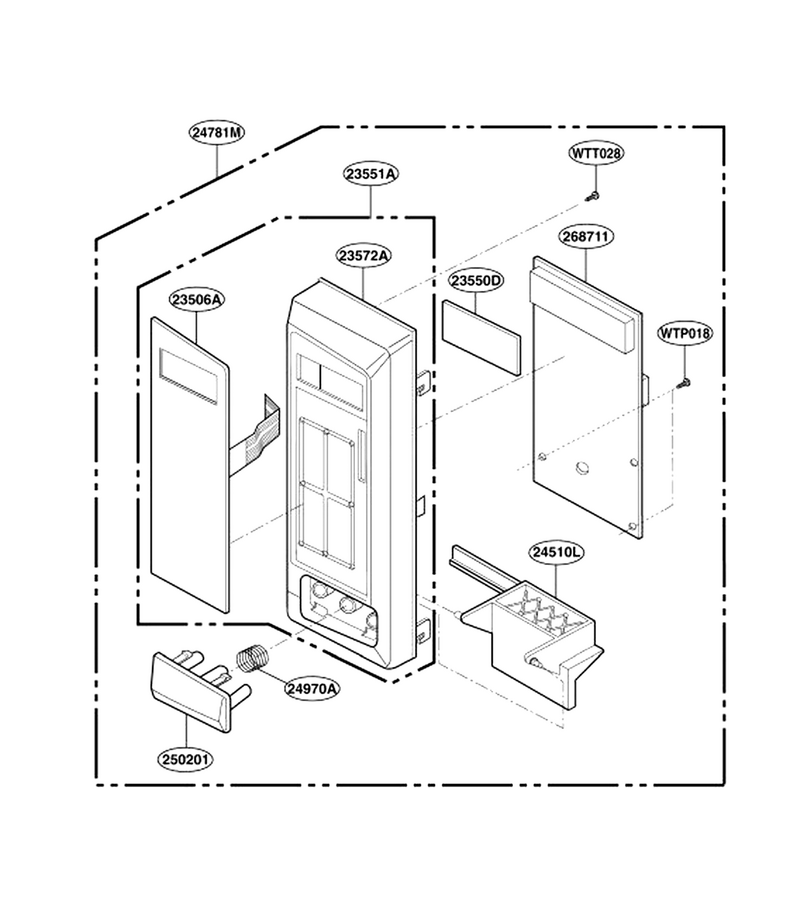

Control Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23506A
Membrane L-G-3506W1A181A
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Control Panel L-G-3572W0A204B
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assy,[micom] L-G-4781W1M240D
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
250201
Button L-G-5020W2A138C
...
268711
Pcb Assembly,sub L-G-6871W2S125U

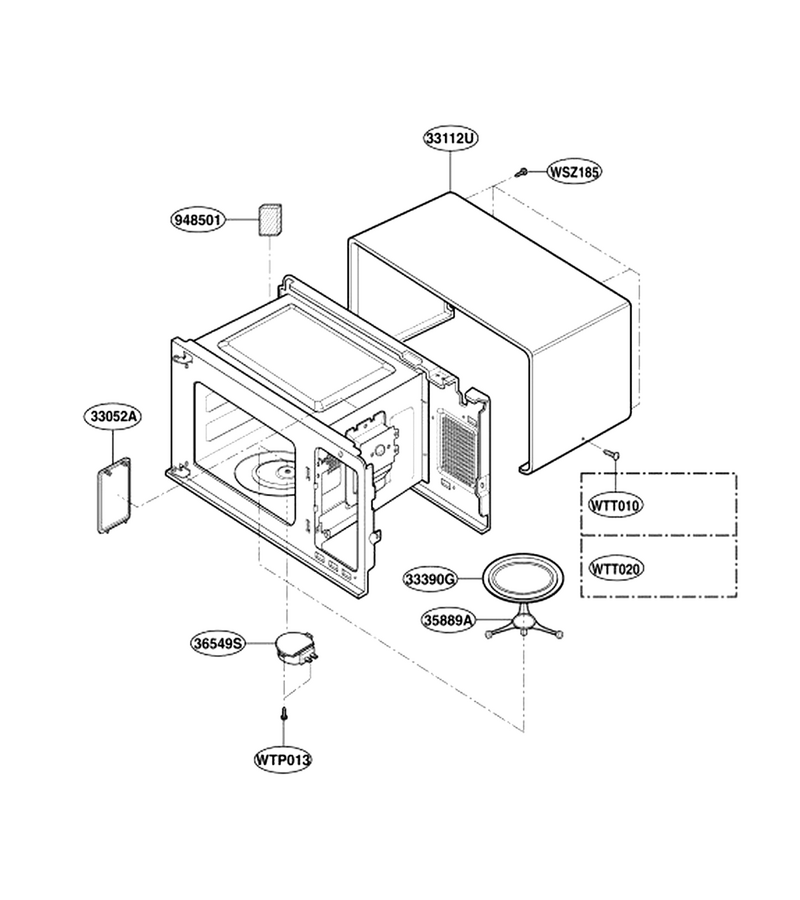

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Screw L-G-1TPL0402818
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052A
Canopy L-G-3052W2A021A
...
33112U
(33112u) Case,u Bending L-G-3112W1U037E
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004E
...
35889A
Microwave Turntable Tray Support L-G-5889W1A005B
...
36549S
Microwave Turntable Motor L-G-6549W1S011B
...
948501
Damper L-G-4850W1A001H

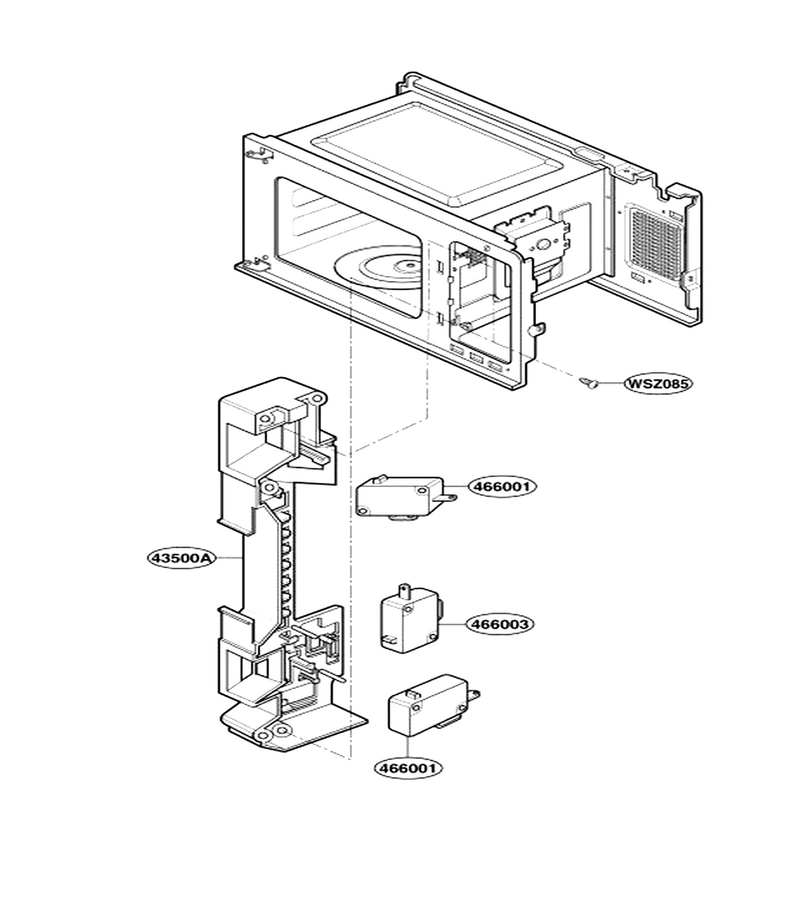

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Latch Board L-G-3500W1A008A
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

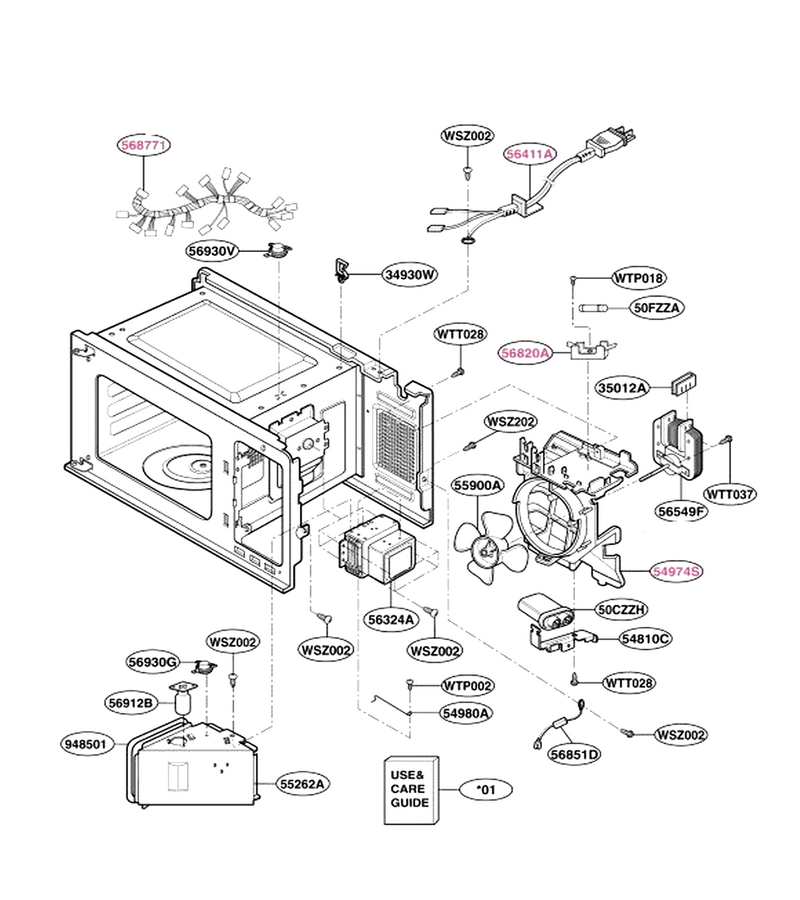

Interior Parts (i)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTP018
Screw L-G-1TPL0402818
...
WSZ202
Screw,customized L-G-1SZZW2A002D
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002J
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
35012A
Bracket L-G-4810W4C003B
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W1S010A
...
54980A
Supporter L-G-4980W3A038A
...
55262A
Air Duct L-G-5262W2A020A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-6411W1A018F
...
56549F
Motor L-G-6549W1F001E
...
56820A
Holder L-G-4930W3B025B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930G
Thermostat L-G-6930W1A002H
...
56930V
Thermostat L-G-6930WRT001C
...
568771
Harness,single L-G-6877W1A172A
...
948501
Damper L-G-4850W1A001H

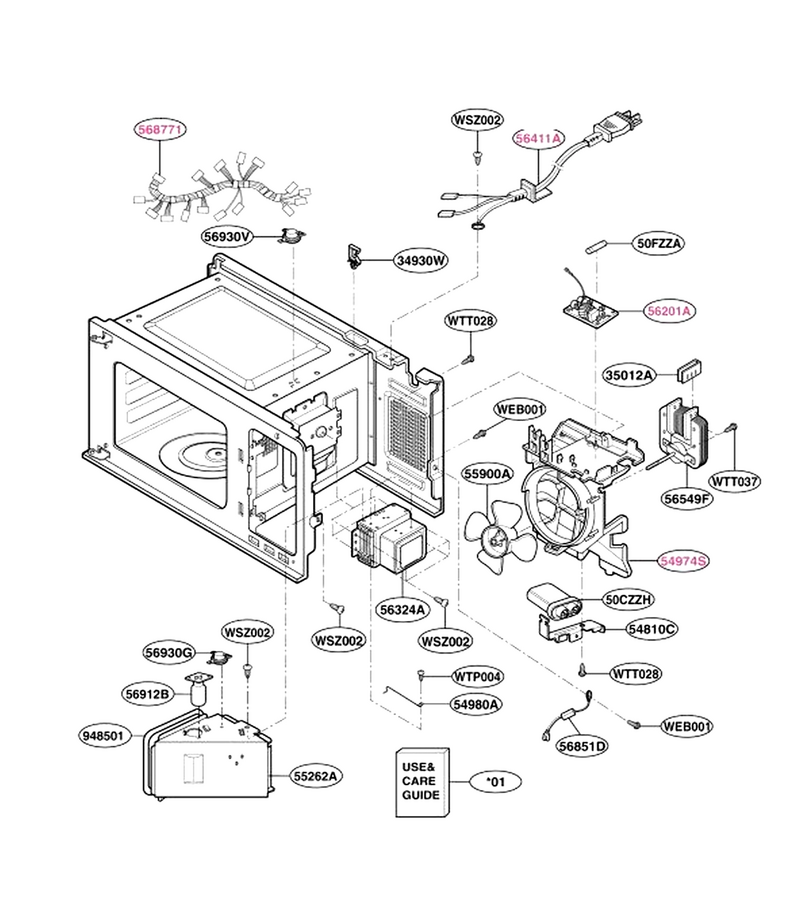

Interior Parts (ii)

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTP004
Screw L-G-1TPL0302418
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A003B
...
54980A
Supporter L-G-4980W3A038A
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A007B
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Power Cord Assembly L-G-6411W1A031J
...
56549F
Motor,ac Fan L-G-6549W1F009C
...
56851D
Cable,assembly L-G-6021W3B001G
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930G
Thermostat L-G-6930W1A002H
...
56930V
Thermostat L-G-6930W3A001J
...
568771
Harness,single L-G-6877W1A482A
...
948501
Damper L-G-4850W1A001H

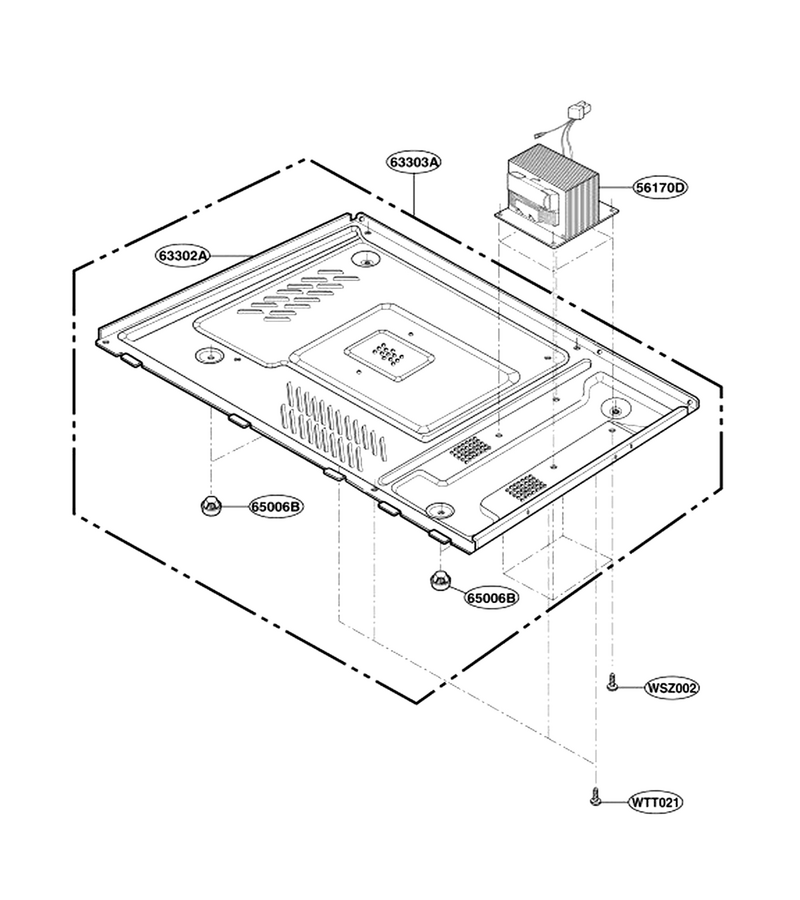

Base Plate Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
56170D
Transformer L-G-6170W1D023L
...
63302A
Microwave Base Plate Assembly L-G-3302W0A036B
...
63303A
Microwave Base Plate Assembly L-G-3303W0A019B
...
65006B
Microwave Foot (white) L-G-5006W3A019A

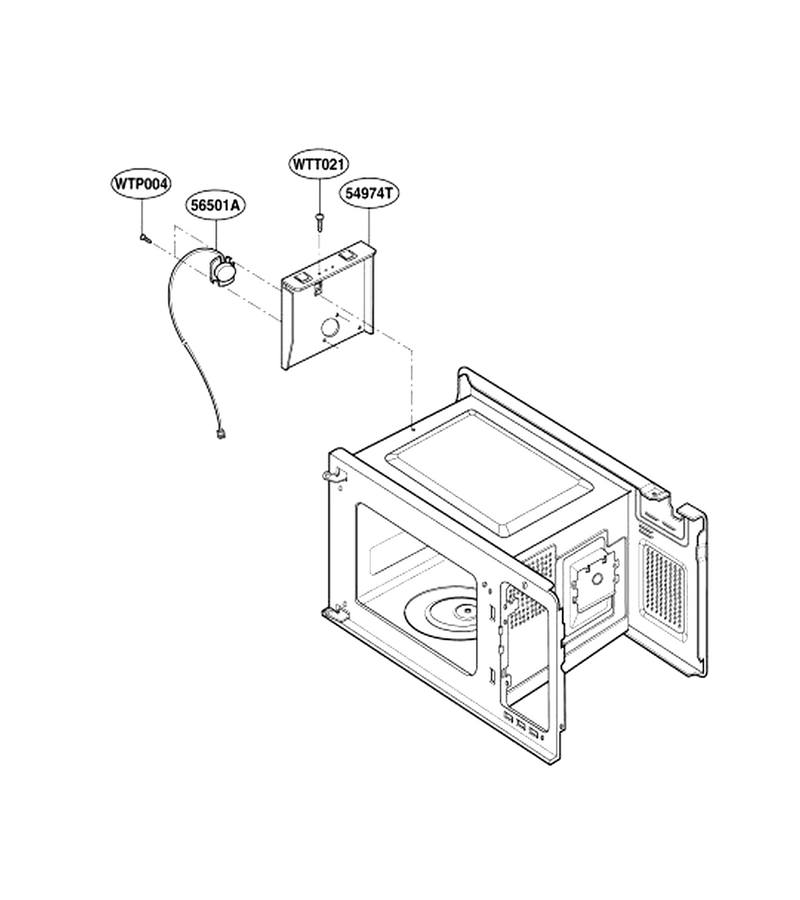

Sensor Parts

...
...
WTP004
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Bracket,sensor L-G-5208W1A004B
...
56501A
Microwave Humidity Sensor L-G-6501W1A006A
