LG HU161HA.U33.EWGBEEU

Model: HU161HA.U33.EWGBEEU

Save Part Not Listed?
product name

Popular Parts

Popular Parts

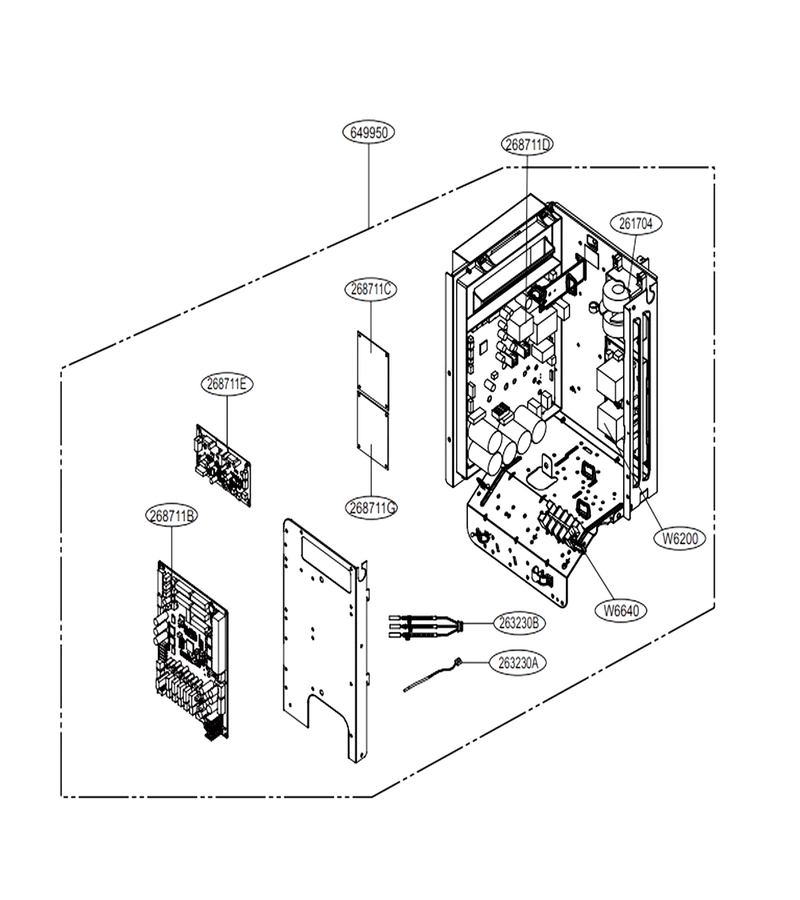

Outdoor Unit 1

...
...
W6200
Filter,ac Line L-G-EAM62791203
...
261704
Transformer,reactor L-G-EBJ61770406
...
263230A
Thermistor Assembly,ntc L-G-EBG61285701
...
263230B
Thermistor Assembly,ntc L-G-EBG61826501
...
268711B
Pcb Assembly,main L-G-EBR80272324
...
268711C
Pcb Assembly,sub L-G-EBR74374302
...
268711D
Pcb Assembly,inverter L-G-EBR75879423
...
268711E
Pcb Assembly,fan L-G-EBR79191502
...
268711G
Pcb Assembly,sub L-G-EBR74801101
...
649950
Case Assembly,control(outdoor) L-G-ABQ77442701

Outdoor Unit 2

...
...
135500
Cover L-G-MCK39626201
...
137213
Panel Assembly,side L-G-AGL34579157
...
237202
Panel,front L-G-MGC66162501
...
237204
Panel,side L-G-MGC39426001
...
237205
Panel,rear L-G-MGC39613704
...
430410
Base Assembly,outdoor L-G-AAN76528603
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131824
...
435513
Cover Assembly,tubing L-G-ACQ34583401
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578725
...
437212
Panel Assembly,rear(outdoor) L-G-AGL34577210
...
447910
Barrier Assembly,outdoor L-G-AAM35646444
...
546810B
Motor Assembly,dc,outdoor L-G-EAU62543704
...
546810A
Motor Assembly,dc,outdoor L-G-EAU62543703
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168813
...
550140B
Isolator L-G-4H00637A
...
554031
Condenser Assembly,bending L-G-ACG73706309
...
559010
Fan Assembly,propeller L-G-ADP75033301

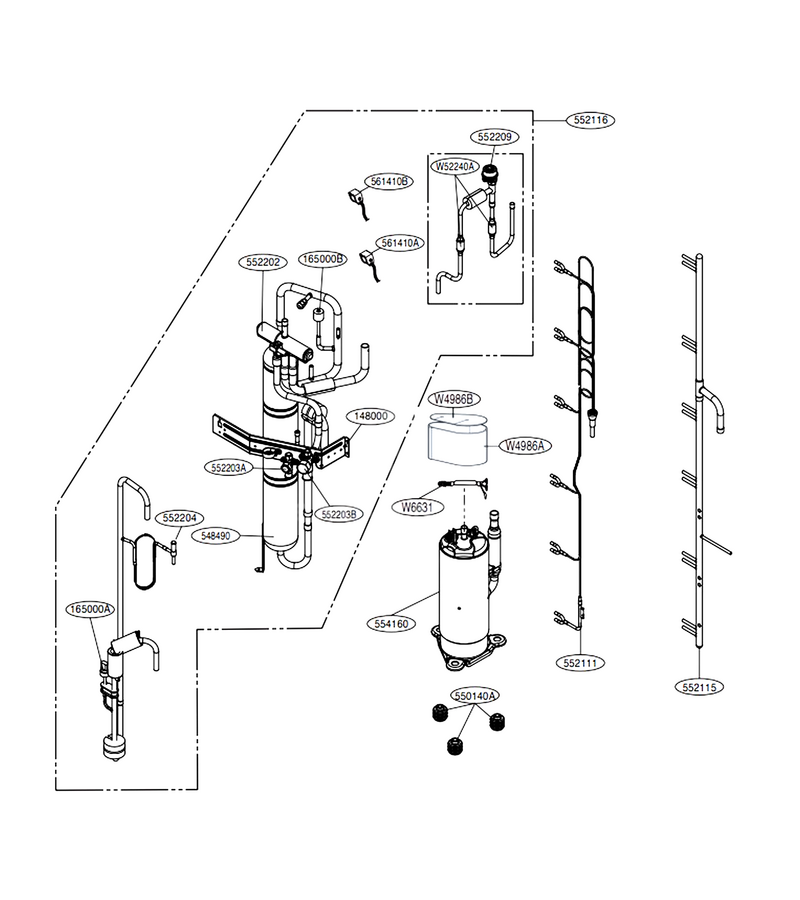

Outdoor Unit 3

...
...
W4986A
Sound Proof L-G-MMC00120707
...
W4986B
Sound Proof L-G-MMC00120714
...
W52240A
Mesh L-G-MFN62721711
...
W6631
Harness,multi L-G-EAD63768965
...
148000
Supporter L-G-MJH39544901
...
165000A
Sensor,pressure L-G-EBD60663824
...
165000B
Sensor,pressure L-G-EBD62165607
...
548490
Accumulator L-G-4848A20007S
...
550140A
Damper,rubber L-G-MCQ68888201
...
552111
Tube Assembly,capillary L-G-AJR73326714
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73326630
...
552116
Tube Assembly,reverse L-G-AJR76344206
...
552202
Valve,reverse L-G-MJX63491603
...
552203A
Valve,service L-G-MJX42581402
...
552203B
Valve,service L-G-MJX42581602
...
552204
Valve,solenoid L-G-5220A90008K
...
552209
Valve Assembly L-G-AJU36719731
...
554160
Compressor Set,korea L-G-TBZ38294401
...
561410A
Coil Assembly,reverse L-G-EAP64467706
...
561410B
Solenoid L-G-EBE60659006
