LG HM121M.U33.EWGBLAP

Model: HM121M.U33.EWGBLAP

Save Part Not Listed?
product name

Main

...
...
HNPS12
Harness,single L-G-EAD63468105
...
W4811
Bracket Assembly L-G-ABA74728704
...
W4986A
Sound Proof L-G-MMC00120713
...
W4986B
Sound Proof L-G-MMC00120712
...
W50010
Accessory Assembly,single L-G-AAA74511647
...
W52520A
Plate,tube L-G-MGJ39427801
...
W52520B
Plate,tube L-G-MGJ39621901
...
W6200
Pcb Assembly,filter L-G-EBR81792504
...
W6631
Harness,multi L-G-EAD63768954
...
55211GB
Tube Assembly,expansion L-G-AJR76502602
...
55211GA
Tube Assembly,expansion L-G-AJR76502601
...
137213
Panel Assembly,side L-G-AGL34579123
...
147780B
Leg L-G-MFA62683202
...
147780A
Leg L-G-MFA62683102
...
148382
Tank,expansion L-G-MJM63884602
...
152141
Hose,drain L-G-MEJ54166706
...
158580
Pump,water L-G-MGQ62321901
...
165020
Sensor,flow L-G-EBD62586401
...
237202
Panel,front L-G-MGC66162501
...
237204
Panel,side L-G-MGC39426001
...
237205
Panel,rear L-G-MGC39613737
...
249950
Case Assembly,control Box L-G-ABQ76661503
...
249951
Control (indoor) Case Assembly L-G-ABQ30054401
...
261704
Transformer,reactor L-G-EBJ61770406
...
263230A
Thermistor Assembly,ntc L-G-EBG61107326
...
263230J
Thermistor Assembly,ntc L-G-EBG61287707
...
263230I
Thermistor Assembly,ntc L-G-EBG61106549
...
263230H
Thermistor Assembly,ntc L-G-EBG61445812
...
263230G
Thermistor Assembly,ntc L-G-EBG61445905
...
263230F
Thermistor Assembly,ntc L-G-EBG61446002
...
263230E
Thermistor Assembly,ntc L-G-EBG61406004
...
263230D
Thermistor Assembly,ntc L-G-EBG61405903
...
263230C
Thermistor Assembly,ntc L-G-EBG61106546
...
263230B
Thermistor Assembly,ntc L-G-EBG61106555
...
265020
Gauge,pressure L-G-MKN50036802
...
267110
Remote Controller Assembly L-G-AKB74855311
...
268711B
Pcb Assembly,cycle(onboarding) L-G-EBR86560905
...
268711E
Pcb Assembly,sub L-G-EBR84073010
...
268711D
Pcb Assembly,main L-G-EBR79735908
...
268711A
Pcb Assembly,inv(onboarding) L-G-EBR82716240
...
268711C
Pcb Assembly,fan L-G-EBR79191502
...
340090
Exchanger Assembly L-G-ADM73210508
...
349001
Damper,vent L-G-MCQ49978902
...
430410
Base Assembly,outdoor L-G-AAN77008801
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ86618202
...
437211A
Panel Assembly,front(outdoor) L-G-AGL34578725
...
437211B
Panel Assembly,front(outdoor) L-G-AGL74256902
...
437212A
Panel Assembly,rear(outdoor) L-G-AGL74176907
...
437212B
Panel Assembly,rear(outdoor) L-G-AGL76512816
...
447910
Barrier Assembly,outdoor L-G-AAM35646417
...
546810A
Motor Assembly,dc,outdoor L-G-EAU62543703
...
546810B
Motor Assembly,dc,outdoor L-G-EAU62543704
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168813
...
550140
Damper,rubber L-G-MCQ68888201
...
552111
Tube Assembly,capillary L-G-AJR73326713
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73326623
...
552116
Tube Assembly,reverse L-G-AJR76462801
...
552117
Tube Assembly,suction(outdoor) L-G-AJR75062708
...
552120A
Tube Assembly L-G-AJR76462901
...
552120B
Tube Assembly L-G-AJR76483603
...
552200A
Valve,expansion Body L-G-MJX63991801
...
552200B
Valve,expansion Body L-G-5220A90013K
...
553000A
Heater,sump L-G-MEE31224802
...
554031A
Condenser Assembly,bending L-G-ACG73706309
...
554031B
Condenser Assembly,bending L-G-ACG73905117
...
554160
Compressor Set,korea L-G-TBZ38294501
...
559010
Fan Assembly,propeller L-G-ADP75033301
...
661400A
Coil,expansion L-G-EAP63107113
...
661400B
Coil,expansion L-G-EAP63107115
...
661400C
Coil,expansion L-G-EAP63107105

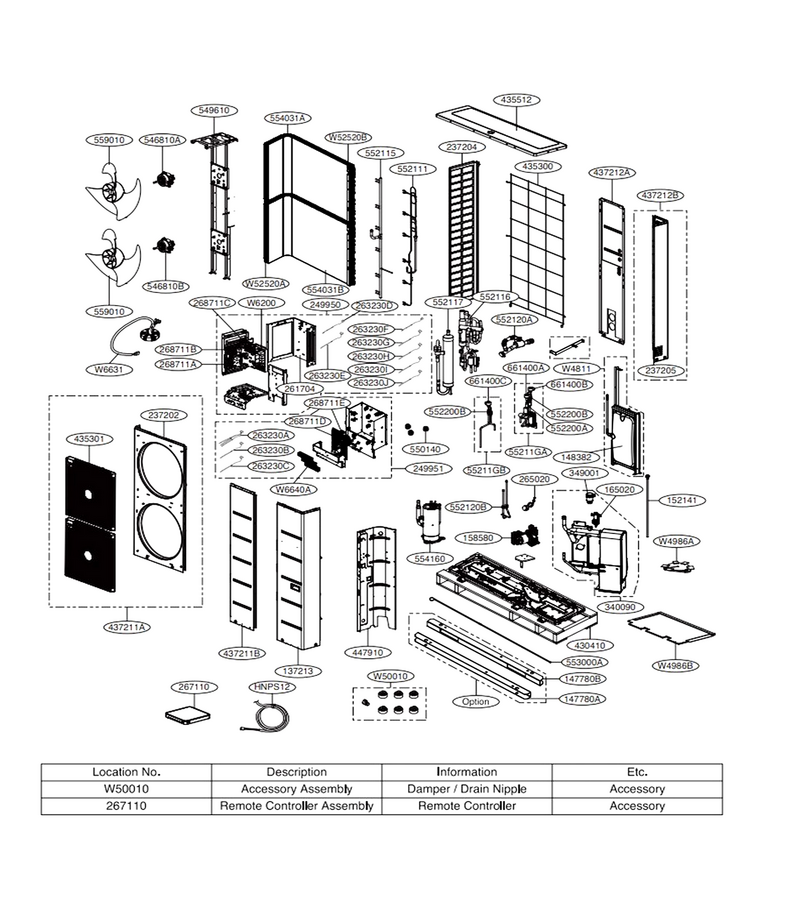

Schematic Image Zoomed
