LG HCED3015S.FSTELNA

Model: HCED3015S.FSTELNA

Save Part Not Listed?
product name

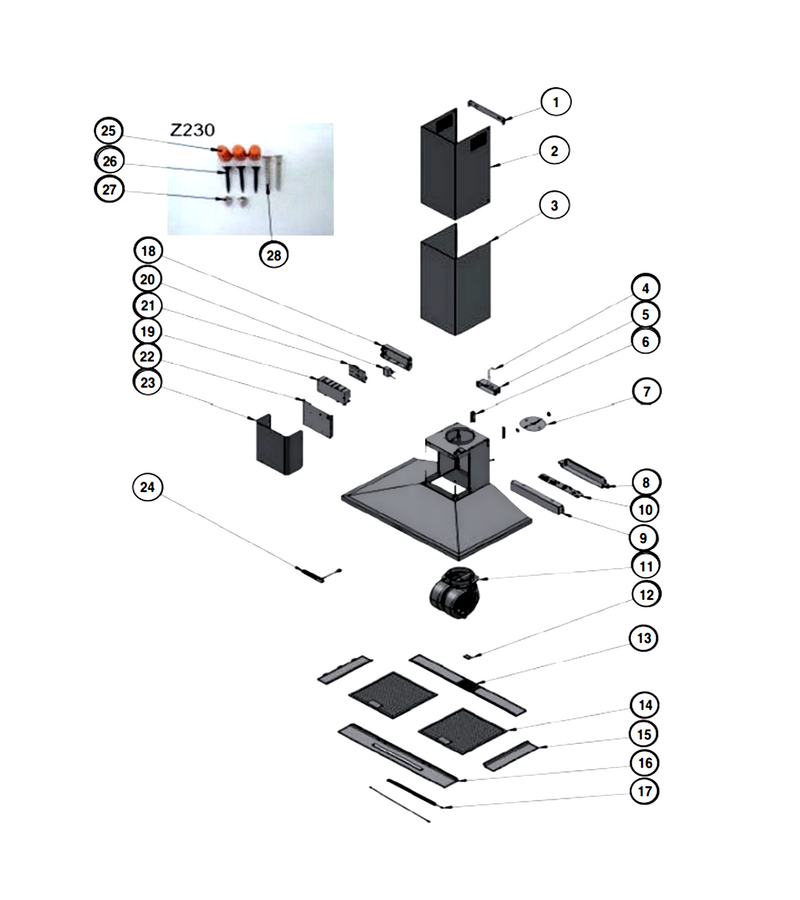

Main

...
...
1
Bracket,part L-G-EBZ63405036
...
2
Cover,part L-G-EBZ63405072
...
3
Part Lower Cover L-G-EBZ63405079
...
4
Power Cord,part L-G-EBZ63405039
...
5
Cover,part L-G-EBZ63405040
...
6
Bracket,part L-G-EBZ63405041
...
7
Bracket,part L-G-EBZ63405042
...
8
Supporter,pcb L-G-MJH64494701
...
9
Part Cover L-G-EBZ63405043
...
10
Pcb Assembly,main L-G-EBR82409905
...
11
Fan Assembly,blower,part L-G-EBZ63405044
...
12
Pcb Assembly,module L-G-EBR82056913
...
13
Part Rear Panel Assembly L-G-EBZ63405074
...
14
Filter,part L-G-EBZ63405046
...
16
Part Side Panel L-G-EBZ63405075
...
17
Part Lamp L-G-EBZ63405084
...
18
Cover,pcb,part L-G-EBZ63405048
...
19
Supporter,part L-G-EBZ63405049
...
20
Capacitor,part L-G-EBZ63405050
...
21
Pcb Assembly,main,part L-G-EBZ63405051
...
22
Bracket,part L-G-EBZ63405052
...
23
Cover,part L-G-EBZ63405053
...
24
Controller Assembly,part L-G-EBZ63405054
...
25
Nut,part L-G-EBZ63405021
...
26
Screw,part L-G-EBZ63405025
...
27
Screw,part L-G-EBZ63405055
...
28
Screw,part L-G-EBZ63405056
