LG HBLG2350E.AWYAHDP

Model: HBLG2350E.AWYAHDP

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
35211A
Tube Assembly, Suction Single L-G-5211A10094B
...
130410
Base Assembly,single L-G-3041A10010F
...
130910
Cabinet L-G-3091AR6056A
...
135303
Inlet Grille L-G-3530AR1604A
...
135312
Room Air Conditioner Front Grille Assembly L-G-3531A20073J
...
146812
Ac Motor L-G-2H01102K
...
147581A
Louver,verti L-G-4758AR7264A
...
147581B
Room Air Conditioner Louver L-G-4758AR7278A
...
147582
Louver,verti L-G-4758AR6157A
...
149980
Shroud L-G-4998AR1602A
...
152302
(15232) Filter Assembly,air Cleaner L-G-5231AR6159G
...
237200
Control Panel L-G-3720AR6163A
...
238310
Escutcheon L-G-3831A20032M
...
249950
Control Box Assembly, Single L-G-4995A20286A
...
263230
Thermistor L-G-6323A20003D
...
264110
Power Cord L-G-2H00677U
...
267110
Remote Controller Assembly L-G-6711A90028D
...
268711B
Control Board L-G-6871A20188J
...
268711A
Control Board L-G-6871A20195A
...
346811
Fan Motor L-G-4681A20011L
...
349001
Damper L-G-4900AR7265A
...
349480
Orifice L-G-4948A20014A
...
349600
(349600) Bracket,motor L-G-4960AR2895B
...
352111
Tube Assembly, Condenser Out L-G-5211A10067F
...
352113
Tube Assembly, Discharge Single L-G-5211A30325D
...
352390
Air Guide L-G-5239A20001S
...
354210
Evaporator Assembly, First L-G-5421A90005E
...
359012
Turbo Fan L-G-5901A20009A
...
552102
Tube L-G-5211A30296E
...
554031
Condenser Assembly, Bent L-G-5403A20032F
...
554160
Compressor L-G-2520UHFK2CA

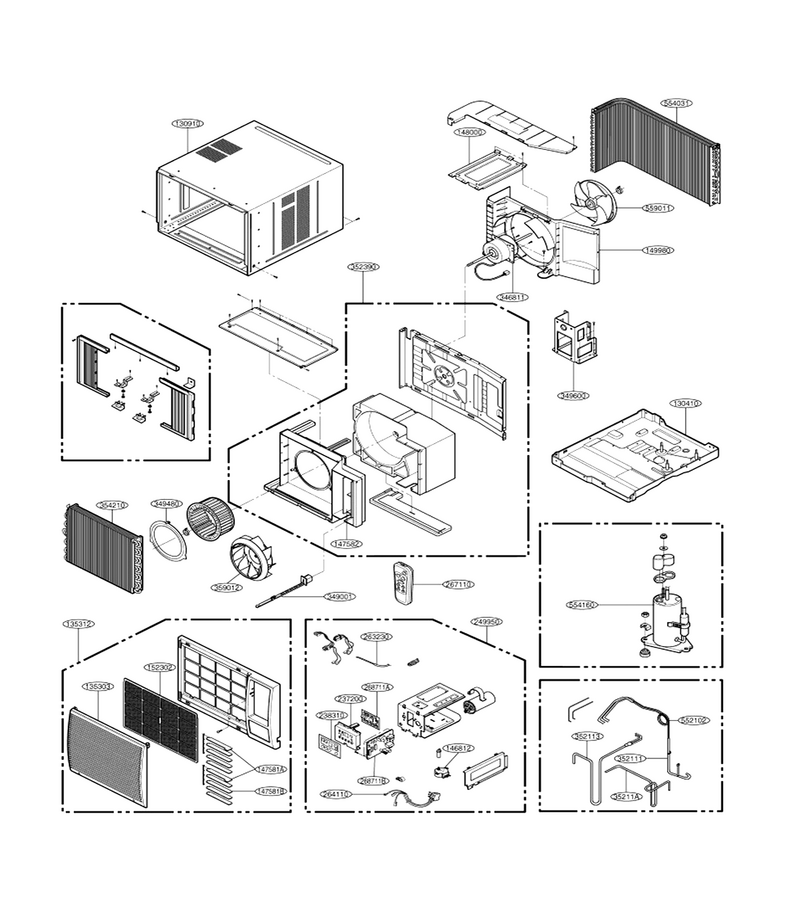

Schematic Image Zoomed
