product name

LG HBLG1803R.AWYAUSH

Model: HBLG1803R.AWYAUSH

Save Part Not Listed?
product name

Main

...
...
W52106-1
(352115-1) Tube,form L-G-5210A21099E
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932C
...
35211A
Suction Tub L-G-5211A20441A
...
130410
Base Assembly L-G-3041A20023D
...
130910
Cabinet L-G-3091AR6057E
...
135303
(135314) Grille,inlet L-G-3530A10146A
...
135312
Grille Assembly L-G-3531A10201A
...
135500
Cover L-G-3550A30122A
...
147581
Vane L-G-4758A30022A
...
147582-1
Room Air Conditioner Louver L-G-4758A20042A
...
147582-2
4758a20042b L-G-4758A20042B
...
148000
Brace L-G-4800A20001A
...
149980
Shroud L-G-4998A10013A
...
152302
Air Filter L-G-5231A20008A
...
237200
Room Air Conditioner Electronic Control Board L-G-3720A10112A
...
238310
Escutcheon L-G-3831A10021F
...
249950
Control Board L-G-4995A20194Y
...
263230
Room Air Conditioner Thermistor L-G-6323A20004E
...
264110
Power Cord L-G-6411A20011K
...
267110
Room Air Conditioner Remote Control L-G-6711A90019C
...
268712
Room Air Conditioner Display Board L-G-6871A20167D
...
268714
Control Board L-G-6871A20325A
...
346811
Motor L-G-4681A20011M
...
349001
Damper L-G-4900A20004A
...
349480
Orifice L-G-4948A30008A
...
349600
(349600) Bracket,motor L-G-4960AR2895B
...
352111
Tube, Capillary Bend L-G-5210A20492R
...
352113
Room Air Conditioner Discharge Line L-G-5211A30066N
...
352390-1
Air Guide L-G-5239A20002A
...
352390-2
Air Guide L-G-5239A20003A
...
354210
Evaperator L-G-5421A20091C
...
359012
Turbo Fan L-G-5901A20009A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
554031
Condenser L-G-5403A20062B
...
554160
Room Air Conditioner Compressor Grommet L-G-2520UMKK2AA
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5901A20010A
...
567502
Protector L-G-6750U-L016A

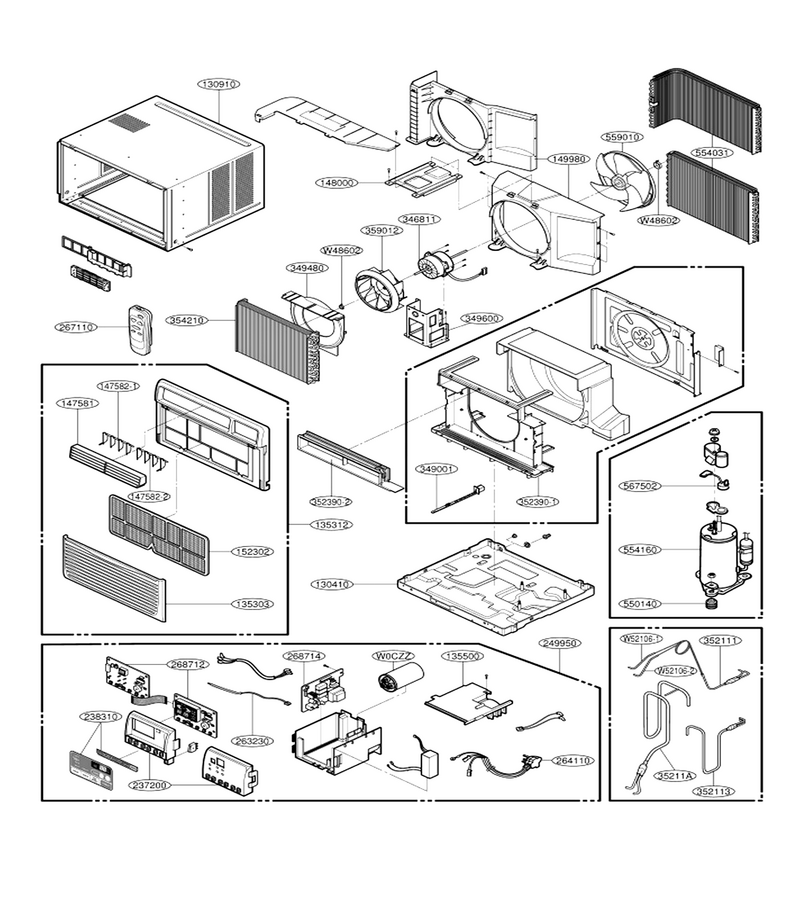

Schematic Image Zoomed
