LG HBLG1203R.AWYAUSH

Model: HBLG1203R.AWYAUSH

Save Part Not Listed?
product name

Main

...
...
35211A
Capillary Tube L-G-5211A30275P
...
130410
Base L-G-3041A20020L
...
130910
Cabinet L-G-3091A10032M
...
135312
Grille Assembly L-G-3531A20161A
...
135313
Inlet Grille L-G-3530A20076A
...
135500
Cover L-G-3550A30114A
...
147581
Vane L-G-4758A20018A
...
147582
Louver L-G-4758A20041A
...
152302
Room Air Conditioner Air Filter L-G-5231A20007A
...
237200
Control Panel L-G-3720A10111A
...
238310
Escutcheon L-G-3831A10021E
...
249950
Control Board L-G-4995A20194X
...
263230
Room Air Conditioner Thermistor L-G-6323A20004D
...
264110
Power Cord L-G-6411A20011H
...
267110
Room Air Conditioner Remote Control L-G-6711A90019C
...
268712
Control Board L-G-6871A20324A
...
268714
Control Board L-G-6871A20167C
...
346811
Room Air Conditioner Fan Motor L-G-4681A20069J
...
352113
Tube L-G-5211A10074K
...
352115
Evaporator Tube L-G-5211A20559N
...
354212
Evaporator Assembly,first L-G-5421A90071A
...
550140
Bushing L-G-4830AR4335A
...
554030
Condenser L-G-5403AR2921H
...
554160
Compressor L-G-2520UKFC2AA
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B
...
559012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20019C
...
567502
Overload Protector L-G-6750U-L029A

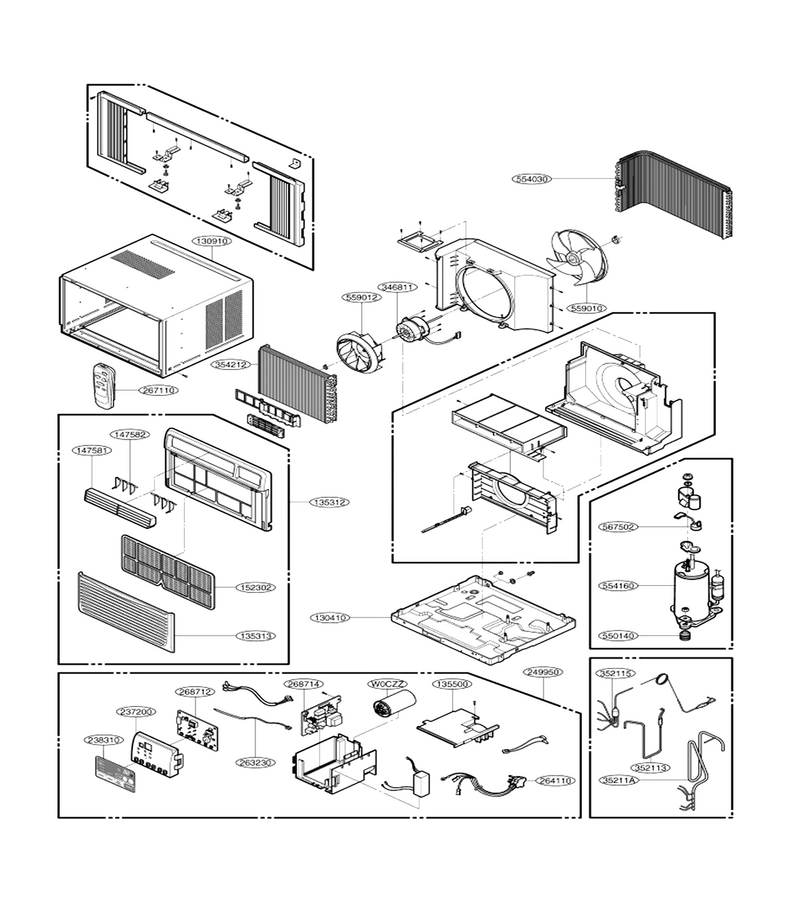

Schematic Image Zoomed
