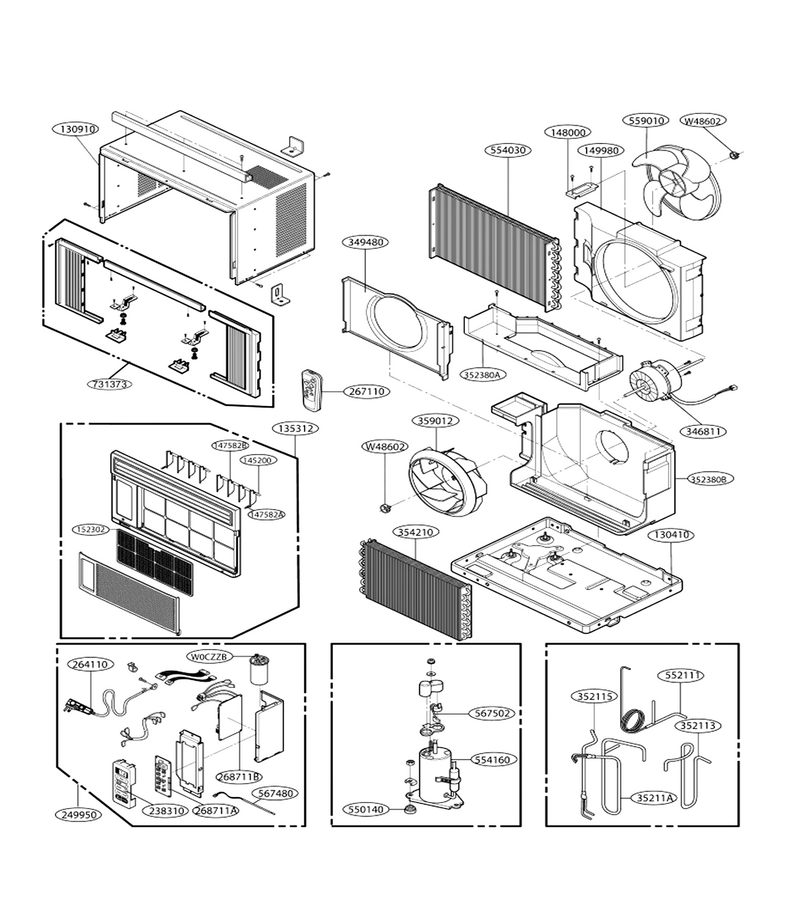

LG GWHD6507R.AWYAHDP

Model: GWHD6507R.AWYAHDP

Save Part Not Listed?
product name

Main

...
...
W0CZZB
Capacitor L-G-6120AR2359V
...
35211A
Tube Assembly, Suction Single L-G-5211A30874A
...
130410
Base L-G-3041A20093A
...
130910
Cabinet Assembly L-G-3091A30016C
...
135312
Front Grille Assembly L-G-AEB32262701
...
145200
Holder L-G-4520AR3191A
...
147582A
Vane L-G-5990AR3190C
...
147582B
Vane L-G-5990AR3190D
...
148000
Brace L-G-4800A30003A
...
149980
Shroud L-G-4998A10008A
...
152302
Room Air Conditioner Air Filter L-G-5231AR2148G
...
237200
Control Panel L-G-3720A20017A
...
238310
Escutcheon L-G-MDD36247201
...
249950
Control Assembly L-G-ABQ32211801
...
264110
Room Air Conditioner Power Cord L-G-6411A20048V
...
267110
Remote L-G-6711A90019A
...
268711B
Control Board L-G-6871A20188L
...
268711A
Control Board L-G-6871A20193B
...
346811
Motor Assembly, Single L-G-4681A10002U
...
349480
Orifice L-G-4948A10007A
...
352113
Tube L-G-5210A21100A
...
352115
Tube L-G-5211A10063C
...
352380A
Guide L-G-5238A20004B
...
352380B
Air Guide L-G-5238A20003A
...
354210
Room Air Conditioner Evaporator Coil Assembly L-G-5421A20016G
...
359012
Turbo Fan L-G-5900A10005A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552111
Capillary Tube Assembly L-G-5211A30793D
...
554030
Condenser L-G-5403A20009E
...
554160
Compressor L-G-2520AA1C71A
...
559010
Propeller L-G-5900A20017A
...
567480
Thermistor L-G-6323A20003D
...
567502
O.l.p L-G-6750A90016A
...
731373
Room Air Conditioner Accordion Filler Kit L-G-3127A20016B
