LG GT4175SPB.CBKEWRP

Model: GT4175SPB.CBKEWRP

Save Part Not Listed?
product name

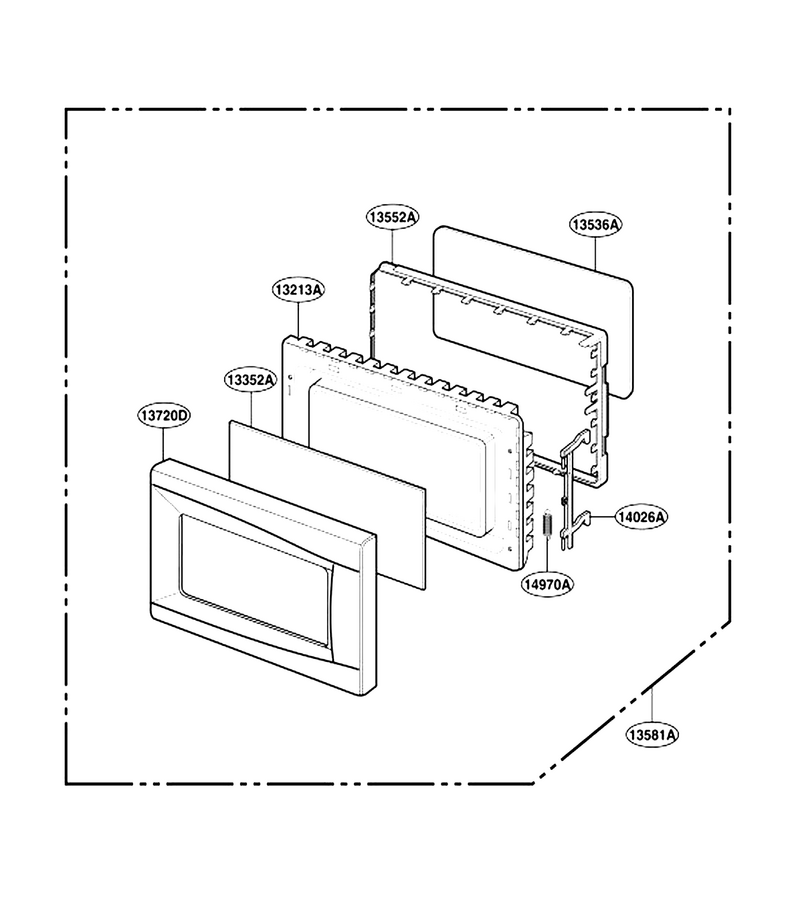

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W0A006D
...
13352A
Window,screen L-G-3352W1A141A
...
13536A
Tape,sealing L-G-3536W1A005A
...
13552A
Cover,choke L-G-3552W0A006B
...
13581A
Door Assembly L-G-3581W1A392J
...
13720D
Panel,door L-G-3720W0D316G
...
14026A
Latch L-G-4026W2A016A
...
14970A
Spring L-G-4970WRA001D

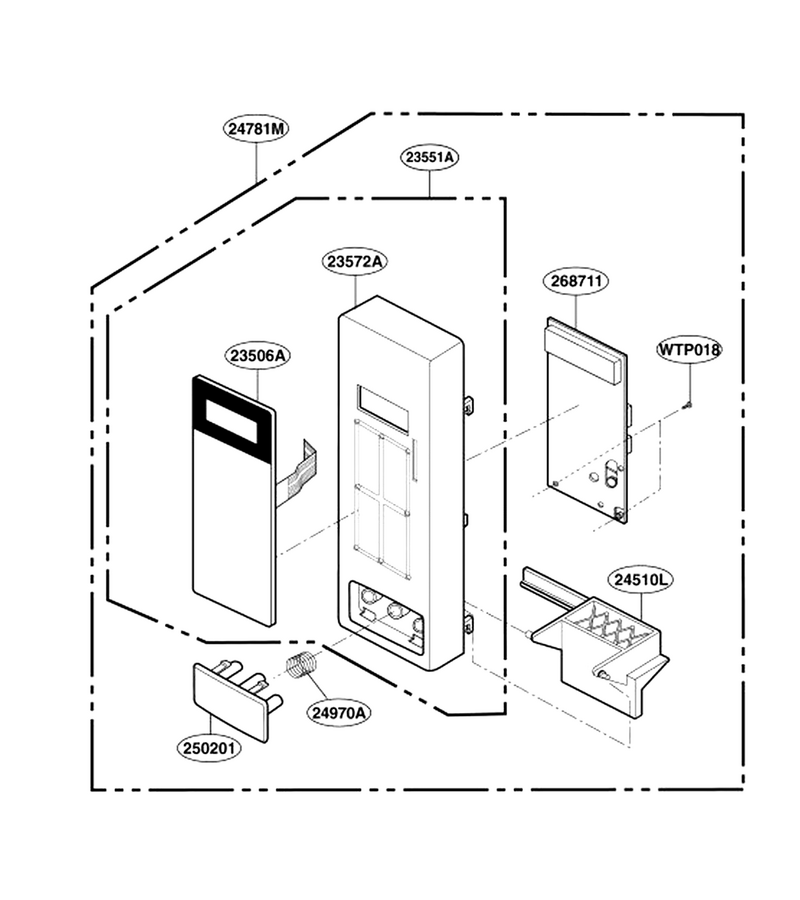

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-3506W1A643B
...
23551A
Parts Assembly L-G-383EW5A236L
...
23572A
Panel,control L-G-3720W0C150B
...
24510L
Lever,release L-G-MFC41909501
...
24781M
Controller Assembly,keypad L-G-4781W1M340K
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
250201
Button L-G-5020W1A184B
...
268711
Pcb Assembly,sub L-G-6871W1S197J

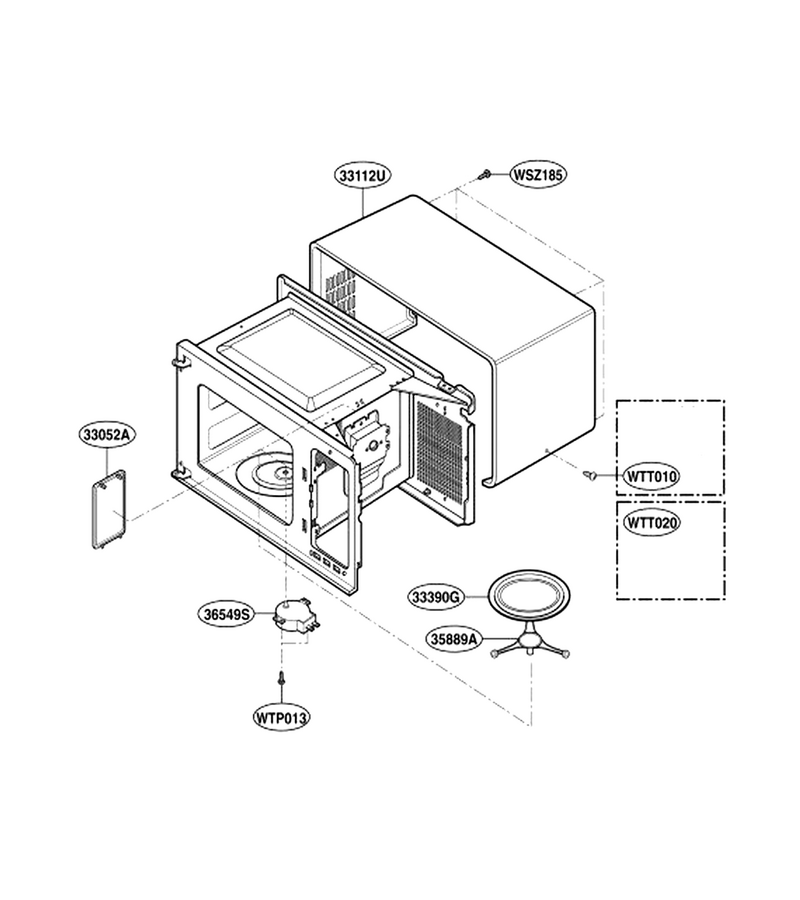

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Screw L-G-1TTL0402416
...
WTT020
Screw L-G-1TTL0402416
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Case,u Bending L-G-3112W1U036K
...
33390G
Microwave Glass Tray L-G-3390W1A012D
...
35889A
Microwave Turntable Tray Support L-G-5889W1A003B
...
36549S
Microwave Turntable Motor L-G-6549W1S011B

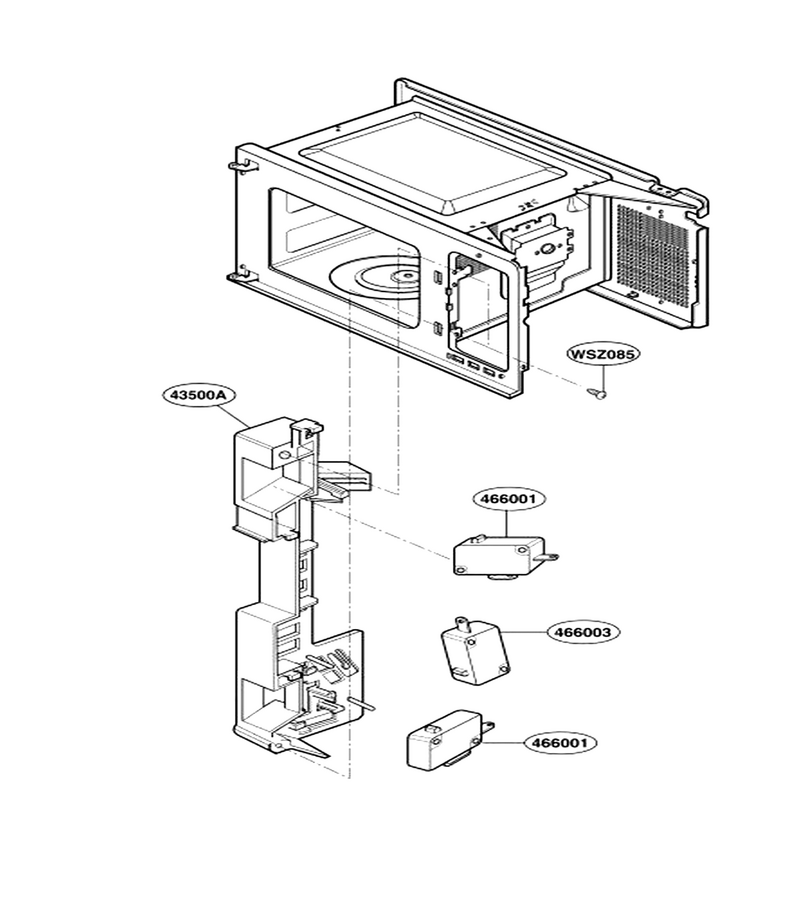

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Board L-G-3500W1A018A
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

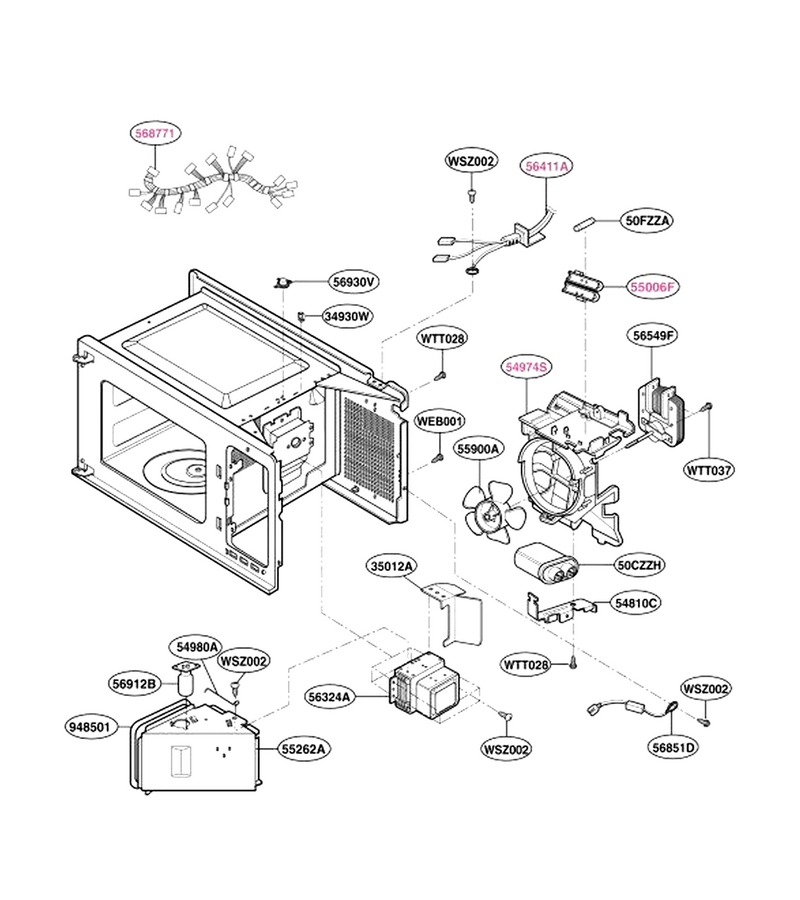

Interior Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A003B
...
54980A
Supporter L-G-4980W3A038B
...
55006F
Cap Fuse L-G-5006WRA002D
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A007B
...
56324A
Microwave Magnetron L-G-6324W1A001A
...
56411A
Power Cord Assembly L-G-6411W1A031E
...
56549F
Motor,ac Fan L-G-6549W1F009C
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930W1A003A
...
568771
Harness,single L-G-6877W1A506B
...
948501
Damper L-G-4850W1A001H

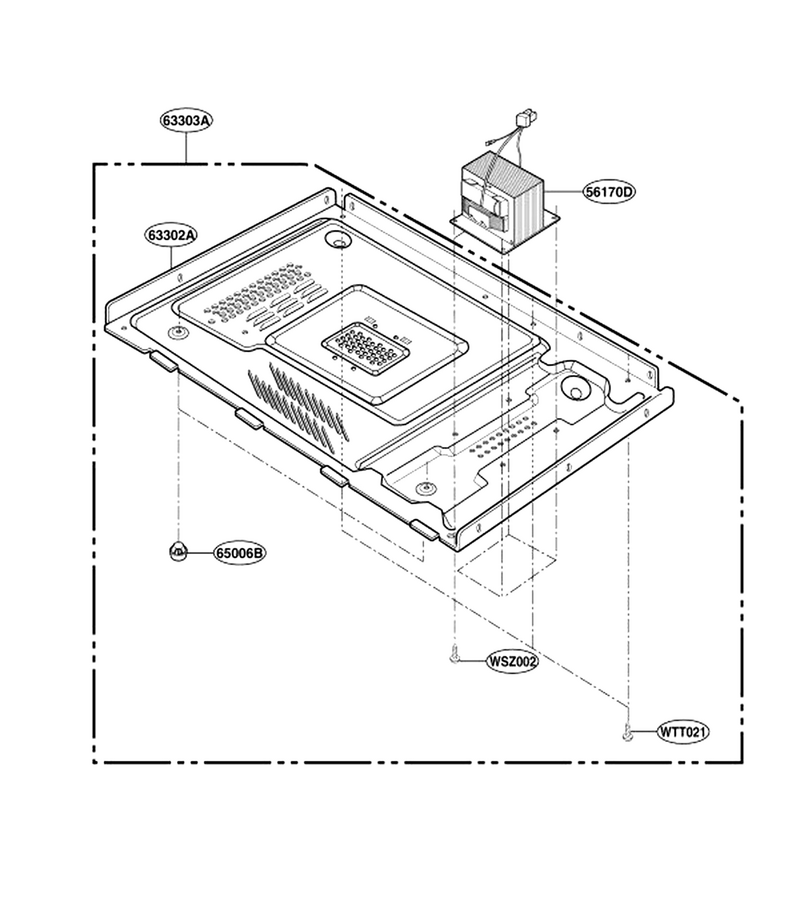

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D077E
...
63302A
Plate,base L-G-3302W0A035B
...
63303A
Plate Assembly,base L-G-3303W0A017C
...
65006B
Microwave Foot (white) L-G-5006W3A019A

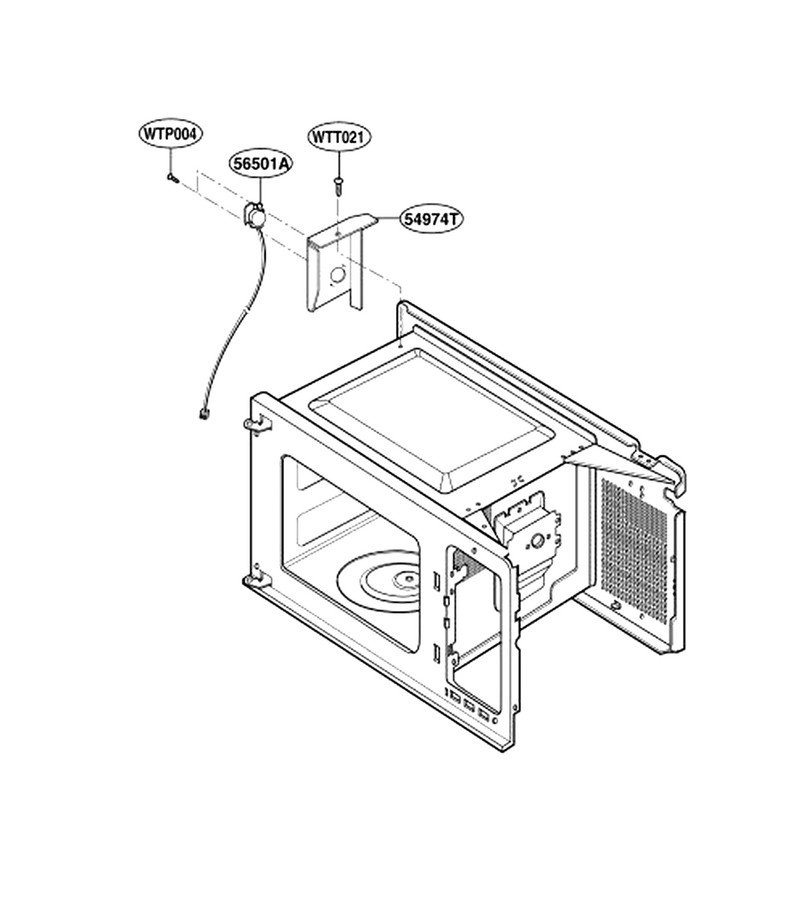

Sensor Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Duct L-G-5208W1A014B
...
56501A
Microwave Humidity Sensor L-G-6501W1A006A
