LG GR-K243UG.AWNCSJA

Model: GR-K243UG.AWNCSJA

Save Part Not Listed?
product name

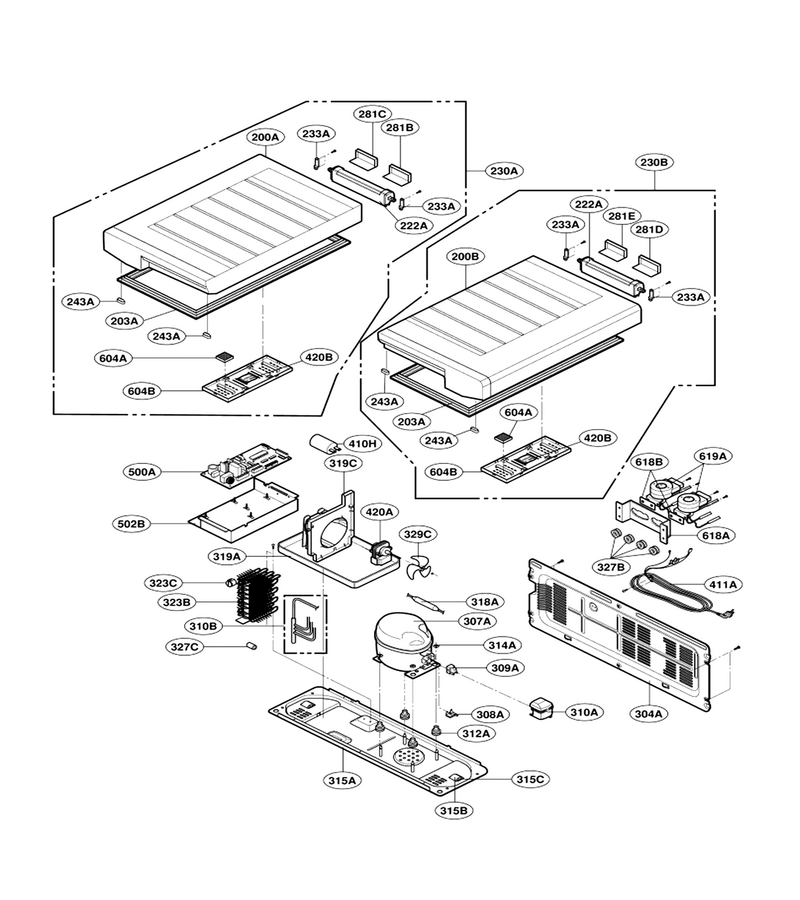

Main (i)

...
...
200A
Door Foam Assembly,freezer L-G-5433JA0210F
...
200B
Door Foam Assembly,refrigerator L-G-5433JA0206H
...
203A
Gasket Assembly,door L-G-4987JA1023B
...
222A
Hinge Assembly L-G-4775JA1008R
...
230A
Door Assembly,refrigerator L-G-ADC30779212
...
230B
Door Assembly,refrigerator L-G-ADC30779223
...
233A
Bracket,cover L-G-4810JA3136A
...
243A
Cover,lead Wire L-G-MCK30268701
...
281B
Cap,hinge L-G-MBL30229302
...
281C
Cap,hinge L-G-5006JA2064C
...
281D
Cap,hinge L-G-5006JA2064D
...
281E
Cap,hinge L-G-MBL30229301
...
304A
Cover Assembly,machinery(rear) L-G-3551JA1076B
...
307A
Compressor,set Assembly L-G-2521C-A5721
...
308A
Refrigerator Compressor Overload Protector L-G-6750C-0005D
...
309A
Thermistor Assembly,ptc L-G-6748C-0001B
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
310B
Pipe Assembly,joint L-G-5201JA1099D
...
312A
Rubber,sea L-G-5040JA3035A
...
314A
Stopper L-G-4J03277A
...
315C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
315A
Base Assembly,compressor L-G-3103JA1038A
...
315B
Refrigerator Compressor Base Roller Wheel L-G-3J02312A
...
318A
Drier Assembly L-G-5851JA2005E
...
319A
Tray,drip L-G-3390JA0027B
...
319C
Guide,fan L-G-4974JA1093B
...
323B
Condenser Assembly,wire L-G-5403JA1056A
...
323C
Refrigerator Drain Cap L-G-5006JA3049A
...
327B
Refrigerator Damper L-G-5040JA3063A
...
327C
Rubber, Damping L-G-4J04328A
...
329C
Refrigerator Fan Assembly L-G-5901JA1013A
...
410H
Refrigerator Run Capacitor L-G-J513-00012P
...
411A
Power Cord Assembly L-G-6411JB2025V
...
420A
Motor,ac L-G-4680JB1035U
...
420B
Cooling Pack L-G-3005JA3001B
...
500A
Pcb Assembly,main L-G-6871JB1246N
...
502B
Case,pcb L-G-3110JA1100B
...
604A
Deodorizer L-G-5986JA2004B
...
604B
Cover,deodorizer L-G-MCK31780202
...
618A
Bracket,motor L-G-4810JA2109A
...
618B
Bracket,valve L-G-4810JA3174A

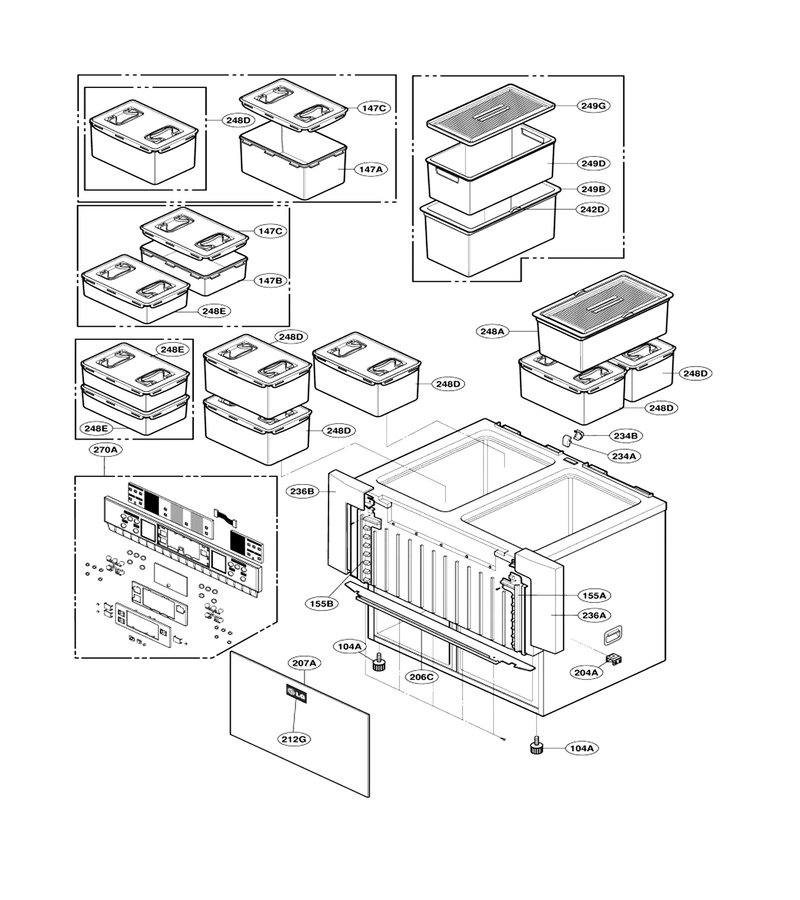

Main (ii)

...
...
104A
Leg,adjust L-G-4778JA2016A
...
147C
Cover Assembly,bucket L-G-3551JA1053G
...
147A
Bucket,side Dish L-G-5074JA1044C
...
147B
Bucket,side Dish L-G-5074JA1062B
...
155B
Supporter,panel L-G-4980JA2095D
...
155A
Supporter,panel L-G-4980JA2095C
...
204A
Holder Assembly,bracket L-G-AEJ30582701
...
206C
Cap,decor Refrigerator L-G-5078JA2047M
...
207A
Decor,glass Door L-G-MCR32155113
...
212G
Refrigerator Mark L-G-3846JD1007B
...
234A
Cover,lead Wire L-G-MCK30268701
...
234B
Cover,lead Wire L-G-MCK30268601
...
236A
Decor,case L-G-3806JA1176L
...
236B
Decor,case L-G-3806JA1176M
...
242D
Handle,refrigerator L-G-MEB30203401
...
248A
Basket Assembly,door L-G-5005JA1013V
...
248E
Bucket Assembly,side Dish L-G-5075JA1025N
...
248D
Bucket Assembly,side Dish L-G-5075JA1025M
...
249B
Basket,door L-G-5004JA1148C
...
249D
Basket,door L-G-5004JA1150D
...
249G
Basket Assembly,door L-G-AAP30653901
...
270A
Frame Assembly,display L-G-ADV30692103

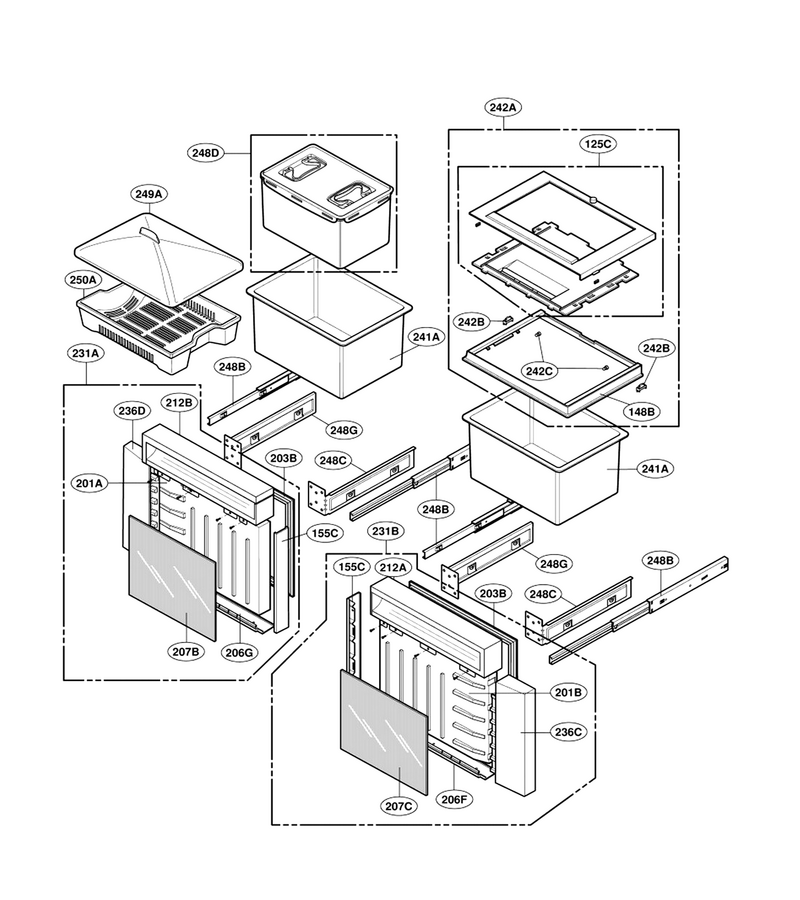

Main (iii)

...
...
125C
Door Assembly,fresh Room L-G-ADC30696701
...
148B
Cover,tray L-G-MCK30274601
...
155C
Cap,decor Refrigerator L-G-5078JA2049Q
...
201B
Door Foam Assembly,refrigerator L-G-5433JA1155J
...
201A
Door Foam Assembly,refrigerator L-G-5433JA1156J
...
203B
Gasket Assembly,door L-G-4987JA1023B
...
206F
Cap,decor Refrigerator L-G-5078JA2048E
...
206G
Cap,decor Refrigerator L-G-5078JA2048F
...
207B
Decor,glass Door L-G-MCR32155115
...
207C
Decor,glass Door L-G-MCR32155118
...
212A
Handle Assembly,base L-G-AED30709901
...
212B
Handle Assembly,base L-G-AED30711001
...
231A
Door Assembly,semi Refrigerator L-G-ADC30708706
...
231B
Door Assembly,semi Refrigerator L-G-ADC30708606
...
236C
Decor,door L-G-3806JA1181G
...
236D
Decor,door L-G-3806JA1181H
...
241A
Basket,door L-G-5004JA1207B
...
242A
Cover Assembly,bucket L-G-ACQ30697301
...
242B
Roller L-G-MHA30275101
...
242C
Refrigerator Door Bin Cover Bumper L-G-5040JA3033B
...
248B
Handle,refrigerator L-G-MEB30203401
...
248C
Guide,drawer L-G-4974JA1095B
...
248D
Bucket Assembly,side Dish L-G-5075JA1025M
...
248G
Guide,drawer L-G-4974JA1095A
...
249A
Cover,bucket L-G-3550JA2274A
...
250A
Tray,drawer L-G-3390JA1241B
