product name

LG GR-K192UF.AMGCGCR

Model: GR-K192UF.AMGCGCR

Save Part Not Listed?
product name

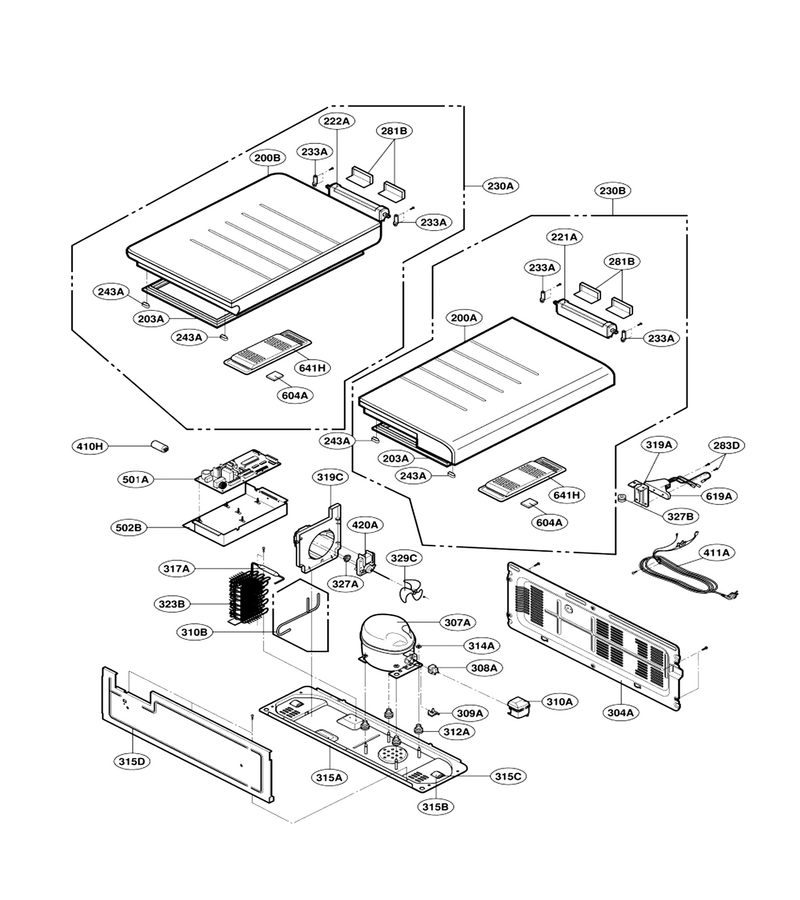

Main (i)

...
...
200A
Door Foam Assembly,refrigerator L-G-ADD34196702
...
200B
Door Foam Assembly L-G-ADD34146302
...
203A
Gasket Assembly,door L-G-4987JA2010M
...
221A
Hinge Assembly L-G-AEH35172805
...
222A
Hinge Assembly L-G-AEH35172805
...
230A
Door Assembly,refrigerator(left) L-G-ADC34265502
...
230B
Door Assembly,refrigerator(right) L-G-ADC34265402
...
233A
Bracket,cover L-G-4810JA3136A
...
243A
Stopper,door L-G-MJB41346102
...
281B
Cap,hinge L-G-MBL39494302
...
283D
Refrigerator Screw L-G-4J01424A
...
304A
Cover,machinery(rear) L-G-3550JA1248A
...
307A
Compressor,set Assembly L-G-2521C-A5721
...
309A
Overload Protect L-G-6750C-0005Q
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
310B
Pipe Assembly,joint L-G-5201JA2049A
...
312A
Refrigerator Compressor Damper L-G-5040JA3074A
...
314A
Stopper L-G-4J03277A
...
315A
Base Assembly,compressor L-G-3103JA1031A
...
315B
Refrigerator Compressor Base Roller Wheel L-G-3J02312A
...
315C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
315D
Plate Assembly,bottom L-G-3305JA2024C
...
317A
Drier Assembly L-G-5851JA2007W
...
319C
Bracket,motor L-G-4810JA1030B
...
319A
Bracket. 3 L-G-4810JA3054A
...
323B
Condenser Assembly,wire L-G-5403JA1059A
...
327A
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
327B
Refrigerator Damper L-G-5040JA3063A
...
329C
Refrigerator Fan Assembly L-G-5901JA1013A
...
410H
Refrigerator Run Capacitor L-G-J513-00012P
...
411A
Power Cord Assembly L-G-6411JB2025S
...
420A
Motor,ac L-G-4680JB1035S
...
501A
Pcb Assembly,main L-G-EBR32872217
...
502B
Case,pcb L-G-3110JA1028A
...
604A
Deodorizer L-G-5986JA2004B
...
619A
Valve Assembly,gas L-G-5221JB1001B
...
641H
Cover,deodorizer L-G-MCK30449801

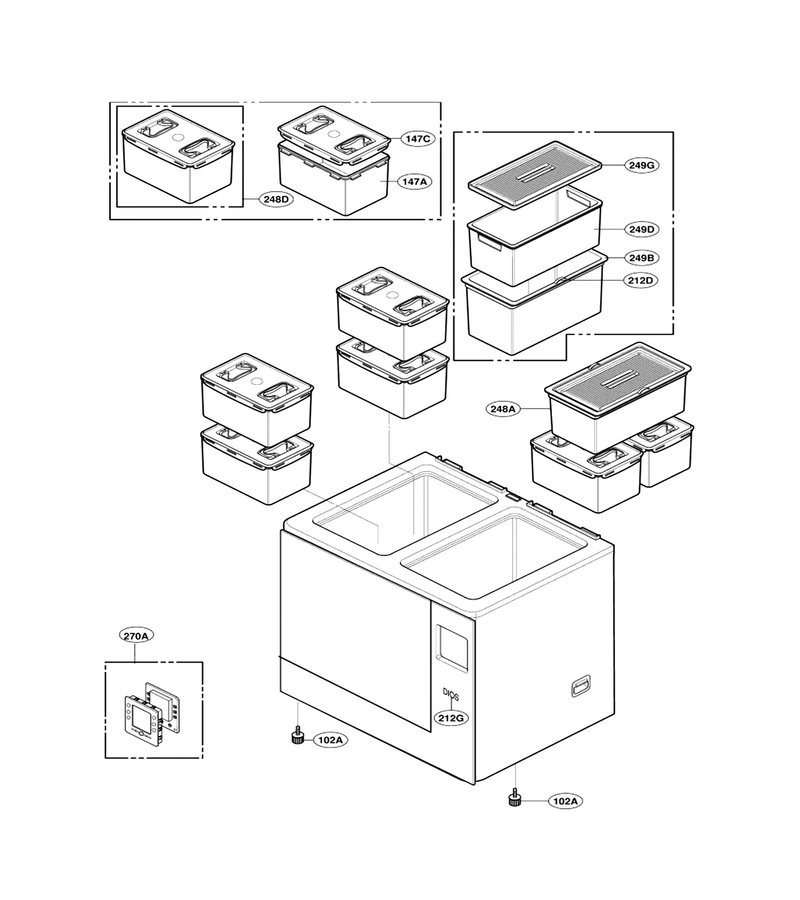

Main (ii)

...
...
102A
Leg,adjust L-G-4778JA2015A
...
147A
Bucket,side Dish L-G-5074JA1044C
...
147C
Cover Assembly,bucket L-G-3551JA1053G
...
212D
Handle,refrigerator L-G-MEB30203401
...
212G
Name Plate L-G-3846JD1017A
...
248A
Basket Assembly,door L-G-5005JA1013P
...
248D
Bucket Assembly,side Dish L-G-5075JA1025M
...
249B
Basket,door L-G-5004JA1148C
...
249D
Basket,door L-G-5004JA1150D
...
249G
Basket Assembly,door L-G-AAP30653901
...
270A
Frame Assembly,display L-G-ADV34265202
