LG GR-K09S.AWSCGCR

Model: GR-K09S.AWSCGCR

Save Part Not Listed?
product name

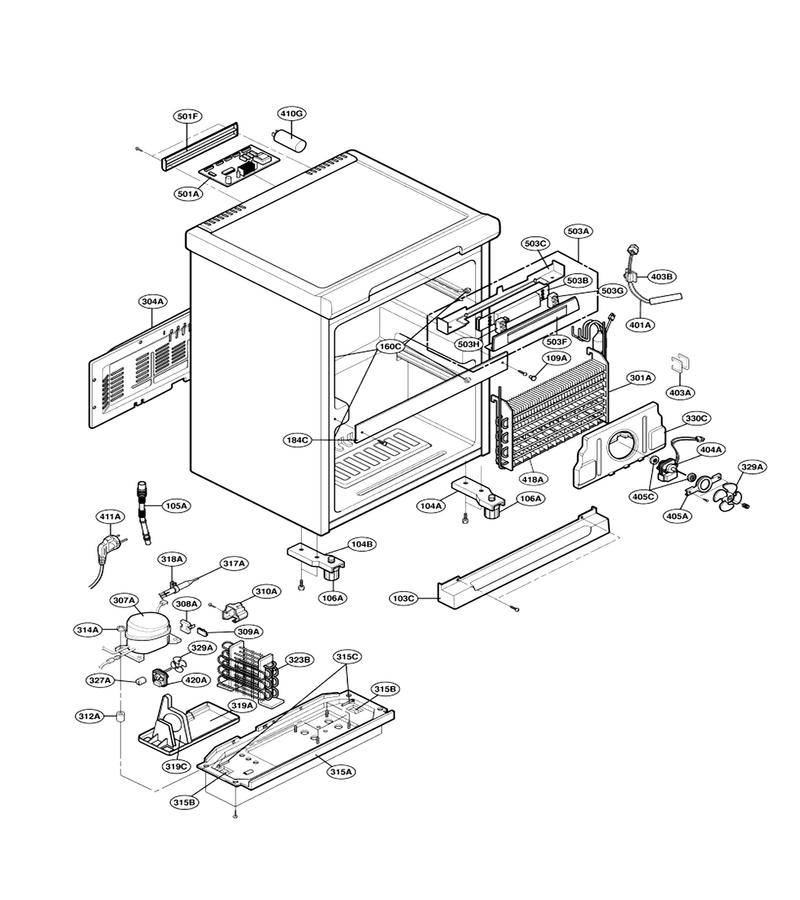

Main Parts I

...
...
103C
Cover,lower L-G-3550JA1134D
...
104B
Leg,frame L-G-4778JA2004E
...
104A
Leg,frame L-G-4778JA2004F
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Leg, Adjust L-G-4778JA2006A
...
160C
Refrigerator Roller Assembly L-G-4581JA2004B
...
184C
Plate,center L-G-3446JA2031J
...
301A
Refrigerator Evaporator Assembly L-G-5421JA1028B
...
304A
Refrigerator Cover Assembly L-G-3551JA1023A
...
307A
Compressor,set Assembly L-G-2521C-A30DN
...
308A
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
309A
O.l.p L-G-6750C-0005C
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2059A
...
312A
Rubber, Seat L-G-J734-00010A
...
314A
Stopper L-G-4J03277A
...
315A
Comp Base Assembly L-G-3103JA1013A
...
315B
Refrigerator Roller L-G-4J03500A
...
317A
Drier Assembly L-G-5851JA2002P
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-3390JA0007A
...
319C
Refrigerator Fan Guide L-G-4974JA1040A
...
323B
Condenser Assembly, Wire L-G-5402JA1005A
...
327A
Rubber, Damping L-G-4J04328A
...
329A
Refrigerator Condenser Fan Blade L-G-J753-00011A
...
401A
Control Assembly, Def L-G-6615JB2002L
...
410G
Capacitor,electric Appliance Film,radial L-G-0CZZJB2010J
...
411A
Refrigerator Power Cord Assembly L-G-6411JB1015E
...
418A
Heater Sheath L-G-5300JB1056D
...
420A
Motor (mech), Cooling L-G-4680JB1017U
...
501A
Pcb Assembly,main L-G-6871JB1094G
...
501F
Refrigerator Pcb Cover L-G-3550JA2121E
...
503B
Pcb Assembly,display L-G-6871JB1086C
...
503C
Frame,display L-G-3210JA1013D
...
503F
Cover,display L-G-3550JA1132L
...
503G
Refrigerator Button L-G-5020JA2020A
...
503H
Refrigerator Button L-G-5020JA2019A

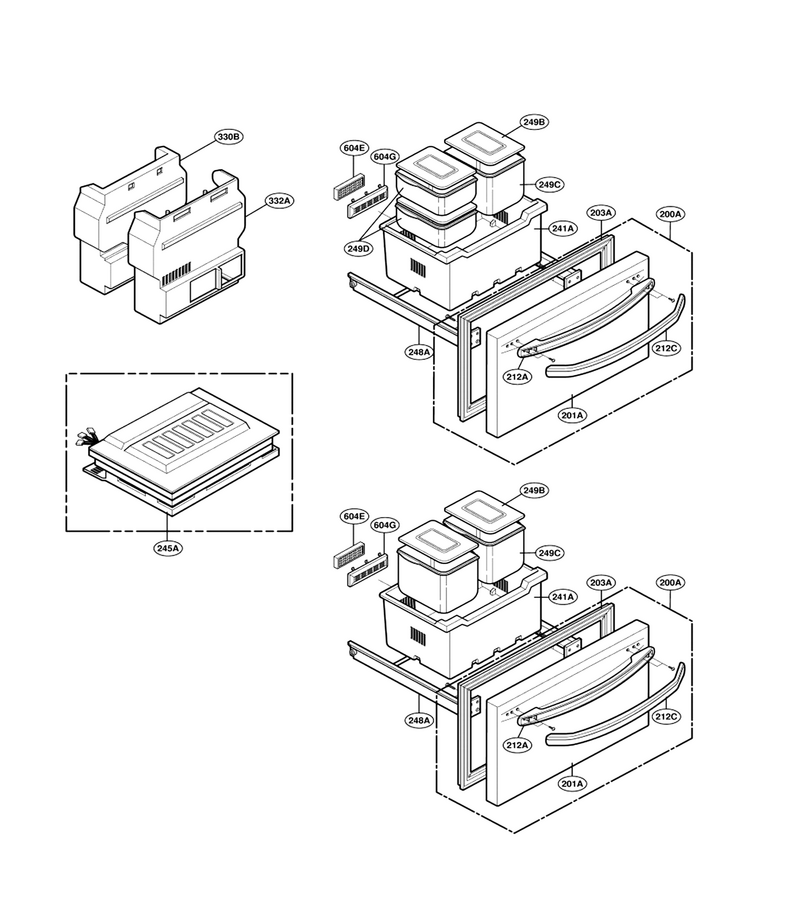

Main Parts Ii

...
...
200A
Refrigerator Door Assembly L-G-3581JA0015W
...
201A
Door Foam Assembly,refrigerator L-G-5433JA0040H
...
203A
Refrigerator Door Gasket Assembly L-G-4987JA1023A
...
212A
Refrigerator Handle Assembly L-G-3651JA1004M
...
212C
Deco Assembly L-G-3807JA1005D
...
241A
Basket,door L-G-5004JA0004B
...
245A
Barrier Assembly,insulation L-G-4791JA1048C
...
248A
Refrigerator Rail Assembly L-G-5219JA1002A
...
330B
Insulation,shroud L-G-5410JA1028A
...
332A
Refrigerator Fan Grille L-G-3530JA0013A
...
604E
Refrigerator Deodorizer L-G-4756JA3001D
