LG GR-J303TS.ATSCSJA

Model: GR-J303TS.ATSCSJA

Save Part Not Listed?
product name

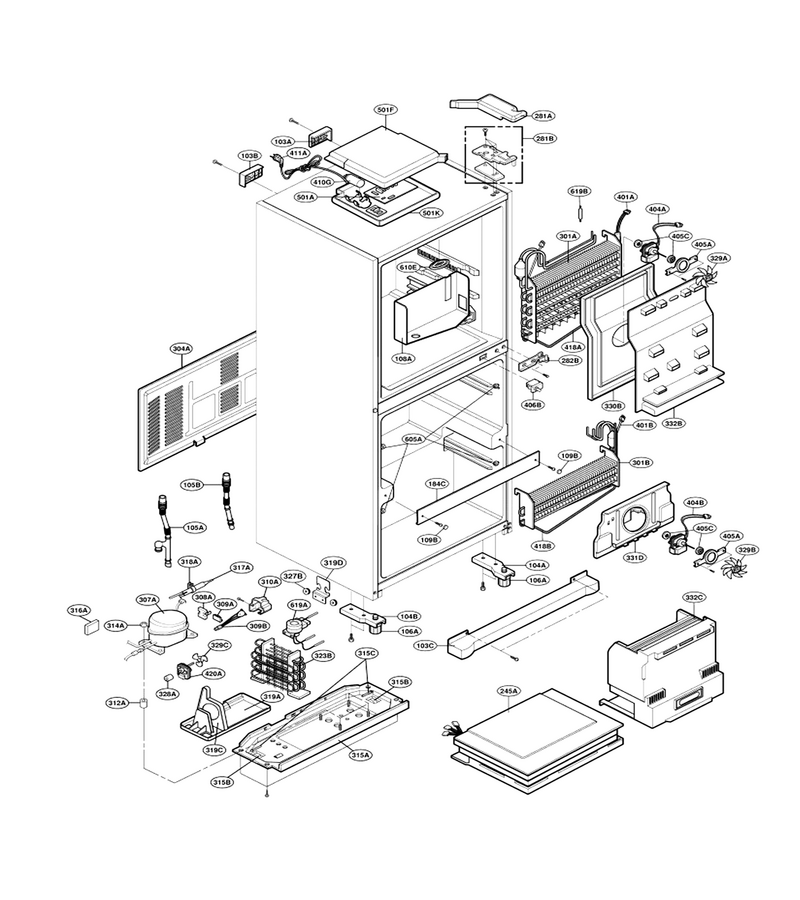

Main Parts I

...
...
103A
Refrigerator Rear Handle L-G-3650JA2061W
...
103B
Refrigerator Rear Handle L-G-3650JA2061X
...
103C
Cover,lower L-G-3550JA0121A
...
104A
Leg Assembly,frame L-G-AFC30700601
...
104B
Leg Assembly,frame L-G-AFC30700602
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105B
Tube Assembly,drain L-G-5251JA2006A
...
106A
Leg,adjust L-G-4778JA2016D
...
108A
Tray Assembly,drain L-G-3391JA2027A
...
109B
Cap,screw L-G-5006JA3017G
...
184C
Plate,center L-G-3446JA2048F
...
245A
Barrier Assembly,insulation L-G-4791JA1036J
...
281A
Cover,hinge L-G-3550JA1251D
...
281B
Hinge Assembly,upper L-G-4775JA2008D
...
282B
Hinge Assembly,center L-G-4775JA2115A
...
301A
Evaporator Assembly L-G-5421JA0045C
...
301B
Evaporator Assembly L-G-5421JA0027E
...
304A
Cover Assembly,machinery(rear) L-G-3551JA1039A
...
307A
Compressor,set Assembly L-G-2521C-A62CD
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0004S
...
309B
Drawing,assembly L-G-6877JB2163G
...
312A
Refrigerator Compressor Rubber Mounting Damper L-G-5040JA3071A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Base Assembly,compressor L-G-3103JA0010C
...
315B
Refrigerator Compressor Base Roller Wheel L-G-3J02312A
...
315C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Drier Assembly L-G-5851JA2002T
...
318A
Refrigerator Holder L-G-4930JA3034B
...
319A
Tray,drip L-G-3390JA0008B
...
319C
Guide,fan L-G-4974JA1036B
...
319D
Bracket,valve L-G-4810JA2139A
...
323B
Condenser Assembly,wire L-G-5403JA1044A
...
327B
Refrigerator Damper L-G-5040JA3063A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Fan Assembly L-G-5901JA1014A
...
329B
Refrigerator Fan Assembly L-G-5901JA1007A
...
329C
Refrigerator Fan Assembly L-G-5901JA1013A
...
330B
Shroud Assembly,freezer L-G-4999JA1017B
...
331D
Shroud,freezer L-G-4998JA1013A
...
332B
Grille Assembly,fan L-G-3531JA1021C
...
332C
Grille Assembly,fan L-G-3531JA1022B
...
401A
Controller Assembly L-G-6615JB2005D
...
401B
Control Assembly, Def L-G-6615JB2005A
...
404A
Motor,ac L-G-4680JB1036H
...
404B
Ac Motor L-G-4680JB1036N
...
405A
Refrigerator Motor Bracket L-G-4810JA3007B
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
406B
Refrigerator Door Switch L-G-6600JB1005D
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2010H
...
411A
Power Cord Assembly L-G-6411JB1011B
...
418A
Heater,sheath L-G-5300JB1121D
...
418B
Heater,sheath L-G-5300JB1085D
...
420A
Ac Motor L-G-4680JB1035H
...
501A
Pcb Assembly,main L-G-6871JB1129Q
...
501F
Cover,pcb L-G-3550JA1399C
...
501K
Case,pcb L-G-3110JA1020B
...
605A
Roller Assembly L-G-AHJ30124501
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
619A
Valve Assembly,pipe L-G-5221JA1008A

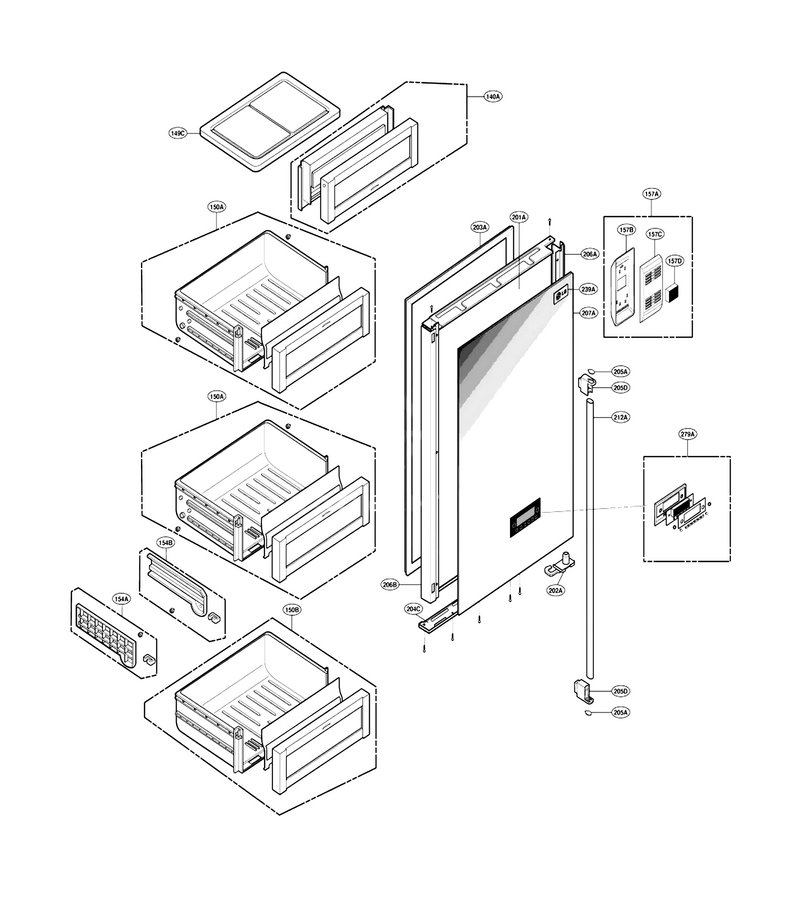

Main Parts Ii

...
...
140A
Door Assembly,freeze Room L-G-ADC30624601
...
149C
Shelf,freezer L-G-5026JA0015B
...
150A
Tray Assembly,drawer L-G-AJP30624701
...
150B
Tray Assembly,drawer L-G-AJP30624801
...
154A
Guide Assembly,rail L-G-AEC30604401
...
154B
Guide Assembly,rail L-G-AEC30604402
...
157A
Cover Assembly,deodorizer L-G-ACQ30638001
...
157B
Cover,deodorizer L-G-MCK32972501
...
157C
Cover,deodorizer L-G-MCK32293802
...
157D
Deodorizer L-G-5986JA3006D
...
201A
Door Foam Assembly L-G-ADD30277503
...
202A
Stopper,door L-G-J325-00032A
...
203A
Gasket Assembly,door L-G-4987JA1024Y
...
204C
Cap,decor Freezer L-G-5078JA0072A
...
205A
Cap,handle L-G-5006JA2070B
...
205D
Holder,handle L-G-4930JA2112C
...
206A
Decor,door L-G-3806JA1205A
...
206B
Decor,door L-G-3806JA1206C
...
207A
Sheet,steel L-G-RAA30145906
...
212A
Handle,freezer L-G-3650JA1245C
...
279A
Frame Assembly,display L-G-ADV30639709

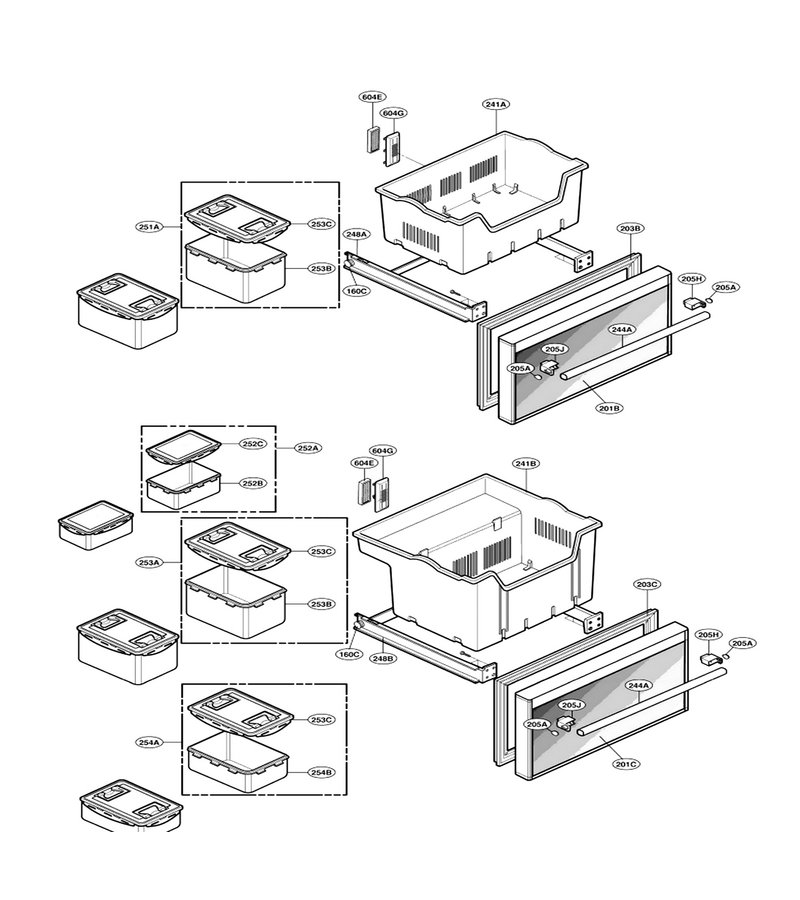

Main Parts Iii

...
...
160C
Roller Assembly L-G-4581JA3003D
...
201B
Door Foam Assembly,refrigerator L-G-5433JA1168U
...
201C
Door Foam Assembly,refrigerator L-G-5433JA1169U
...
203B
Gasket Assembly,door L-G-4987JA1024L
...
203C
Gasket Assembly,door L-G-4987JA1024M
...
205A
Cap,handle L-G-5006JA2070B
...
205H
Holder,handle L-G-4930JA2113C
...
205J
Holder,handle L-G-4930JA2113D
...
241A
Basket,door L-G-5004JA0007C
...
241B
Basket,door L-G-5004JA0006B
...
244A
Handle,freezer L-G-3650JA1245D
...
248A
Rail Assembly,tv L-G-5219JA1004G
...
248B
Rail Assembly,tv L-G-5219JA1004H
...
251A
Bucket Assembly,side Dish L-G-5075JA1030F
...
252A
Bucket Assembly,side Dish L-G-5075JA1028E
...
252B
Bucket,side Dish L-G-5074JA1053C
...
252C
Cover Assembly,bucket L-G-3551JA1070E
...
253A
Bucket Assembly,side Dish L-G-5075JA1030F
...
253B
Bucket,side Dish L-G-5074JA1057C
...
253C
Cover Assembly,bucket L-G-3551JA1069E
...
254A
Bucket Assembly,side Dish L-G-5075JA1027E
...
254B
Bucket,side Dish L-G-5074JA1052C
...
604E
Refrigerator Deodorizer L-G-4756JA3001D
...
604G
Cover,deodorizer L-G-3550JA2143C

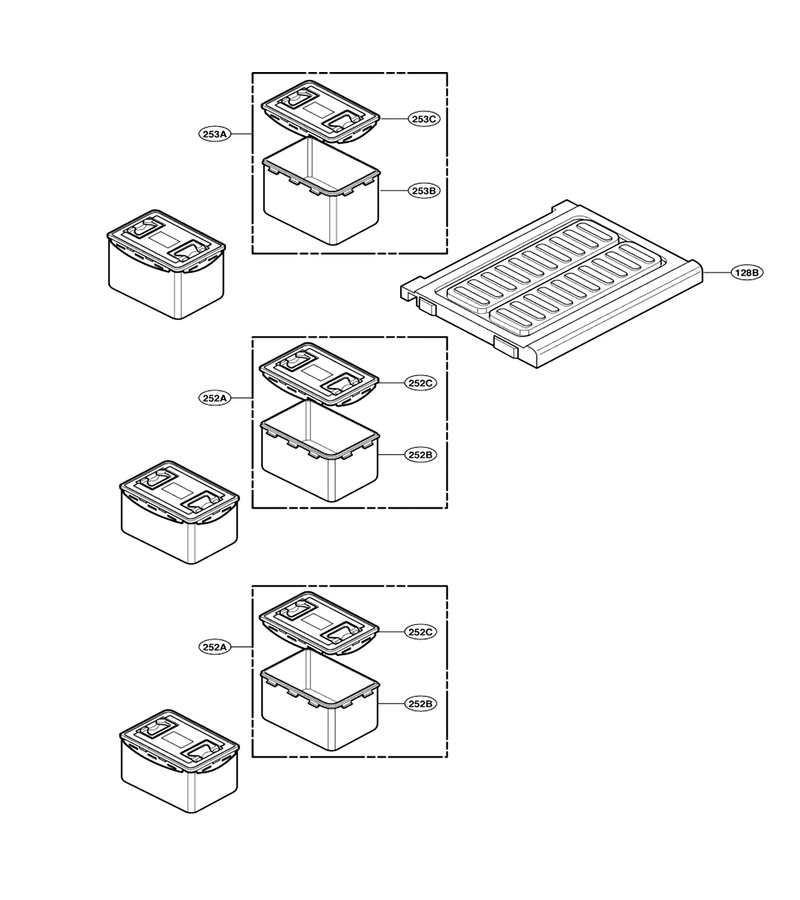

Main Parts Iv

...
...
252A
Bucket Assembly,side Dish L-G-5075JA1028E
...
252B
Bucket,side Dish L-G-5074JA1053C
...
252C
Cover Assembly,bucket L-G-3551JA1070E
...
253A
Bucket Assembly,side Dish L-G-5075JA1030F
...
253B
Bucket,side Dish L-G-5074JA1057C
...
253C
Cover Assembly,bucket L-G-3551JA1069E
