product name

LG GM-818DTC.ATIQLGU

Model: GM-818DTC.ATIQLGU

Save Part Not Listed?
product name

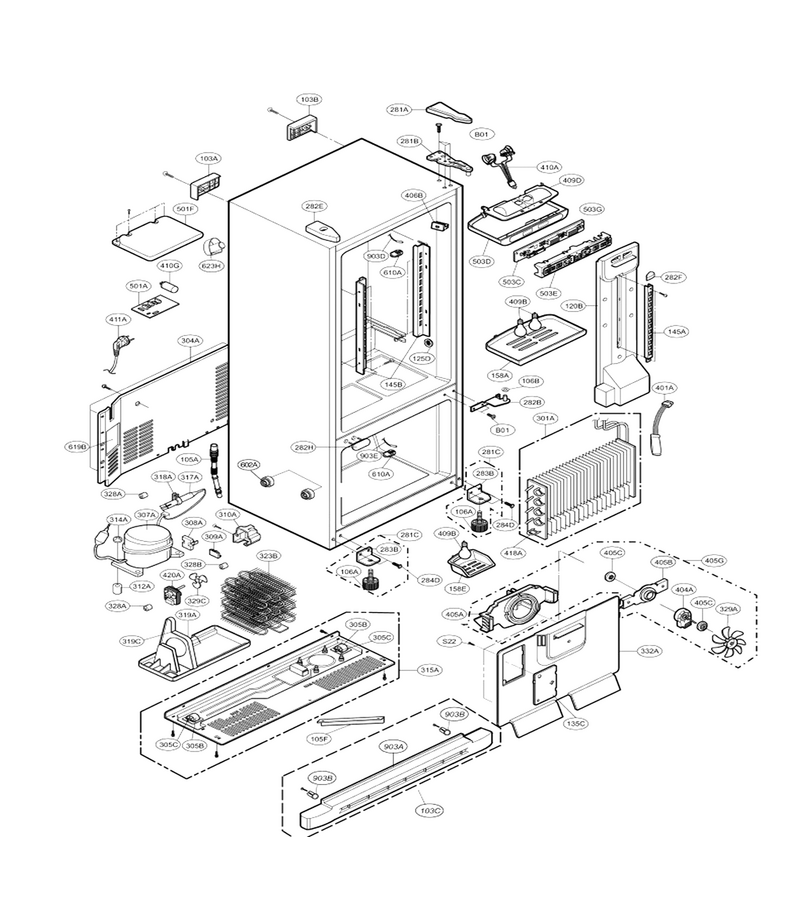

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Handle L-G-3650JJ2003H
...
103B
Refrigerator Handle L-G-3650JJ2003D
...
103C
Refrigerator Toe Grille L-G-3551JJ1015H
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shelf Holder L-G-4930JJ2004D
...
145B
Holder,shelf L-G-4930JJ2003D
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
281A
Refrigerator Hinge Cover L-G-3550JJ2013D
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Refrigerator Door Hinge, Center L-G-4775JJ8002G
...
282E
Refrigerator Hinge Cap L-G-5006JJ2001G
...
282F
Deco,duct L-G-3806JL2006E
...
282H
Refrigerator Door Hinge Cover L-G-5006JJ3004F
...
301A
Evaporator Assembly L-G-5421JJ1001E
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Compressor,assembly L-G-2521JJ8006A
...
308A
Thermistor,ptc L-G-6748JJ8003A
...
309A
Overload Protect L-G-6750JJ8003A
...
310A
Refrigerator Cover L-G-3550JJ8003A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Compressor Base Assembly L-G-3103JJ1001J
...
317A
Refrigerator Filter Dryer L-G-5851JJ2002F
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319A
Refrigerator Drip Tray L-G-3390JJ0003A
...
319C
Refrigerator Fan Guide L-G-4974JJ1009A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1007A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Fan Assembly L-G-5901JJ1004B
...
332A
Refrigerator Evaporator Cover L-G-3531JJ1004A
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Motor, Ac Freezing L-G-4680JK1002E
...
405A
Refrigerator Motor Bracket Assembly L-G-4811JJ2002B
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA3007A
...
405C
Refrigerator Condenser Motor Damper Grommet L-G-J756-00008B
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Lamp,incandescent L-G-6912JB2004L
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2002D
...
410G
Capacitor,film,box L-G-0CZZJK2001B
...
411A
Power Cord Assembly L-G-6411JK1006F
...
418A
Heater,sheath L-G-5300JB1100G
...
420A
Motor,ac L-G-4680JK1001E
...
501A
Pcb Assembly,main L-G-6871JB1215D
...
501F
Refrigerator Electronic Control Board Housing L-G-3551JJ1020A
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503G
Refrigerator Control Panel Overlay L-G-3806JL1049A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
623H
Refrigerator Water Supply Tube Cover L-G-3550JJ2036A
...
903A
Refrigerator Toe Grille L-G-3550JJ0006D
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

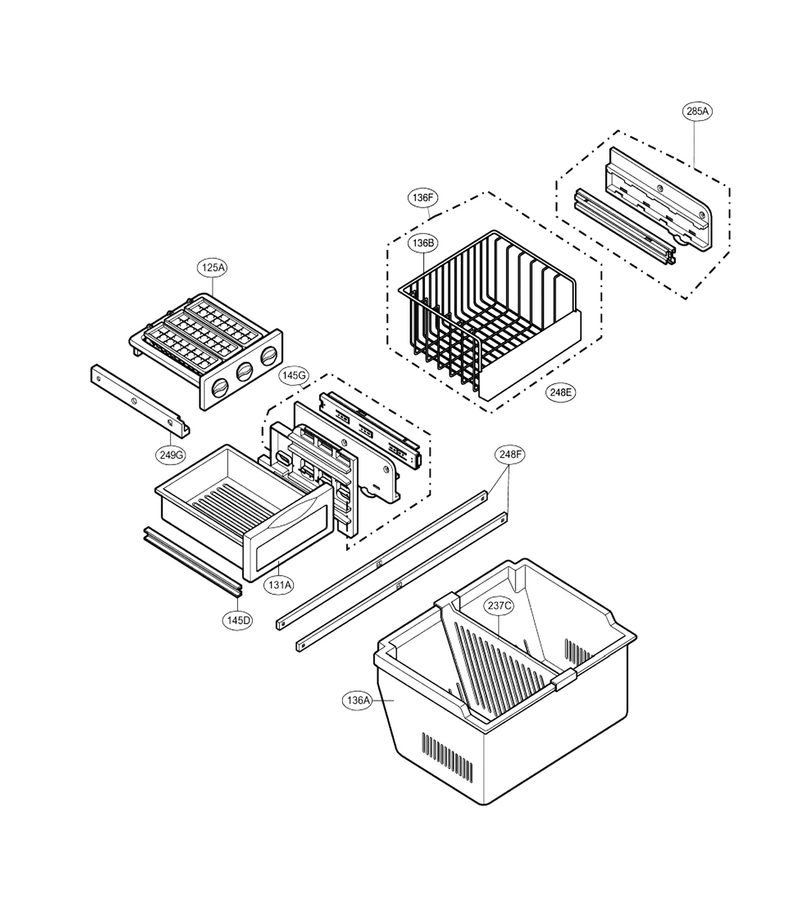

Freezer Parts

...
...
125A
Refrigerator Ice Cube Tray L-G-3391JJ1009B
...
131A
Refrigerator Ice Bin L-G-5075JJ1001B
...
136A
Refrigerator Freezer Drawer L-G-3391JJ1011B
...
136B
Refrigerator Freezer Basket Slide Rail Assembly... L-G-3390JJ1087A
...
136F
Refrigerator Tray L-G-3391JJ1033B
...
145D
Refrigerator Guide L-G-4974JJ1012A
...
145G
Refrigerator Freezer Basket Slide Rail Assembly... L-G-4975JJ2005H
...
237C
Refrigerator Freezer Basket Divider L-G-4974JJ1021A
...
248E
Refrigerator Decorative Tray L-G-3806JJ2035A
...
248F
Refrigerator Supporter L-G-4980JJ2005A
...
249G
Refrigerator Guide Rail L-G-4974JJ1011A
...
285A
Refrigerator Freezer Basket Slide Rail Assembly... L-G-4975JJ2007G

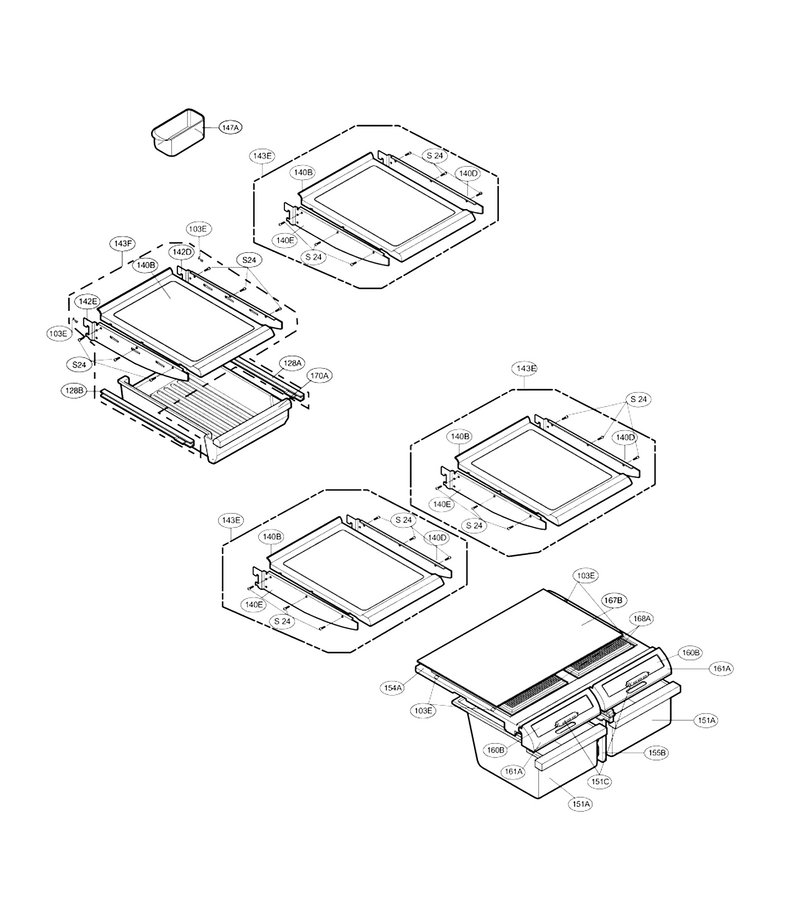

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
140B
Refrigerator Shelf L-G-5027JJ2007B
...
140D
Refrigerator Shelf Support, Left L-G-5026JJ2001G
...
140E
Refrigerator Shelf Support, Right L-G-5026JJ2001H
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Refrigerator Shelf L-G-5027JJ1008B
...
143F
Refrigerator Shelf L-G-5027JJ1008D
...
147A
Refrigerator Dairy Bin L-G-5074JJ1005A
...
151A
Refrigerator Tray Assembly L-G-3391JJ1019E
...
151C
Refrigerator Shutter Knob L-G-4940JJ2003B
...
154A
Refrigerator Crisper Drawer Cover Frame L-G-3550JJ1033A
...
155B
Refrigerator Supporter L-G-4981JJ2001A
...
160B
Refrigerator Decorative Tray L-G-3806JL2005D
...
161A
Refrigerator Crisper Drawer Lid L-G-3550JJ2026A
...
167B
Refrigerator Glass Shelf L-G-4890JL1002K
...
168A
Refrigerator Crisper Drawer Cover Insert L-G-3550JJ1035A
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004H

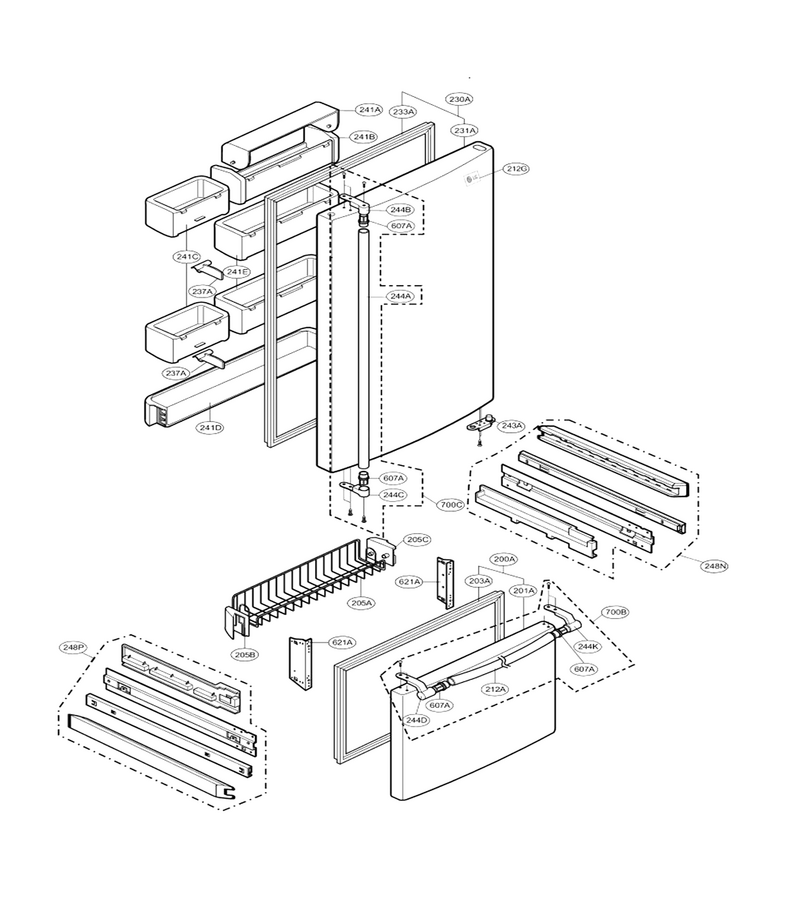

Door Parts

...
...
200A
Door Assembly,f L-G-3581JJ8019X
...
201A
Door Foam Assembly,freezer L-G-5433JJ0058T
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752607
...
205A
Refrigerator Freezer Door Wire Tilt Basket L-G-5004JJ1042B
...
205B
Refrigerator Door Bin L-G-5004JJ2005B
...
205C
Refrigerator Freezer Tilt-Out Shelf End Cap, Left L-G-5004JJ2005A
...
212A
Refrigerator Freezer Door Handle L-G-3650JJ1041A
...
212G
Refrigerator Nameplate L-G-3846JD1007H
...
230A
Door Assembly,r L-G-3581JJ8024J
...
231A
Door Foam Assembly,r L-G-5433JJ0019U
...
233A
Refrigerator Door Gasket L-G-4987JJ1004B
...
237A
Refrigerator Guide L-G-4974JJ2021A
...
241A
Refrigerator Dairy Bin Cover L-G-3550JL2003H
...
241B
Refrigerator Door Basket L-G-5004JJ1021B
...
241C
Refrigerator Door Bin L-G-5004JJ1031A
...
241D
Refrigerator Door Bin L-G-5004JJ0001A
...
241E
Refrigerator Door Bin L-G-5004JJ1029A
...
243A
Refrigerator Door Stop L-G-4620JJ3006D
...
244A
Handle,r L-G-3650JJ1034E
...
244B
Refrigerator Holder L-G-4930JJ2023A
...
244C
Refrigerator Holder L-G-4930JJ2022A
...
248N
Refrigerator Freezer Door Slide Rail Assembly, ... L-G-5219JJ2002A
...
248P
Refrigerator Rail Assembly L-G-5219JJ2002B
...
621A
Refrigerator Connector L-G-4932JJ2001B
...
700B
Refrigerator Handle Assembly L-G-3651JJ2010N
...
700C
Refrigerator Handle Assembly L-G-3651JJ2017A
