LG GKIM08121V.ALWCNA0

Model: GKIM08121V.ALWCNA0

Save Part Not Listed?
product name

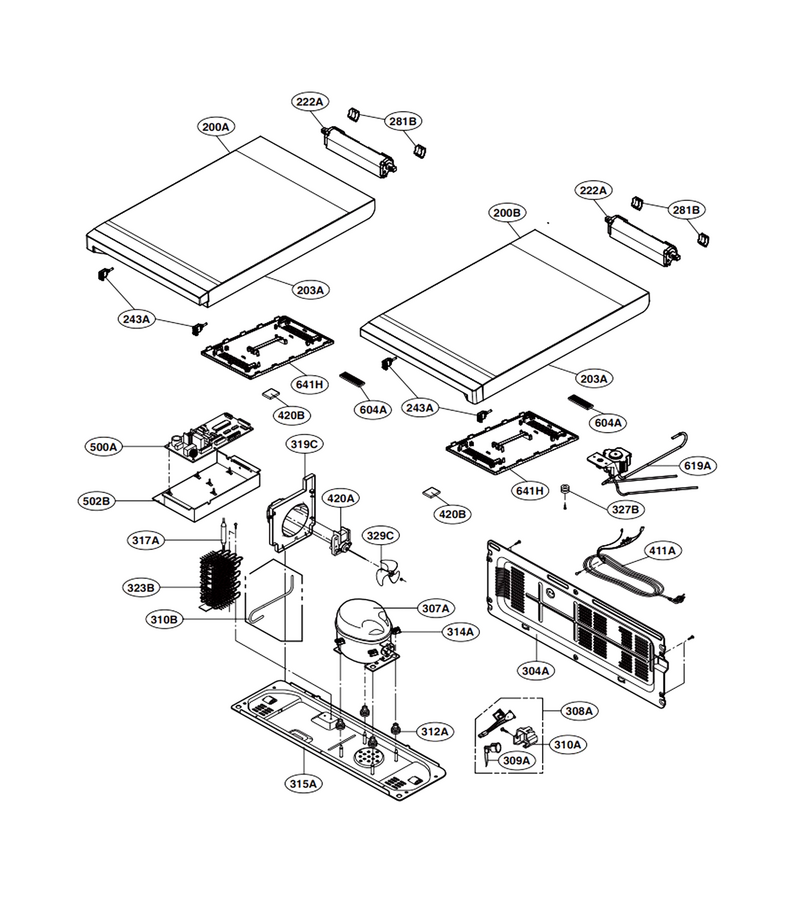

Main Parts I

...
...
200A
Door Foam Assembly,refrigerator L-G-ADD73596813
...
200B
Door Foam Assembly,refrigerator L-G-ADD73596713
...
203A
Gasket Assembly,door L-G-ADX73250501
...
222A
Hinge Assembly L-G-AEH35172826
...
243A
Stopper,door L-G-MJB63150103
...
281B
Cap,hinge L-G-MBL65046601
...
304A
Cover Assembly,machinery(rear) L-G-3551JA1034J
...
307A
Compressor,set Assembly L-G-TCA35892728
...
308A
Thermistor Assembly,ptc L-G-EBG62925801
...
309A
Overload Protect L-G-6750CL0001A
...
310A
Cover,ptc L-G-MCK67988501
...
310B
Pipe Assembly,joint L-G-AGR59256801
...
312A
Damper,compressor L-G-5040JA3071B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base,compressor L-G-MAM62568101
...
317A
Drier Assembly L-G-5851JA2007Q
...
319C
Guide,fan L-G-MEA64790001
...
323B
Condenser Assembly,wire L-G-ACG75404401
...
327B
Refrigerator Damper L-G-5040JA3063A
...
329C
Fan Assembly L-G-ADP36665705
...
411A
Power Cord Assembly L-G-EAD62505015
...
420A
Motor,dc L-G-EAU63103002
...
420B
Cooling Pack L-G-3005JA3001C
...
500A
Pcb Assembly,main L-G-EBR82999807
...
502B
Case,pcb L-G-3110JA1028B
...
604A
Deodorizer L-G-MCS62101801
...
619A
Valve Assembly,gas L-G-AJU74912401

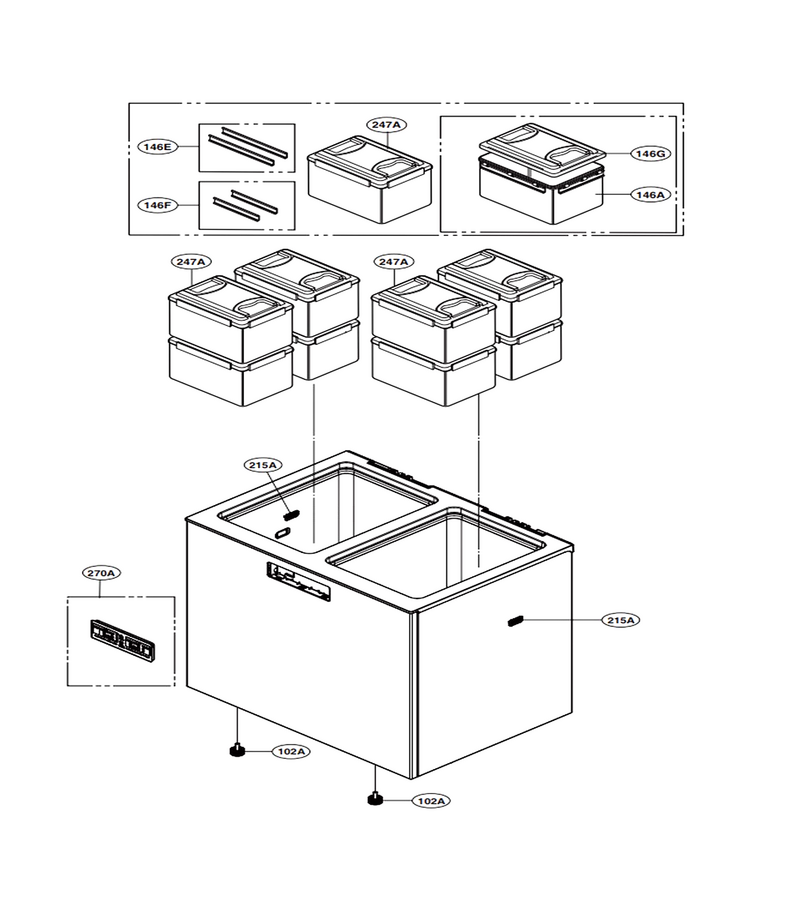

Main Parts Ii

...
...
102A
Leg,adjust L-G-MFA62423401
...
146A
Bucket,side Dish L-G-MKK54375805
...
146E
Handle,decor L-G-MEB58372202
...
146F
Handle,decor L-G-MEB54373102
...
146G
Cover Assembly,bucket L-G-ACQ65928302
...
215A
Cover,sensor L-G-MCK53261701
...
247A
Bucket Assembly,side Dish L-G-AKC67576723
...
270A
Frame Assembly,display L-G-ADV74205841
