LG GH7155XKT.ABSEWRP

Model: GH7155XKT.ABSEWRP

Save Part Not Listed?
product name

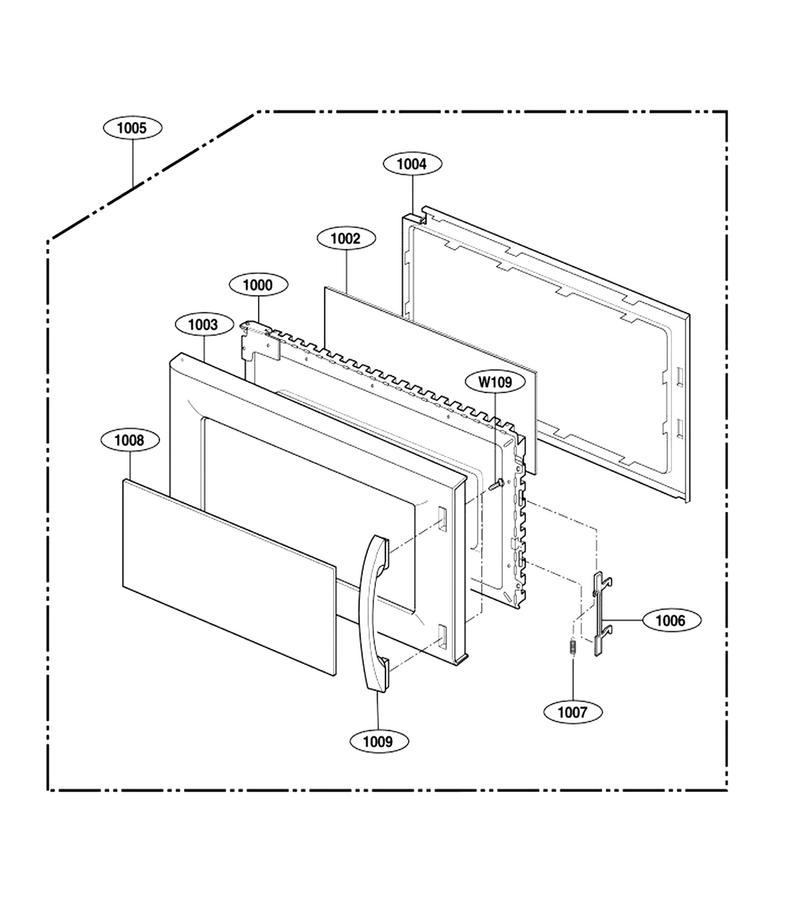

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Frame Assembly,door L-G-3213W1A035L
...
1002
Microwave Door Film L-G-3536WRA001R
...
1003
Panel,door L-G-3720W0D107E
...
1004
Microwave/hood Cover L-G-3552W1A032B
...
1005
Door Assembly L-G-3581W1A306M
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Window,glass L-G-4890W1A021H
...
1009
Handle,door L-G-3650W1A028G

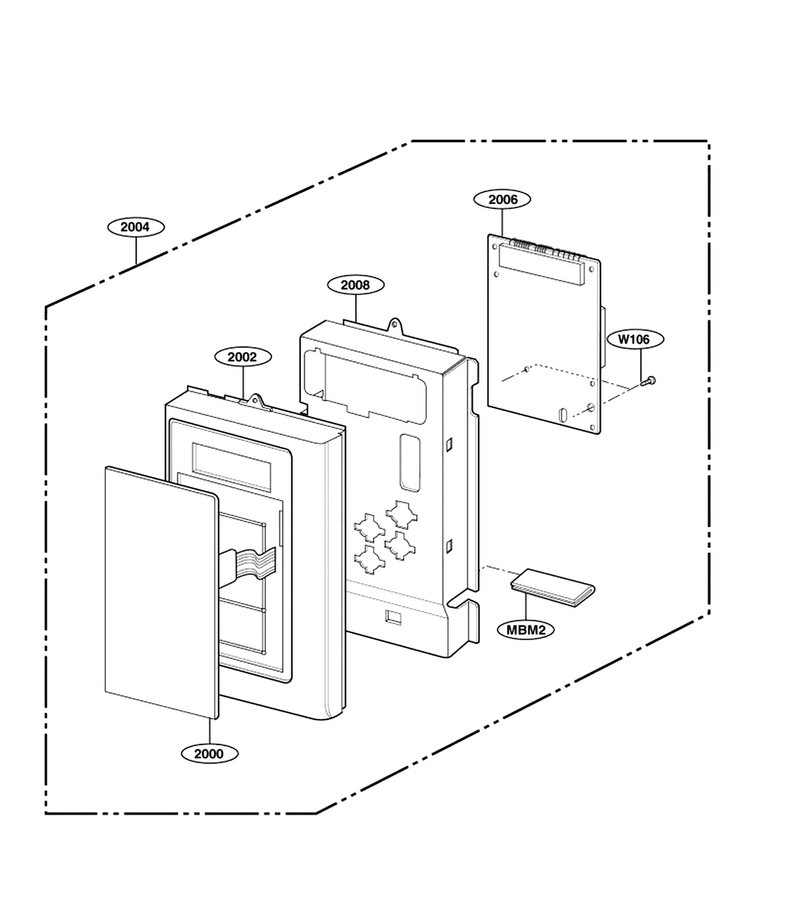

Controller Parts

...
...
W106
Screw L-G-1TPL0402818
...
MBM2
Card,technical L-G-3840W3T001S
...
2000
Membrane L-G-6638W2A238D
...
2002
Panel,control L-G-3572W1A141K
...
2004
Controller Assembly,keypad L-G-4781W1M391D
...
2006
Pcb Assembly,sub L-G-6871W2S090H
...
2008
"bracket,mw" L-G-4810W1G061A

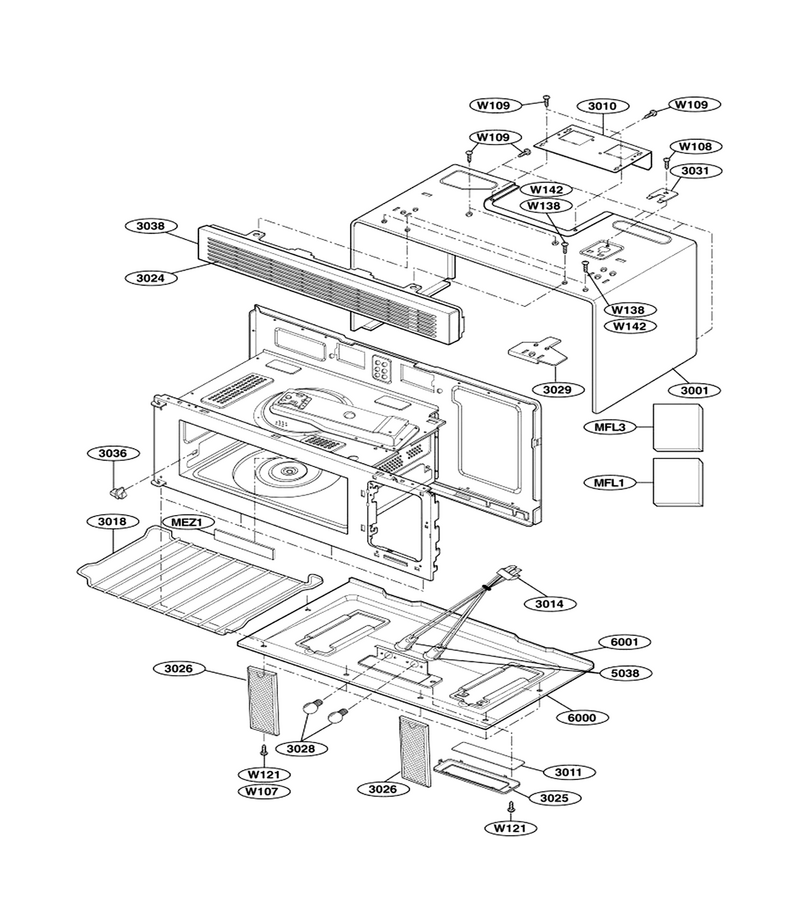

Oven Cavity Parts

...
...
W121
Microwave Screw L-G-1TTL0402422
...
W142
Screw L-G-1TTL0402816
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
MFL1
Manual,owners L-G-3828W5A2208
...
MEZ1
Label,cooking Guide L-G-3850W3A291D
...
MFL3
Manual,installation L-G-3828W5U0045
...
3001
Case,flat L-G-3112W1F022G
...
3010
Mount L-G-4960W2G022A
...
3011
Oven Glass L-G-4890W4A001B
...
3014
Lead Wire L-G-6877W3S001A
...
3018
Shelf L-G-3750W1A006C
...
3025
Microwave Light Lens Bracket L-G-4810W3G100A
...
3026
Microwave Grease Filter L-G-2B72705B
...
3028
Microwave Light Bulb L-G-6912W3Q001D
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3036
Holder L-G-3B71271E
...
5038
Microwave Light Socket L-G-6804W3A001A
...
6000
Base Plate L-G-3302W0A013A
...
6001
Plate Assembly,base L-G-3303W1A041J

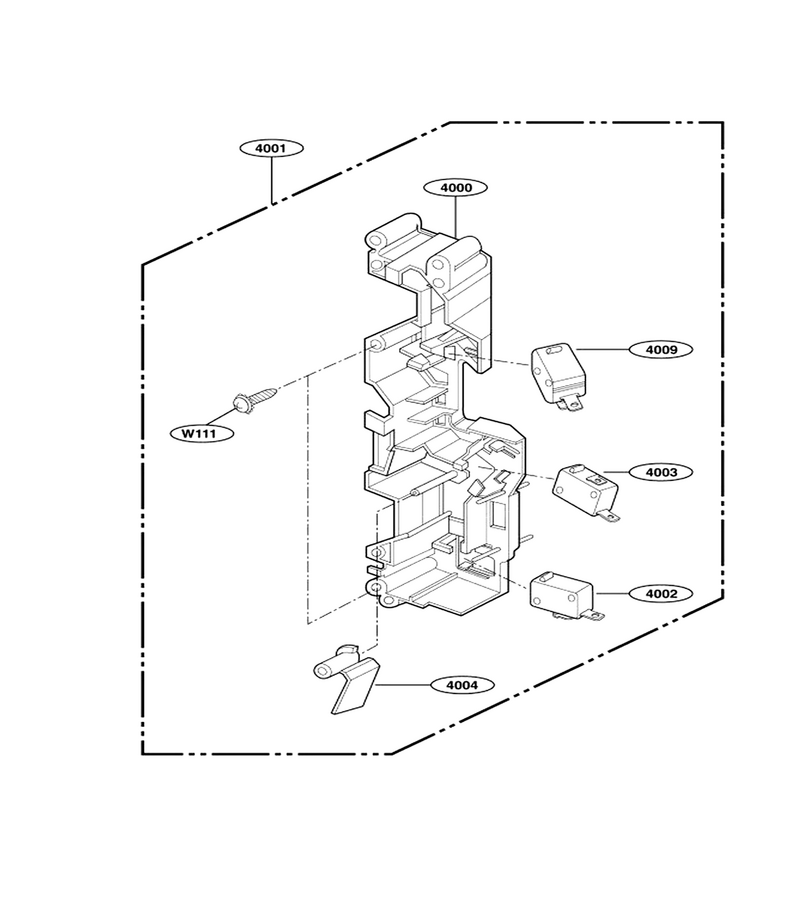

Latch Board Parts

...
...
W111
Screw L-G-4B70188B
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

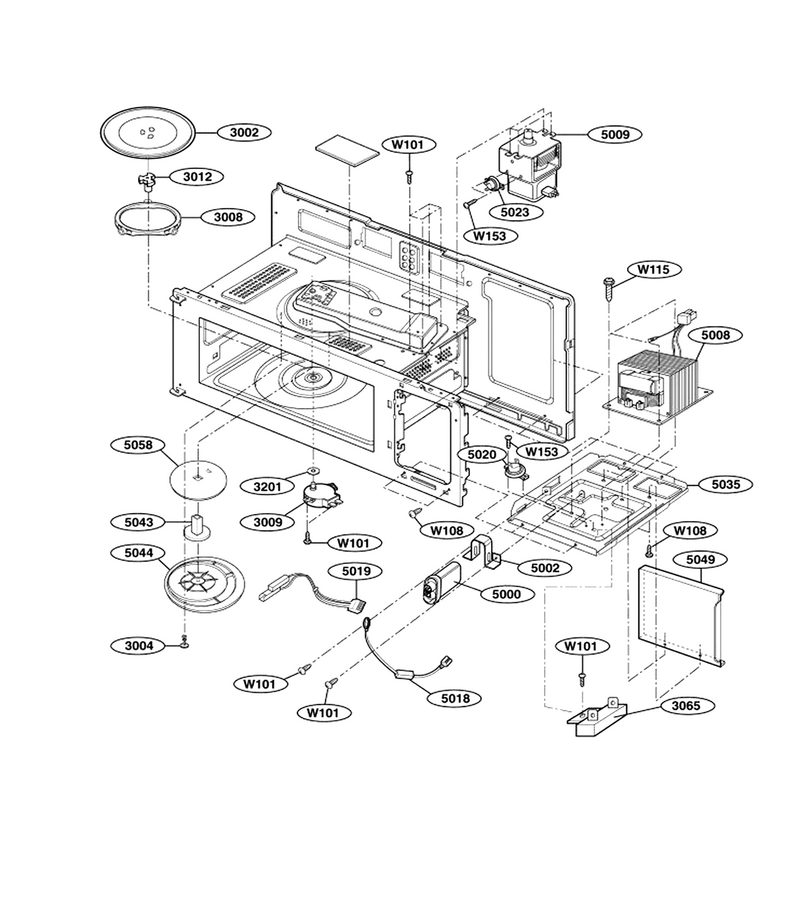

Interior Parts (1)

...
...
W153
Screw,taptite L-G-1SPF0302018
...
W115
Screw L-G-4B73763A
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961E
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Ring Assembly L-G-5889W2A012A
...
3009
Motor, Ac Synchronous L-G-6549WRS001N
...
3012
Shaft L-G-3B72373D
...
5000
Capacitor,high Voltage L-G-6120WRH001G
...
5002
Bracket L-G-4810W3C002A
...
5008
Transformer,high Voltage L-G-6170W1D003C
...
5009
Magnetron L-G-6324W1A001J
...
5018
Microwave High-Voltage Diode L-G-6021W3B001A
...
5019
Connector L-G-6877W2S002C
...
5020
Thermostat L-G-6930W1A003M
...
5023
Thermostat L-G-6930W3A001N
...
5035
Plate L-G-3300W1G081A
...
5043
Fan Holder L-G-4930W3B026B
...
5044
Stirrer Cover L-G-3550W1A077A
...
5049
Air Guide L-G-4974W1G038A
...
5058
Fan L-G-5892W3A004A

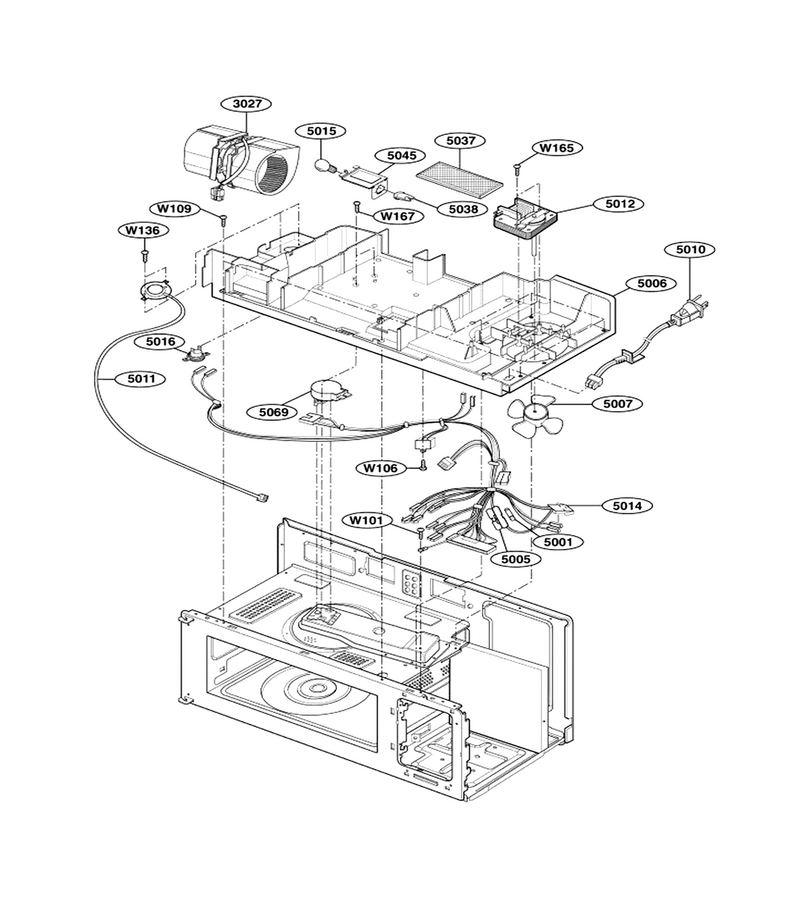

Interior Parts (2)

...
...
W165
Screw L-G-1TTL0403318
...
W136
Screw L-G-1TPL0302418
...
W109
Microwave Screw L-G-1TTL0402818
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W106
Screw L-G-1TPL0402818
...
3027
Motor, Ac Ventilation L-G-6549W1V001M
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5262W0A008B
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5010
Ac Cord Assembly L-G-6411W2A002N
...
5011
Humidity Sensor L-G-6501W1A004A
...
5012
Motor L-G-6549W2F016D
...
5014
Harness,single L-G-6877W1A183G
...
5015
Lamp,incandescent L-G-3B70067F
...
5016
Microwave Thermostat L-G-6930WRT003C
...
5037
Microwave/hood Charcoal Filter Assembly L-G-2B72706C
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5045
Oven Cover L-G-3550W3A082A
...
5069
Motor, Ac Synchronous L-G-6549WRS001K

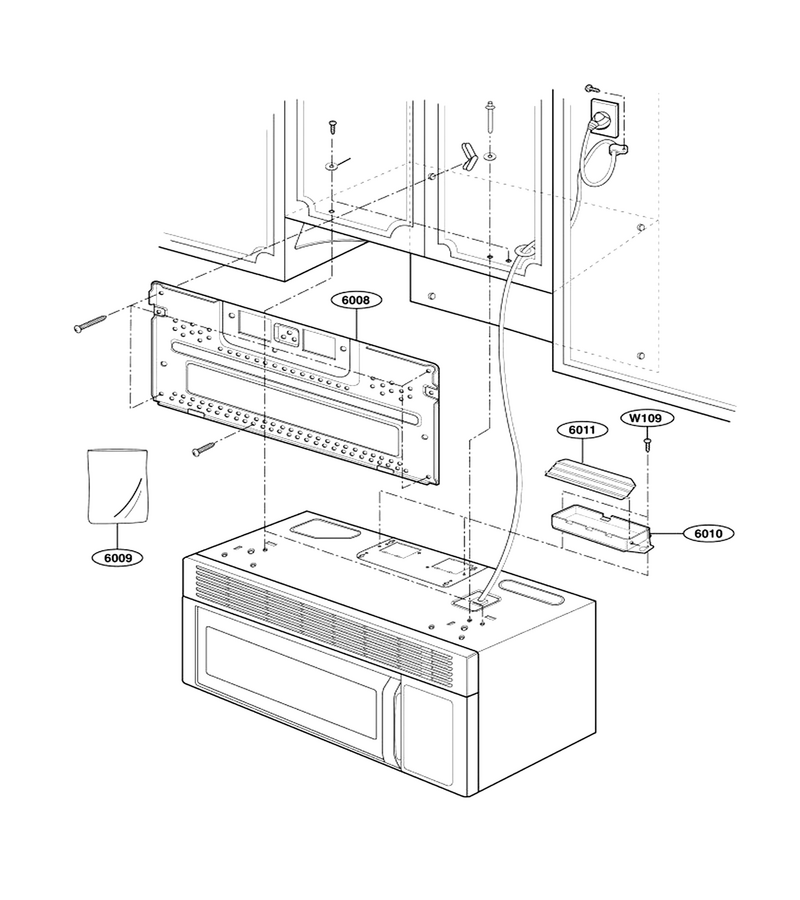

Installation Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
6008
Plate L-G-3300W0G039A
...
6009
Microwave Hardware Assembly Kit L-G-2B72771A
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
