product name

LG GD1329QED.ABWEELC

Model: GD1329QED.ABWEELC

Save Part Not Listed?
product name

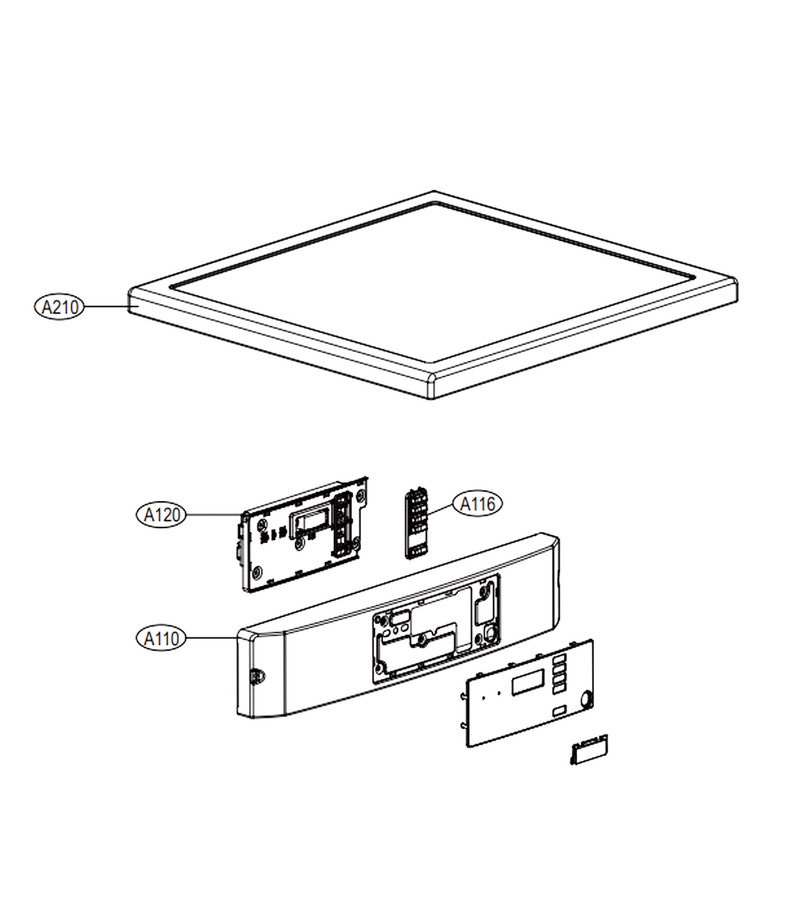

Control Panel & Plate Assembly - Coin / Opl Type

...
...
A110
Panel Assembly,control L-G-AGL73158205
...
A116
Button,control L-G-MBG62329502
...
A120
Pcb Assembly,display L-G-EBR64579201
...
A210
Plate Assembly,top L-G-AGU30071264

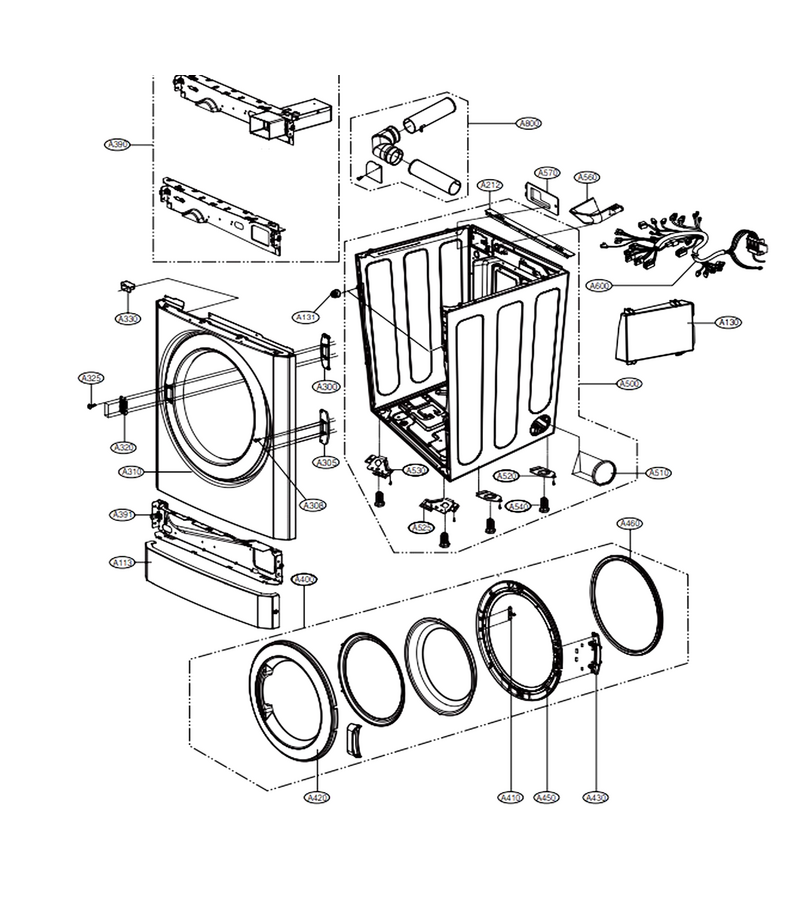

Cabinet & Door Assembly - Electric Stack Lower Typ

...
...
A410
O Door Frame L-G-4026EL3007A
...
A525
Bracket,base L-G-4810EL3009E
...
A420
Out Drive Frame L-G-3212EL1010B
...
A430
Dryer Door Hinge L-G-4774EL2001A
...
A450
Door Frame L-G-3212EL1005A
...
A460
Dryer Door Seal L-G-4986EL2004A
...
A500
Cabinet Assembly L-G-ABJ34559256
...
A520
Base Bracket L-G-4810EL3001B
...
A530
Bracket,base L-G-4810EL3009F
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A560
Guide Cover L-G-3550EL3007D
...
A570
Dryer Terminal Block Cover L-G-3550EL3002A
...
A600
Harness,multi L-G-EAD61177501
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B
...
A391
Frame Assembly L-G-ADV30755203
...
A113
Cover,lower L-G-MCK63735302
...
A130
Pcb Assembly,main L-G-EBR64583701
...
A212
Holder L-G-4930EL1005A
...
A300
Hinge Bracket L-G-MAZ47156202
...
A305
Hinge Bracket L-G-MAZ47156203
...
A308
Dryer Screw L-G-1APF0402608
...
A400
Dryer Door Assembly L-G-3581EL0002C
...
A310
Cover Assembly,cabinet L-G-3551EL0011Q
...
A320
Dryer Door Catch L-G-4027EL1001A
...
A325
Dryer Screw L-G-1MTC0402632
...
A330
Dryer Door Switch L-G-6601EL3001A
...
A390
Frame Assembly L-G-ADV30755805

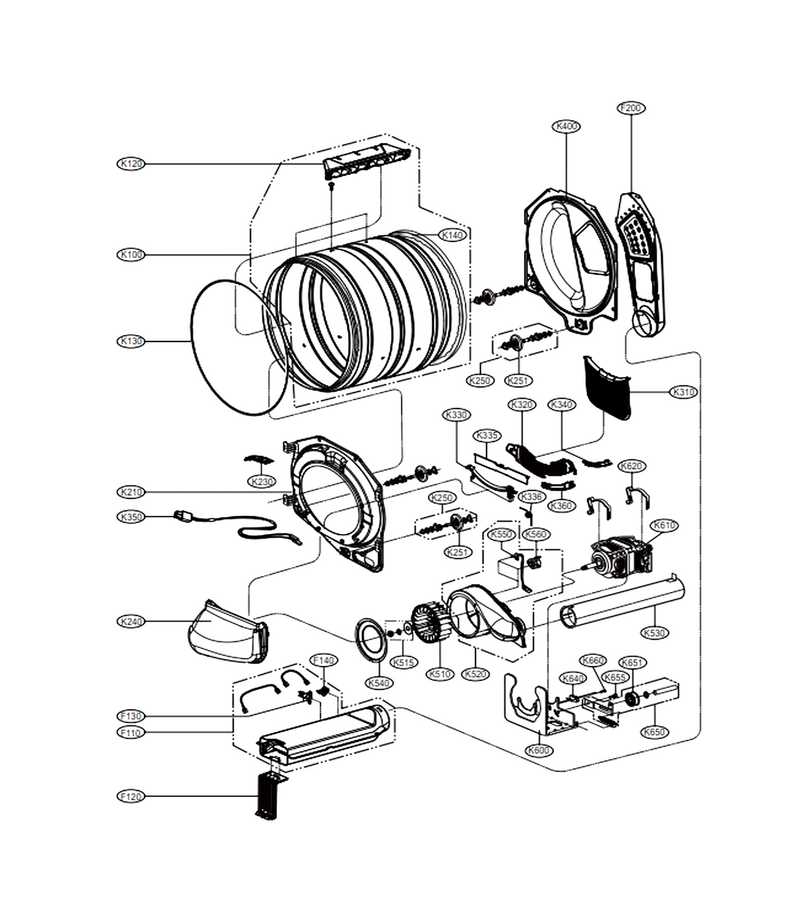

Drum & Motor Assembly: Electric Type

...
...
K340
Dryer Moisture Sensor L-G-6500EL3001A
...
K350
Dryer Moisture Sensor Wire Harness L-G-6631EL3003B
...
K360
Dryer Moisture Sensor Guide L-G-4930EL2004D
...
K400
Dryer Drum Rear Cover L-G-3044EL0002C
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Bracket,motor L-G-MAZ66065301
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
K140
Dryer Drum Seal, Rear L-G-4036EL3001A
...
F110
Dryer Heating Element Assembly L-G-5301EL1001A
...
F120
Dryer Heater Housing Bracket L-G-4810EL1007A
...
F130
Dryer High-Limit Thermostat L-G-6931EL3003D
...
F140
Dryer High-Limit Thermostat L-G-6931EL3001E
...
F200
Dryer Heat Duct L-G-5209EL1001C
...
K100
Dryer Drum L-G-3045EL1002P
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K130
Dryer Drum Belt L-G-4400EL2001A
...
K336
Spring L-G-4970EL4002C
...
K210
Dryer Drum Front Cover L-G-AJQ73594002
...
K230
Lamp Cover L-G-3550EL2001A
...
K240
Duct Assembly L-G-5209EL1002B
...
K250
Roller Assembly L-G-4581EL2002H
...
K251
Roller Assembly L-G-4581EL3001M
...
K310
Dryer Lint Screen L-G-5231EL1002E
...
K320
Dryer Lint Screen Cover L-G-3550EL1006D
...
K330
Dryer Lint Screen Housing L-G-4974EL1003D
...
K335
Dryer Lint Filter Guide Cover L-G-3550EL2004B
