LG GD1329CGS.ABWEELC

Model: GD1329CGS.ABWEELC

Save Part Not Listed?
product name

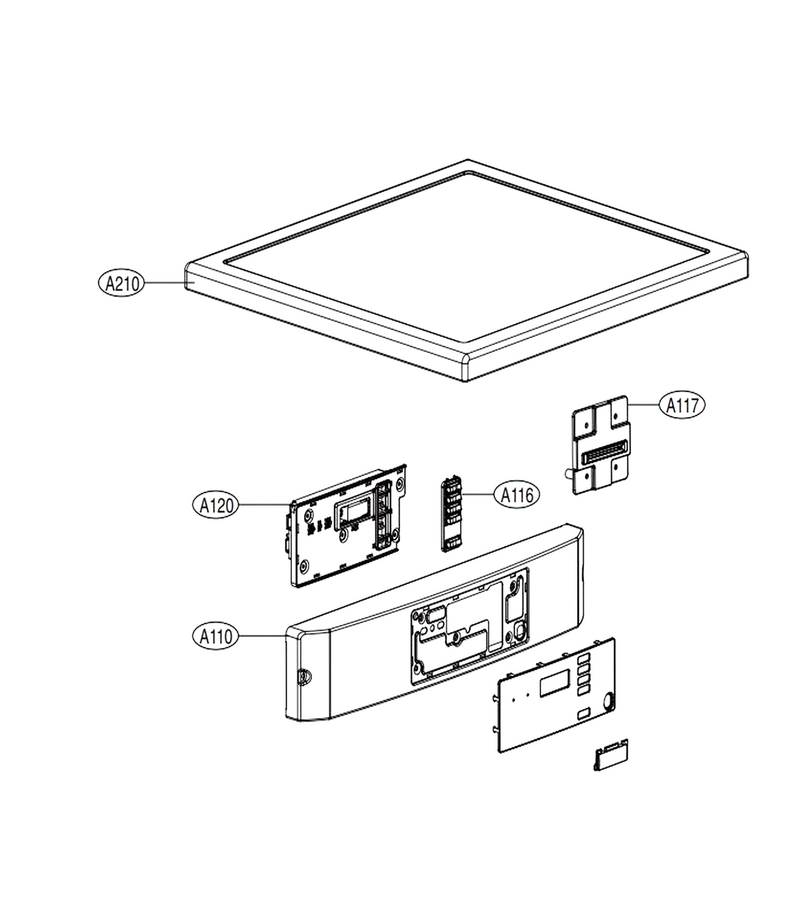

Control Panel & Plate Assembly Card Type

...
...
A110
Panel Assembly,control L-G-AGL73158271
...
A116
Button,control L-G-MBG62329502
...
A117
Cover,guide L-G-MCK62998501
...
A120
Pcb Assembly,display L-G-EBR64579201
...
A210
Plate Assembly L-G-3457ER1006R

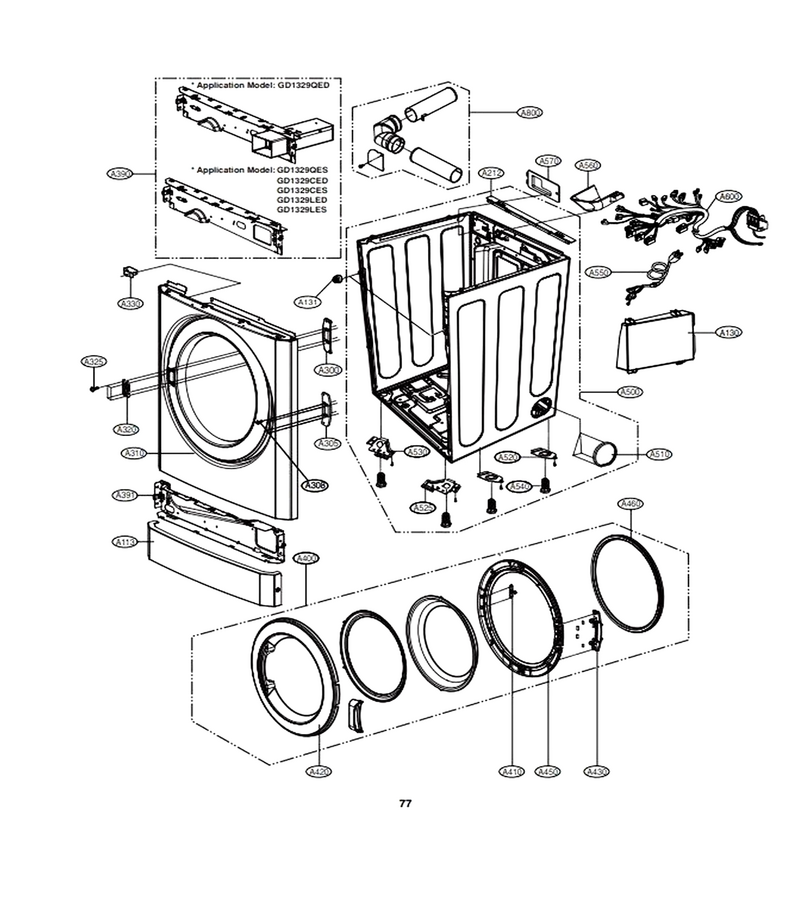

Cabinet & Door Assembly Gas Stack Lower Type

...
...
A410
O Door Frame L-G-4026EL3007A
...
A525
Bracket,base L-G-4810EL3009E
...
A420
Out Drive Frame L-G-3212EL1010B
...
A430
Dryer Door Hinge L-G-4774EL2001A
...
A450
Door Frame L-G-3212EL1005A
...
A460
Dryer Door Seal L-G-4986EL2004A
...
A500
Cabinet Assembly L-G-ABJ34559258
...
A520
Base Bracket L-G-4810EL3001B
...
A530
Bracket,base L-G-4810EL3009F
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A550
Dryer Power Cord L-G-6411ER1005B
...
A600
Harness,multi L-G-EAD61246501
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B
...
A391
Frame Assembly L-G-ADV30755203
...
A113
Cover,lower L-G-MCK63735302
...
A130
Pcb Assembly,main L-G-EBR64583702
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A212
Holder L-G-4930EL1005A
...
A300
Hinge Bracket L-G-MAZ47156202
...
A400
Dryer Door Assembly L-G-3581EL0002C
...
A308
Dryer Screw L-G-1APF0402608
...
A320
Dryer Door Catch L-G-4027EL1001A
...
A325
Dryer Screw L-G-1MTC0402632
...
A330
Dryer Door Switch L-G-6601EL3001A
...
A390
Frame Assembly L-G-ADV30755804
...
A305
Hinge Bracket L-G-MAZ47156203

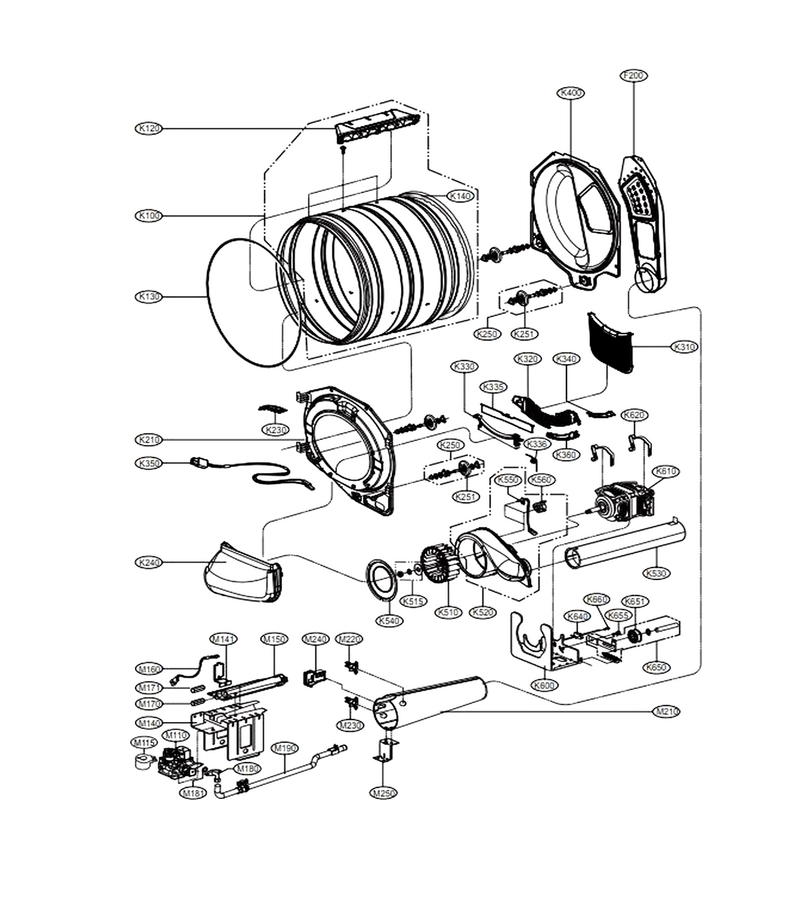

Drum & Motor Assembly Gas Type

...
...
M141
Bracket L-G-4810EL3002A
...
M140
Dryer Burner Bracket L-G-4974EL1001A
...
M115
Parts Assembly L-G-383EEL9001J
...
M110
Dryer Gas Valve L-G-5221EL2002A
...
K660
Screw L-G-1TPL0303218
...
K655
Screw L-G-1SZZEL3001A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
M150
Dryer Burner L-G-5201EL3001A
...
M160
Dryer Burner Igniter L-G-5318EL3001A
...
M170
Dryer Natural Gas Orifice L-G-4948EL4001B
...
M171
Dryer Lp Conversion Kit L-G-383EEL3002D
...
M180
Connector L-G-4932EL4001A
...
M181
Dryer Gas Supply Pipe Connector Seal L-G-4036EL3002A
...
M190
Pipe Assembly L-G-5201EL1001A
...
M210
Dryer Burner Duct Assembly L-G-3016EL1001A
...
M220
Dryer High-Limit Thermostat L-G-6931EL3004B
...
M230
Dryer High-Limit Thermostat L-G-6931EL3003C
...
M240
Dryer Radiant Sensor L-G-6501EL3001A
...
K336
Spring L-G-4970EL4002C
...
F200
Dryer Heat Duct L-G-5209EL1001E
...
K100
Dryer Drum L-G-3045EL1002P
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K130
Dryer Drum Belt L-G-4400EL2001F
...
K210
Dryer Drum Front Cover L-G-AJQ73594002
...
K230
Lamp Cover L-G-3550EL2001A
...
K240
Duct Assembly L-G-5209EL1002B
...
K250
Dryer Drum Support Roller Assembly L-G-4581EL2002C
...
K251
Dryer Drum Support Roller Assembly L-G-4581EL3001E
...
K600
Bracket,motor L-G-MAZ66065301
...
K350
Dryer Moisture Sensor Wire Harness L-G-6631EL3003B
...
K360
Dryer Moisture Sensor Guide L-G-4930EL2004D
...
K400
Dryer Drum Rear Cover L-G-3044EL0002C
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
