product name

LG DOTR12CWIV.AW1EDOM

Model: DOTR12CWIV.AW1EDOM

Save Part Not Listed?
product name

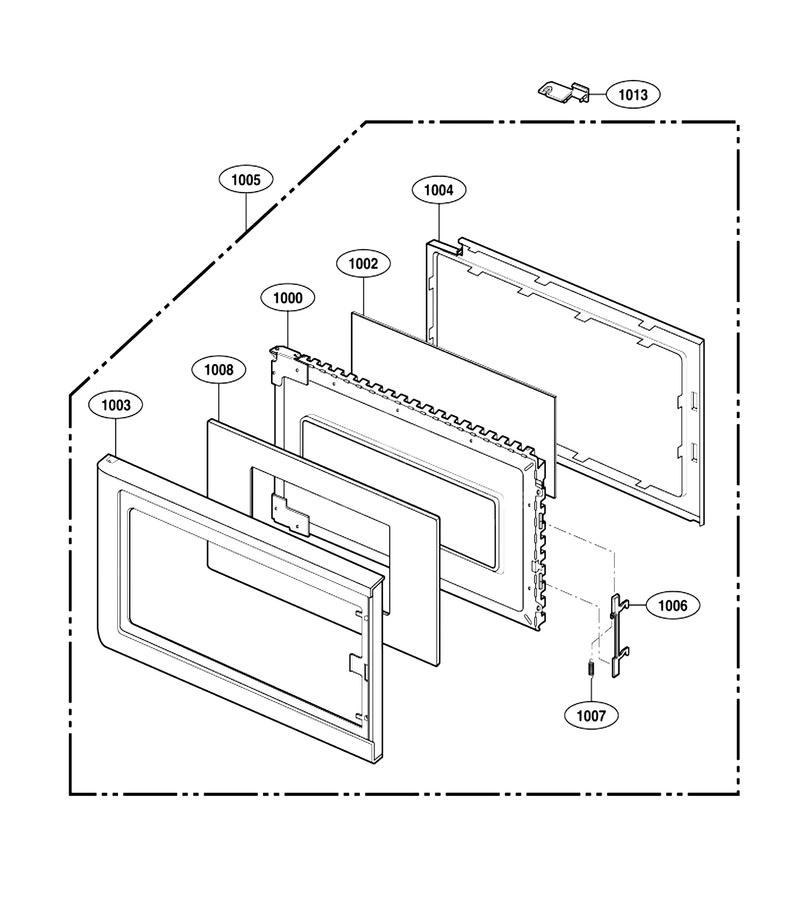

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W1A031M
...
1002
Seal Tape L-G-3536WRA001M
...
1003
Door Panel L-G-3720W0D156A
...
1004
Cover L-G-3552W1A028A
...
1005
Door Assembly L-G-3581W1A529C
...
1006
Latch L-G-4026W2A012A
...
1007
Spring L-G-4970WRA001C
...
1008
Window,glass L-G-4890W1A008Y
...
1013
Cap L-G-5006W3A010A

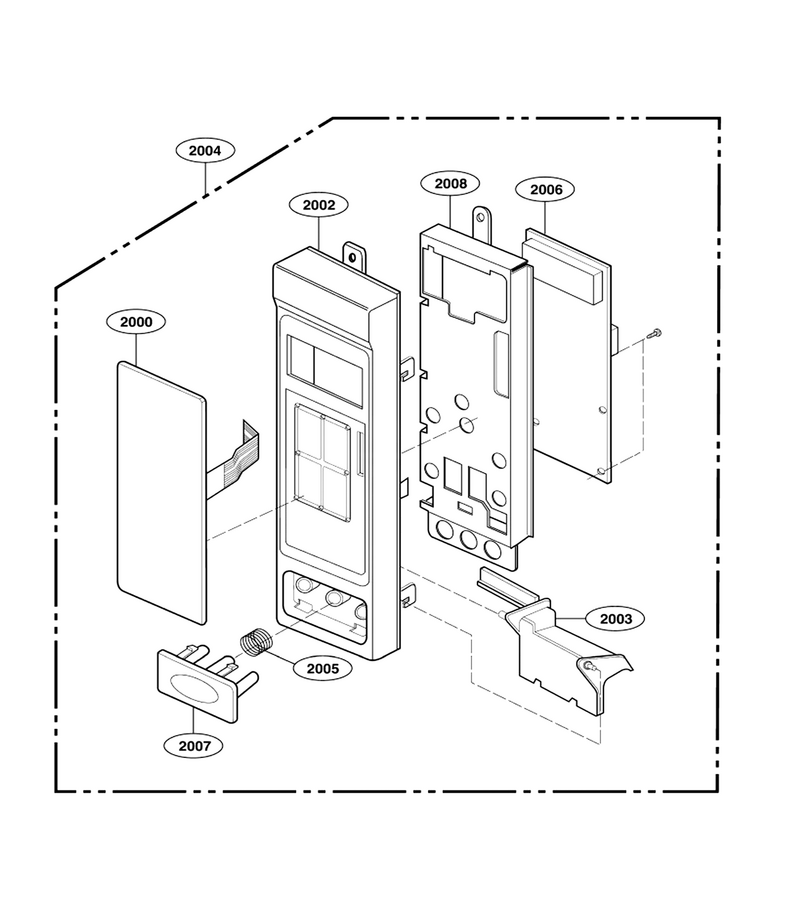

Controller Parts

...
...
2000
Membrane L-G-6638W2A322A
...
2002
Control Panel L-G-3572W0A182A
...
2003
Lever L-G-4510W3L002A
...
2004
Controller Assembly,keypad L-G-4781W1M221A
...
2005
Microwave Door Release Button Spring L-G-4B72023A
...
2006
Microwave Electronic Control Board L-G-6871W2S152A
...
2007
Push Button L-G-5020W2A134A
...
2008
Control Panel Bracket L-G-4810W1P004A

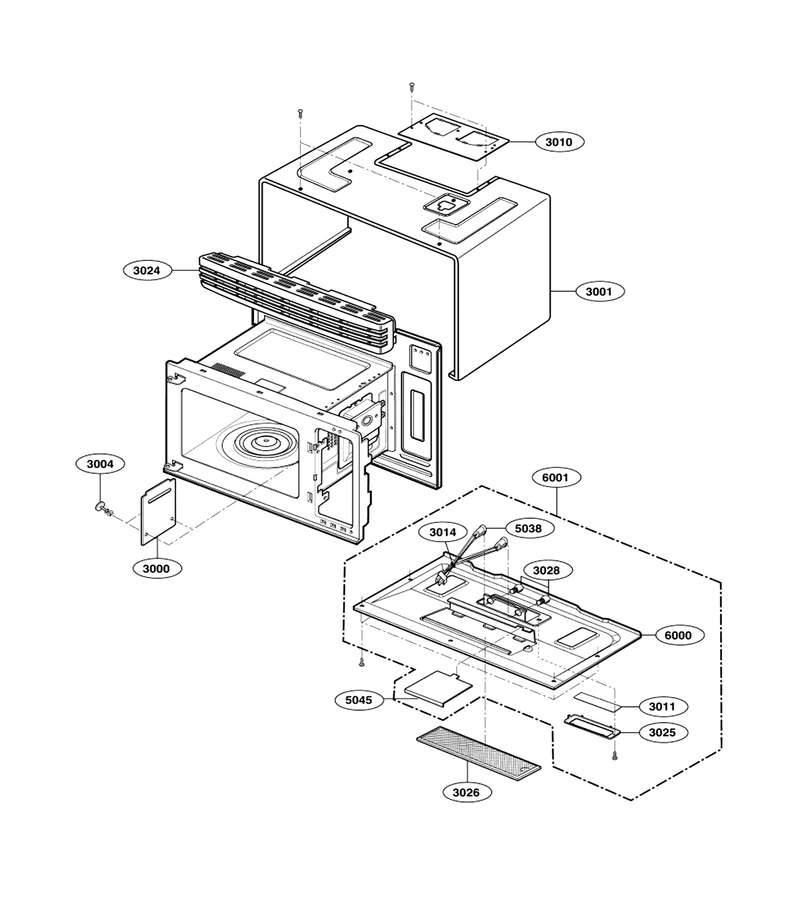

Oven Cavity Parts

...
...
3000
Microwave/hood Cover L-G-3052W3M008B
...
3001
Flat Case L-G-3112W0F012H
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3010
Mount L-G-4960W2G022A
...
3011
Oven Glass L-G-4890W4A001B
...
3014
Single Harness L-G-6877W2A003A
...
3024
Grille,vent L-G-3530W0A010A
...
3025
Microwave Light Lens Bracket L-G-4810W3G100A
...
3026
Microwave Grease Filter L-G-5230W2A001A
...
3028
Microwave Light Bulb L-G-6912W3Q001D
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5045
Lamp Cover L-G-3550W3L002A
...
6000
Base Plate L-G-3302W0A023B
...
6001
Base Plate Assembly L-G-3303W1A046B

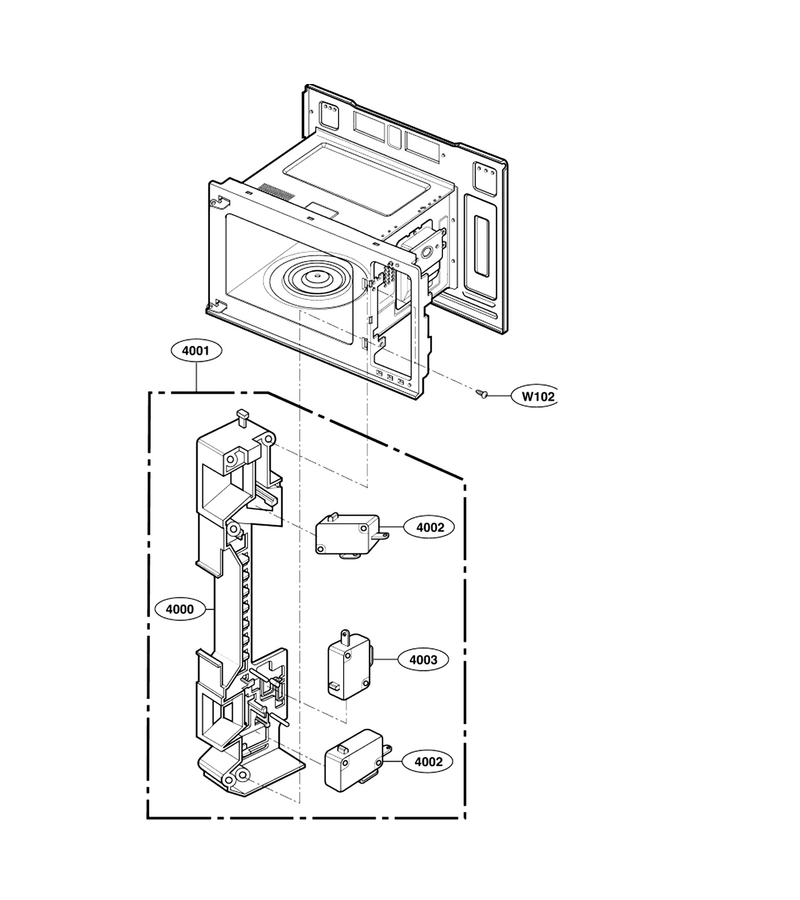

Latch Board Parts

...
...
4000
Latch Board L-G-3500W1A008A
...
4001
Microwave Door Latch Housing And Interlock Swit... L-G-3501W1A003U
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B

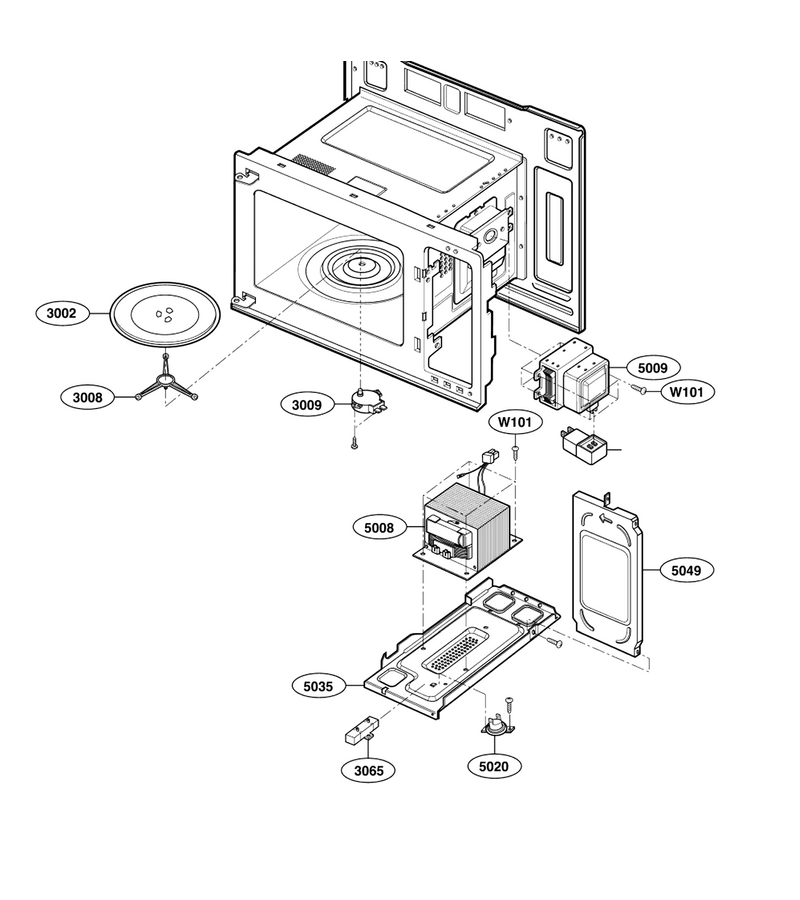

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3002
Microwave Glass Turntable Tray L-G-3390W1G004C
...
3008
Turntable Assembly L-G-5889W2A014B
...
3009
Motor, Ac Synchronous L-G-6549W1S013B
...
3065
Resistor Cement L-G-3B72552D
...
5008
Transformer L-G-6170W1D002K
...
5009
Microwave Magnetron L-G-2B71165N
...
5020
Thermostat L-G-6930W1A003M
...
5035
Bottom Plate L-G-3300W1B003A
...
5049
Air Guide L-G-4974W1C001A

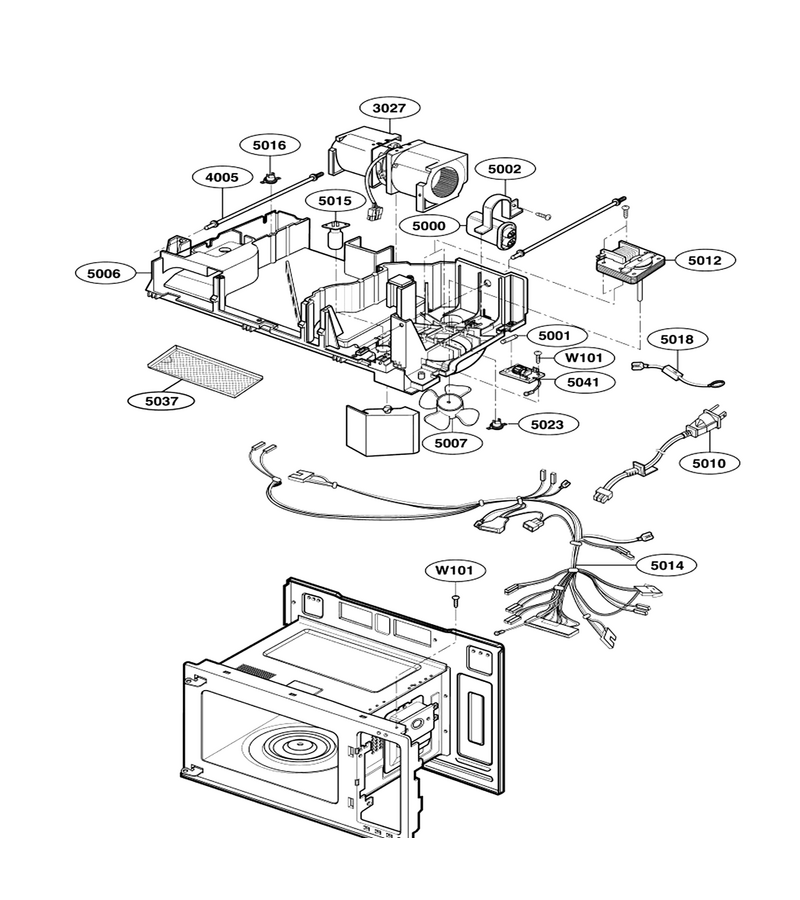

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3027
Ac Ventilation Motor L-G-6549W1V005A
...
4005
Rod L-G-4B73423A
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004A
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket L-G-4810W3C002A
...
5006
Air Duct L-G-5262W0A010A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5010
Ac Cord Assy L-G-6411W1A014H
...
5012
Motor L-G-6549W2F016D
...
5014
Single Harness L-G-6877W1A253B
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5016
Microwave Thermostat L-G-6930W1A003A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5023
Microwave Thermostat L-G-6930W1A003D
...
5037
Charcoal Filter L-G-5230W2A003B
...
5041
Microwave Noise Filter L-G-2B72130F

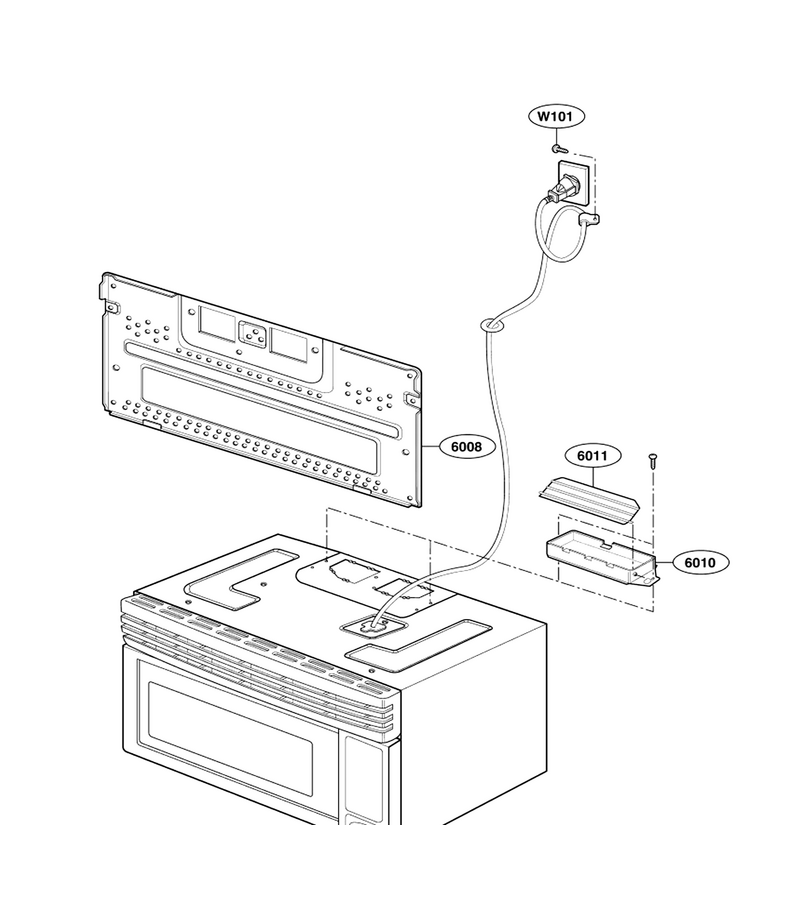

Installation Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
6008
Mounting Plate Assembly L-G-3301W1A023A
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
