LG DMC36TB-1.AMBAHCI

Model: DMC36TB-1.AMBAHCI

Save Part Not Listed?
product name

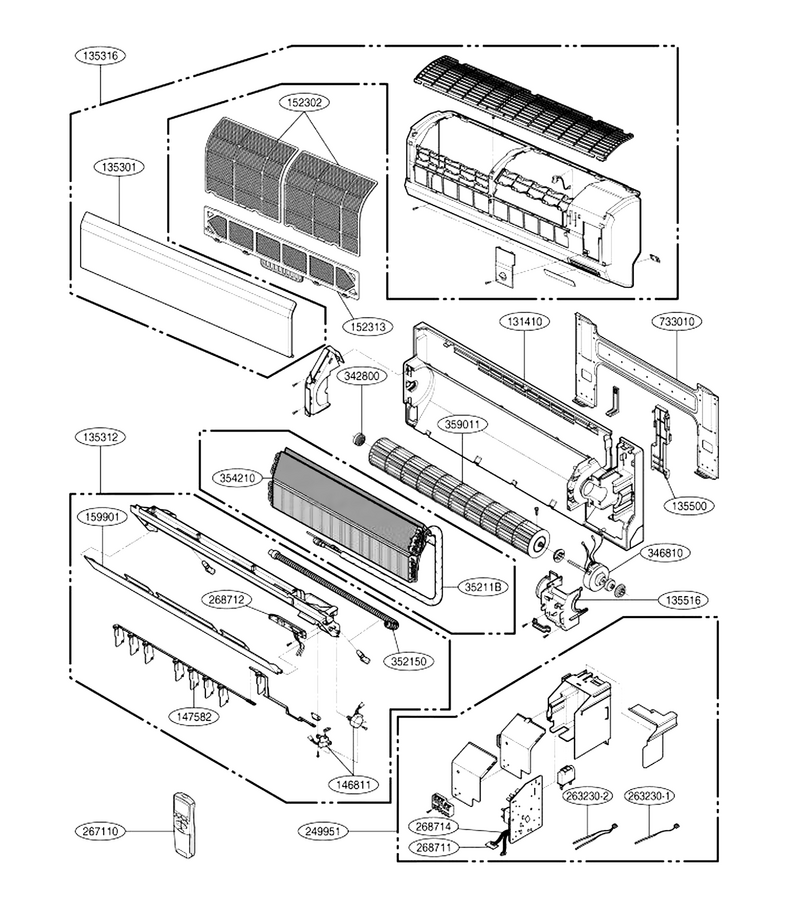

Indoor Unit I

...
...
131410
Chassis L-G-3141A20034A
...
135301
Grille,inlet L-G-3530A10297A
...
135312
Grille Assembly,discharge(indoor) L-G-3531A10362M
...
135316
Grille Assembly,front(indoor) L-G-AEB30610001
...
135500
Cover L-G-3550A30315A
...
135516
Cover Assembly L-G-3551A20156B
...
146811
Motor Assembly L-G-4681A20055A
...
147582
Louver,verti L-G-4758A30057A
...
152302
Room Air Conditioner Air Filter L-G-5230A20064A
...
152313
Filter Assembly L-G-5231A20040K
...
159901
Louver L-G-5990A20068A
...
249951
Case Assembly,control(indoor) L-G-4995A20831A
...
263230-1
Thermistor,ntc L-G-6323AQ3226T
...
263230-2
Thermistor,ntc L-G-6323A20004A
...
267110
Remote Controller Assembly L-G-6711A20128K
...
359011
Room Air Conditioner Blower Wheel L-G-5901A20017H

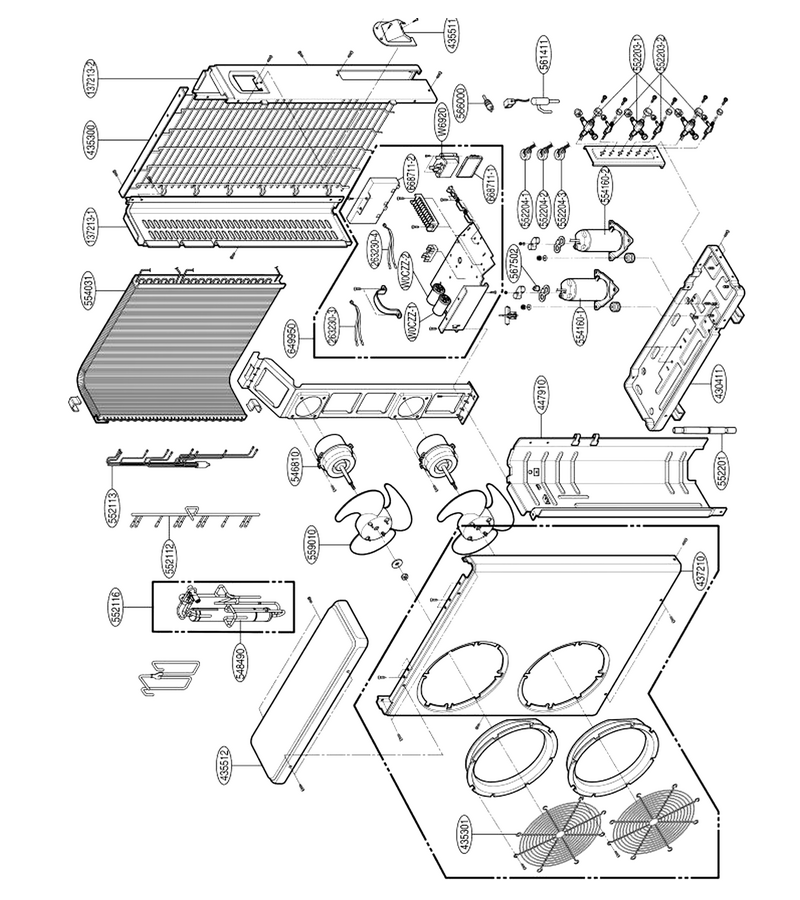

Indoor Unit Ii

...
...
W0CZZ-1
Capacitor,film,box L-G-0CZZA20007Q
...
W0CZZ-2
Capacitor,film,box L-G-2H01451S
...
137213-1
Panel Assembly,side L-G-3721A10110A
...
137213-2
Panel Assembly,side L-G-3721A10111C
...
263230-4
Thermistor,ntc L-G-6323A20026A
...
263230-3
Thermistor,ntc L-G-6323A20028A
...
447910
Barrier Assembly,outdoor L-G-4791A10019B
...
546810
Motor Assembly,ac,outdoor L-G-4681AR1392X
...
548490
Accumulator L-G-4848A20006L
...
552112
Tube Assembly,condenser(in) L-G-5211A11010A
...
552113
Tube Assembly,condenser(out) L-G-5211A12001A
...
552116
Tube Assembly,reverse L-G-AJR30839802
...
552201
Check Valve L-G-5220A30004A
...
552203-1
Valve,service L-G-5220A20001K
...
552203-2
Service Valve L-G-2H02479J
...
552204-2
Drawing,assembly L-G-6877A20050B
...
552204-3
Drawing,assembly L-G-6877A20050C
...
552204-1
Drawing, Assembly L-G-6877A20050A
...
554031
Condenser Assembly,bending L-G-5403A20168C
...
554160-1
Compressor Set, Korea L-G-2520UGHK2AA
...
554160-2
Compressor Set,korea L-G-TBZ30111701
...
559010
Fan Propeller L-G-5901A10033A
...
561411
Valve,expansion Body L-G-6140A90001K
...
566000
Service Valve L-G-6600L000013
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L048A
...
649950
Case Assembly,control(outdoor) L-G-4995A00002H
...
668711-1
Pcb Assembly,main L-G-6871A20500B
...
668711-2
Pcb Assembly,main L-G-6871A20479F
