LG DMC36CA-1.ANWAHCI

Model: DMC36CA-1.ANWAHCI

Save Part Not Listed?
product name

Main

...
...
W0CZZA
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
W0CZZB
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194K
...
55211G
Tube Assembly, Expansion L-G-AJR30127901
...
263230D
Thermister, Ntc L-G-6323A20023E
...
268711B
Main Pcb Assembly L-G-6871A21318E
...
430411
Base Assembly, Weld (outdoor) L-G-AAN32562207
...
435301
Discharge Grille L-G-3530AP1225D
...
435511
Cover Assembly, Control (outdoor) L-G-ACQ33125301
...
435512
Cover Assembly, Top (outdoor) L-G-ACQ32490301
...
437211
Panel Assembly, Front (outdoor) L-G-AGL32571801
...
447900
Barrier, Outdoor L-G-4760AP1216C
...
546810
Motor Assembly, Outdoor L-G-4681A10030C
...
548490
Accumulator L-G-4848A20006K
...
552113
Tube Assembly, Condenser (out) L-G-AJR30109601
...
552114
Tube Assembly, Discharge (outdoor) L-G-5211A19011A
...
552115
Tube Assembly, Discharge (outdoor) L-G-5211A00034A
...
552203A
Service Valve L-G-5220A20013A
...
552203B
Service Valve L-G-5220A20007A
...
554031
Condenser Assembly, Bending L-G-5403A20044B
...
554160A
Compressor Set, Korea L-G-TBZ30130501
...
554160B
Compressor Set, Korea L-G-2520UTBK1AA
...
559010
Fan Assembly L-G-1A00195B
...
649950
Case Assembly, Control (outdoor) L-G-ABQ30144401

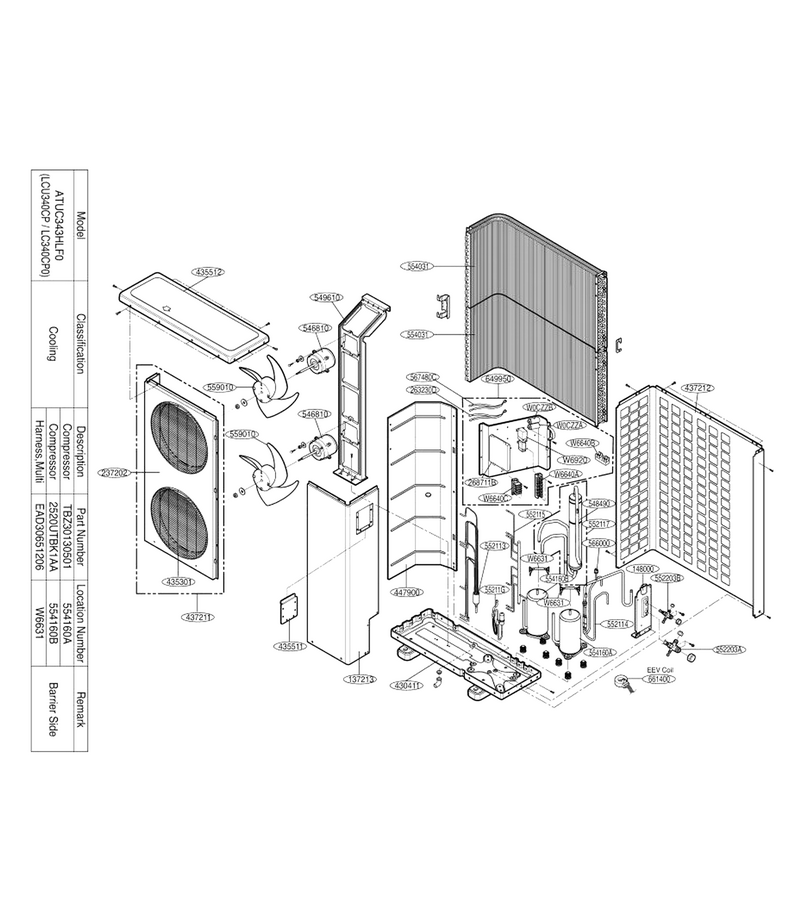

Schematic Image Zoomed
