LG DLGX8101W.ABWEEUS

Model: DLGX8101W.ABWEEUS

Save Part Not Listed?
product name

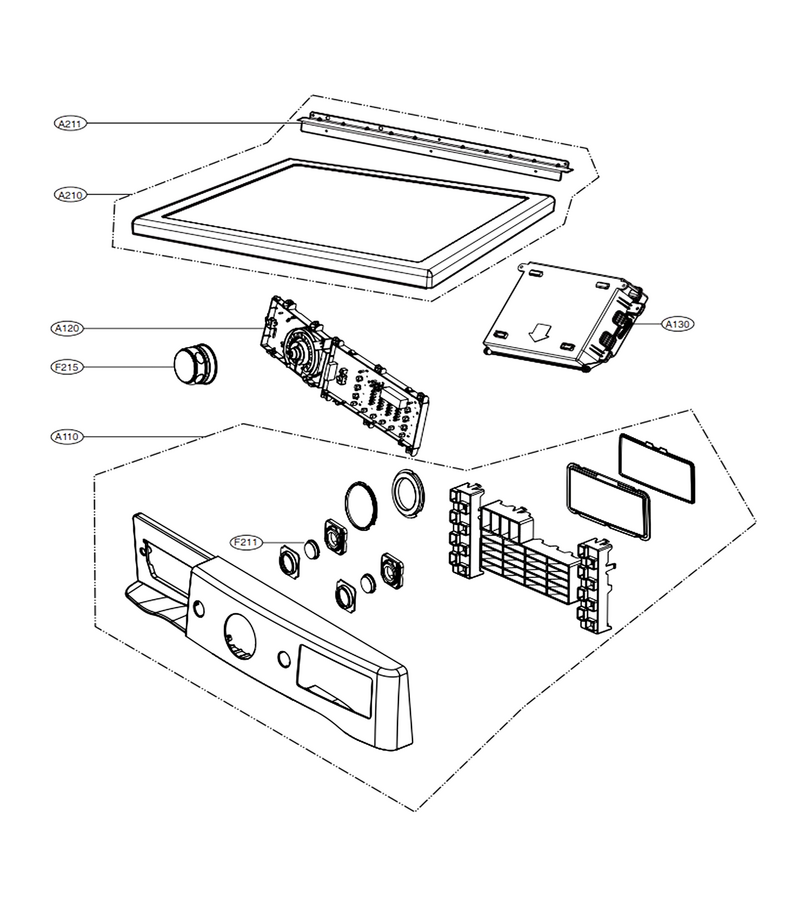

Control Panel & Plate Assembly

...
...
A110
Panel Assembly,control L-G-AGL73954422
...
A120
Display Pcb Assembly L-G-EBR81137801
...
A130
Pcb Assembly,main L-G-EBR76519514
...
A210
Plate Assembly,top L-G-AGU73729909
...
A211
Plate L-G-MGJ63083901
...
F211
Dryer Push-To-Start Knob L-G-AGM73610704
...
F215
Dryer Control Knob L-G-4941ER3005D

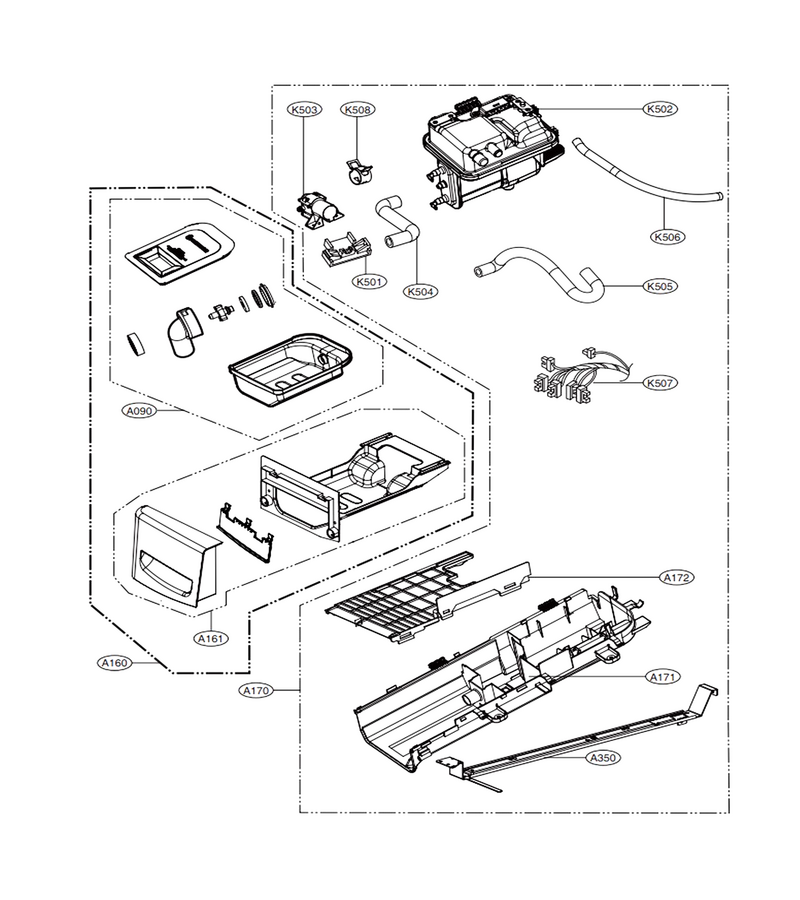

Panel Drawer Assembly & Guide Assembly

...
...
K503
Dryer Water Pump L-G-EAU37148701
...
K508
Washer Hose Clamp L-G-4861FR3068A
...
K507
Multi Harness L-G-EAD39301904
...
K506
Pump Hose L-G-MEJ38393302
...
K505
Pump Hose L-G-MEJ38393101
...
K504
Pump Hose L-G-MEJ38393201
...
K502
Dryer Generator Assembly L-G-3111ER1002R
...
K501
Damper L-G-MCQ38393001
...
A172
Guide Cover L-G-MCK38392501
...
A350
Frame,body L-G-MDQ38393703
...
A171
Drawer Guide L-G-MEA38595802
...
A170
Guide Assembly L-G-AEC36177516
...
A161
Panel Assembly,drawer L-G-AGL73678603
...
A160
Panel Assembly,drawer L-G-AGL73678503
...
A090
Dryer Water Tank Assembly L-G-AJL34327901

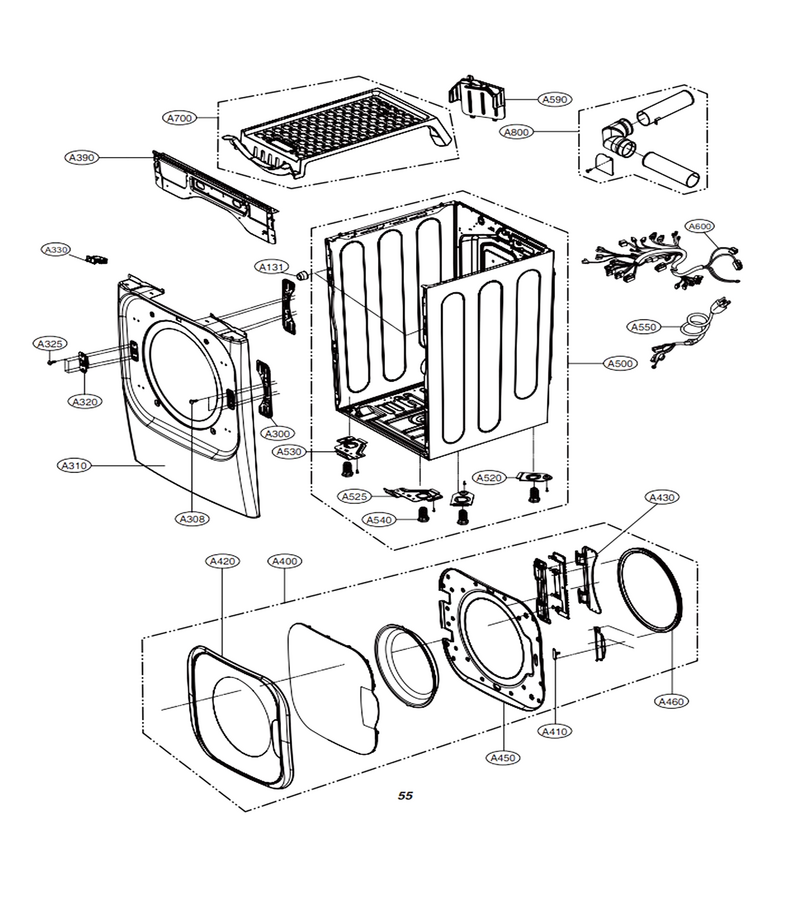

Cabinet & Door Assembly: Gas Type

...
...
A460
Gasket L-G-MDS62050802
...
A500
Cabinet Assembly L-G-ABJ73568806
...
A520
Dryer Leveling Leg Bracket L-G-4810EL3001A
...
A525
Base Bracket L-G-4810EL3009A
...
A530
Dryer Leveling Leg Bracket L-G-4810EL3009B
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A550
Dryer Power Cord L-G-6411ER1005B
...
A590
Safety Cover L-G-MCK62423301
...
A600
Harness,multi L-G-EAD61933106
...
A700
Dryer Drying Rack L-G-MGR62082001
...
A800
Dryer Side Or Bottom Vent Kit L-G-383EEL9001L
...
A450
Frame,door(i L-G-MDQ62936401
...
A308
Dryer Screw L-G-1APF0402608
...
A430
Dryer Hinge L-G-MEF62382701
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A300
Bracket,hinge L-G-MAZ63253203
...
A310
Cover Asy,ca L-G-ACQ85638401
...
A320
Dryer Door Latch Kit L-G-4027EL1001B
...
A325
Dryer Screw L-G-1MTC0402632
...
A330
Dryer Door Switch L-G-6601EL3001A
...
A390
Frame Panel L-G-MDQ62976502
...
A400
Dryer Door Assembly L-G-ADC73669601
...
A410
Hook Locker L-G-4026EL3007B
...
A420
Dryer Door Outer Frame L-G-MDQ62936301

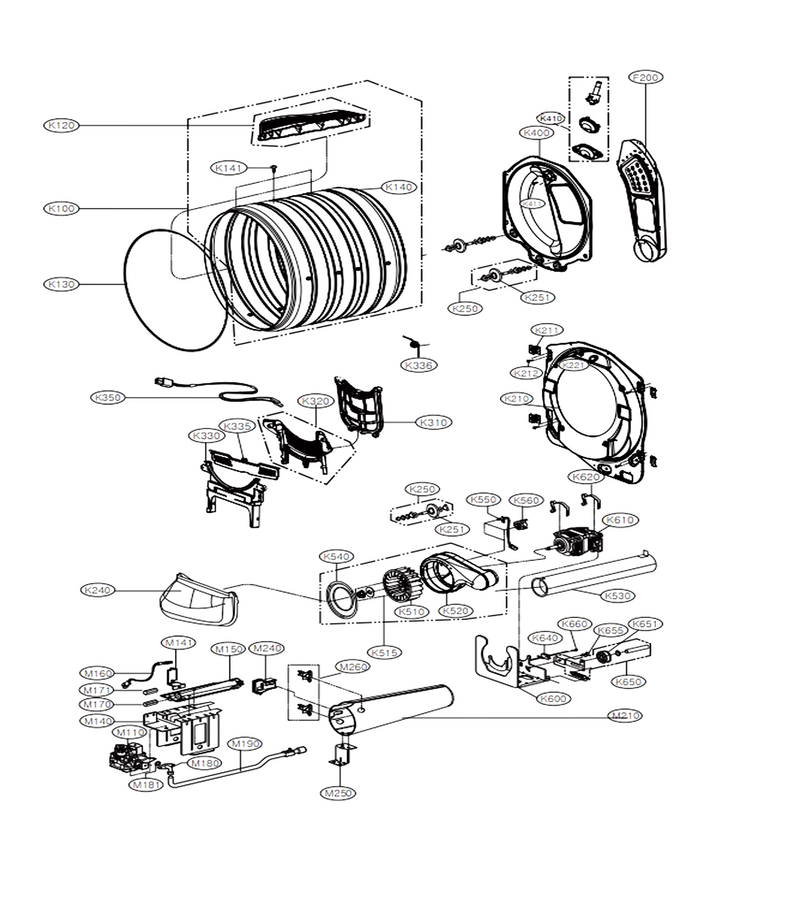

Drum & Motor Assembly: Gas Type

...
...
K660
Screw L-G-1TPL0303218
...
K655
Screw L-G-1SZZEL3001A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K650
Dryer Idler Assembly L-G-4561EL3002B
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
M171
Dryer Lp Conversion Kit L-G-383EEL3002D
...
K610
Motor Assembly,dc,drum L-G-4681EL1008J
...
K600
Bracket Assembly L-G-4811EL1002F
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K530
Dryer Exhaust Duct L-G-5209EL1006F
...
M110
Dryer Gas Valve L-G-5221EL2002A
...
M140
Dryer Burner Bracket L-G-4974EL1001A
...
M141
Bracket L-G-4810EL3002A
...
M150
Dryer Burner L-G-5201EL3001A
...
M160
Dryer Burner Igniter L-G-5318EL3001A
...
M170
Dryer Natural Gas Orifice L-G-4948EL4001B
...
M180
Connector L-G-4932EL4001A
...
M181
Dryer Gas Supply Pipe Connector Seal L-G-4036EL3002A
...
M190
Dryer Gas Manifold L-G-5201EL2001A
...
M210
Dryer Burner Duct Assembly L-G-3016EL1001A
...
M240
Dryer Radiant Sensor L-G-6501EL3001A
...
M250
Dryer Burner Funnel Bracket L-G-4980EL3001A
...
K250
Dryer Drum Support Roller Assembly L-G-4581EL2002C
...
F200
Duct Assembly L-G-ADJ73392903
...
K100
Tub Assembly,drum L-G-AJQ73274304
...
K120
Lifter L-G-MFE61921001
...
K130
Dryer Drum Belt L-G-4400EL2001D
...
K140
Gasket L-G-4036EL3001B
...
K141
Screw,taptite L-G-1FTF0503507
...
K210
Dryer Drum Seal, Rear L-G-MJT62002801
...
K211
Tub Bracket L-G-4810EL3008A
...
K212
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
K221
Dryer Led Lamp L-G-EAQ61400801
...
K240
Dryer Duct Assembly L-G-ADJ73372401
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K251
Dryer Drum Support Roller Assembly L-G-4581EL3001E
...
K310
Dryer Lint Screen L-G-ADQ73373201
...
K320
Guide Cover L-G-MEA62770801
...
K330
Filter Guide L-G-MEA62790801
...
K335
Dryer Filter Cover L-G-MCK66826301
...
K336
Spring L-G-4970EL4002C
...
K350
Single Harness L-G-6631EL3003F
...
K400
Dryer Drum Rear Cover L-G-MJT62002901
...
K410
Dryer Steam Nozzle L-G-AGB34327803
...
K411
Screw L-G-1SZZEL2001A
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
