LG DLGX7601WE.ABWEEUS

Model: DLGX7601WE.ABWEEUS

Save Part Not Listed?

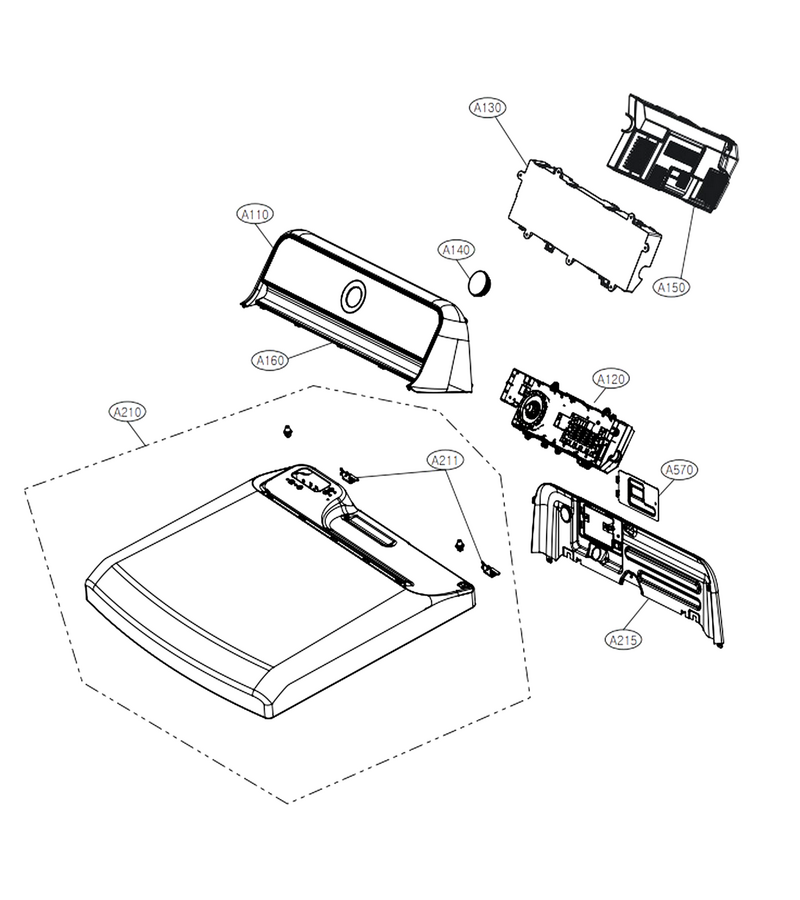

product name

Control Panel & Plate Assembly

...
...
A110
Front Panel Assembly L-G-AGL75452903
...
A120
Display Pcb Assembly L-G-EBR79674804
...
A130
Main Pcb Assembly L-G-EBR80198608
...
A140
Knob Assembly L-G-AEZ73913401
...
A150
Protect Cover L-G-3550EL2003B
...
A160
Decor,panel L-G-MCR66471701
...
A210
Plate Assembly,top L-G-AGU72925524
...
A211
Plate Clip U L-G-3300EL4001A
...
A215
Rear Panel L-G-MGC64406319

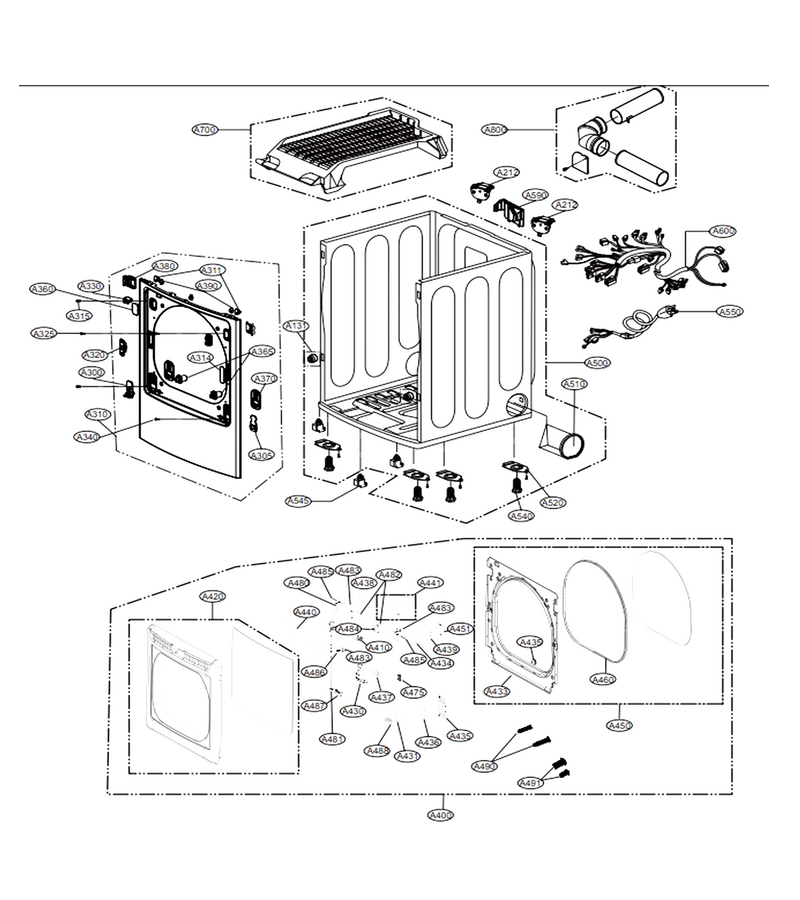

Cabinet & Door Assembly: Gas Type

...
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A212
Dryer Top Panel Rear Clip L-G-3300ER4003A
...
A300
Dryer Hinge L-G-MEF62782201
...
A305
Hinge Assembly L-G-AEH74256601
...
A310
Cover Assembly L-G-ACQ86644201
...
A311
Dryer Cabinet Clip L-G-4930ER4003A
...
A315
Dryer Screw L-G-4000FD4191A
...
A320
Door Strike L-G-4027EL1001C
...
A325
Screw L-G-1SZZEL2001A
...
A330
Dryer Door Switch L-G-EBF61496101
...
A340
Screw L-G-FAB32258901
...
A360
Hole Cover Cap L-G-MBL62213301
...
A365
Damper Assembly L-G-ACV73430101
...
A370
Hinge Bracket L-G-MAZ63869301
...
A380
Bracket L-G-MAZ61975501
...
A390
Holder L-G-4930ER4002B
...
A400
Door Assembly L-G-ADC74129514
...
A410
Dryer Door Latch L-G-4026EL3007C
...
A420
Frame Assembly L-G-ADV74568901
...
A430
Hinge L-G-MEF62782101
...
A431
Hinge L-G-MEF62782001
...
A434
Hinge Bracket L-G-MAZ63869101
...
A435
Supporter,hinge L-G-MJH63096901
...
A436
Hinge Bracket L-G-MAZ63869201
...
A437
Cap Cover L-G-MBL65579001
...
A438
Cap Cover L-G-MBL65578901
...
A439
Supporter,hinge L-G-MJH63096801
...
A440
Handle Assembly L-G-MEB63034501
...
A441
Handle Assembly L-G-AED73953301
...
A450
Frame Assembly L-G-ADV74568801
...
A451
Hinge L-G-MEF62781901
...
A460
Gasket L-G-MDS61982901
...
A475
Body Locker L-G-MFG63878901
...
A480
Bar,connector L-G-MAK62727001
...
A481
Bar,connector L-G-MAK62727101
...
A482
Locker,handle L-G-MFG63098601
...
A483
Locker L-G-MFG63098701
...
A484
Coil Spring L-G-MHY63244301
...
A485
Coil Spring L-G-MHY63244302
...
A486
Coil Spring L-G-MHY63244303
...
A487
Cap Cover L-G-MBL65958102
...
A488
Cap Cover L-G-MBL65958101
...
A490
Screw,customized L-G-1SZZEL4001B
...
A491
Microwave Screw L-G-1TTL0402418
...
A500
Cabinet Assembly L-G-ABJ73928220
...
A510
Dryer Side Vent Hole Cover (white) L-G-5006EL3001D
...
A520
Dryer Leveling Leg Bracket L-G-4810EL3001A
...
A540
Leg L-G-4778EL3001E
...
A545
Holder L-G-4930EL3004A
...
A550
Dryer Power Cord L-G-6411ER1005B
...
A590
Safety Cover L-G-MCK62423301
...
A600
Multi Harness L-G-EAD60946414
...
A700
Dryer Drying Rack L-G-3750EL0001C
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B

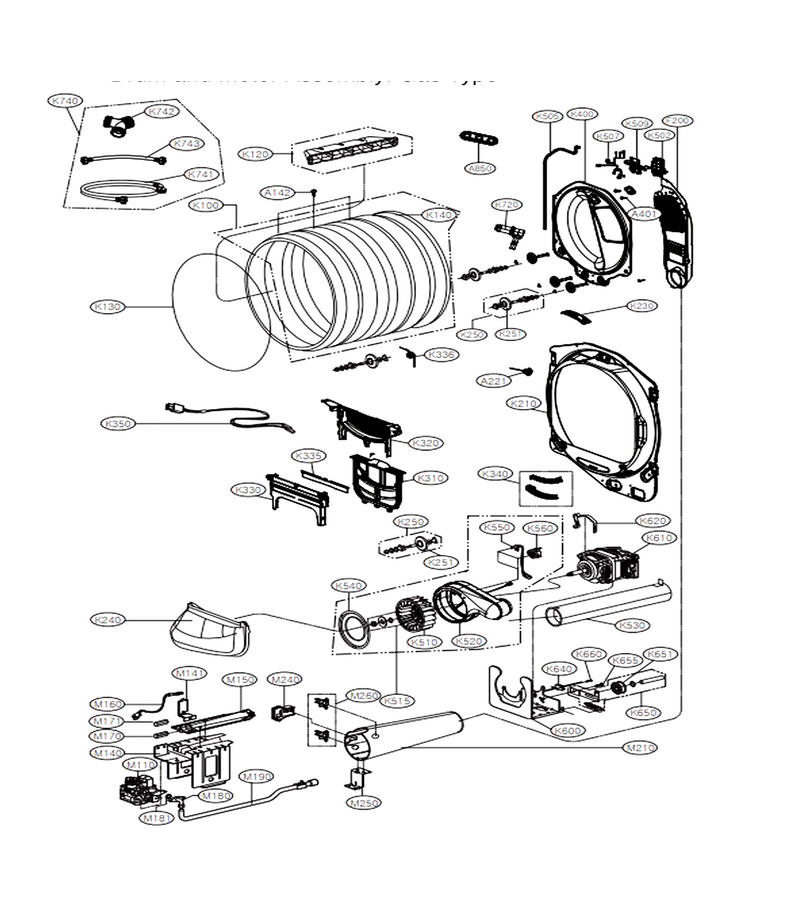

Drum & Motor Assembly: Gas Type

...
...
A221
Dryer Led Lamp L-G-EAQ61400801
...
A401
Screw L-G-1SZZEL2001A
...
F200
Dryer Heat Duct L-G-5209EL1001E
...
K100
Tub Assembly,drum L-G-3045EL1002S
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K130
Dryer Drum Belt L-G-4400EL2001F
...
K140
Dryer Drum Seal, Rear L-G-4036EL3001A
...
K210
Drum Assembly L-G-3045EL1005D
...
K230
Connector,nozzle L-G-MCD62587102
...
K240
Dryer Exhaust Duct L-G-5209EL1002A
...
K250
Dryer Drum Support Roller Assembly L-G-4581EL2002C
...
K251
Dryer Drum Support Roller Assembly L-G-4581EL3001E
...
K310
Dryer Lint Screen L-G-5231EL1001C
...
K320
Cover,guide L-G-3550EL1005C
...
K330
Dryer Lint Screen Cover L-G-4974EL1002B
...
K335
Dryer Lint Filter Guide Cover L-G-3550EL2004B
...
K336
Spring L-G-4970EL4002C
...
K340
Dryer Moisture Sensor L-G-6500EL3001A
...
K350
Dryer Moisture Sensor Wire Harness L-G-6631EL3003B
...
K400
Tub,drum(rea L-G-3044EL0002T
...
K502
Generator Assembly L-G-ADZ73410102
...
K505
Inlet Hose L-G-MEJ62404702
...
K507
Multi Harness L-G-EAD39301914
...
K509
Frame Bracket L-G-MAZ64606102
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Bracket,motor L-G-MAZ66065301
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
K720
Connector,nozzle L-G-MCD63206801
...
K740
Assembly Accessory L-G-AAA75232311
...
K741
Washer Fill Hose L-G-5215FD3715V
...
K742
Connector,pipe L-G-MCD63306801
...
K743
Hose,inle L-G-5215FD3715W
...
M110
Dryer Gas Valve L-G-5221EL2002A
...
M140
Dryer Burner Bracket L-G-4974EL1001A
...
M141
Bracket L-G-4810EL3002A
...
M150
Dryer Burner L-G-5201EL3001A
...
M160
Dryer Burner Igniter L-G-5318EL3001A
...
M170
Dryer Natural Gas Orifice L-G-4948EL4001B
...
M171
Dryer Lp Conversion Kit L-G-383EEL3002D
...
M180
Connector L-G-4932EL4001A
...
M181
Dryer Gas Supply Pipe Connector Seal L-G-4036EL3002A
...
M190
Dryer Gas Manifold L-G-5201EL2001A
...
M210
Dryer Burner Duct Assembly L-G-3016EL1001A
...
M240
Dryer Radiant Sensor L-G-6501EL3001A
...
M250
Dryer Burner Funnel Bracket L-G-4980EL3001A
