LG DLGX3371W.ABWEEUS

Model: DLGX3371W.ABWEEUS

Save Part Not Listed?

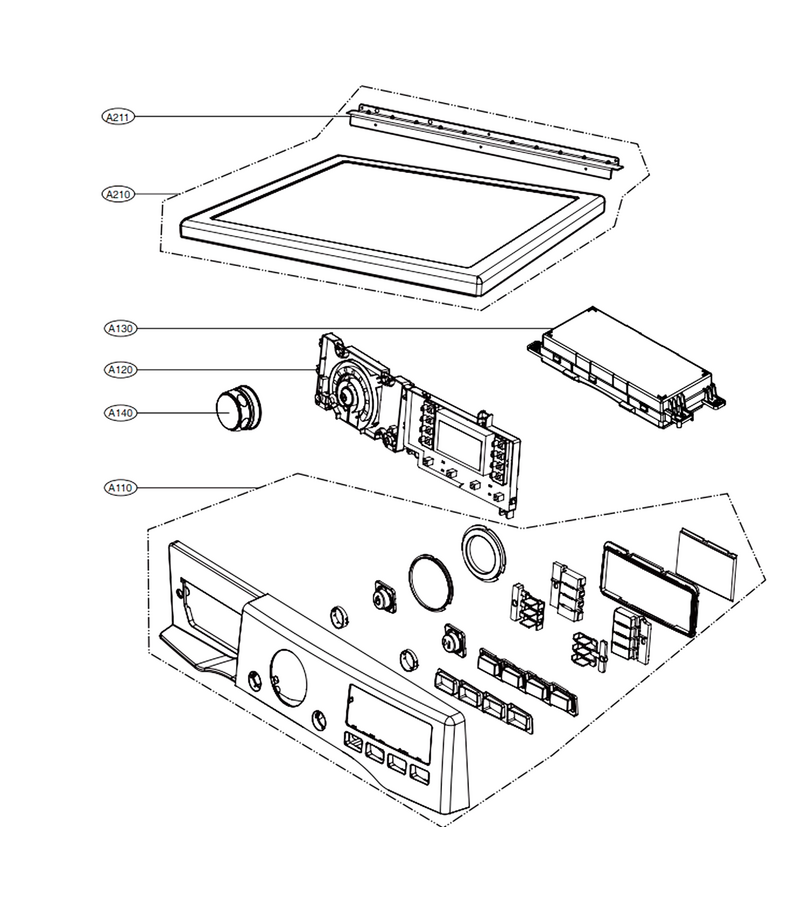

product name

Control Panel & Plate Assembly

...
...
A110
Dryer Control Panel L-G-AGL32761670
...
A120
Dryer Display Control Board L-G-EBR71385608
...
A130
Main Pcb Assembly L-G-EBR76542918
...
A140
Dryer Control Knob L-G-4941ER3005A
...
A210
Plate Assembly,top L-G-AGU30071289
...
A211
Plate L-G-3300EL2001C

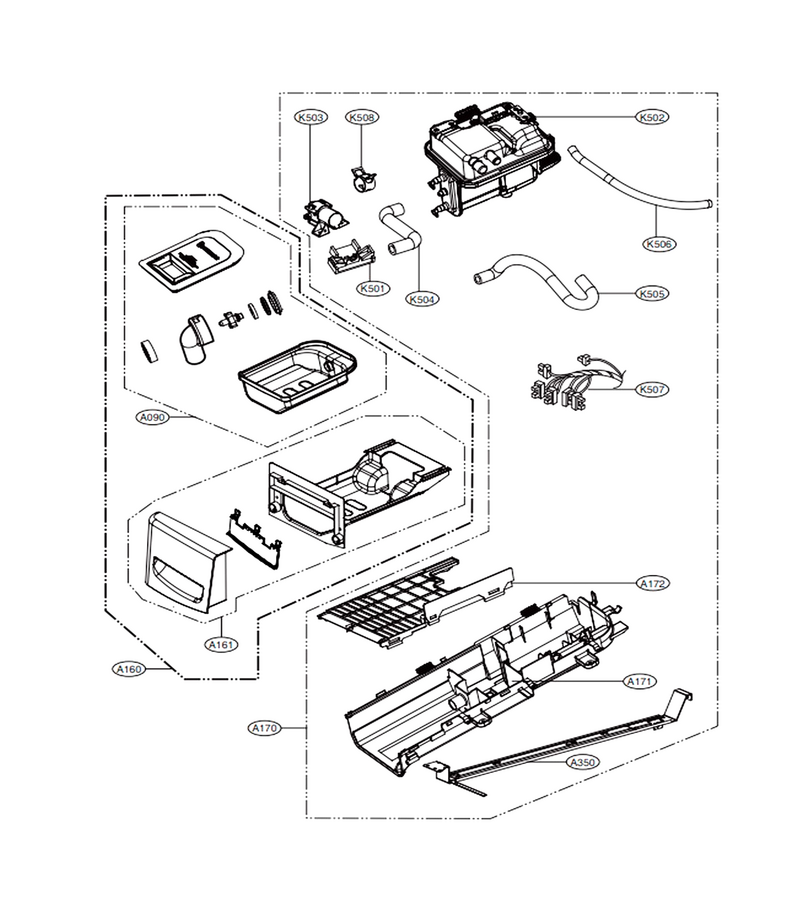

Panel Drawer Assembly And Guide Assembly

...
...
A090
Dryer Water Tank Assembly L-G-AJL72910301
...
A160
Drawer Panel Assembly L-G-AGL34328047
...
A161
Drawer Panel Assembly L-G-AGL34227848
...
A170
Guide Assembly L-G-AEC36177508
...
A171
Drawer Guide L-G-MEA38595802
...
A172
Guide Cover L-G-MCK38392501
...
A350
Frame Body L-G-MDQ38393702
...
K501
Damper L-G-MCQ38393001
...
K502
Dryer Generator Assembly L-G-3111ER1002R
...
K503
Dryer Water Pump L-G-EAU37148701
...
K504
Pump Hose L-G-MEJ38393201
...
K505
Pump Hose L-G-MEJ38393101
...
K506
Dryer Condensate Drain Hose L-G-MEJ38393301
...
K507
Dryer Wire Harness L-G-EAD39301901
...
K508
Washer Hose Clamp L-G-4861FR3068A

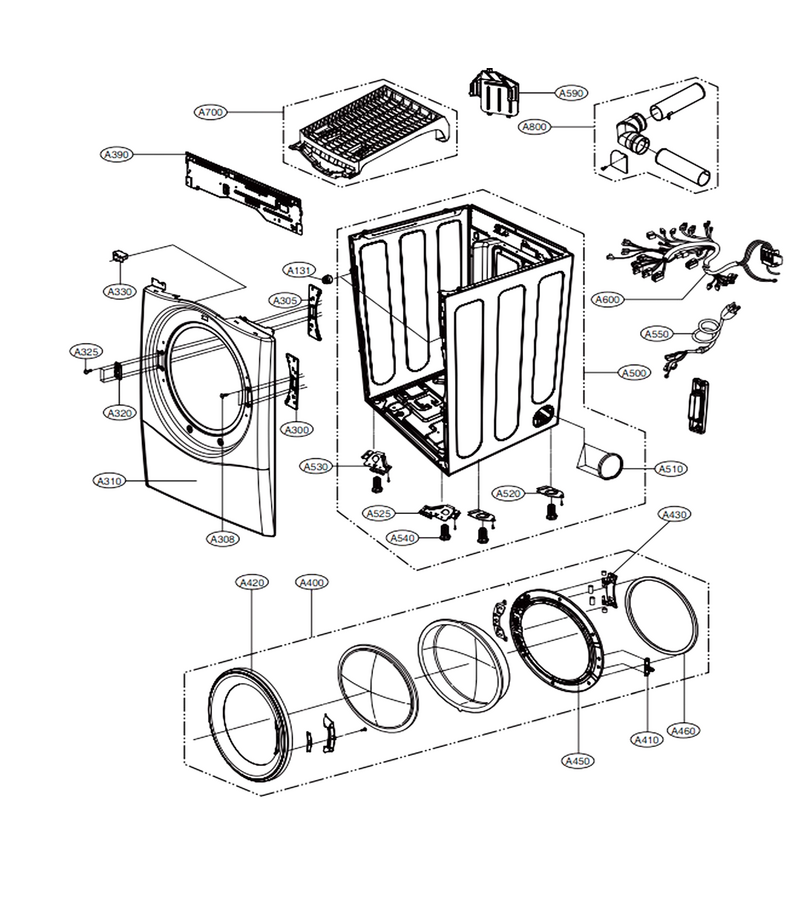

Cabinet And Door Assembly: Gas Type

...
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A300
Hinge Bracket L-G-MAZ47156202
...
A305
Hinge Bracket L-G-MAZ47156203
...
A308
Dryer Screw L-G-1APF0402608
...
A310
Dryer Front Panel L-G-ACQ72301001
...
A320
Dryer Door Catch L-G-4027EL1001A
...
A325
Dryer Screw L-G-1MTC0402632
...
A330
Safety Switch Assembly L-G-EBF61496102
...
A390
Frame Assembly L-G-ADV33609805
...
A400
Dryer Door Assembly L-G-ADC72301102
...
A410
Hook Locker L-G-4026EL3007B
...
A420
Door Outer Frame L-G-MDQ58083002
...
A430
Dryer Door Hinge L-G-4774EL2001A
...
A450
Frame Assembly L-G-MDQ58083301
...
A460
Dryer Door Seal L-G-383EEL9001W
...
A500
Cabinet Assembly L-G-ABJ34559252
...
A510
Dryer Side Vent Hole Cover (white) L-G-5006EL3001D
...
A520
Base Bracket L-G-4810EL3001B
...
A525
Base Bracket L-G-4810EL3009A
...
A530
Dryer Leveling Leg Bracket L-G-4810EL3009B
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A550
Dryer Power Cord L-G-6411ER1005B
...
A590
Safety Cover L-G-MCK62423301
...
A600
Multi Harness L-G-EAD60870406
...
A700
Dryer Drying Rack L-G-3750EL1001A
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B

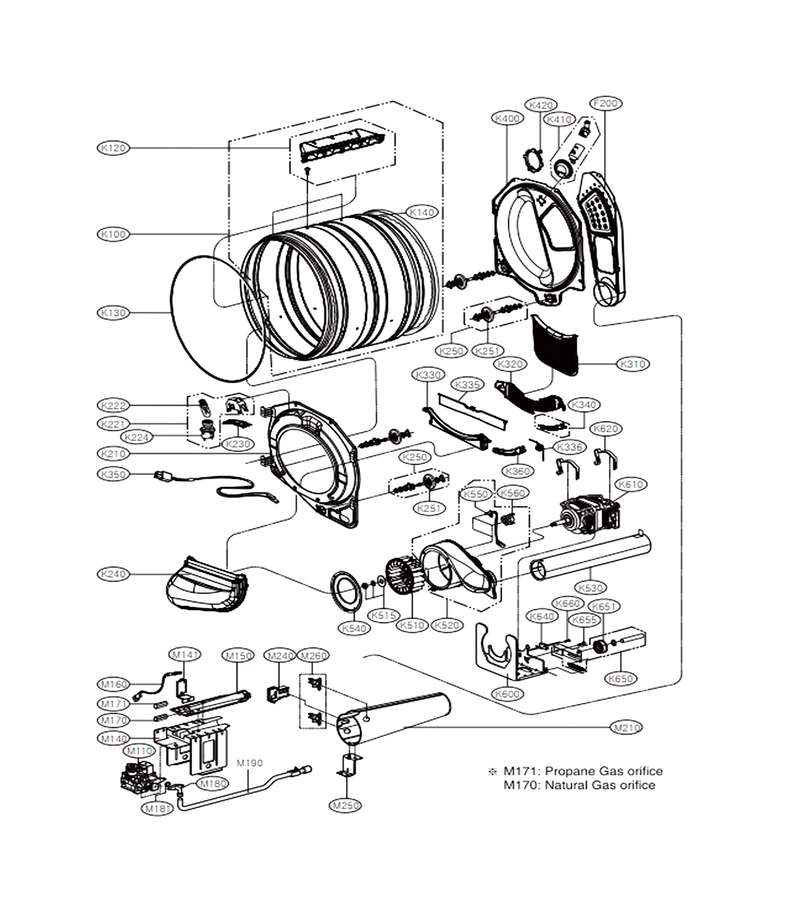

Drum And Motor Assembly: Gas Type

...
...
F200
Dryer Heat Duct L-G-5209EL1001E
...
K100
Dryer Drum L-G-3045EL1002P
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K130
Dryer Drum Belt L-G-4400EL2001F
...
K140
Dryer Drum Seal, Rear L-G-4036EL3001A
...
K210
Tub Assembly L-G-AJQ73594004
...
K221
Incandescent Lamp L-G-6913EL3002K
...
K222
Dryer Drum Light Bulb L-G-6913EL3001E
...
K224
Holder L-G-4930EL3008A
...
K230
Lamp Cover L-G-3550EL2001A
...
K240
Dryer Lint Duct L-G-5209EL1002C
...
K250
Dryer Drum Support Roller Assembly L-G-4581EL2002C
...
K251
Roller Assembly L-G-4581EL3001M
...
K310
Lint Filter Assembly L-G-ADQ56656403
...
K320
Dryer Lint Screen Cover L-G-MCK49049101
...
K330
Dryer Lint Screen Guide L-G-MEA49050001
...
K335
Dryer Lint Screen Cover L-G-MCK66787901
...
K336
Spring L-G-4970EL4002C
...
K340
Dryer Moisture Sensor L-G-6500EL3001A
...
K350
Dryer Moisture Sensor Wire Harness L-G-6631EL3003B
...
K360
Dryer Moisture Sensor Guide L-G-4930EL2004D
...
K400
Dryer Drum Rear Cover L-G-3044EL0002G
...
K410
Dryer Steam Nozzle L-G-AGB34327803
...
K420
Decor,guard L-G-MCR65109901
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Bracket,motor L-G-MAZ66065301
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
M110
Dryer Gas Valve L-G-5221EL2002A
...
M140
Dryer Burner Bracket L-G-4974EL1001A
...
M141
Bracket L-G-4810EL3002A
...
M150
Dryer Burner L-G-5201EL3001A
...
M160
Dryer Burner Igniter L-G-5318EL3001A
...
M170
Dryer Natural Gas Orifice L-G-4948EL4001B
...
M171
Dryer Lp Conversion Kit L-G-383EEL3002D
...
M180
Connector L-G-4932EL4001A
...
M181
Dryer Gas Supply Pipe Connector Seal L-G-4036EL3002A
...
M190
Dryer Gas Manifold L-G-5201EL2001A
...
M210
Dryer Burner Duct Assembly L-G-3016EL1001A
...
M240
Dryer Radiant Sensor L-G-6501EL3001A
...
M250
Dryer Burner Funnel Bracket L-G-4980EL3001A
...
M260
Parts Assembl L-G-383EEL9001D
