LG DLEY1901KE.ABSEEUS

Model: DLEY1901KE.ABSEEUS

Save Part Not Listed?
product name

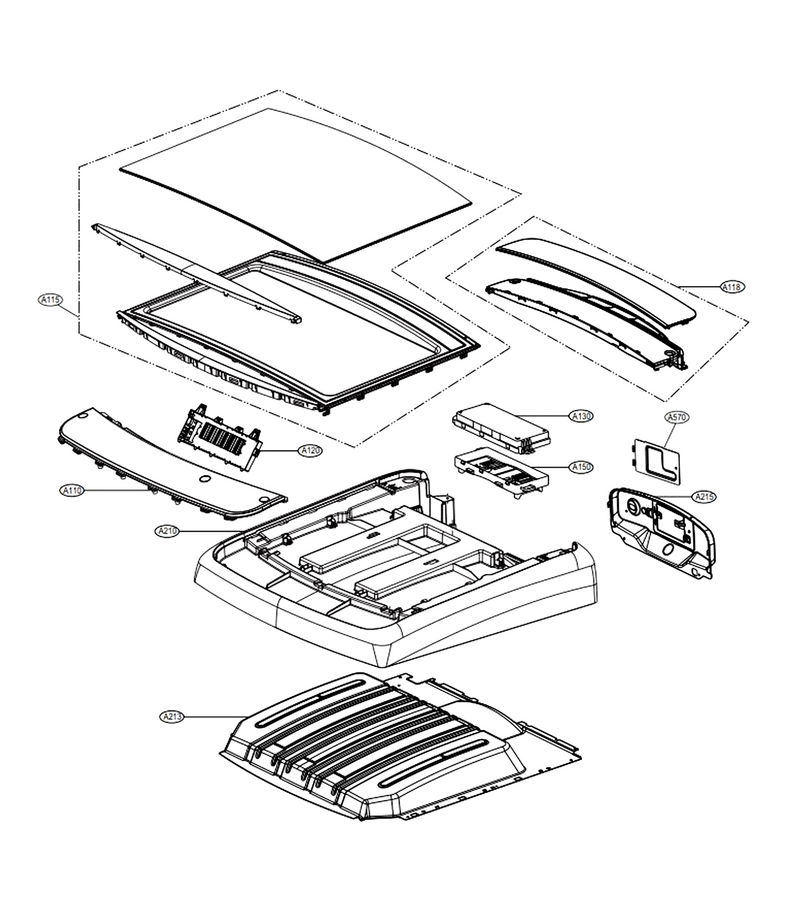

Control Panel And Plate Assembly : Electric Type

...
...
A110
Front Panel Assembly L-G-AGL74277213
...
A115
Dryer Top Panel Assembly L-G-AGU74229001
...
A118
Panel Assembly,rear L-G-AGL74277110
...
A120
Display Pcb Assembly L-G-EBR83558801
...
A130
Main Pcb Assembly L-G-EBR83258923
...
A150
Refrigerator Protector Cover L-G-3550EL1003A
...
A210
Top Cover L-G-MCK67694303
...
A213
Plate,top L-G-3456EL0001C
...
A215
Rear Panel L-G-MGC62805601
...
A570
Dryer Terminal Block Cover L-G-3550EL3002A

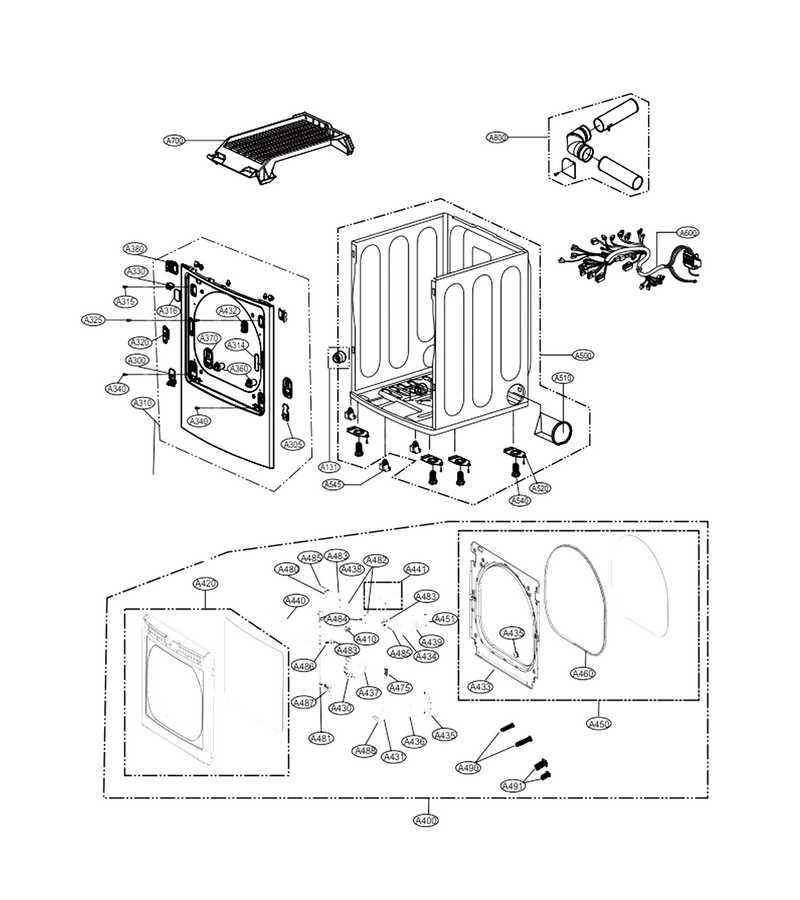

Cabinet & Door Assembly : Electric Type

...
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A300
Dryer Hinge L-G-MEF62782201
...
A305
Hinge Assembly L-G-AEH74256601
...
A310
Cover Assy,c L-G-ACQ86644214
...
A314
Hole Cap L-G-MBL62213306
...
A315
Dryer Screw L-G-4000FD4191A
...
A320
Door Strike L-G-4027EL1001C
...
A325
Screw L-G-1SZZEL2001A
...
A330
Dryer Door Switch L-G-EBF61496101
...
A340
Screw L-G-FAB32258901
...
A360
Hole Cap L-G-MBL62213310
...
A370
Hinge Bracket L-G-MAZ63869301
...
A380
Bracket L-G-MAZ61975501
...
A400
Door Assembly L-G-ADC74129519
...
A410
Dryer Door Latch L-G-4026EL3007C
...
A420
Frame Assembly L-G-ADV74568907
...
A430
Hinge L-G-MEF62782101
...
A431
Hinge L-G-MEF62782001
...
A433
Supporter,hinge L-G-MJH64476101
...
A434
Hinge Assembly L-G-AEH75356301
...
A435
Supporter,hinge L-G-MJH63096901
...
A436
Hinge Bracket L-G-MAZ63869201
...
A437
Cap,cover L-G-MBL67041502
...
A438
Cap Cover L-G-MBL65578902
...
A440
Handle L-G-MEB63034504
...
A441
Handle Assembly L-G-AED73953302
...
A450
Frame Assembly L-G-ADV74568803
...
A460
Gasket L-G-MDS61982901
...
A475
Body Locker L-G-MFG63878901
...
A480
Bar,connector L-G-MAK63888501
...
A481
Bar,connector L-G-MAK62727101
...
A482
Locker,handle L-G-MFG63098601
...
A483
Locker L-G-MFG63098701
...
A484
Coil Spring L-G-MHY63244301
...
A485
Coil Spring L-G-MHY63244302
...
A486
Coil Spring L-G-MHY63244303
...
A487
Cap Cover L-G-MBL65958102
...
A488
Cap Cover L-G-MBL65958101
...
A490
Screw,customized L-G-1SZZEL4001B
...
A491
Microwave Screw L-G-1TTL0402418
...
A500
Cabinet Assembly L-G-ABJ73928227
...
A510
Drier Cap L-G-MBL65217002
...
A520
Dryer Leveling Leg Bracket L-G-4810EL3001A
...
A540
Leg L-G-4778EL3001E
...
A545
Holder L-G-4930EL3004A
...
A600
Multi Harness L-G-EAD60946237
...
A700
Dryer Drying Rack L-G-3750EL0001C
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B

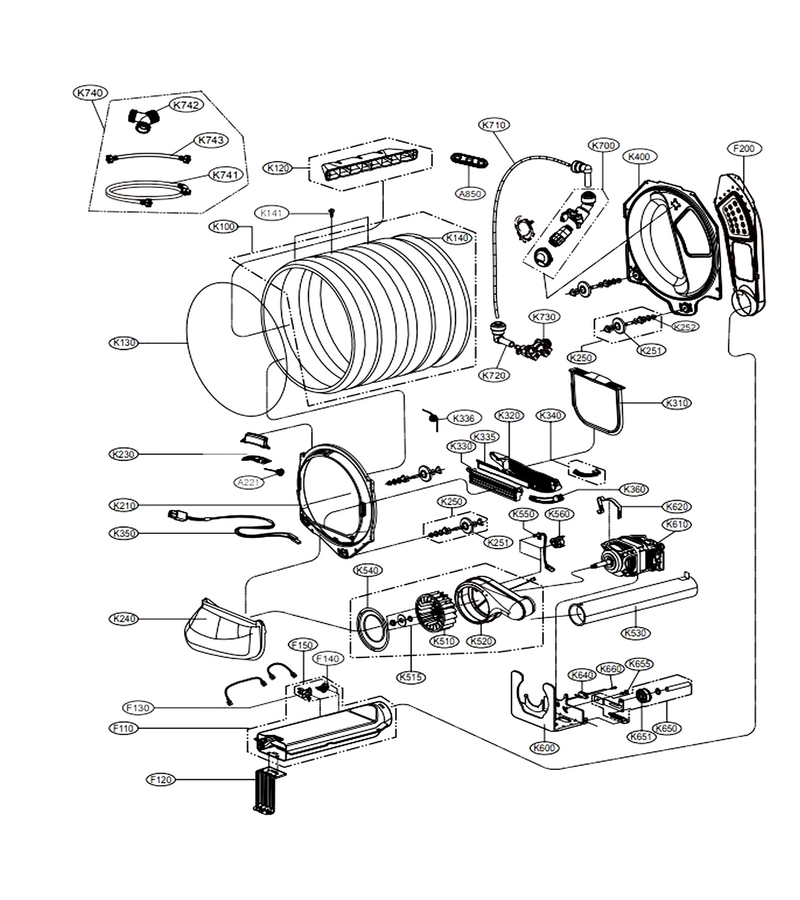

Drum & Motor Assembly: Electric Type

...
...
A221
Dryer Led Lamp L-G-EAQ61400801
...
A850
Assembly Accessory L-G-AAA75904801
...
F110
Dryer Heating Element L-G-5301EL1001H
...
F120
Dryer Heater Housing Bracket L-G-4810EL1007A
...
F130
Dryer High-Limit Thermostat L-G-6931EL3003D
...
F140
Dryer High-Limit Thermostat L-G-6931EL3001F
...
F150
Parts Assembly L-G-383EEL9001C
...
F200
Dryer Heat Duct L-G-5209EL1001C
...
K100
Tub Assembly,drum L-G-3045EL1002S
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K130
Dryer Drum Belt L-G-4400EL2001F
...
K140
Dryer Drum Seal, Rear L-G-4036EL3001A
...
K141
Screw,taptite L-G-1FTF0503507
...
K210
Drum Assembly L-G-3045EL1005D
...
K230
Connector,nozzle L-G-MCD62587102
...
K240
Dryer Exhaust Duct L-G-5209EL1002A
...
K250
Roller Assembly L-G-4581EL2002H
...
K251
Dryer Drum Support Roller Assembly L-G-4581EL3001E
...
K252
Washer,customized L-G-4W50100F
...
K310
Dryer Lint Screen L-G-5231EL1001C
...
K320
Cover,guide L-G-3550EL1005C
...
K330
Dryer Lint Screen Cover L-G-4974EL1002B
...
K335
Dryer Lint Filter Guide Cover L-G-3550EL2004B
...
K336
Spring L-G-4970EL4002C
...
K340
Dryer Moisture Sensor L-G-6500EL3001A
...
K350
Dryer Moisture Sensor Wire Harness L-G-6631EL3003B
...
K400
Dryer Drum Rear Cover L-G-3044EL0002G
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Bracket,motor L-G-MAZ66065301
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
K700
Nozzle Assembly L-G-AGB72911101
...
K710
Pump Hose L-G-MEJ61842301
...
K720
Elbow L-G-MDB61881002
...
K730
Dryer Water Inlet Valve L-G-AJU73432602
...
K740
Assembly Accessory L-G-AAA75232311
...
K741
Washer Fill Hose L-G-5215FD3715V
...
K742
Connector,pipe L-G-MCD63306801
