LG DLEX7700KE.ABSEEUS

Model: DLEX7700KE.ABSEEUS

Save Part Not Listed?
product name

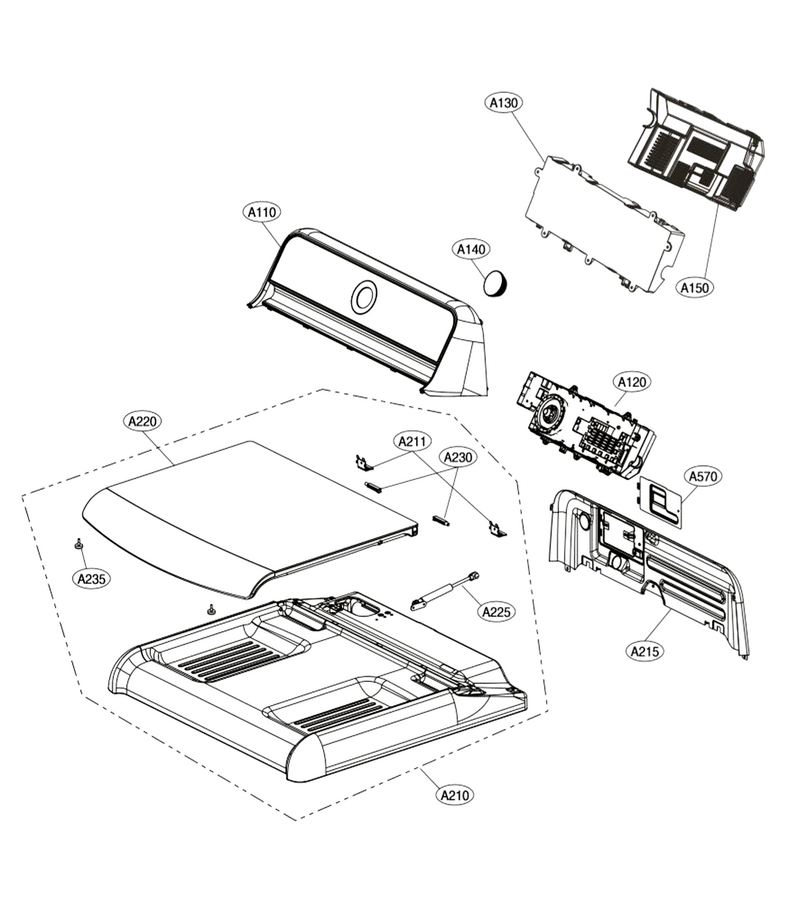

Control Panel & Plate Assembly

...
...
A110
Panel Assembly,front L-G-AGL74672610
...
A120
Pcb Assembly,display L-G-EBR79674803
...
A130
Main Pcb L-G-EBR79674701
...
A140
Knob Assembly L-G-AEZ73913401
...
A150
Protect Cover L-G-3550EL2003B
...
A210
Plate Assembly,top L-G-AGU74888703
...
A211
Plate Clip U L-G-3300EL4001A
...
A215
Panel,rear L-G-MGC63839805
...
A220
Lid Assembly L-G-AFG73329703
...
A225
Damper Assembly L-G-ACV73750001
...
A230
Hinge Pin L-G-4774FA4016J
...
A235
Damper L-G-MCQ62786001
...
A570
Dryer Terminal Block Cover L-G-3550EL3002A

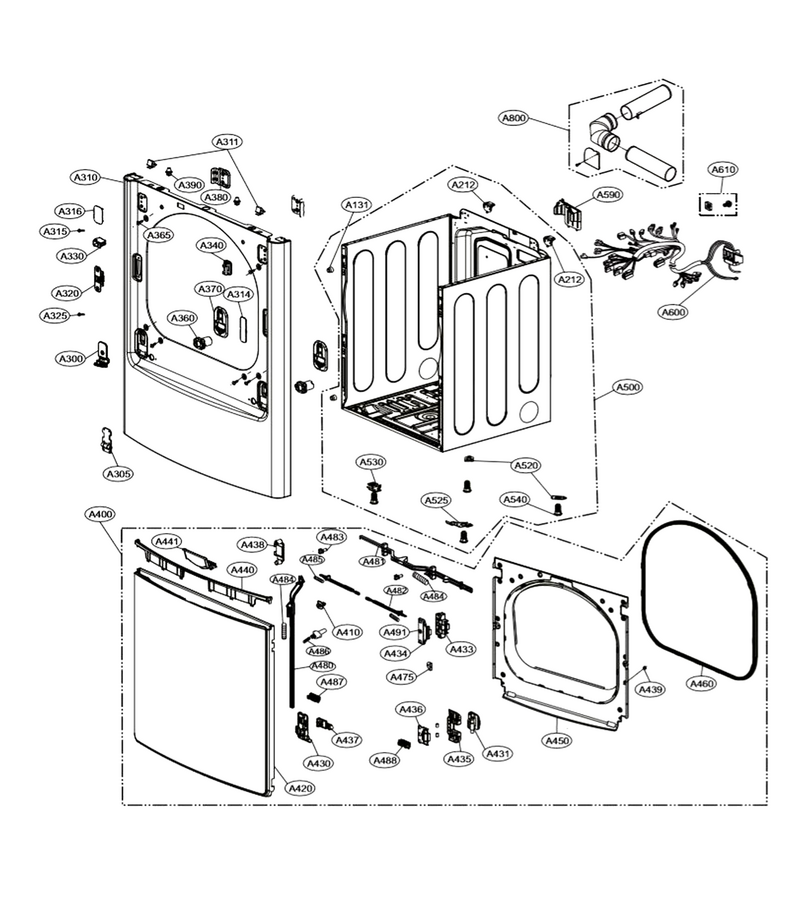

Cabinet & Door Assembly

...
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A212
Dryer Top Panel Rear Clip L-G-3300ER4003A
...
A300
Dryer Hinge L-G-MEF62782201
...
A305
Hinge Assembly L-G-AEH74256601
...
A310
Cover Assembly,cabinet L-G-ACQ87693604
...
A311
Dryer Cabinet Clip L-G-4930ER4003A
...
A314
Hole Cap L-G-MBL62213306
...
A315
Dryer Screw L-G-4000FD4191A
...
A316
Hole Cap L-G-MBL62213310
...
A320
Door Strike L-G-4027EL1001C
...
A325
Screw L-G-1SZZEL2001A
...
A330
Dryer Door Switch L-G-EBF61496101
...
A340
Hinge L-G-MEF62781901
...
A360
Damper Assembly L-G-ACV73430103
...
A370
Hinge Bracket L-G-MAZ63869301
...
A380
Bracket L-G-MAZ61975501
...
A390
Holder L-G-4930ER4002B
...
A400
Dryer Door Assembly L-G-ADC74908002
...
A410
Dryer Door Latch L-G-4026EL3007C
...
A420
Frame Assembly L-G-ADV75188602
...
A430
Hinge L-G-MEF62782101
...
A431
Hinge L-G-MEF62782001
...
A433
Supporter,hinge L-G-MJH63096801
...
A434
Hinge Bracket L-G-MAZ63869101
...
A435
Supporter,hinge L-G-MJH63096901
...
A436
Hinge Bracket L-G-MAZ63869201
...
A437
Cap Cover L-G-MBL65579002
...
A438
Cap Cover L-G-MBL65578902
...
A440
Handle Decor L-G-MCR65847701
...
A441
Handle Assembly L-G-AED73953302
...
A450
Frame Assembly L-G-ADV75188702
...
A460
Gasket L-G-MDS61982902
...
A475
Body Locker L-G-MFG63878901
...
A482
Locker,handle L-G-MFG63098601
...
A483
Locker L-G-MFG63098701
...
A484
Coil Spring L-G-MHY63244301
...
A485
Coil Spring L-G-MHY63244302
...
A486
Coil Spring L-G-MHY63244303
...
A487
Cap Cover L-G-MBL65958102
...
A488
Cap Cover L-G-MBL65958101
...
A491
Microwave Screw L-G-1TTL0402418
...
A500
Cabinet Assembly L-G-ABJ73568821
...
A520
Dryer Leveling Leg Bracket L-G-4810EL3001A
...
A525
Base Bracket L-G-4810EL3009A
...
A530
Dryer Leveling Leg Bracket L-G-4810EL3009B
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A590
Safety Cover L-G-MCK62423301
...
A600
Multi Harness L-G-EAD60946221
...
A610
Screws Bolts L-G-383EEL9001H
...
A800
Dryer Side Or Bottom Vent Kit L-G-383EEL9001L

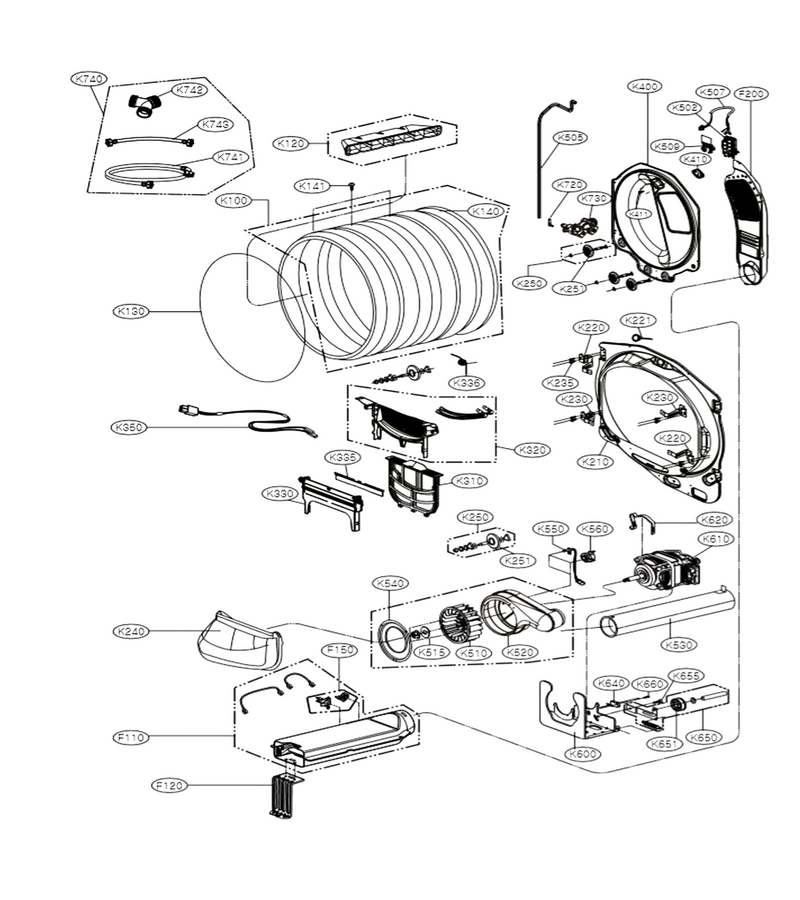

Drum & Motor Assembly

...
...
F110
Heater Assembly L-G-5301EL1001S
...
F120
Dryer Heater Housing Bracket L-G-4810EL1007A
...
F150
Parts Assembly L-G-383EEL9001C
...
F200
Dryer Duct Assembly L-G-ADJ73392901
...
K100
Tub Assembly,drum L-G-AJQ73274302
...
K120
Lifter L-G-MFE61921001
...
K130
Dryer Drum Belt L-G-4400EL2001D
...
K140
Gasket L-G-4036EL3001B
...
K141
Screw,taptite L-G-1FTF0503507
...
K210
Front Tub L-G-MJT62782801
...
K220
Holder L-G-MEG64119002
...
K221
Dryer Led Lamp L-G-EAQ61400801
...
K230
Holder L-G-MEG64119001
...
K235
Binding Hd Tap Tite Screw + L-G-1SBF0402618
...
K240
Dryer Duct Assembly L-G-ADJ73372401
...
K250
Dryer Drum Support Roller Assembly L-G-4581EL2002C
...
K251
Dryer Drum Support Roller Assembly L-G-4581EL3001E
...
K310
Dryer Lint Screen L-G-ADQ74233201
...
K320
Parts Assembly L-G-383EEL9001N
...
K330
Filter Guide L-G-MEA63950701
...
K335
Dryer Lint Filter Guide Cover L-G-3550EL2004B
...
K336
Spring L-G-4970EL4002C
...
K350
Single Harness L-G-6631EL3003F
...
K400
Tub,drum(rear) L-G-MJT62002905
...
K410
Decor,guard L-G-MCR65109901
...
K411
Screw L-G-1SZZEL2001A
...
K502
Dryer Generator Assembly L-G-ADZ73410101
...
K505
Inlet Hose L-G-MEJ62404702
...
K507
Harness,multi L-G-EAD39301906
...
K509
Frame Bracket L-G-MAZ64606101
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K530
Dryer Exhaust Duct L-G-5209EL1006F
...
K540
Dryer Blower Duct Guide L-G-4975EL3001A
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Bracket,motor L-G-MAZ66065301
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Assembly L-G-4561EL3002B
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
K720
Connector,nozzle L-G-MCD63206801
...
K730
Dryer Water Inlet Valve L-G-AJU73432602
...
K740
Assembly Accessory L-G-AAA75232311
...
K741
Washer Fill Hose L-G-5215FD3715V
...
K742
Connector,pipe L-G-MCD63306801
