LG DLEX5005K.ABSEEUS

Model: DLEX5005K.ABSEEUS

Save Part Not Listed?
product name

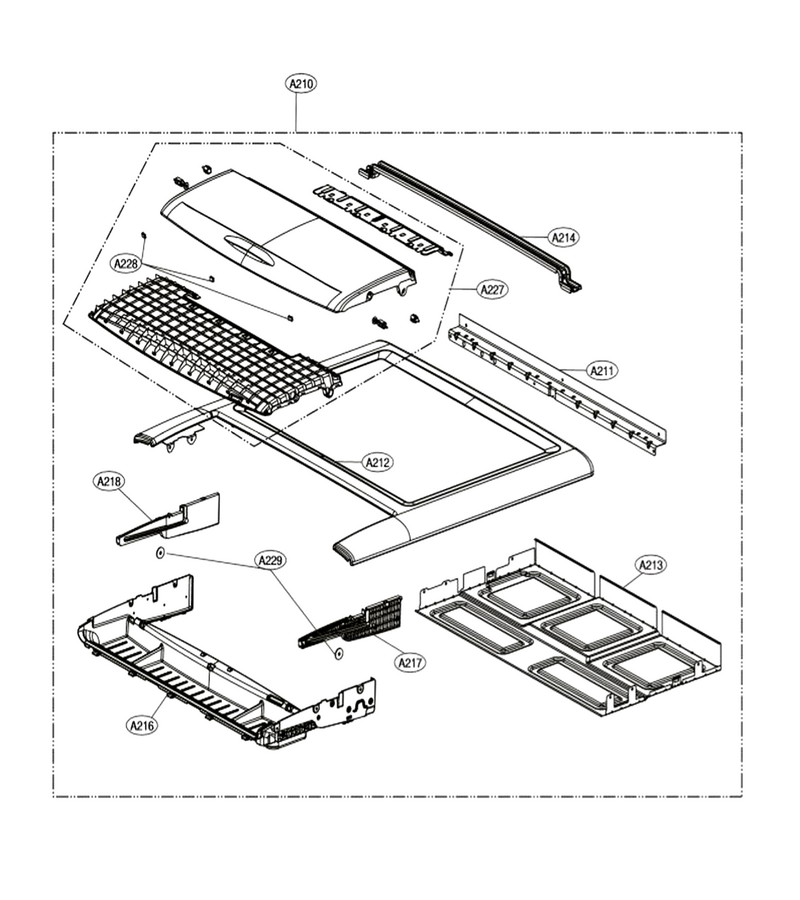

Plate Assembly

...
...
A210
Plate Assembly,top L-G-AGU75009404
...
A229
Washer,customized L-G-FAF31991702
...
A227
Lid Assembly L-G-AFG73349707
...
A218
Guide Cover L-G-MCK68485601
...
A217
Guide Cover L-G-MCK68509201
...
A216
Cover Dispenser L-G-MCK68510101
...
A214
Frame,body L-G-MDQ64156501
...
A213
Protect Cover L-G-MCK68510001
...
A212
Plate,top L-G-MGJ64304104
...
A211
Plate L-G-3300EL2001C

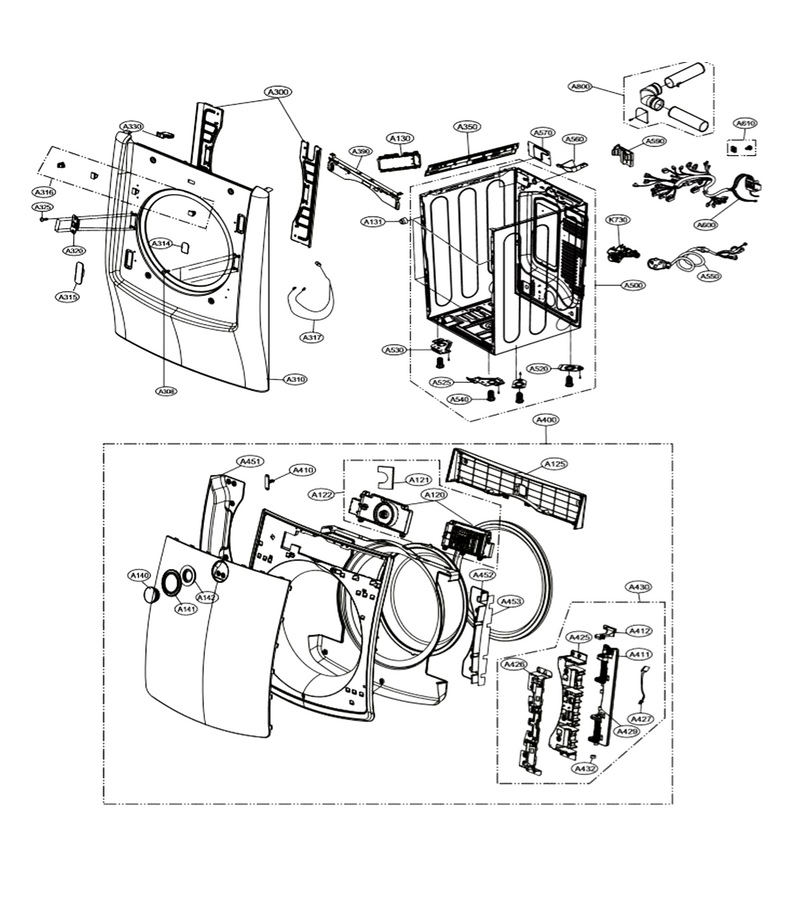

Cabinet & Door Assembly

...
...
A410
Hook Locker L-G-4026EL3007B
...
A800
Dryer Side Or Bottom Exhaust Vent Kit L-G-383EEL9001B
...
A412
Cap Cover L-G-MBL66138901
...
A425
Supporter,hinge L-G-MJH63714601
...
A426
Hinge Bracket L-G-MAZ64546301
...
A427
Harness,multi L-G-EAD39301913
...
A429
Bush L-G-4830ER4002B
...
A430
Hinge Assembly L-G-AEH74816501
...
A432
Bush L-G-MBF63564001
...
A451
Frame,door(inner) L-G-MDQ64217201
...
A452
Frame,door(inner) L-G-MDQ64217101
...
A453
Damper L-G-MCQ68365401
...
A500
Cabinet Assembly L-G-ABJ34640612
...
A520
Base Bracket L-G-4810EL3001B
...
A525
Base Bracket L-G-4810EL3009A
...
A530
Dryer Leveling Leg Bracket L-G-4810EL3009B
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A570
Dryer Terminal Block Cover L-G-3550EL3002A
...
A590
Safety Cover L-G-MCK62423301
...
A610
Screws Bolts L-G-383EEL9001H
...
A390
Frame Assembly L-G-ADV75287602
...
A400
Door Assembly L-G-ADC75006613
...
A120
Pcb Assembly,display L-G-EBR83226303
...
A121
Damper L-G-MCQ67072016
...
A125
Protect Cover L-G-MCK68485301
...
A130
Pcb Assembly,main L-G-EBR80198619
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A140
Knob Assembly L-G-AEZ73913401
...
A141
Window L-G-MKC65220101
...
A142
Decor,guard L-G-MCR65687601
...
A310
Cover Assembly,cabinet L-G-ACQ87916103
...
A314
Hole Cap L-G-MBL66258203
...
A316
Holder L-G-4930ER3010A
...
A317
Harness L-G-EAD39301912
...
A320
Dryer Door Latch Kit L-G-4027EL1001B
...
A325
Dryer Screw L-G-1MTC0402632
...
A330
Dryer Door Switch L-G-EBF61496101
...
A350
Top Bracket L-G-MAZ64546401
...
A308
Dryer Screw L-G-1APF0402608

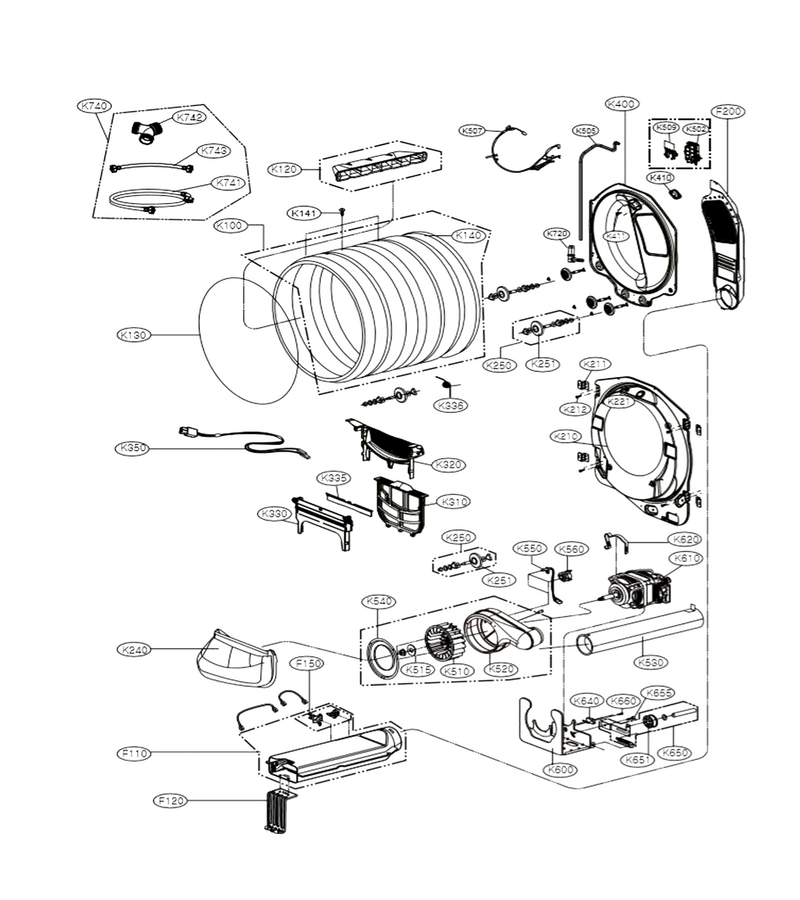

Drum & Motor Assembly

...
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K540
Guide Assembly L-G-4975EL3001B
...
K530
Dryer Exhaust Duct L-G-5209EL1006A
...
K520
Dryer Blower Housing L-G-MEK37661701
...
K515
Dryer Blower Wheel Retainer Assembly L-G-383EEL9001G
...
K510
Dryer Blower Wheel L-G-5835EL1002A
...
K509
Frame Bracket L-G-MAZ64606101
...
K507
Multi Harness L-G-EAD39301910
...
K505
Inlet Hose L-G-MEJ62404702
...
K502
Dryer Generator Assembly L-G-ADZ73410101
...
K742
Connector,pipe L-G-MCD63306801
...
K411
Screw L-G-1SZZEL2001A
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K600
Bracket,motor L-G-MAZ66065301
...
K610
Dryer Motor Assembly L-G-4681EL1008A
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Pulley L-G-4561EL3002A
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
K720
Connector,nozzle L-G-MCD63206801
...
K740
Assembly Accessory L-G-AAA75232303
...
K741
Washer Fill Hose L-G-5215FD3715V
...
K212
Binding Hd Tap Tite Screw + L-G-1SBF0402618
...
F110
Heater Assembly L-G-5301EL1001S
...
F120
Dryer Heater Housing Bracket L-G-4810EL1007A
...
F130
Dryer High-Limit Thermostat L-G-6931EL3003D
...
F140
Dryer High-Limit Thermostat L-G-6931EL3001F
...
F150
Parts Assembly L-G-383EEL9001C
...
F200
Dryer Heat Duct L-G-5209EL1001C
...
K100
Tub Assembly,drum L-G-3045EL1002S
...
K120
Dryer Drum Baffle L-G-4432EL1002A
...
K130
Dryer Drum Belt L-G-4400EL2001A
...
K141
Screw,taptite L-G-1FTF0503507
...
K210
Tub,drum(front) L-G-MJT62763001
...
K410
Decor,guard L-G-MCR65109901
...
K221
Dryer Led Lamp L-G-EAQ61400801
...
K240
Dryer Duct Assembly L-G-ADJ73372401
...
K250
Dryer Drum Support Roller Assembly L-G-4581EL2002C
...
K251
Dryer Drum Support Roller Assembly L-G-4581EL3001E
...
K310
Dryer Lint Screen L-G-ADQ73373201
...
K320
Parts Assembly L-G-383EEL9001N
...
K330
Filter Guide L-G-MEA63930901
...
K335
Filter Cover L-G-MCK68509901
...
K336
Spring L-G-4970EL4002C
...
K350
Single Harness L-G-6631EL3003F
...
K400
Tub,drum(rea L-G-3044EL0002T
