LG DH5010A.WYCWMT

Model: DH5010A.WYCWMT

Save Part Not Listed?
product name

Main

...
...
W4986
Gasket L-G-4986U-L001B
...
W49700B
Spring L-G-4970U-L002A
...
W49700A
Spring L-G-4970AD4001A
...
W4810
Bracket L-G-4810AR4155A
...
W1NFC
Hex Nut L-G-1NHA0801206
...
W1NFB
Nut L-G-4H00947A
...
W1NFA
Nut L-G-4H02861A
...
W0CZZB
Capacitor,unclassified L-G-3H00660Q
...
W0CZZA
Capacitor,film,box L-G-6120AR2194S
...

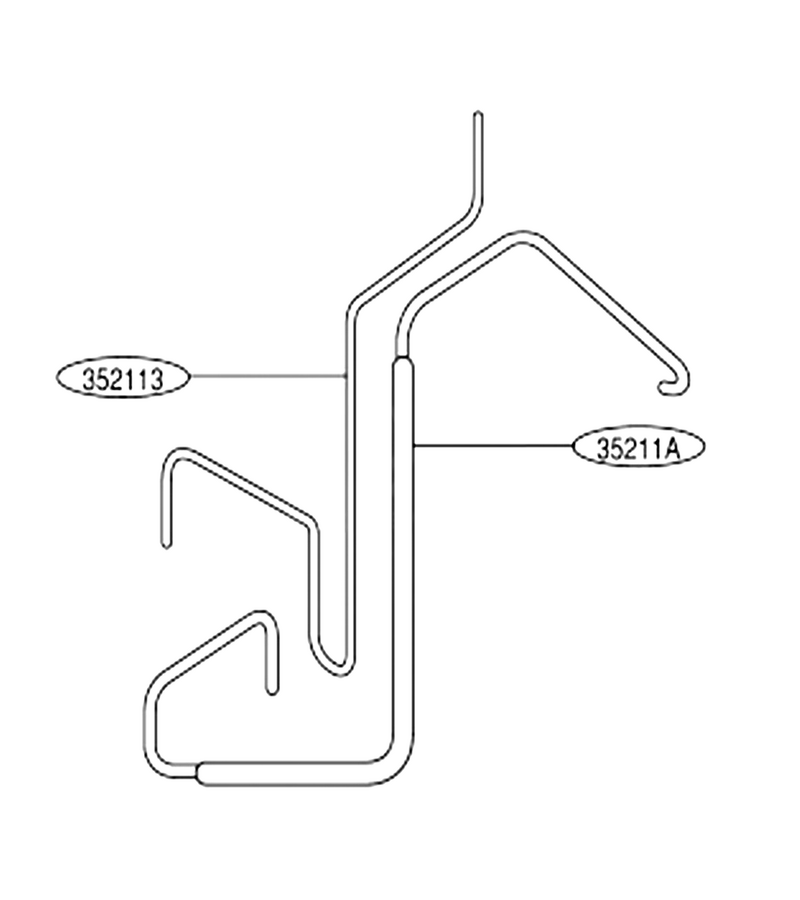

35211A
Tube Assembly,suction L-G-5211A30267A
...
131400
Cabinet L-G-3090A10001J
...
131410
Base Assembly,weld L-G-3041AD2007A
...
135316
Grille Assembly,front(indoor) L-G-3531A20012A
...
135500
Cover,terminal L-G-3550-CL001D
...
148380
Tank,bucket L-G-4838AD1002E
...
149410
Knob Assembly L-G-4941A30002A
...
152302
Filter,air L-G-5230AD3005A
...
247810B
Controller Assembly L-G-6614A30001D
...
247810A
Roller Assembly L-G-4441A30001A
...
249941
Base L-G-4994A20011A
...
252160
Humidistat L-G-5216A20001A
...
264110
Power Cord Assembly L-G-6411A20001K
...
266003
Switch,rotary L-G-6600A20001A
...
266010
Switch Assembly L-G-6600A30003A
...
269310
Lamp,neon L-G-6912A30001D
...
336601
Housing,side L-G-3660A00003A
...
346810
Motor,unclassified L-G-4681A20034A
...
352113
Tube Assembly,discharge L-G-5211A30265A
...
354210
Evaporator Assembly,first L-G-5421A20046A
...
359011
Fan Assembly,propeller L-G-5900AD2013A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552111
Tube Assembly,capillary L-G-5211A30266A
...
554031
Condenser Assembly,first L-G-5403A20027A
...
567502
O.l.p L-G-6750U-L039A
...
648600
Clamp,capacitor L-G-4H00442G
