LG DH30.AWYAKMT

Model: DH30.AWYAKMT

Save Part Not Listed?
product name

Main

...
...
35211A
Tube Assembly,suction L-G-5211A20812A
...
130411
Base Assembly,single L-G-3041A10028C
...
130910
Cabinet Assembly,single L-G-3091A20015D
...
131110
Case Assembly,single L-G-3111A10012A
...
135500
Cover L-G-3550A20162A
...
144410
Dehumidifier Caster L-G-4441A30001B
...
148380
Tank Assembly,bucket L-G-4839A10001D
...
149400
Knob L-G-4940A30057A
...
149410
Knob Assembly L-G-4941A30019A
...
152302
Filter,air L-G-5230A20026A
...
162615
Sensor Assembly L-G-6877A30013G
...
235512
Cover Assembly,display L-G-3551A10021A
...
238310
Escutcheon L-G-3831A20051A
...
249950
Case Assembly,control L-G-4995A10074B
...
264110
Power Cord Assembly L-G-6411A20001Y
...
266002
Switch,rocker L-G-6600FX5001E
...
266003
Dehumidifier Switch Assembly L-G-6601A30001B
...
266011
Dehumidifier Water Bucket Safety Switch L-G-6600A30003C
...
268712
Pcb Assembly,display L-G-6871A20169B
...
268714
Pcb Assembly,main L-G-6871A30032B
...
330870
Pan Assembly L-G-3087A10011B
...
336600
Housing,wrapper L-G-3660A10003A
...
336610
Housing Assembly L-G-3661A10019A
...
346811
Motor Assembly,ac,single L-G-4681A20040E
...
349480
Orifice L-G-4948A10023A
...
349600
Bracket,motor L-G-4960A20009A
...
352113
Tube,discharge L-G-5210A21843A
...
354210
Evaporator Assembly,first L-G-5421A20131B
...
359012
Fan,turbo L-G-5900A20032A
...
436500
Handle L-G-3650A20003A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552111
Tube Assembly,capillary L-G-5211A20814A
...
554030
Condenser Assembly,first L-G-5403A20110A
...
554160
Re-Compres L-G-2521C-A8626
...
558511
Drier Assembly L-G-5851A30001A
...
567502
Overload Protector L-G-6750C-0009E

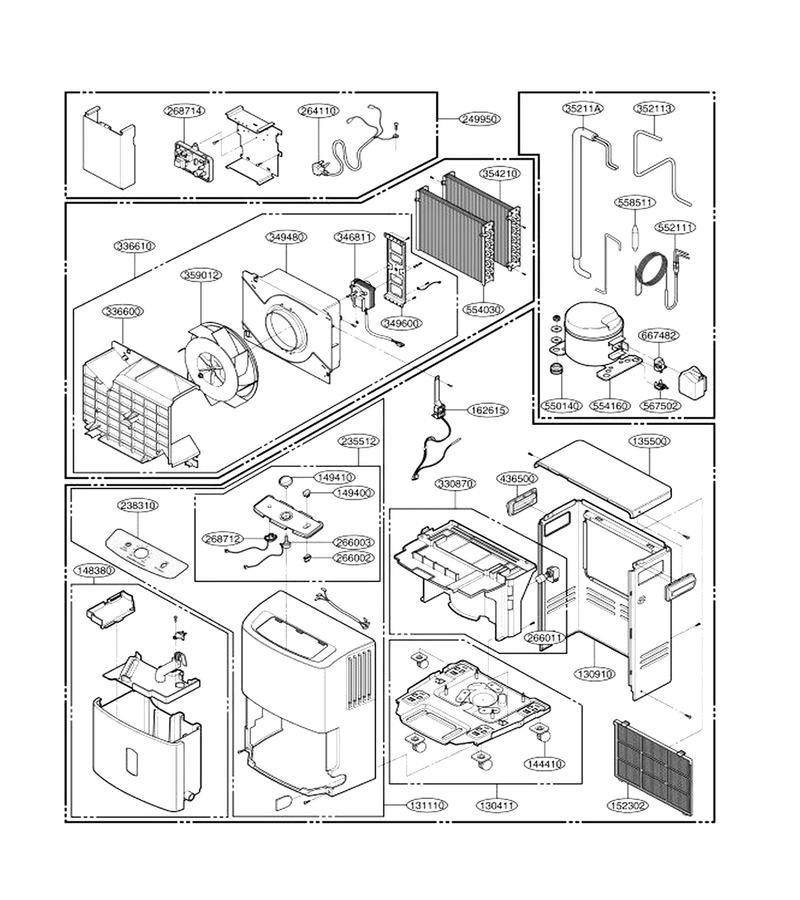

Schematic Image Zoomed
