product name

LG DES11EA.AGRQMTR

Model: DES11EA.AGRQMTR

Save Part Not Listed?
product name

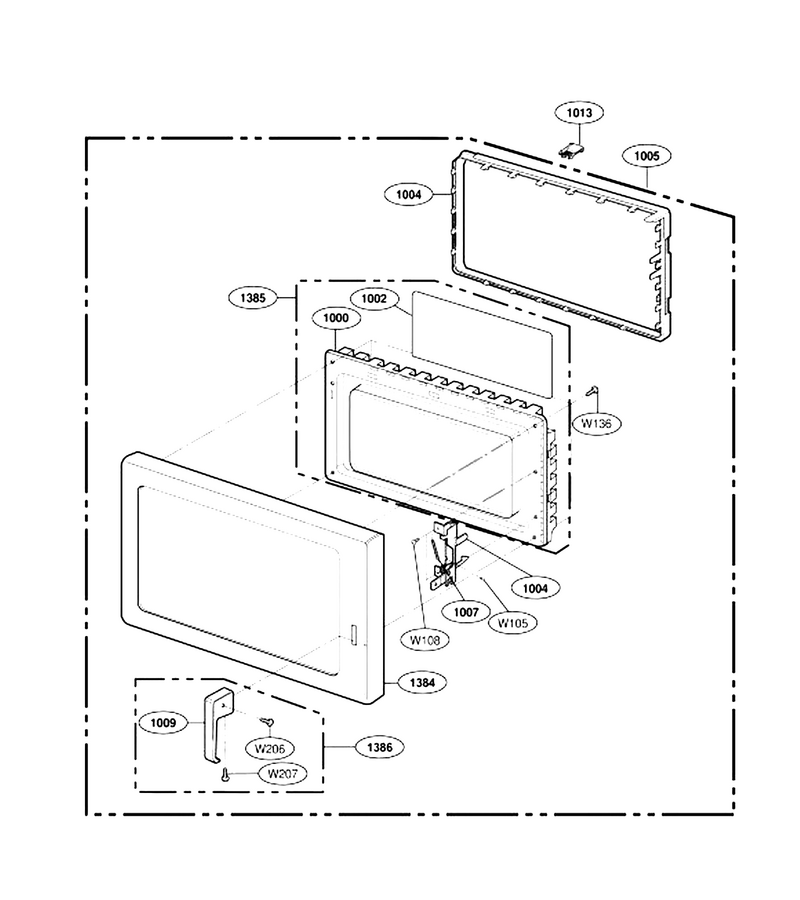

Door Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W136
Screw L-G-1TPL0302418
...
1000
Frame Assembly,door L-G-3213W0A011B
...
1002
Tape,sealing L-G-3536W1A007D
...
1004
Cover,choke L-G-3552W0A015A
...
1005
Door Assembly L-G-3581W1A417F
...
1007
Spring L-G-4970W1A015A
...
1009
Handle,door L-G-3650W1A078A
...
1013
Cap,choke Cover L-G-5006W1A007A
...
1384
Parts Assembly L-G-383EW5A252A
...
1385
Parts Assembly L-G-383EW5A236A
...
1386
Parts Assembly L-G-383EW5A266A

Control Panel Parts(1)

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A675A
...
2006
Pcb Assembly,sub L-G-6871W1S219Q
...
2381
Parts Assembly L-G-383EW5A252B

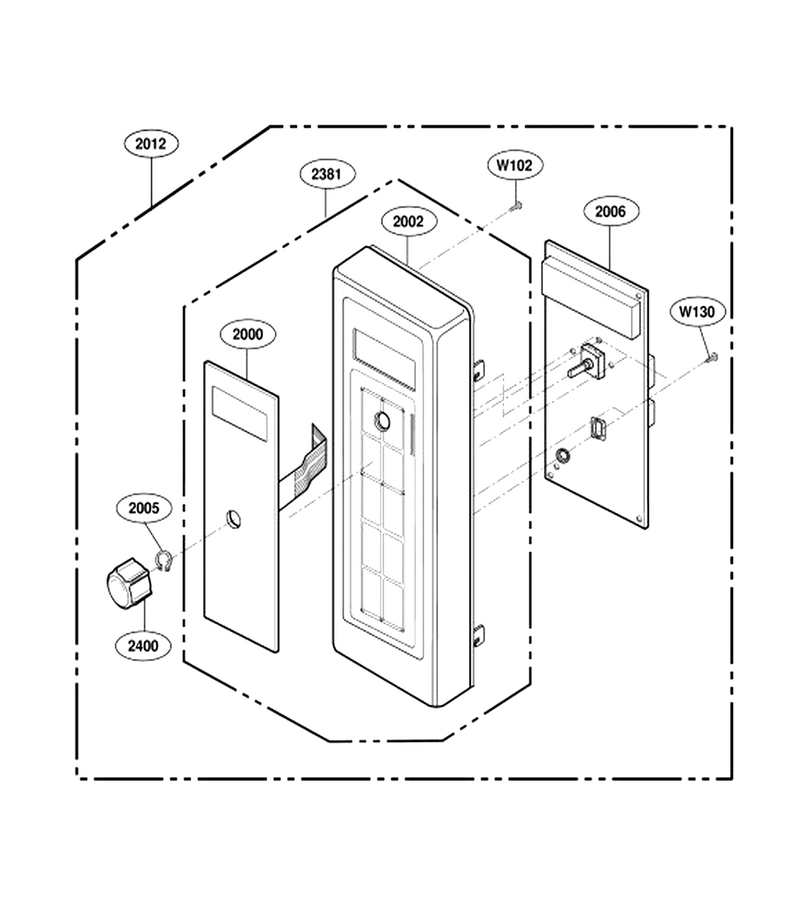

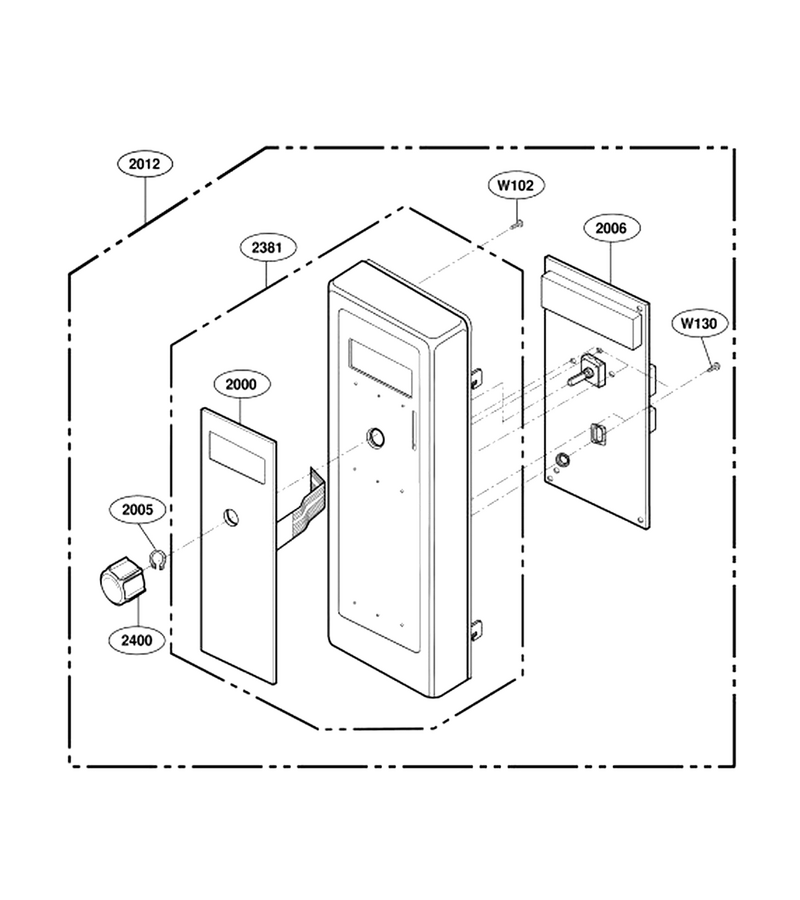

Control Panel Parts(2)

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A675A
...
2002
Panel,control L-G-3720W0C140J
...
2006
Pcb Assembly,sub L-G-6871W1S219G
...
2012
Controller Assembly,tact Dial L-G-4781W1S129J
...
2381
Parts Assembly L-G-383EW5A252B
...
2400
Knob L-G-4940W1A104A

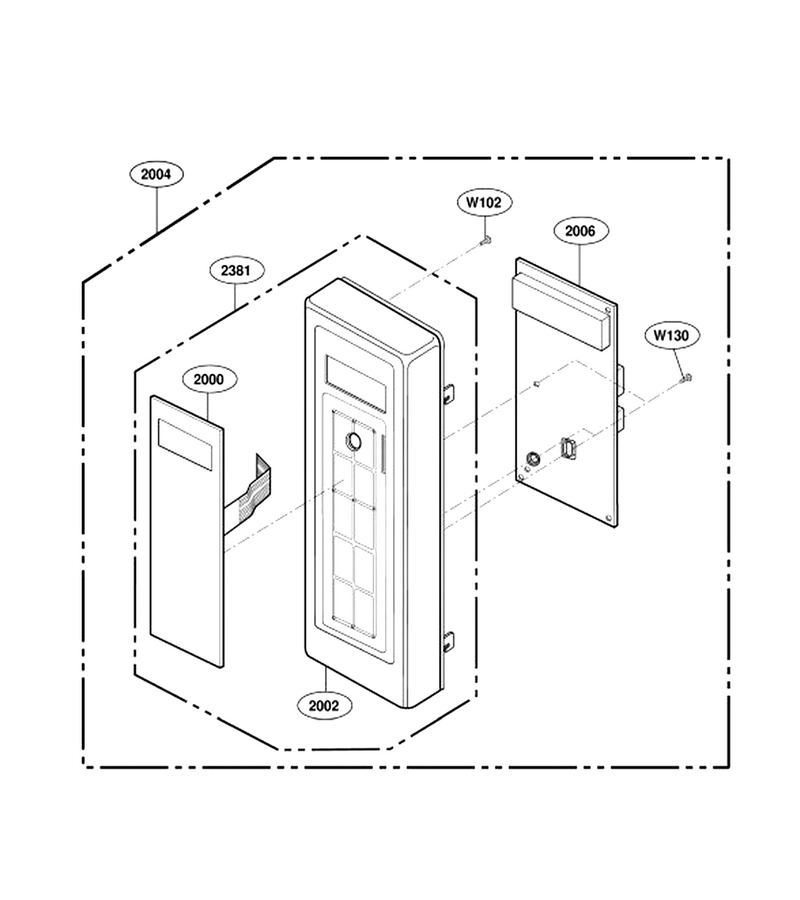

Control Panel Parts(3)

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A675A
...
2002
Panel,control L-G-3720W0C140J
...
2004
Controller Assembly,keypad L-G-4781W1M348R
...
2006
Pcb Assembly,sub L-G-6871W1S219Q
...
2381
Parts Assembly L-G-383EW5A252B

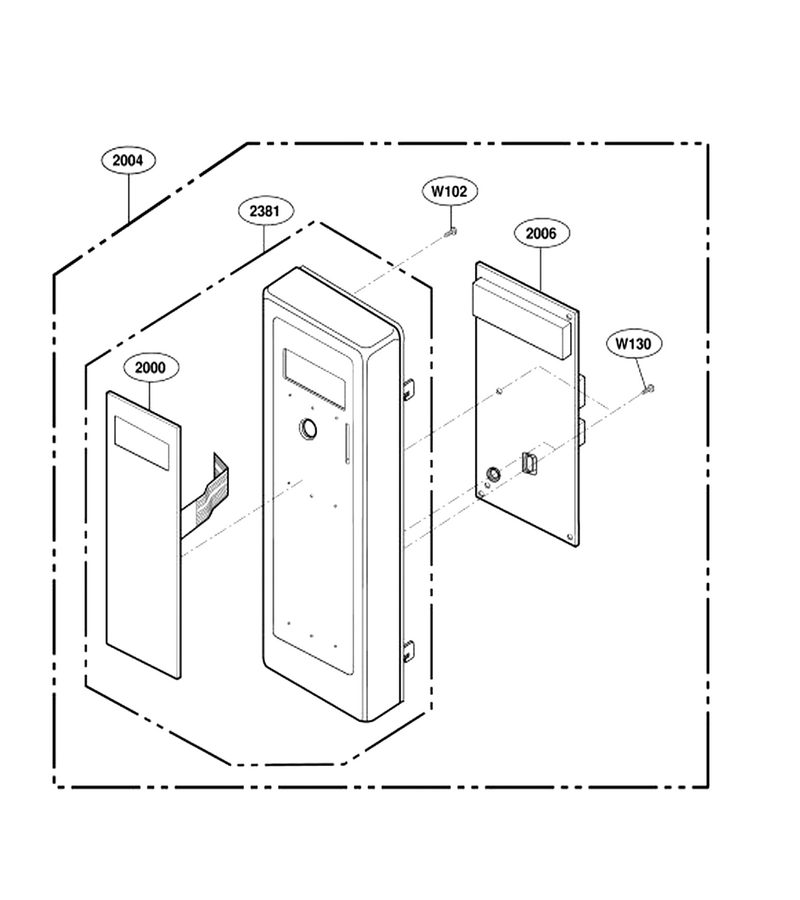

Control Panel Parts(4)

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A675A
...
2004
Controller Assembly,keypad L-G-4781W1M348R
...
2006
Pcb Assembly,sub L-G-6871W1S219Q
...
2381
Parts Assembly L-G-383EW5A252B

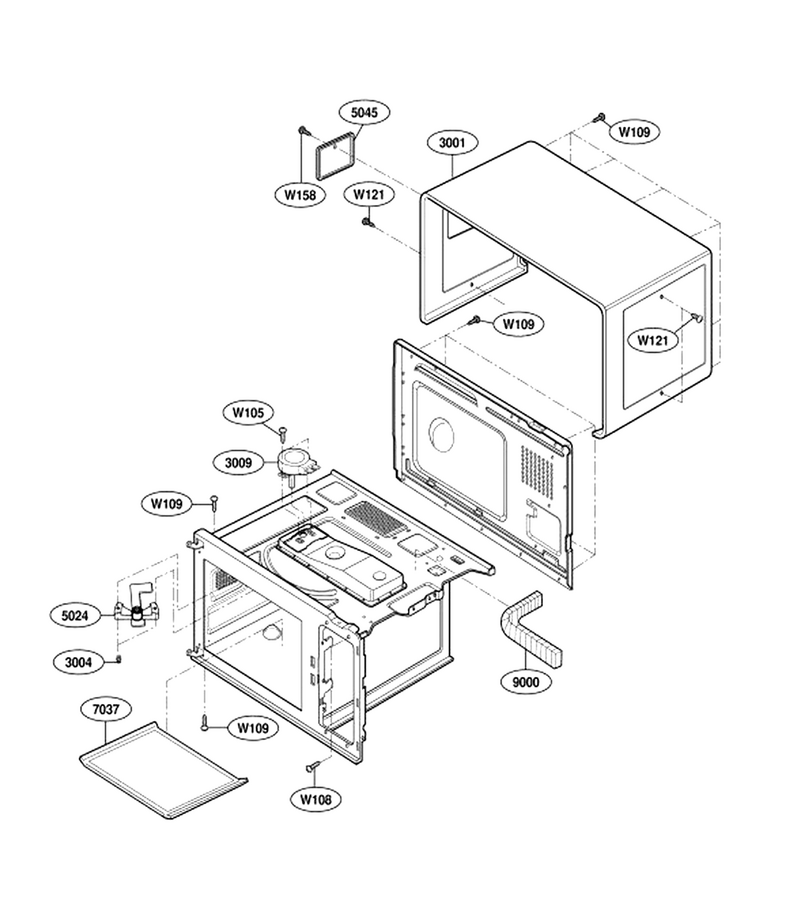

Oven Cavity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W121
Microwave Screw L-G-1TTL0402422
...
W158
Screw L-G-1TCL0402622
...
3001
Case,u Bending L-G-3112W0U059B
...
3004
Connector Assembly L-G-4051W1A001A
...
3009
Motor, Ac Synchronous L-G-2B72754Y
...
5024
Fan Assembly L-G-5901W1A001C
...
5045
Cover,lamp L-G-3550W1A236B
...
7037
Tray Assembly L-G-3390W1A020B
...
9000
Damper L-G-4850W2A004H

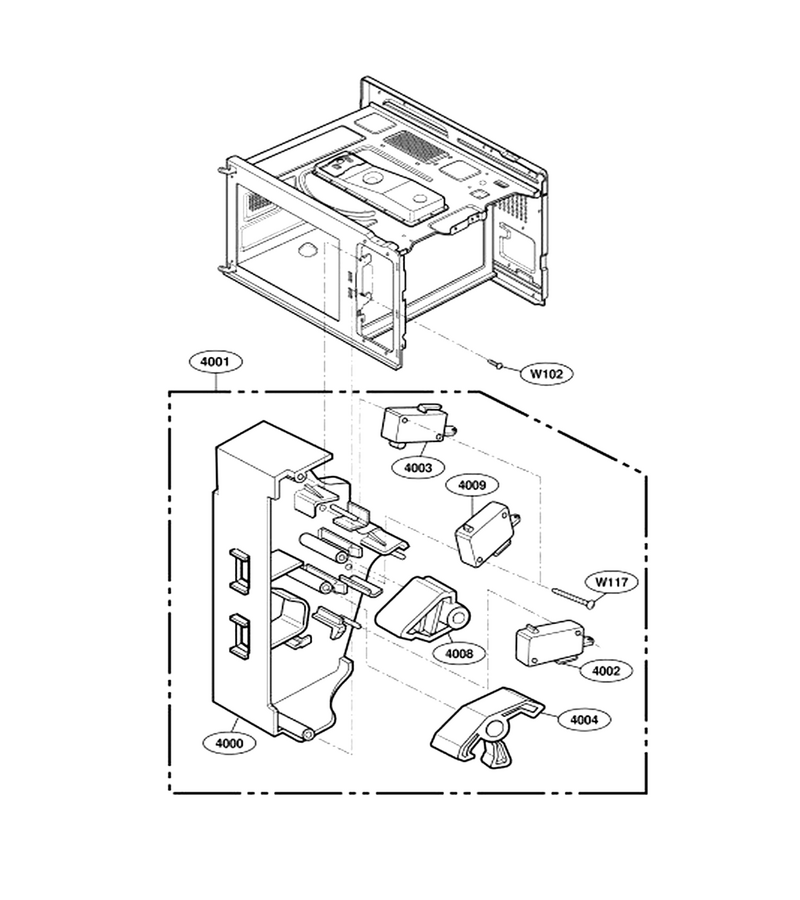

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W117
3.0x16mm Tap L-G-1TPL0303118
...
4000
Holder,locker L-G-3500W1A026A
...
4001
Holder Assembly,locker L-G-3501W1A034F
...
4002
Switch,micro L-G-6600W1K001G
...
4003
Switch,micro L-G-6600W1K001F
...
4004
Lever L-G-4510W1A008A
...
4008
Lever L-G-4510W1A021A
...
4009
Switch,micro L-G-6600W1K001K

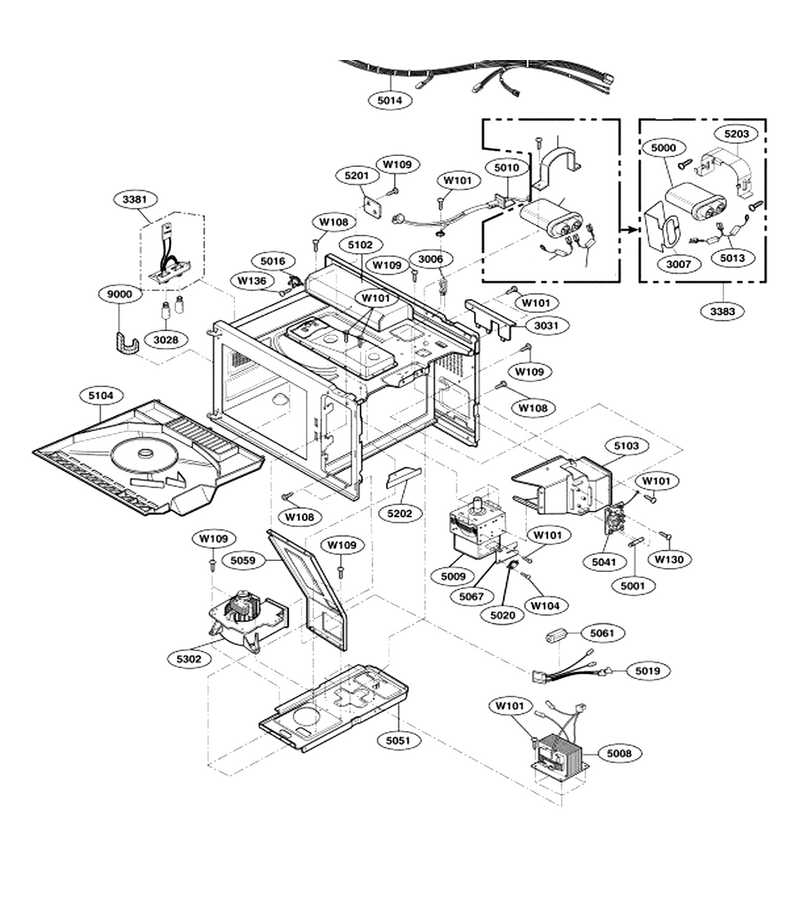

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W104
Screw L-G-1TPL0302018
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W130
Microwave Screw L-G-1TPL0402618
...
W136
Screw L-G-1TPL0302418
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-MEV31218101
...
3028
Lamp,incandescent L-G-3B71186A
...
3031
Cover,power Cord L-G-3550W1A221A
...
3381
Parts Assembly L-G-383EW5A252C
...
3383
Parts Assembly L-G-AGM30999601
...
5000
Capacitor,high Voltage L-G-0CZZW1H009E
...
5001
Fuse,time Delay L-G-3B70856T
...
5008
Transformer,high Voltage L-G-6170W1D089F
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5010
Power Cord Assembly L-G-6411W1A024K
...
5013
Cable,assembly L-G-6851W1A001H
...
5014
Harness,single L-G-6877W1A529A
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5019
Harness,single L-G-6877W1A499B
...
5020
Dishwasher Thermostat L-G-6930W1A003K
...
5041
Filter,ac Line L-G-6201W1A009D
...
5051
Parts Assembly L-G-383EW5A264A
...
5059
Parts Assembly L-G-383EW5A263A
...
5061
Filter Assembly L-G-6200W5A001A
...
5067
Bracket,thermostat L-G-4B74584A
...
5102
Duct L-G-5208W1A019A
...
5103
Duct L-G-5208W0A015A
...
5104
Duct L-G-5208W1A020B
...
5201
Bracket,idle L-G-4810W1A208A
...
5202
Bracket,idle L-G-4810W1A206A
...
5203
Bracket,capacitor L-G-481081A009A
...
5302
Fan Module L-G-4681W2A002D
...
9000
Damper L-G-4850W2A004H

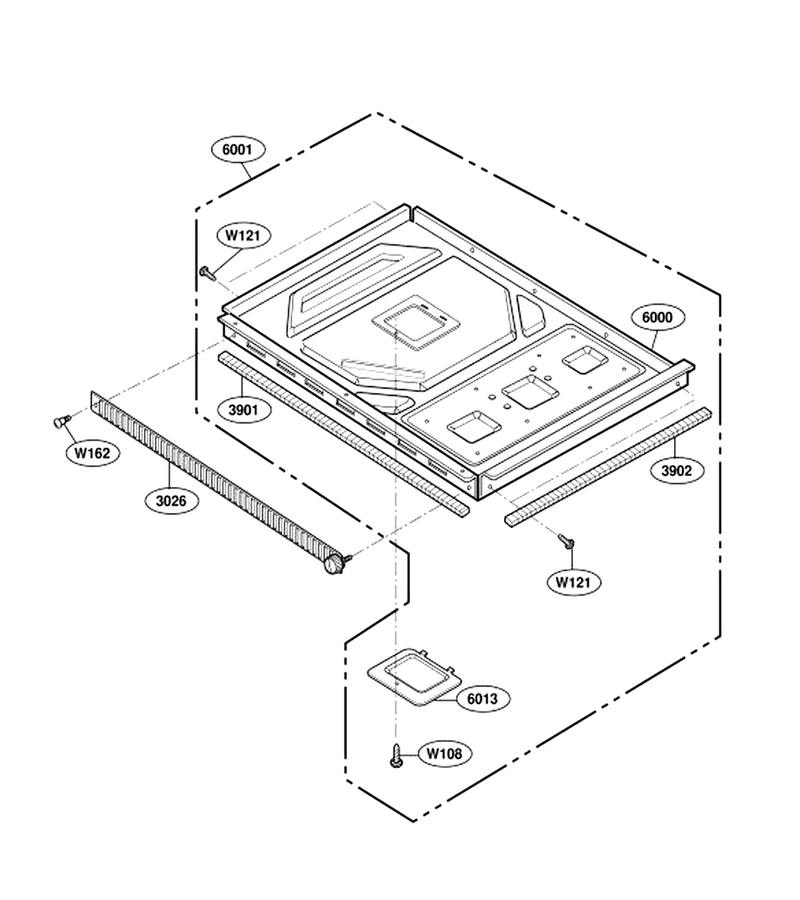

Base Plate Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W121
Microwave Screw L-G-1TTL0402422
...
W162
Screw,customized L-G-4000W3A001D
...
3026
Filter,grease L-G-5230W1A006B
...
3901
Gasket L-G-4986W1A002C
...
3902
Gasket L-G-4986W1A002B
...
6000
Plate,base L-G-3302W0A042A
...
6001
Plate Assembly,base L-G-3303W0A028B
...
6013
Cover,base L-G-3550W1A220A
