LG DEL10E.AGRQMTR

Model: DEL10E.AGRQMTR

Save Part Not Listed?
product name

Popular Parts

Popular Parts

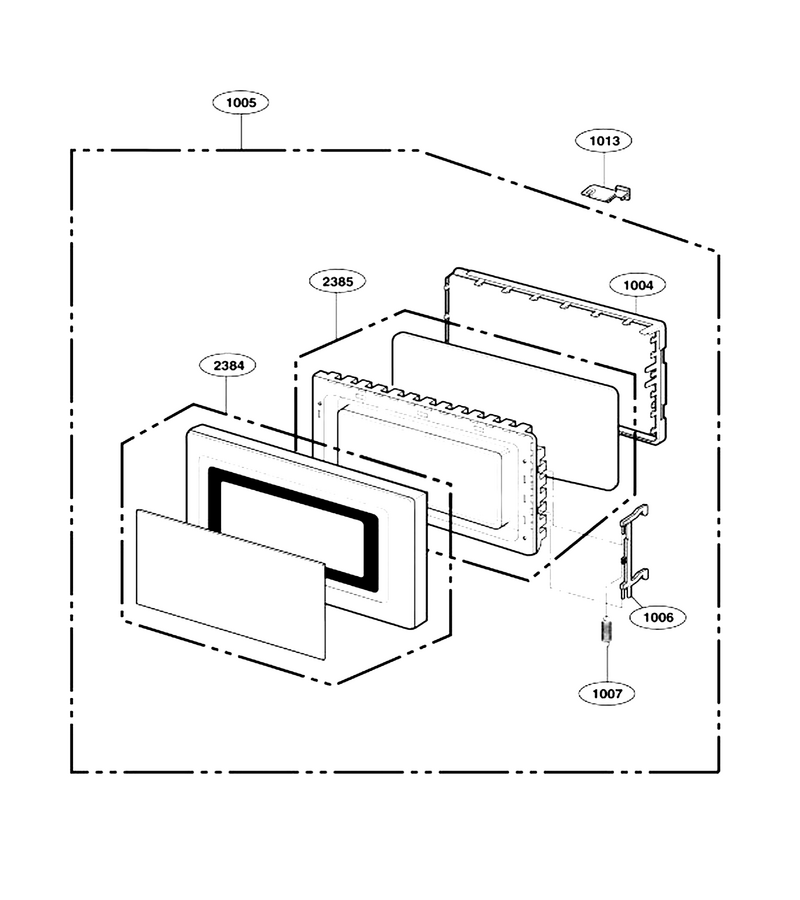

Door Parts

...
...
1004
Cover,choke L-G-3552W1A037A
...
1005
Door Assembly L-G-3581W1A527F
...
1006
Latch L-G-4026W2A012A
...
1007
Spring L-G-4970WRA001A
...
1013
Transformer L-G-5006W3A017A
...
2384
Parts Assembly L-G-383EW5A092E
...
2385
Parts Assembly L-G-383EW5A093A

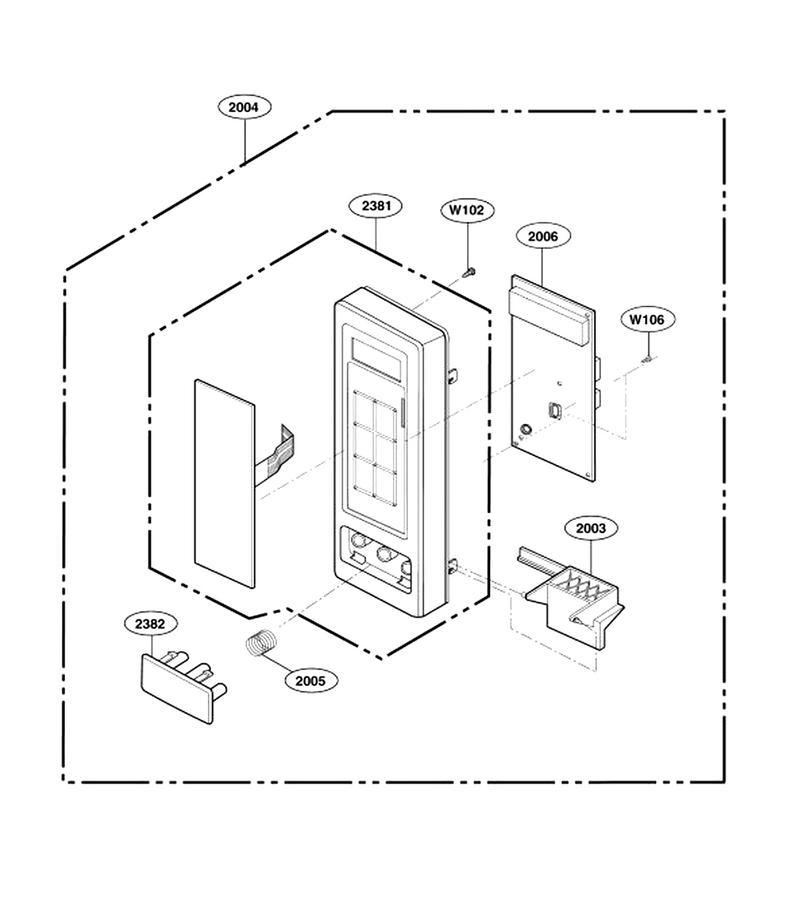

Control Panel Parts

...
...
W106
Screw L-G-1TPL0402818
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
2003
Controller Assembly,keypad L-G-4781W1M271H
...
2004
Controller Assembly,keypad L-G-4781W1M271H
...
2005
Spring L-G-4B72388A
...
2006
Pcb Assembly,sub L-G-6871W1S071C
...
2381
Parts Assembly L-G-383EW5A094E
...
2382
Parts Assembly L-G-383EW5A094C

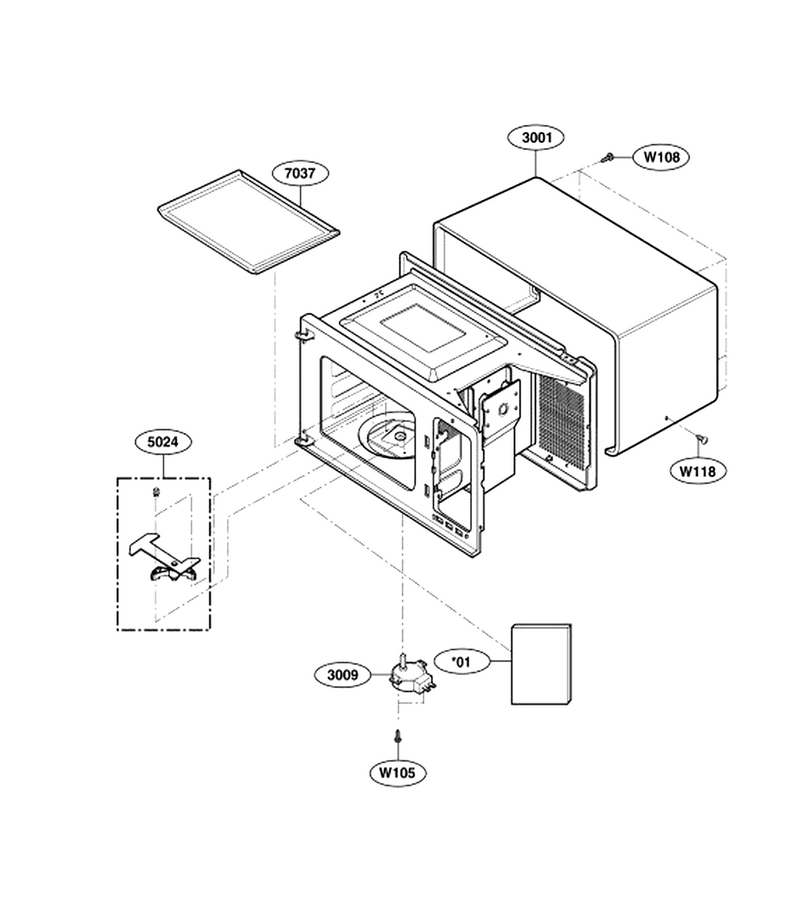

Oven Cavity Parts

...
...
*01
Manual,owners L-G-3828W5A2499
...
W118
Microwave Screw L-G-1TTG0402422
...
W108
Microwave Screw L-G-1TTL0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
3001
Case,u Bending L-G-3112W1U022H
...
3009
Motor, Ac Synchronous L-G-2B72754Y
...
5024
Fan Assembly L-G-5901W1A001B
...
7037
Tray Assembly L-G-3390W1A020A

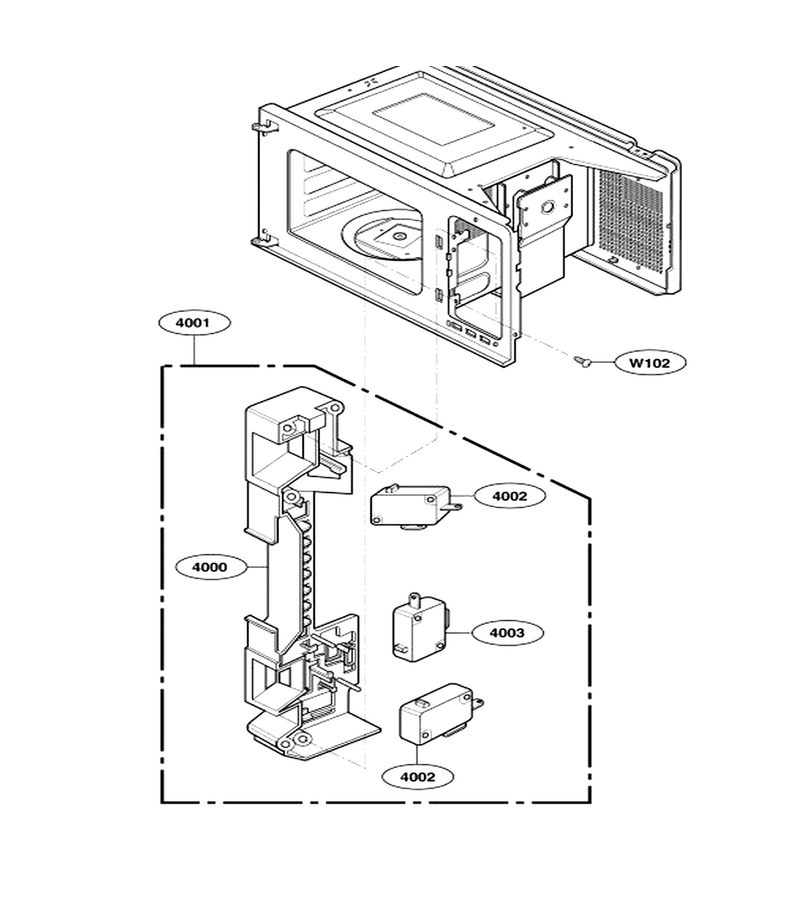

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Latch Board L-G-3500W1A008A
...
4001
Holder Assembly,locker L-G-3501W1A003T
...
4002
Switch,micro L-G-6600W1K001G
...
4003
Switch,micro L-G-6600W1K001F

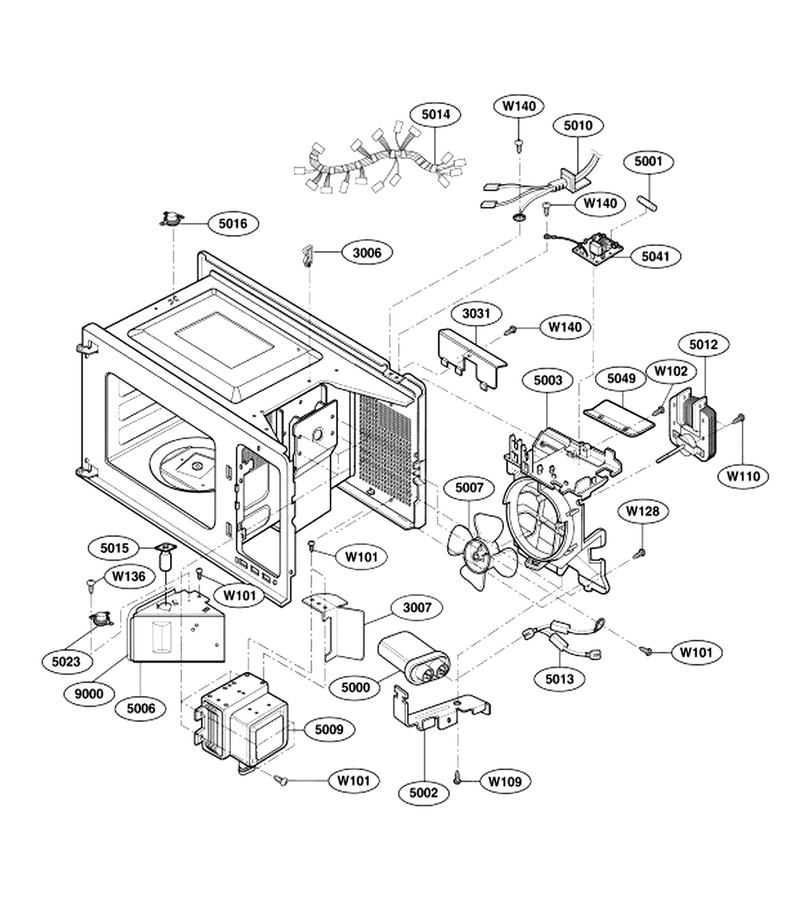

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
W136
Screw L-G-1TPL0302418
...
W128
Screw,customized L-G-1SZZW2A001B
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W109
Microwave Screw L-G-1TTL0402818
...
3006
Holder L-G-4930W3B029A
...
3007
Insulator L-G-5012W3A020A
...
3031
Cover,power Cord L-G-3550W1A138A
...
5000
Capacitor,high Voltage L-G-0CZZW1H003K
...
5001
Fuse,time Delay L-G-3B70856K
...
5002
Bracket L-G-4810W4C003A
...
5003
Guide L-G-4974W1S010A
...
5006
Duct L-G-5262W2A020C
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5009
Microwave Magnetron L-G-6324W1A001H
...
5010
Power Cord Assembly L-G-6411W1A024A
...
5012
Motor,ac Fan L-G-2B73670C
...
5013
Cable,assembly L-G-6851W1A001C
...
5014
Harness,single L-G-6877W1A423A
...
5015
Cable,assembly L-G-6912W3B002D
...
5016
Thermostat L-G-6930W1A001G
...
5023
Thermostat L-G-6930WRT001B
...
5041
Filter,ac Line L-G-6201W2A018E
...
5049
Guide,air L-G-4974W3G071A
...
9000
Cushion L-G-3B72244T

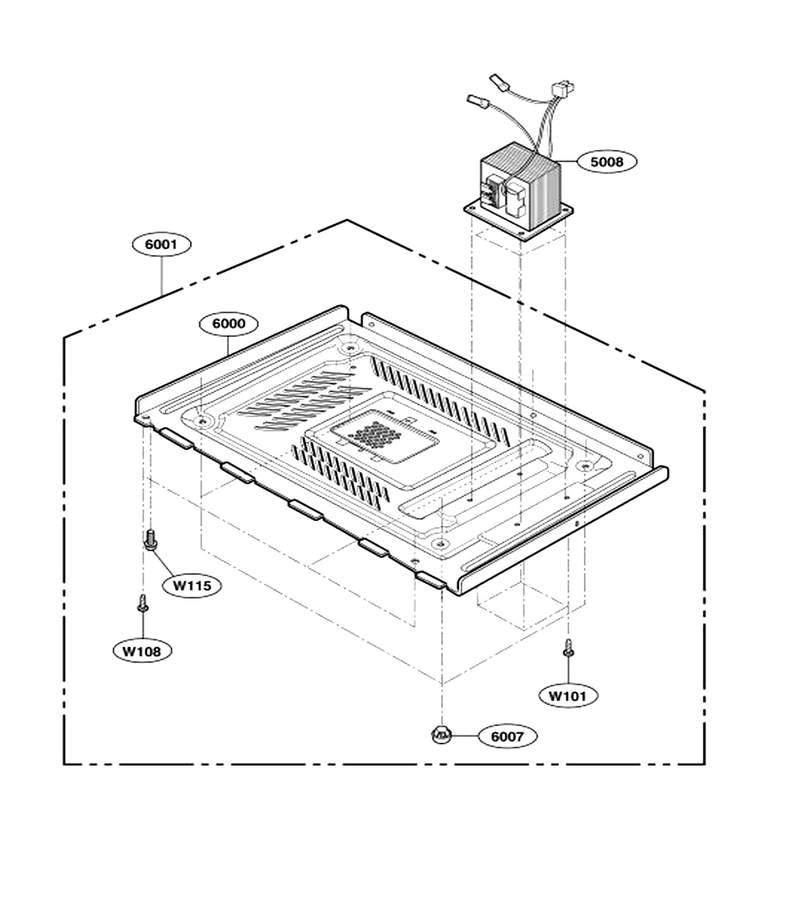

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W115
Screw L-G-4B73763A
...
5008
Transformer,high Voltage L-G-6170W1D076A
...
6000
Plate,base L-G-3302W0A037A
...
6001
Plate Assembly,base L-G-3303W0A018A
...
6007
Cap,base Plate L-G-5006W3A016C
