product name

LG D1454CFN.AASGBRS

Model: D1454CFN.AASGBRS

Save Part Not Listed?
product name

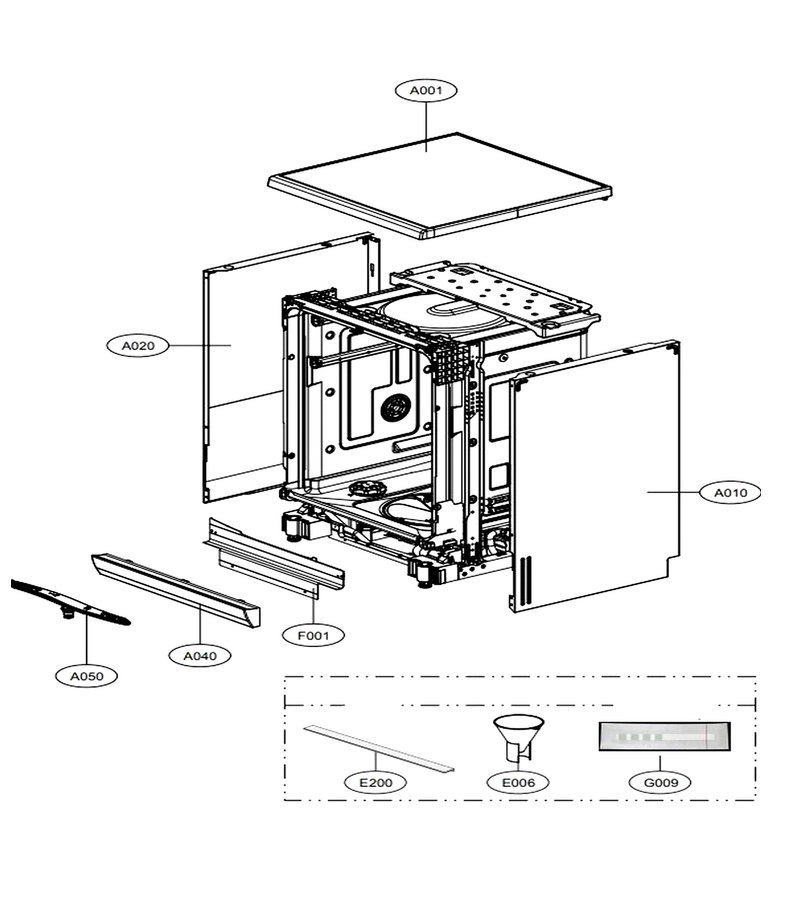

Main (1)

...
...
A001
Plate Assembly,top L-G-AGU35894203
...
A010
Cabinet L-G-3090DD1005C
...
A020
Cabinet Assembly L-G-ABJ33264110
...
A040
Cover,lower L-G-3550DD1001J
...
A050
Nozzle Assembly L-G-AGB73092501
...
E006
Funnel L-G-3016ED3001A
...
E200
Cover,base L-G-MCK66904601
...
F001
Frame Assembly L-G-ADV74088601
...
G009
Sheet,operation L-G-3858ED3004C

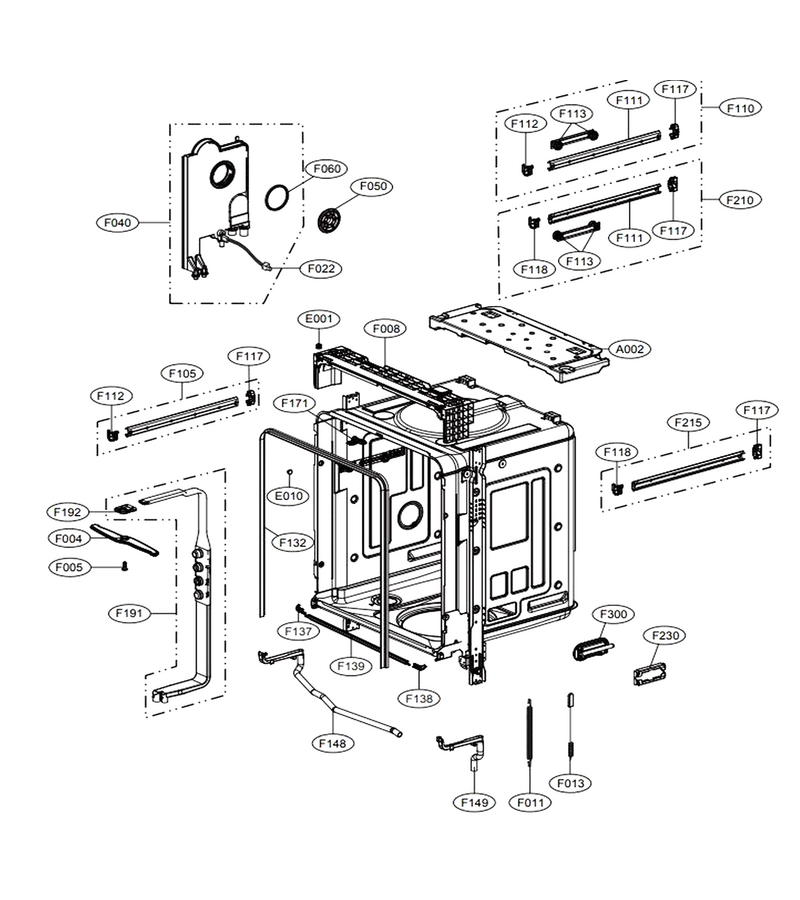

Main (2)

...
...
A002
Balance Weight L-G-MAG62122901
...
E001
Holder L-G-4930ER4001A
...
E010
Cover Screw L-G-4830ED4001A
...
F004
Dishwasher Water Feed Tube Spinner L-G-5249DD2001A
...
F005
Dishwasher Upper Spray Arm Pivot Shaft L-G-4370ED3006A
...
F008
Frame,top L-G-3210DD1003B
...
F011
Dishwasher Door Spring L-G-4970ED4004D
...
F013
Dishwasher Door Cable L-G-4933DD3001B
...
F022
Sensor Assembly L-G-6501ED4001F
...
F040
Guide Assembly L-G-AEC73037601
...
F050
Gasket L-G-4986FD3643A
...
F060
Dishwasher Water Inlet Port Nut L-G-4020FD3641C
...
F105
Rail Assembly L-G-5219DD2002B
...
F110
Roller Assembly L-G-4581DD3001A
...
F111
Rail L-G-5218ED3001A
...
F112
Stopper,roller L-G-4620ED3002A
...
F113
Roller L-G-4580ED4002A
...
F117
Stopper L-G-4620ED3001A
...
F118
Stopper,roller L-G-4620ED3003A
...
F132
Packing L-G-3920DD3005B
...
F137
Protect Cover L-G-MCK67127201
...
F138
Protect Cover L-G-MCK67127202
...
F139
Packing L-G-MFZ63233201
...
F148
Dishwasher Guide Assembly L-G-AEC73397601
...
F149
Guide Assembly L-G-AEC73397602
...
F171
Locker,lock L-G-4026DD3002A
...
F191
Guide Assembly L-G-AEC73277901
...
F192
Dishwasher Guide L-G-4974DD3001A
...
F210
Roller Assembly L-G-4581DD3001B
...
F215
Rail Assembly L-G-5219DD2001B
...
F230
Tub Bracket L-G-4810DD4005A
...
F300
Nozzle Assembly L-G-AGB33696301

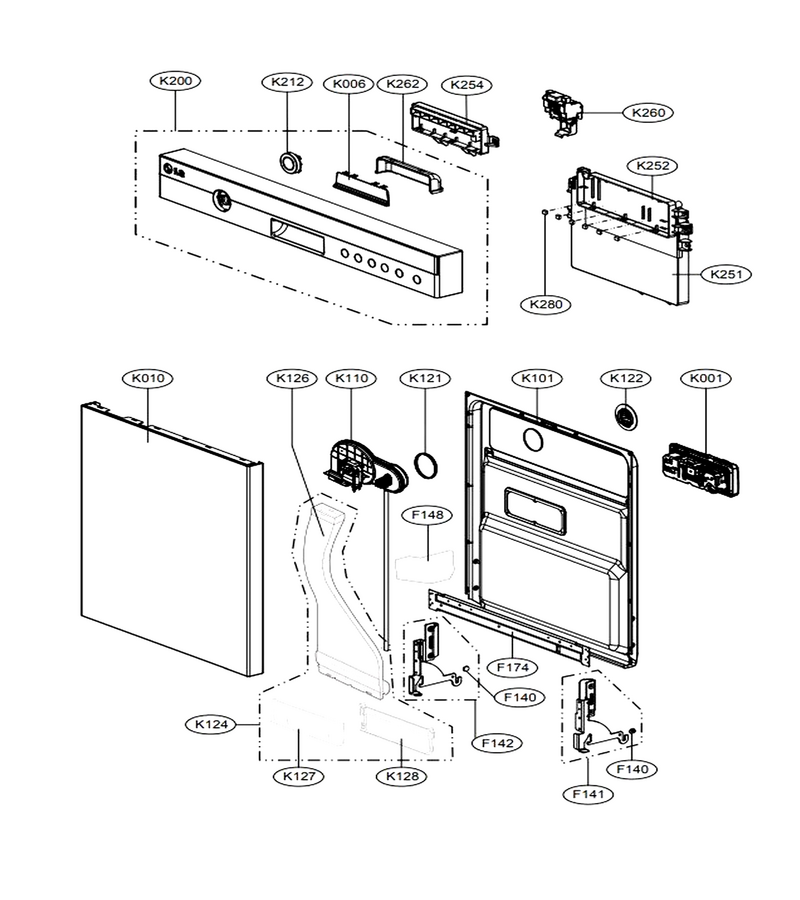

Main (3)

...
...
F140
Slider L-G-4276DD4001A
...
F141
Hinge Assembly L-G-AEH73796701
...
F142
Hinge Assembly L-G-AEH73796702
...
F148
Dishwasher Guide Assembly L-G-AEC73397601
...
F174
Bracket Assembly L-G-4811FD3667D
...
K001
Dishwasher Dispenser Assembly L-G-MCU61861001
...
K006
Handle Decor L-G-MCR62733801
...
K010
Cover Assembly,front L-G-ACQ76172919
...
K101
Door Liner Assembly L-G-ADE73029701
...
K110
Casing Assembly L-G-5835ED2002F
...
K121
Dishwasher Door Vent Blower Gasket L-G-4986DD3003A
...
K122
Dishwasher Blower Cover L-G-3550ED3011B
...
K124
Duct Assembly L-G-ADJ73312201
...
K126
Vent L-G-MJZ61941901
...
K127
Vent L-G-MJZ61941601
...
K128
Vent L-G-MJZ61942001
...
K200
Panel Assembly,control L-G-AGL73475019
...
K212
Knob,pressure Switch L-G-MEY40601002
...
K251
Pcb Assembly,main L-G-EBR79686402
...
K252
Pcb Assembly,display L-G-EBR71105814
...
K254
Display Pcb Assembly L-G-EBR69906301
...
K260
Locker Assembly L-G-4027ED3002F
...
K262
Handle L-G-MEB42566005
...
K280
Gasket Assembly L-G-ADX73770604

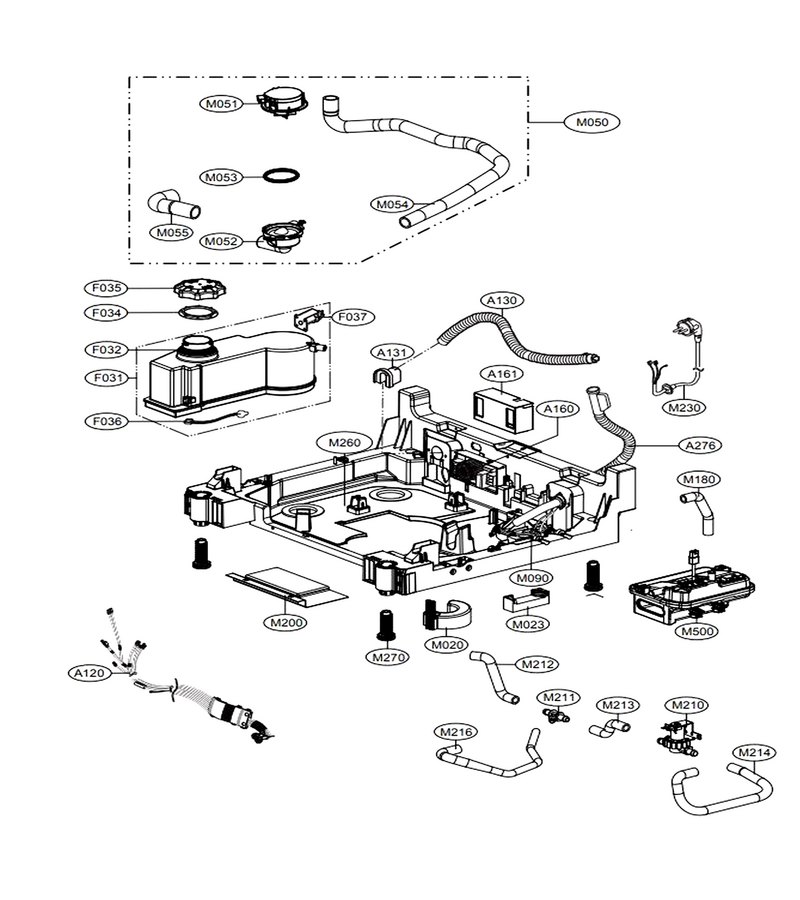

Main (4)

...
...
A120
Harness,multi L-G-EAD61673901
...
A130
Hose Assembly,drain L-G-AEM72912602
...
A131
Holder L-G-MEG61890001
...
A160
Dishwasher Noise Filter L-G-6201EC1006L
...
A161
Cover,protect L-G-MCK66809001
...
A276
Hose Assembly,inlet L-G-5215DD1001C
...
F031
Softener Assembly L-G-3049DD1001B
...
F032
Packing L-G-3920DD4006A
...
F034
Nut,common L-G-1NZZED4003B
...
F035
Cap Assembly L-G-5007DD2001A
...
F036
Sensor Assembly L-G-6501ED4001J
...
F037
Solenoid Assembly L-G-6421ED3002C
...
M020
Damper L-G-MCQ66497401
...
M023
Damper L-G-4900DD4001A
...
M050
Case Assembly L-G-ABQ73503003
...
M051
Dishwasher Drain Pump L-G-EAU62043401
...
M052
Case L-G-MBN61986301
...
M053
Packing L-G-MFZ62861801
...
M054
Hose,drain L-G-MEJ62186101
...
M055
Hose,pump L-G-MEJ61885501
...
M090
Dishwasher Flood Switch L-G-6601ER2001A
...
M180
Hose,connector L-G-MEJ62186001
...
M200
Cover,protect L-G-MCK66809101
...
M210
Valve Assembly,inlet L-G-AJU72910002
...
M211
Connector L-G-4932ER4008A
...
M212
Hose,connector L-G-MEJ62185601
...
M213
Hose,connector L-G-MEJ62185701
...
M214
Hose,connector L-G-MEJ62185801
...
M216
Hose,connector L-G-MEJ62185901
...
M230
Power Cord Assembly L-G-EAD62373002
...
M260
Base,cabinet L-G-MAM63224401
...
M270
Leg L-G-4778ED3001A

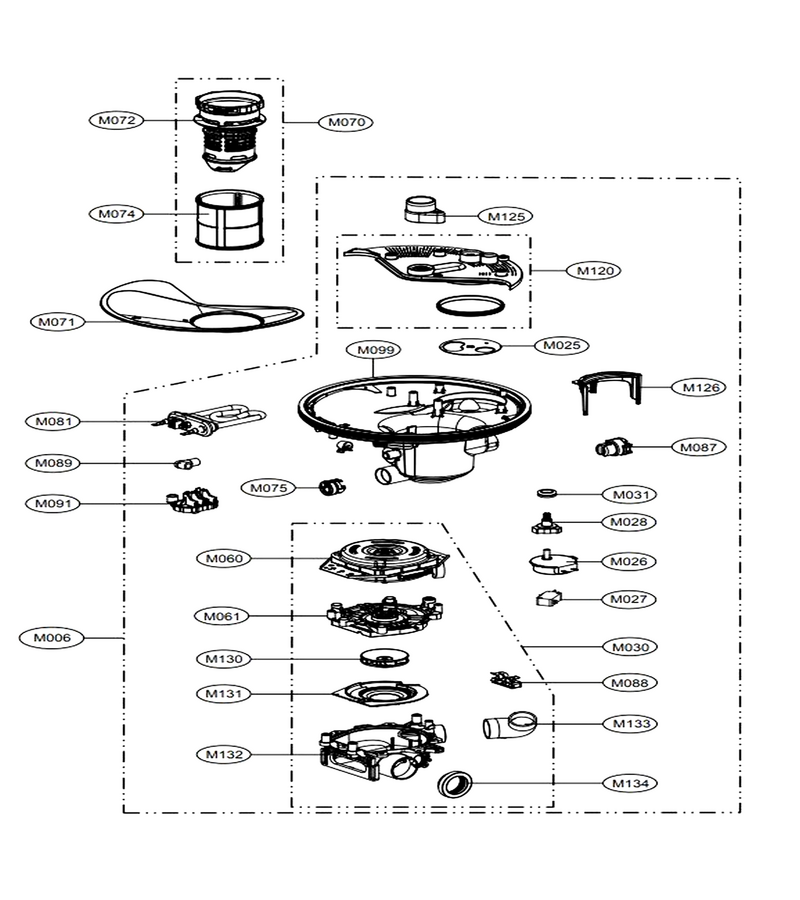

Main (5)

...
...
M006
Sump Assembly L-G-AJH72949010
...
M025
Dishwasher Diverter Disc L-G-MJX61952001
...
M026
Motor Assembly,ac,stepping L-G-4681ED3001E
...
M027
Dishwasher Diverter Position Switch L-G-3W40025C
...
M028
Dishwasher Diverter Switch Cam L-G-MBJ61901901
...
M030
Casing Assembly,pump L-G-ABT72909203
...
M031
Dishwasher Diverter Motor Seal L-G-3920ED4009B
...
M060
Cover,pump L-G-MCK63312601
...
M061
Hose Assembly, Connector L-G-ADQ73234003
...
M070
Hose Assembly, Connector L-G-ADQ73234003
...
M071
Dishwasher Filter L-G-MDJ62185801
...
M072
Filter L-G-MDJ62185303
...
M074
Dishwasher Filter, Lower L-G-MDJ62185601
...
M075
Dishwasher Check Valve L-G-ABQ73502701
...
M081
Heater Assembly L-G-AEG72950002
...
M087
Dishwasher Turbidity Sensor L-G-6501ED2002G
...
M088
Dishwasher Sump Retainer L-G-3740ED3003A
...
M089
Pump Hose L-G-MEJ62284601
...
M091
Dishwasher Pressure Switch L-G-EBF61334501
...
M099
Sump L-G-MJG61841201
...
M120
Case Assembly L-G-ABQ73502601
...
M125
Holder L-G-MEG62080801
...
M126
Guide Cover L-G-MCK63312801
...
M130
Impeller Assembly L-G-AER72929001
...
M131
Case L-G-MBN61986201
...
M132
Case L-G-MBN62007101
...
M133
Dishwasher Drain Pump-To-Sump Hose L-G-MEJ61885701
...
M134
Inlet Hose L-G-MEJ61885601

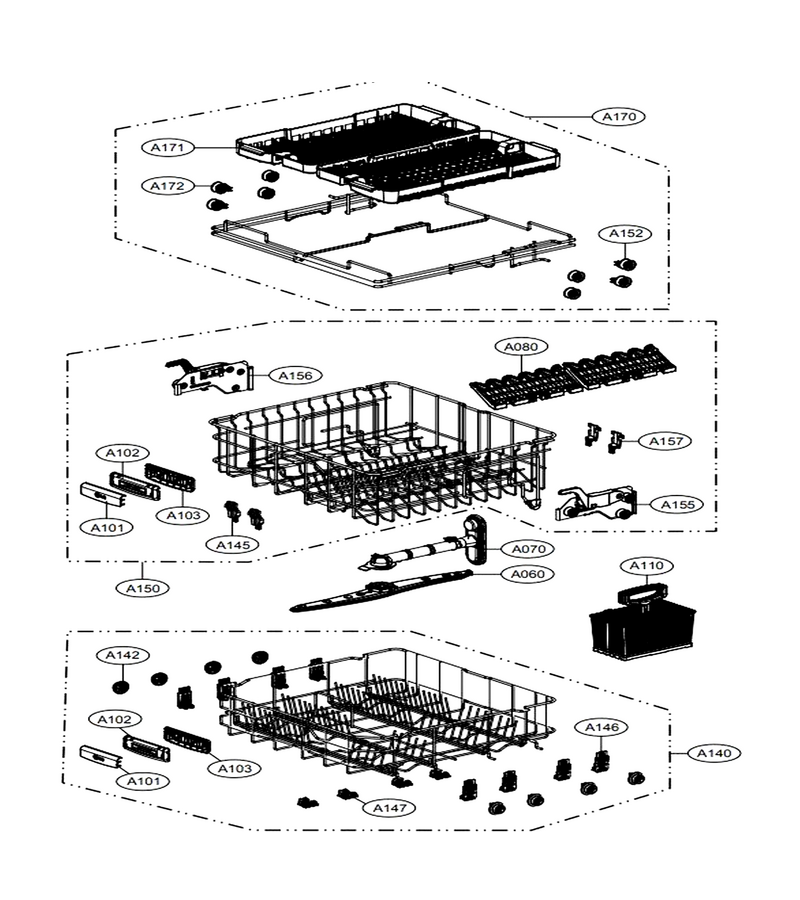

Main (6)

...
...
A060
Nozzle Assembly L-G-AGB73092601
...
A070
Guide Assembly L-G-AEC73278001
...
A080
Dishwasher Rack L-G-3750DD2004B
...
A101
Handle L-G-MEB38945801
...
A102
Handle L-G-MEB38945901
...
A103
Handle L-G-MEB38946001
...
A110
Basket Assembly,spoon L-G-5005DD1002C
...
A140
Rack Assembly L-G-AHB72909101
...
A142
Dishwasher Dishrack Roller, Lower L-G-4581DD3003B
...
A145
Holder L-G-4930ED3003E
...
A146
Holder L-G-MEG62279201
...
A147
Holder L-G-MEG62279301
...
A150
Rack Assembly L-G-AHB72929101
...
A152
Dishwasher Dishrack Roller Assembly, Upper L-G-4581DD3002A
...
A155
Dishwasher Guide Assembly L-G-4975ED2005B
...
A156
Dishwasher Guide Assembly L-G-4975ED2004B
...
A170
Rack Assembly L-G-AHB33839403
...
A171
Tray L-G-MJS38945601
...
A172
Rack L-G-MGR38994003
