product name

LG CW-XC100HU.APGAMPN

Model: CW-XC100HU.APGAMPN

Save Part Not Listed?
product name

Main

...
...
W52106-1
Tube L-G-5210AR7062A
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
35211A
Tube Assembly,suction(indoor) L-G-5211AR6081D
...
130410
Base Assembly,single L-G-3041A20012S
...
130910
Cabinet Assembly,single L-G-3091A10032R
...
135301
Grille,front L-G-3530A10136B
...
135313
Grille,inlet L-G-3530A10137B
...
135316
Grille Assembly,front(indoor) L-G-3531A10188B
...
135500-1
Cover L-G-3550U-L006A
...
135500-2
Cover L-G-3550AR7032A
...
137251
Control Panel L-G-3720A10003A
...
147581
Louver,horizontal L-G-4758AR2196B
...
147582
Louver,vertical L-G-4758AR3307C
...
148000
Brace L-G-4800A10001A
...
149980
Shroud L-G-4998AR1496A
...
152302
Filter L-G-5231AR1152M
...
238310
Escutcheon L-G-3831A20034V
...
249940
Case,control L-G-4994AR1221A
...
249950
Case Assembly,control L-G-4995A20326U
...
263230
Thermistor L-G-6323A20003D
...
264110
Ac Power Cord Assembly L-G-2H00677R
...
267110
Remote Controller Assembly L-G-6711A90018C
...
268712
Pcb Assembly,display L-G-6871A20195R
...
268714
Pcb Assembly,main L-G-6871A10070Q
...
330720
Scroll L-G-3072A20001A
...
346811
Motor L-G-4681A20073E
...
349001
Damper L-G-4900AR7024B
...
349480
Orifice L-G-4948A10005A
...
349600
Mount L-G-4960A20005A
...
352111
Tube L-G-5211AR7059A
...
352113
Tube L-G-5211AR2930A
...
352390
Guide Assembly,air L-G-5239A10006E
...
354210
Evaporator L-G-5421AR6086B
...
359012
Room Air Conditioner Blower Wheel L-G-5900A20030A
...
550140
Bushing L-G-4830AR4335A
...
554030
Condenser L-G-5403AR2921A
...
554160
Compressor Set,korea L-G-2520UKAC2JA
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L031A
...
731373
Install Part Assembly,single L-G-3127A10015T
...
749740
Guide L-G-4974AR3262E

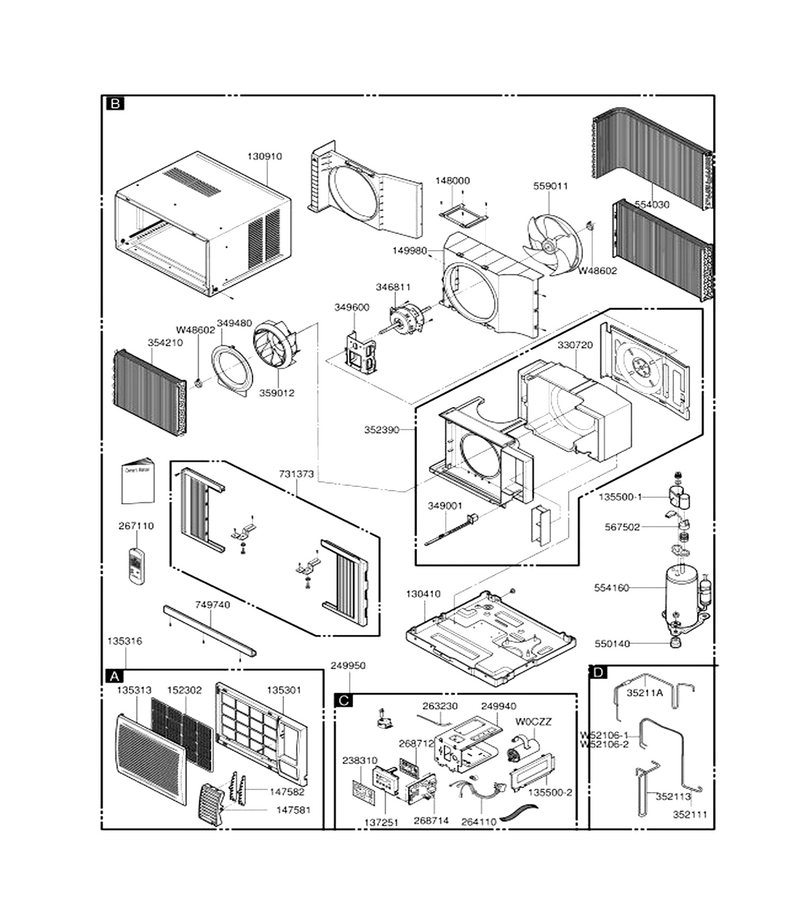

Schematic Image Zoomed
