LG CP24G30B.AT3AFRD

Model: CP24G30B.AT3AFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Fluid Capacitor L-G-0CZZA20001X
...
35211A
Tube Assembly,suction L-G-AJR73282521
...
130410
Base Assembly,single L-G-3041A23004X
...
130910
Cabinet Assembly,single L-G-3091A20001Y
...
135200
Cover Assembly L-G-ACQ86070805
...
135301
Grille,front L-G-MDX62733301
...
135303
Grille,inlet L-G-MDX62733401
...
135312
Grille Assembly,front(indoor) L-G-AEB73745809
...
135500
Cover L-G-3551A30015A
...
137215
Panel,control L-G-3720AR6164A
...
146812
Motor L-G-2H01102J
...
147581
Louver,horizontal L-G-MFH62424001
...
147582
Louver,verti L-G-4758AR6157A
...
148000
Supporter L-G-4800AR7271A
...
149980
Room Air Conditioner Air Filter L-G-4998A10027H
...
152312
Filter Assembly,air Cleaner L-G-5231AR6159T
...
238310
Escutcheon L-G-MDD62482901
...
249950
Case Assembly,control L-G-ABQ74424607
...
267110
Remote Controller Assembly L-G-AKB73756214
...
268711B
Pcb Assembly,main L-G-EBR88859902
...
268711A
Pcb Assembly,display L-G-EBR89597501
...
346811
Ac Motor L-G-4681A20081W
...
349001
Damper L-G-4900AR7265A
...
349480
Orifice L-G-4948A20016A
...
349600
Mount L-G-4960AR1596A
...
352111
Tube Assembly,condenser(out) L-G-AJR75683102
...
352113
Tube Assembly,discharge L-G-AJR73989106
...
352115
Tube Assembly,evaporator(in) L-G-AJR75723402
...
352390
Guide Assembly,air L-G-AEC72809904
...
354210
Evaporator Assembly,first L-G-ADL73981506
...
359012
Fan,turbo L-G-5900A20027C
...
550140
Damper,rubber L-G-4022UTL005A
...
554030
Condenser Assembly,first L-G-ACG73747206
...
554160
Compressor Set,china L-G-TBZ38956001
...
559011
Fan Assembly,axial L-G-5900AR1508G
...
566000
Switch,pressure L-G-EBF57874204
...
567480
Room Air Conditioner Thermistor L-G-6323A20003S
...
731273
Install Part Assembly,single L-G-AET73751401
...
738900
Grille Assembly,rear L-G-3530A20002R
...
749740
Guide L-G-MEA61972803

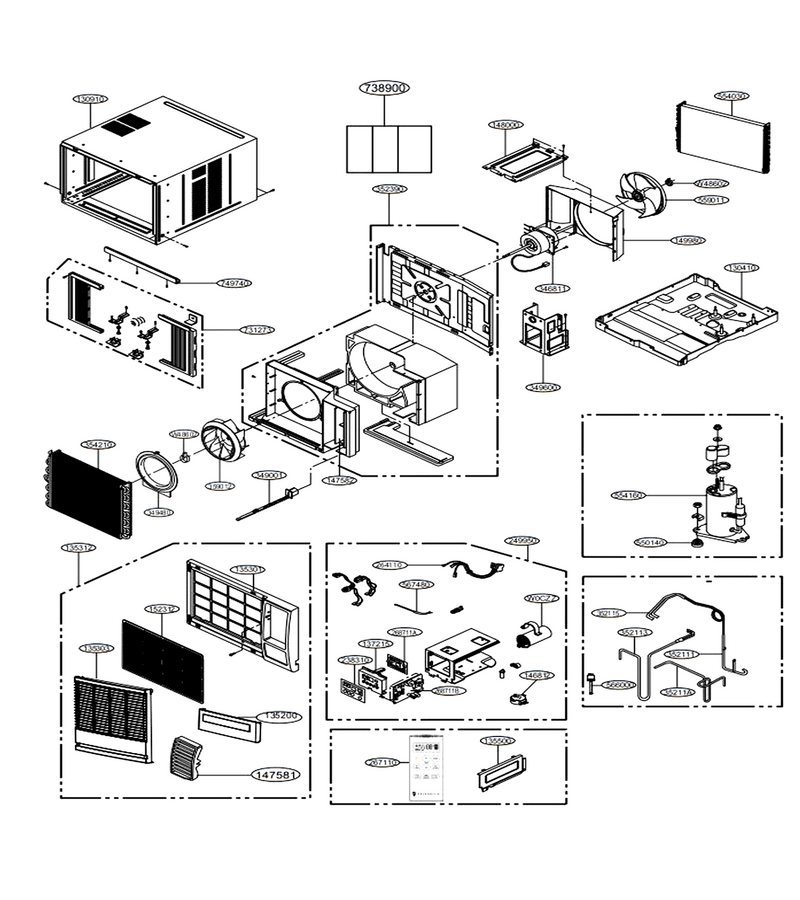

Schematic Image Zoomed
