LG CP12E10.AWYAFRD

Model: CP12E10.AWYAFRD

Save Part Not Listed?
product name

Main

...
...
W5210E-1
Tube L-G-5210AR4373B
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
35211A
Tube Assembly, Suction Single L-G-5211AR2926H
...
130410
Weld Assy L-G-3041A20012R
...
130910
Cabinet L-G-3091AR2286X
...
135303
Inlet Grille L-G-3530A10137A
...
135312
Room Air Conditioner Front Grille L-G-3531A10188L
...
135500
Cover L-G-3550AR7032A
...
145200
Room Air Conditioner Louver Link L-G-4520AR4386A
...
146812
Synchronou L-G-2H01102D
...
147581
Horizntl Lvr L-G-4758AR2196G
...
147582
Vertical Louver L-G-4758AR2888B
...
148000
Supporter L-G-4980AR4395A
...
149980
Shroud L-G-4998AR1496A
...
152302
Filter L-G-5231AR1152M
...
237200
Control Panel L-G-3720A10003B
...
238310
Escutcheon L-G-3831A20093E
...
249950
Case Assembly,control L-G-4995A20481R
...
264110
Room Air Conditioner Power Cord L-G-6411A20056K
...
267110
Remote L-G-6711A20103Q
...
268711-1
Pcb Assembly L-G-6871A20431A
...
268711-2
Pcb Assembly L-G-EBR39266617
...
346811
Room Air Conditioner Fan Motor L-G-4681A20073B
...
349001
Damper L-G-4900AR7024B
...
349480
Orifice L-G-4948A10005B
...
349600
Mount L-G-4960A20005A
...
352113
Tube L-G-5211AR2930A
...
352380
Guide Assembly, Air L-G-5239A20027A
...
354210
Evaporator Assembly,first L-G-5421AR2912N
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B
...
359012
Room Air Conditioner Blower Wheel L-G-5900A20030A
...
550140
Bushing L-G-4830AR4335A
...
552102
Tube Assembly,capillary L-G-5211A20598F
...
552113
Tube L-G-5211AR7059A
...
554030
Evaporator L-G-5403AR2921N
...
554160
Compressor Set,china L-G-2520UCCK118
...
567480
Room Air Conditioner Thermistor L-G-6323A20003S
...
567502
Overload L-G-6750U-L067A
...
731273
Room Air Conditioner Accordion Filler Kit L-G-3127A20074J
...
749740
Channel L-G-4974AR3262K

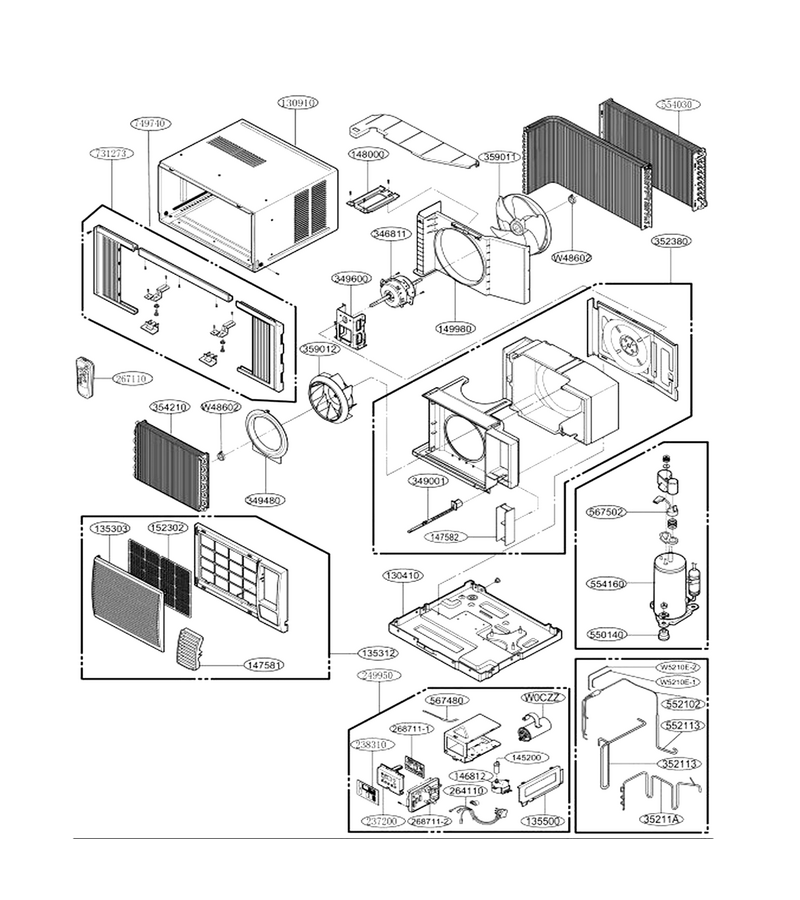

Schematic Image Zoomed
