LG CP10G10B.AT1AFRD

Model: CP10G10B.AT1AFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
35211A
Tube Assembly,suction(indoor) L-G-AJR73142518
...
130410
Base Assembly,single L-G-AAN32956309
...
130910
Cabinet Assembly,single L-G-ABJ73769401
...
135303
Grille,inlet L-G-MDX62733201
...
135312
Grille Assembly,front(indoor) L-G-AEB73745709
...
135500
Cover L-G-3550AR7032D
...
146812
Synchronou L-G-2H01102D
...
147581
Louver,horizontal L-G-MFH62423801
...
147582
Vertical Louver L-G-4758AR2888B
...
148000
Brace L-G-4800A10001A
...
149980
Shroud L-G-4998A10020D
...
152302
Filter,air L-G-5231AR1152V
...
235500
Cover Assembly L-G-ACQ86070803
...
237200
Panel,control L-G-3720AR2509B
...
238310
Escutcheon L-G-MDD62482601
...
249950
Case Assembly,control L-G-ABQ74424501
...
264110
Power Cord Assembly L-G-EAD63469502
...
267110
Remote Controller Assembly L-G-AKB73756214
...
268711B
Pcb Assembly,main L-G-EBR76261804
...
268711A
Room Air Conditioner Electronic Control Board L-G-EBR76261901
...
346811
Room Air Conditioner Fan Motor L-G-4681A20073B
...
349001
Damper L-G-4900AR7024B
...
349480
Orifice L-G-4948A10005B
...
349600
Mount L-G-4960A20005A
...
352113
Tube Assembly,discharge L-G-AJR75644401
...
352380
Guide Assembly, Air L-G-5239A20027A
...
354210
Evaporator Assembly,first L-G-5421AR2912R
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B
...
359012
Room Air Conditioner Blower Wheel L-G-5900A20030A
...
550140
Damper,compressor L-G-MCQ62508902
...
552102
Tube Assembly,evaporator(in) L-G-AJR74464102
...
552113A
Tube Assembly,connector L-G-AJR73162610
...
552113B
Tube Assembly,condenser(out) L-G-AJR73067817
...
554030
Condenser Assembly,first L-G-ACG72924212
...
554160
Compressor Set,china L-G-TBZ38956801
...
567480
Room Air Conditioner Thermistor L-G-6323A20003S
...
567502
Overload Protect L-G-EAF61751211
...
731273
Install Part Assembly,single L-G-AET73671601
...
738900
Grille Assembly,rear L-G-3530AR2688S

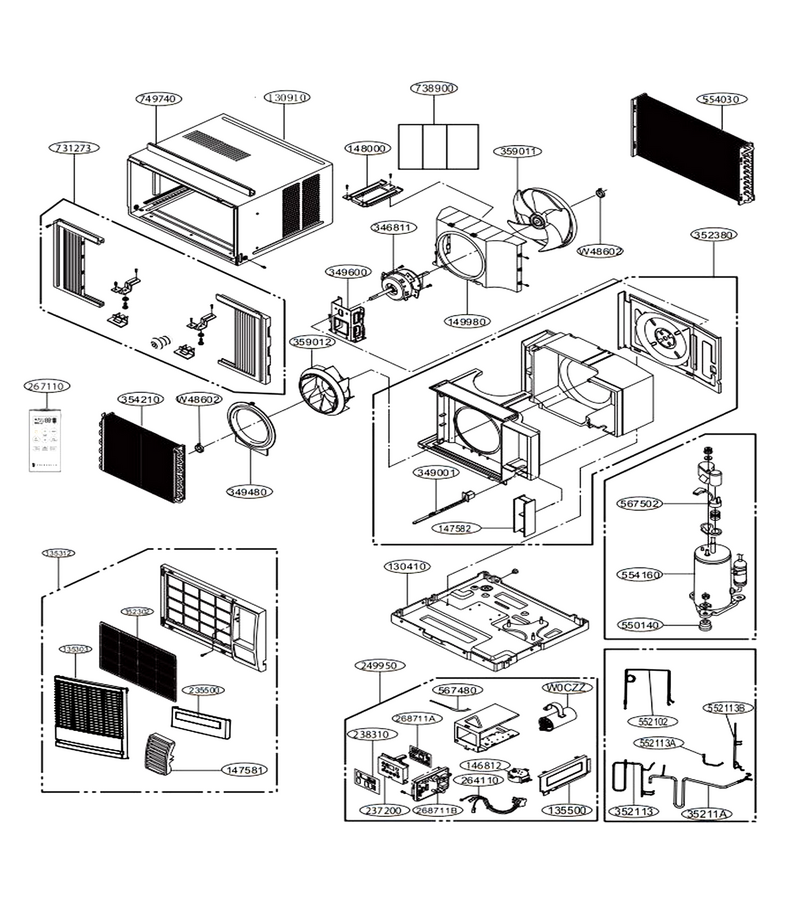

Schematic Image Zoomed
