LG CMT135SGW.MWECRY

Model: CMT135SGW.MWECRY

Save Part Not Listed?
product name

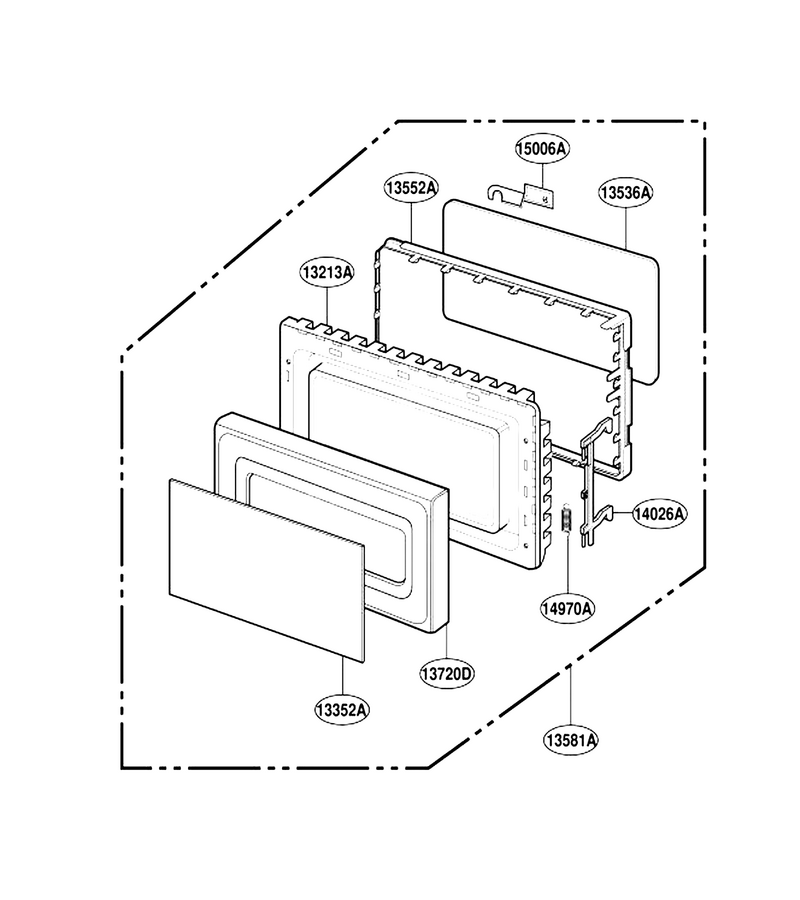

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A031J
...
13352A
Window,screen L-G-3352W1A074T
...
13536A
Seal Tape L-G-3536WRA001M
...
13552A
Cover L-G-3552W1A028A
...
13581A
Door Assy L-G-3581W1A167C
...
13720D
Panel,door L-G-3720W0D080H
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001C
...
15006A
Cap L-G-5006W3A010A

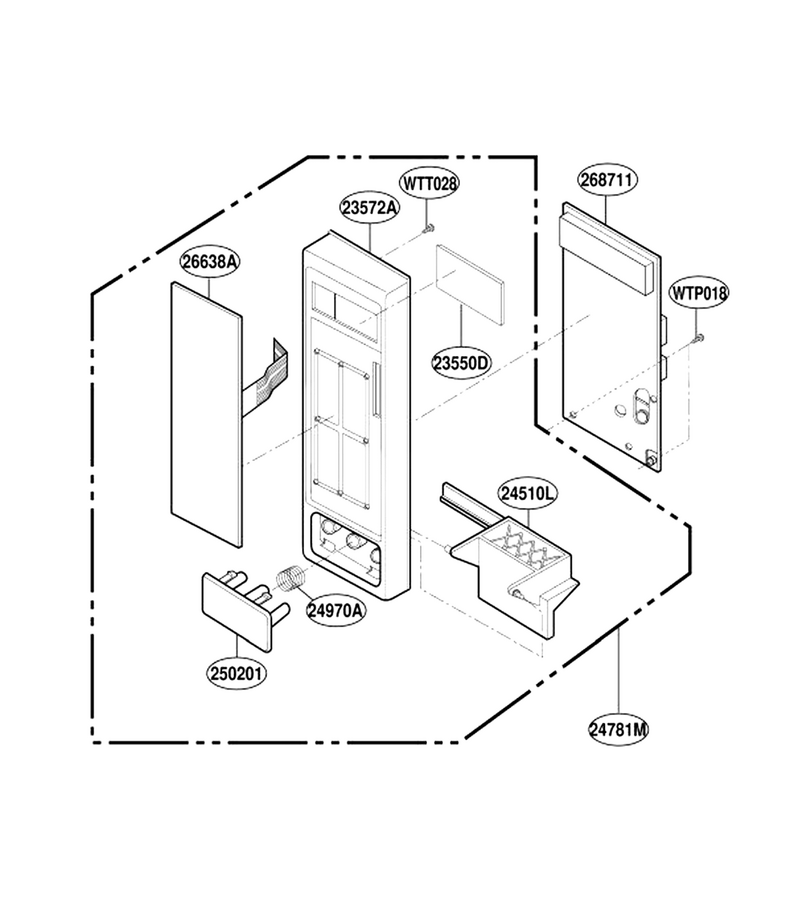

Control Panel Assembly Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W1A120D
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assembly,micom L-G-4781W1M148X
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
26638A
Membrane L-G-6638W2A131C
...
250201
Button L-G-5020W3G102D

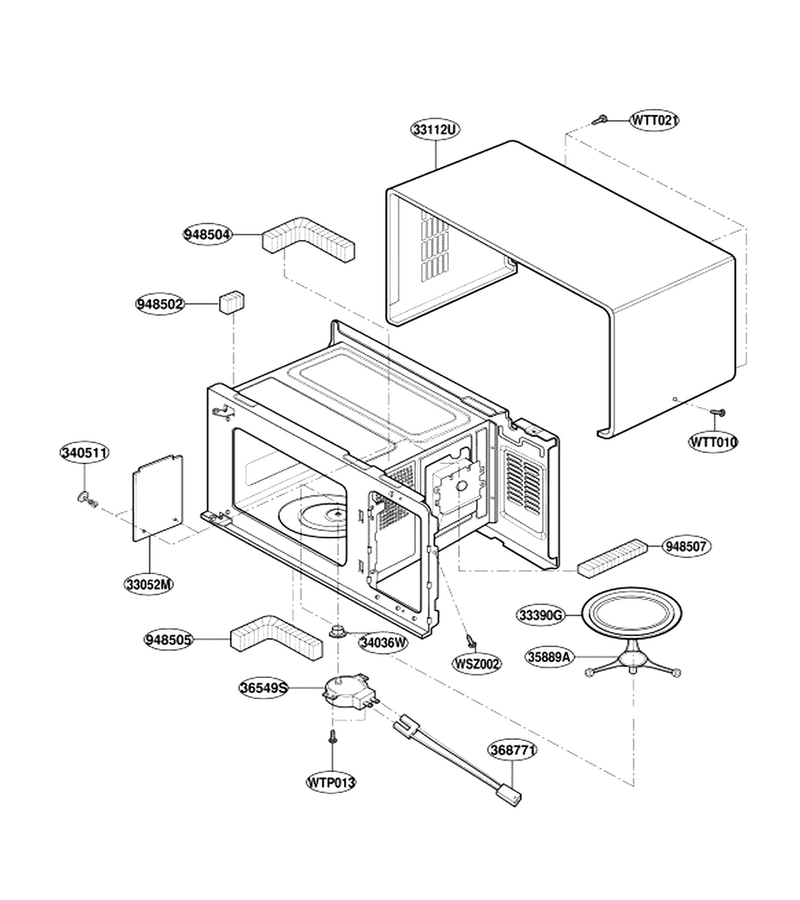

Oven Cavity Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTP013
Microwave Screw L-G-1TPL0402418
...
33052M
Microwave/hood Cover L-G-3052W3M008B
...
33112U
Case,u Bending L-G-3112W0U006U
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011A
...
36549S
Motor, Ac Synchronous L-G-6549WRS001N
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
948502
Damper L-G-3B72246Y
...
948504
Damper L-G-3B72244A
...
948505
Damper L-G-3B72246J

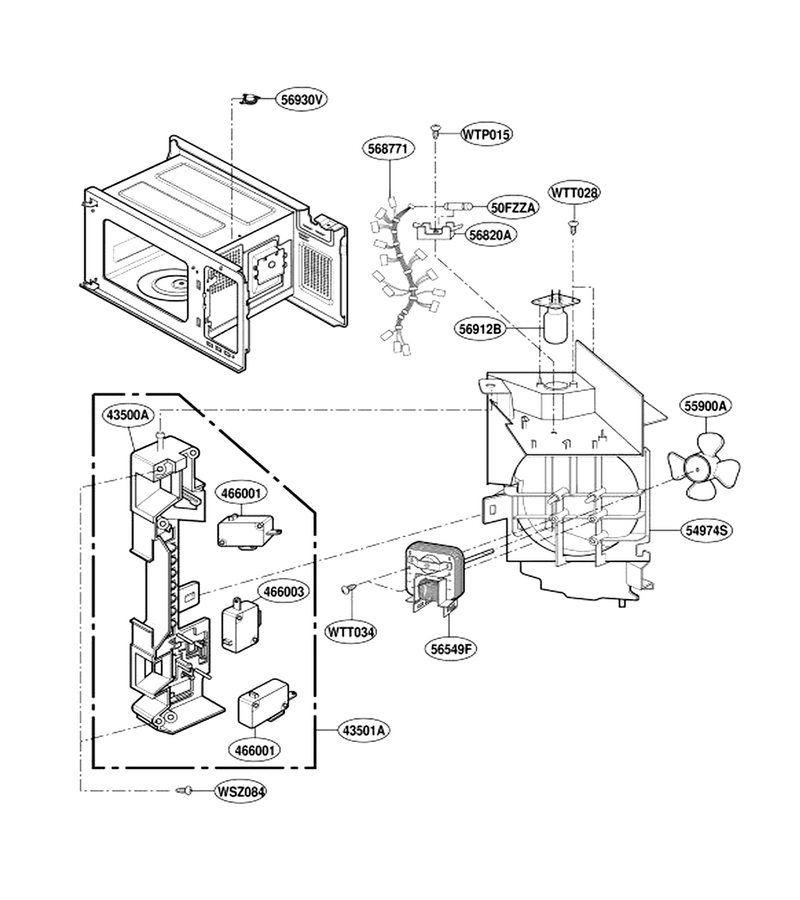

Suction Guide Parts

...
...
WSZ084
Screw L-G-4B70188B
...
WTP015
Microwave Screw L-G-1TPL0402618
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT034
Screw L-G-1TTL0403418
...
50FZZA
Fuse[all] L-G-3B74133K
...
43500A
Holder,locker L-G-3500W1A004A
...
43501A
Holder Assembly,locker L-G-3501W1A003H
...
54974S
Guide,suction L-G-4974W0S010A
...
55900A
Blower Fan L-G-2B72279B
...
56549F
Motor,ac Fan L-G-6549W2F017B
...
56820A
Fuse Holder L-G-4930W3B025A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E
...
568771
Harness,single L-G-6877WRT007D

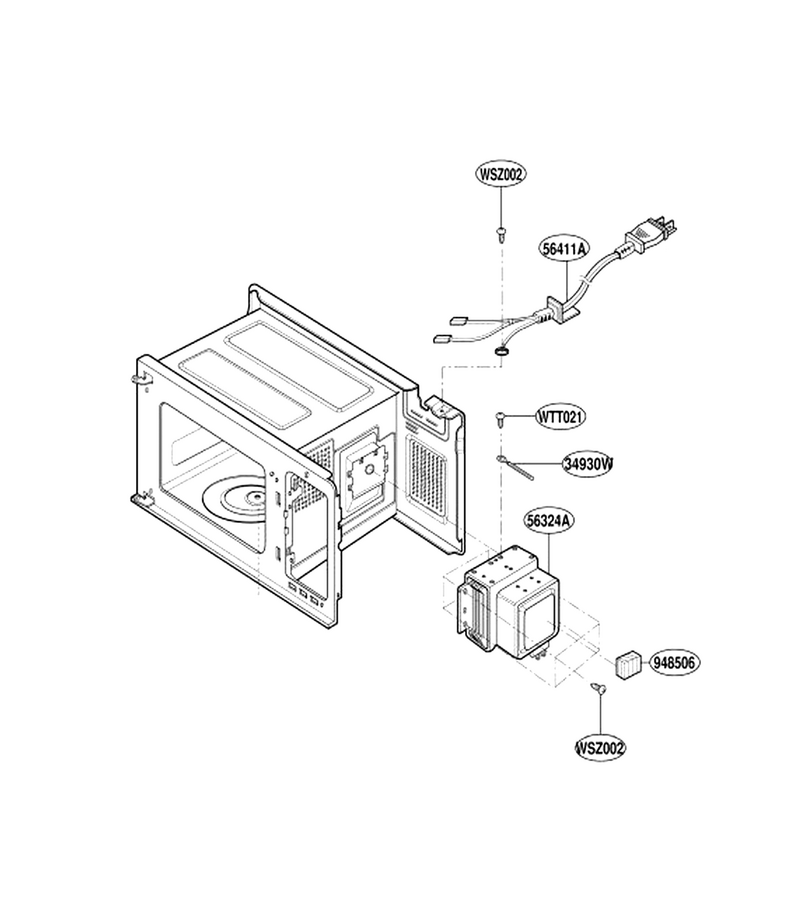

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
34930W
Lug (circ) L-G-4B72510F
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-6411W2A002L

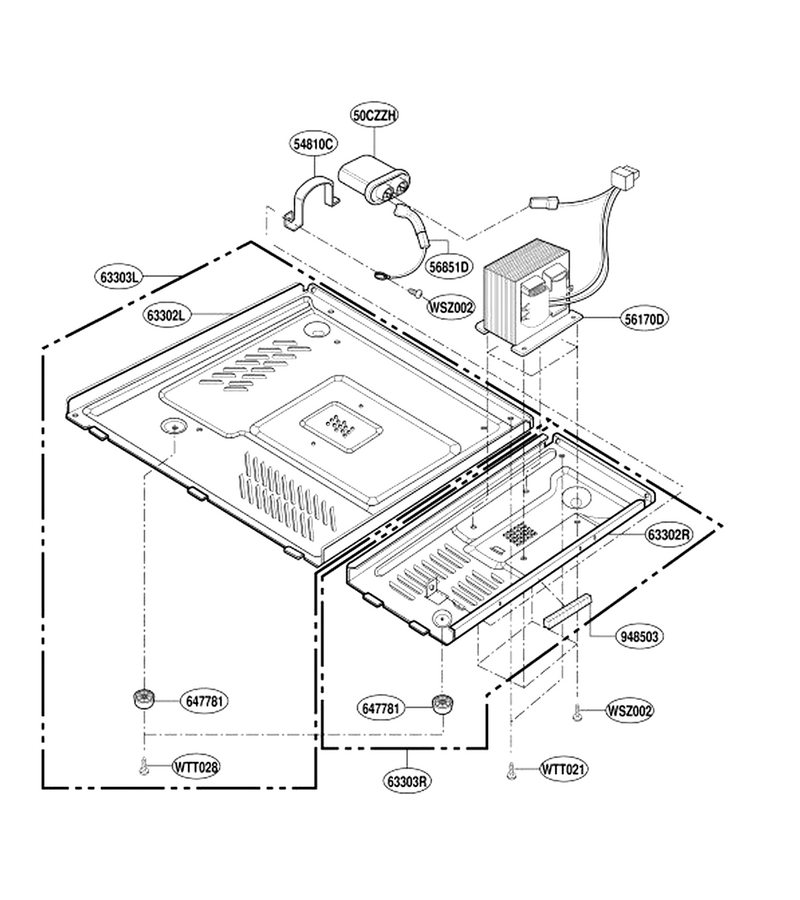

Base Plate Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Capacitor,high Voltage L-G-6120W3H003H
...
54810C
Bracket,capacitor L-G-4810W3C001A
...
56170D
Transformer,high Voltage L-G-6170W1D007A
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001A
...
63302L
Base Plate L-G-3302W1A034A
...
63302R
Plate,base L-G-3302W1A033C
...
63303R
Base Plate L-G-3303W1A026A
...
647781
Foot L-G-4B73900A
...
948503
Damper L-G-3B72246G

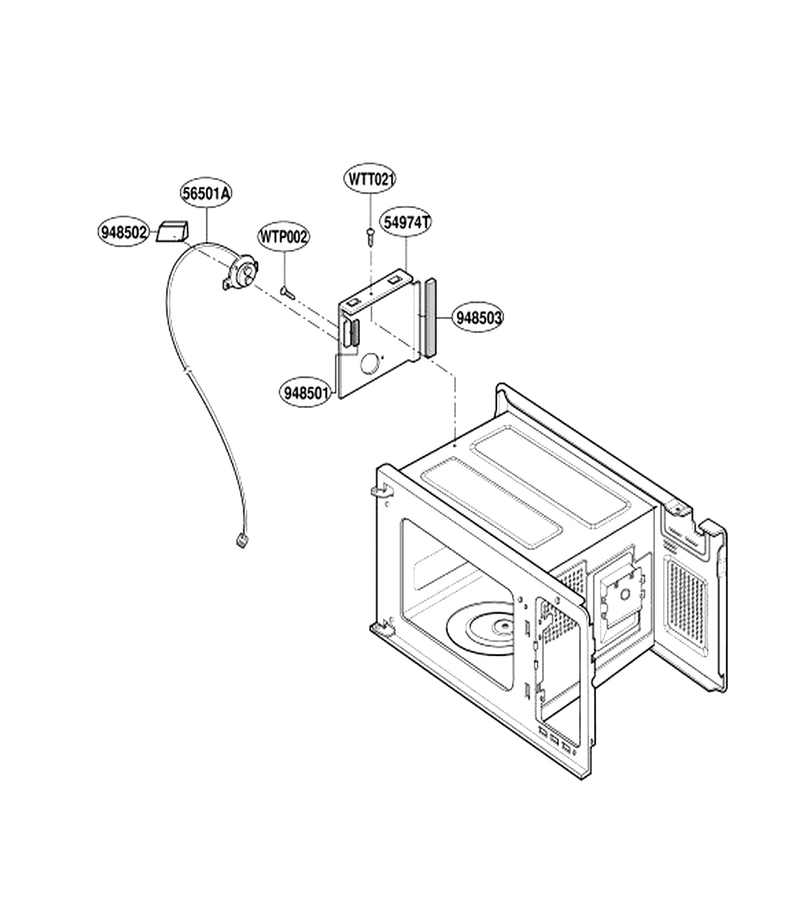

Sensor Parts

...
...
WTP002
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Guide,sensor L-G-5208W1A001A
...
56501A
Sensor Assembly L-G-6501W2A017A
...
948501
Cushion L-G-3B72244C
...
948502
Cushion L-G-3B72244G
...
948503
Damper L-G-3B72246G
