Models

Parts

product name

LG CDMW10MW-1.M1EDOM

Model: CDMW10MW-1.M1EDOM

Save Part Not Listed?
product name

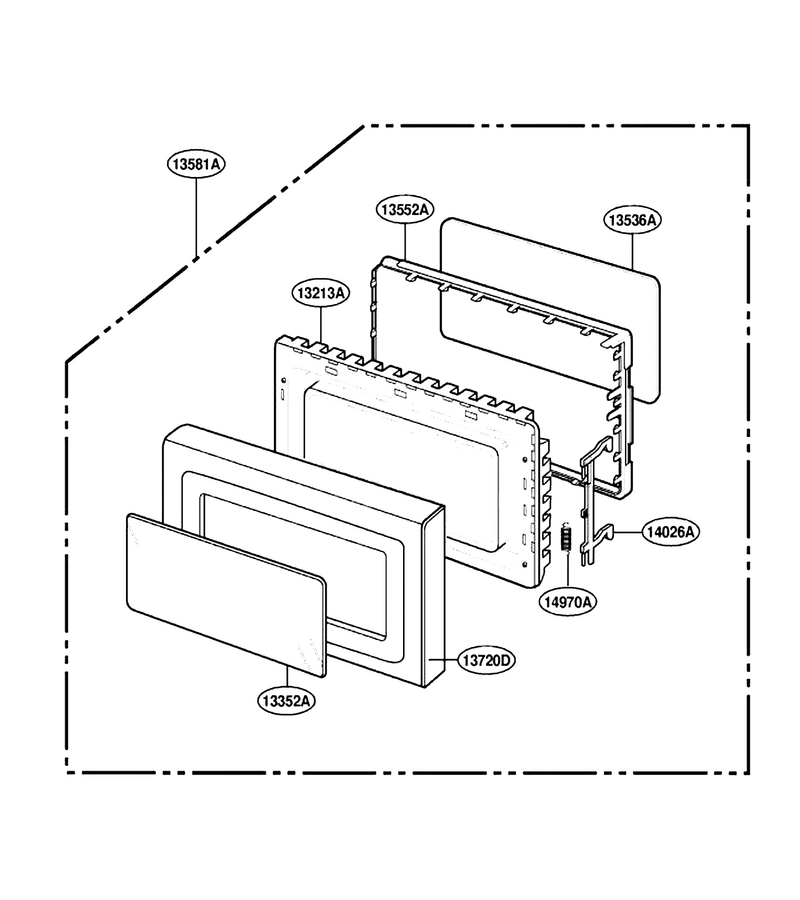

Door Parts

...
...
13213A
Door Frame L-G-3213W1A034J
...
13352A
Window,screen L-G-3352W1A076C
...
13536A
Seal Tape L-G-3536WRA001N
...
13552A
Cover,choke L-G-3552W1A030A
...
13581A
Door Assembly L-G-3581W1A144G
...
13720D
Panel,[door] L-G-3720W0D101F
...
14026A
Latch L-G-4026W2A016A
...
14970A
Spring L-G-4970WRA001B

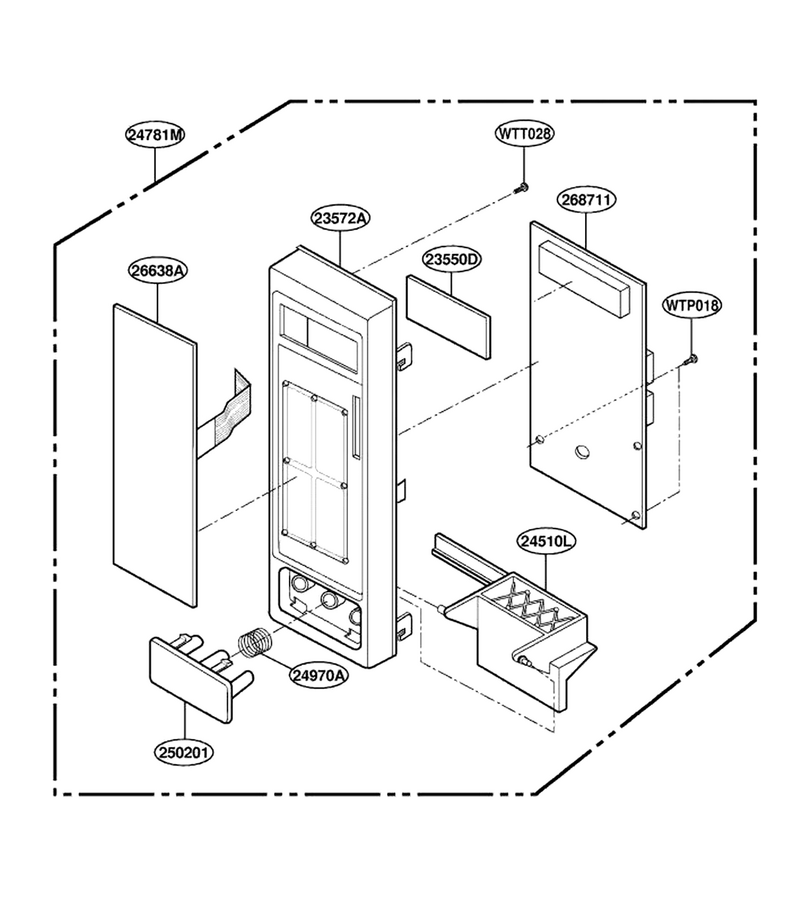

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23550D
Cover L-G-3550W4A029L
...
23572A
Panel,control L-G-3572W1A140C
...
24510L
Lever L-G-4510W3L003A
...
24781M
Controller Assy,[micom] L-G-4781W1M112M
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
26638A
Membrane L-G-6638W2A404A
...
250201
Button L-G-5020W3A076C
...
268711
Pcb Assembly,sub L-G-6871W2S062L

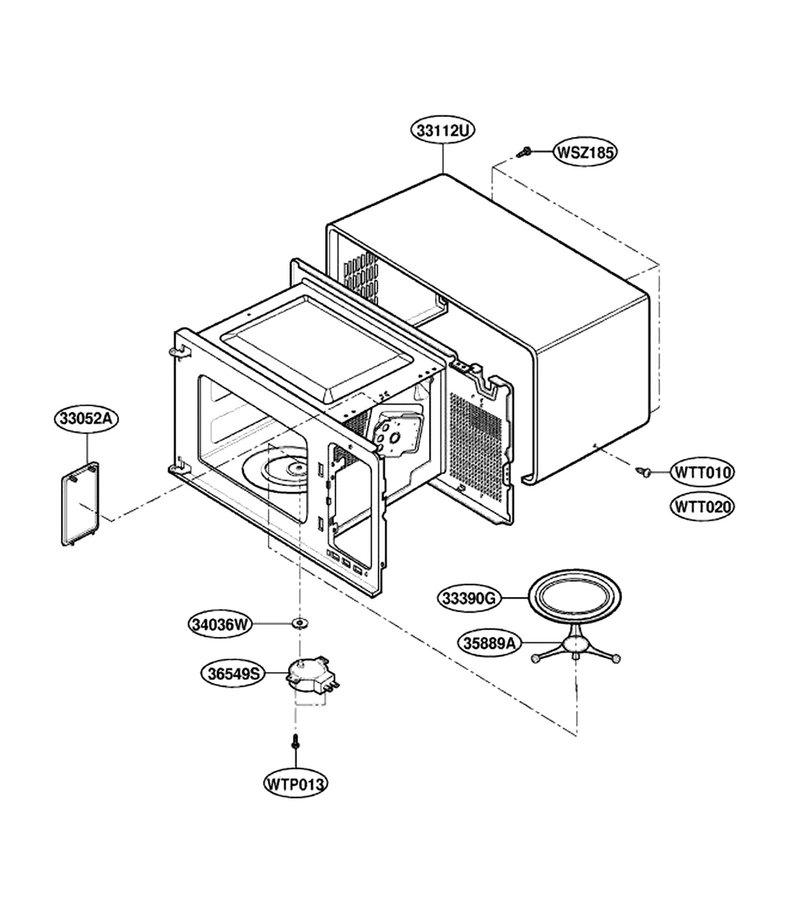

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Case,u Bending L-G-3112W0U024V
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G003G
...
35889A
Turntable Assembly L-G-5889W2A014A
...
36549S
Circulating Motor L-G-6549W1S011J

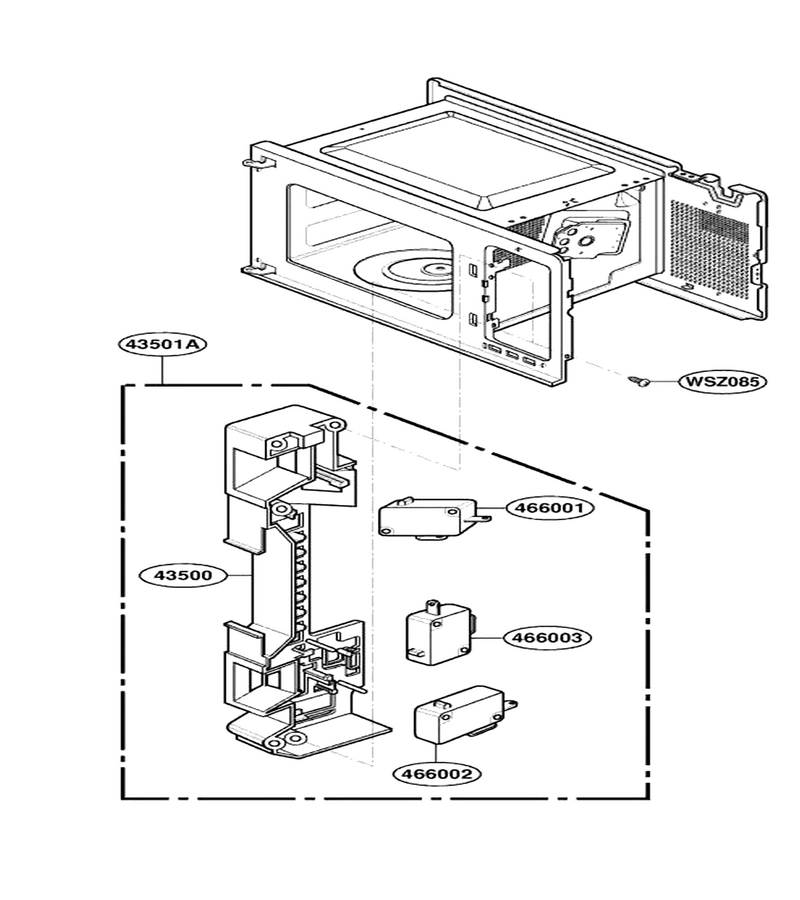

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

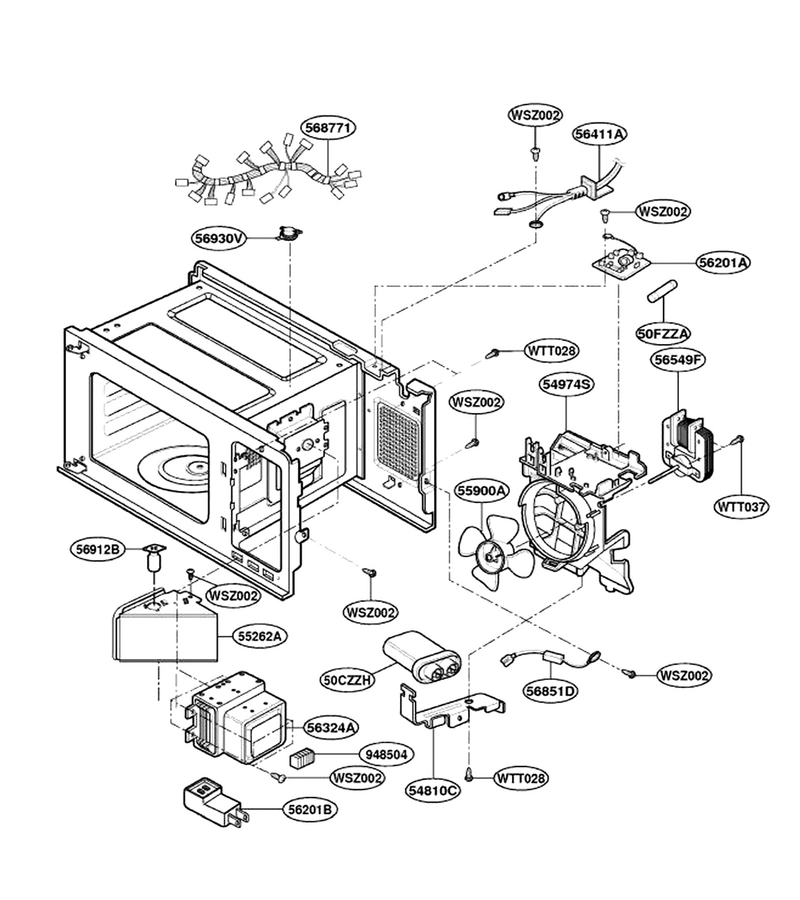

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
55262A
Fan Bracket L-G-5262W2A037C
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56201A
Filter Assembly L-G-2B72130H
...
56201B
Filter Assembly L-G-6201W2A019B
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-6411W1A012T
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
Harness,single L-G-6877W1A290B
...
948504
Damper L-G-3B72244A

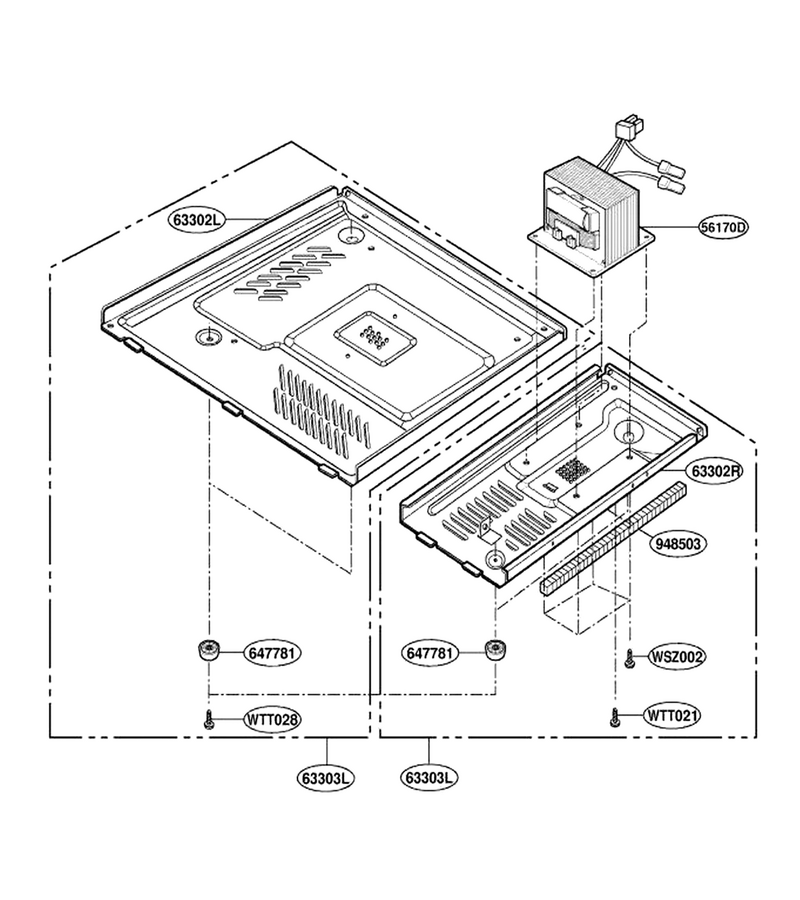

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Transformer L-G-6170W1D023L
...
647781
Leg L-G-4778W3A002A
...
948503
Cushion L-G-3B72244T
