LG BHD501

Model: BHD501

Save Part Not Listed?
product name

Dehumidifier

...
...
W0CZZ
Dehumidifier Run Capacitor L-G-0CZZA20001R
...
35211A
Suction Tube L-G-5211A10428A
...
130900
Cabinet L-G-3090A10042A
...
135312
Grill Assembly L-G-3531A10254C
...
144410
Dehumidifier Caster L-G-4441A30001B
...
148390
Bckt Tank L-G-4839A10002A
...
149980
Shroud L-G-4998A10034A
...
152302
Air Filter L-G-5230A20040A
...
162615
Harness L-G-6877A30013L
...
238310
Escutcheon L-G-3831A20079C
...
249950
Control Box Assembly L-G-4995A20359E
...
264110
Dehumidifier Power Cord L-G-6411A20001Z
...
266011
Dehumidifier Water Bucket Safety Switch L-G-6600A30003C
...
268712
Pcb L-G-6871A20460A
...
268714
Dehumidifier Control Board L-G-6871A10141C
...
330870
Dehumidifier Water Bucket Assembly L-G-3087A10019A
...
346811
Dehumidifier Fan Motor L-G-4681A20040J
...
349600
Mount L-G-4960A20009B
...
352113
Tube L-G-5211A11016A
...
354210
Dehumidifier Evaporator L-G-5421A10009J
...
359012
Dehumidifier Blower Wheel L-G-5900A20007A
...
435300
Dehumidifier Rear Grille Assembly L-G-3530A10193A
...
436500
Handle L-G-3650A20004A
...
550140
Bushing L-G-4830A30005A
...
552204
Soleniod L-G-6421A20003K
...
554030
Room Air Conditioner Condenser Assembly L-G-5403A10008A
...
554160
Compressor L-G-2520UCAA014
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L058A
...
752140
Connect Hose L-G-5214A20027A

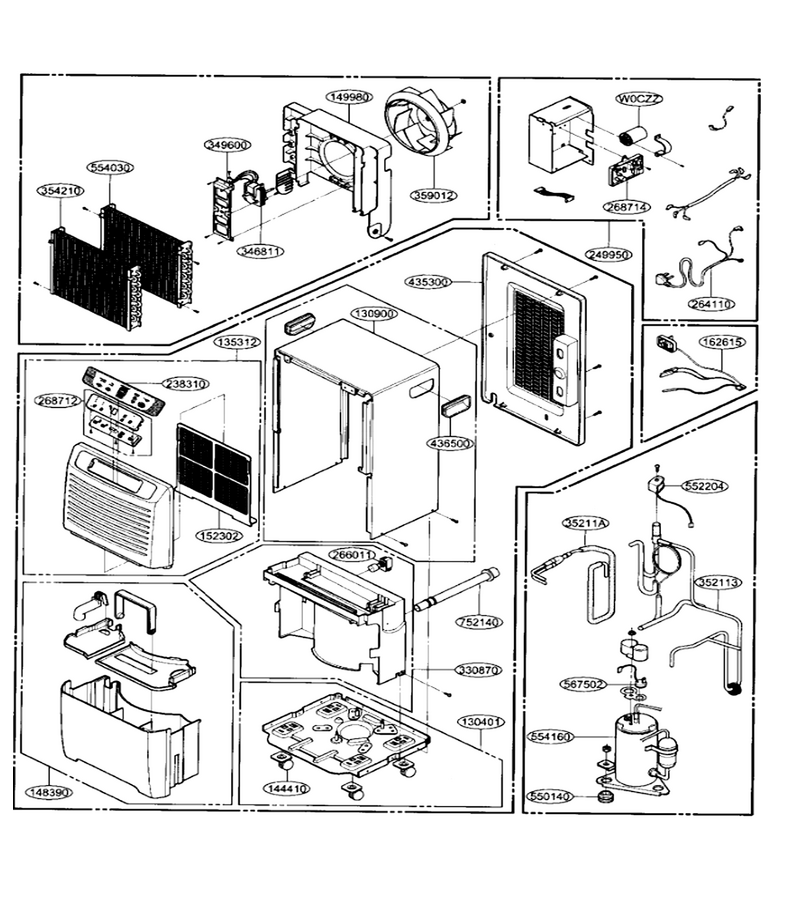

Schematic Image Zoomed
