LG BHD-301-E.ACWAHCI

Model: BHD-301-E.ACWAHCI

Save Part Not Listed?
product name

Main

...
...
35211A
Tube Assembly,suction L-G-AJR71449601
...
130410
Base Assembly,single L-G-3041A10042E
...
131400
Cabinet L-G-MBH61853106
...
135312
Grille Assembly,front L-G-3531A18012R
...
144410
Dehumidifier Caster L-G-4441A30001B
...
148391
Tank Assembly,bucket L-G-4839A10002F
...
149980
Shroud L-G-4998A10034B
...
152302
Air Filter L-G-5230A20040A
...
165010
Dehumidifier Sensor Assembly L-G-6877A30013R
...
235512
Cover Assembly L-G-3551A20122A
...
238310
Escutcheon L-G-MDD30271507
...
249950
Case Assembly,control L-G-ABQ36532611
...
264110
Dehumidifier Power Cord L-G-6411A20001Z
...
266010
Dehumidifier Water Bucket Safety Switch L-G-6600A30003C
...
268711-2
Pcb Assembly,main L-G-EBR39204301
...
268711-1
Board L-G-6871A20289B
...
330870
Dehumidifier Water Bucket Assembly L-G-3087A10019C
...
346811
Motor Assembly,ac,indoor L-G-EAU32357505
...
349600
Motor Bracket L-G-4960A20009D
...
352113
Tube Assembly,discharge L-G-AJR71449801
...
354210
Evaporator Assembly,first L-G-5421A10009X
...
359012
Dehumidifier Blower Wheel L-G-5900A20007B
...
435300
Grille,rear L-G-3530A10193E
...
436500
Handle L-G-3650A20004D
...
550140
Washer,customized L-G-1WZZA31003A
...
554030
Condenser Assembly,first L-G-5403A10008W
...
554160
Compressor Set,china L-G-TBZ31986001
...
567502
Overload Protect L-G-EAF35787201
...
752140
Connect Hose L-G-5214A20027B

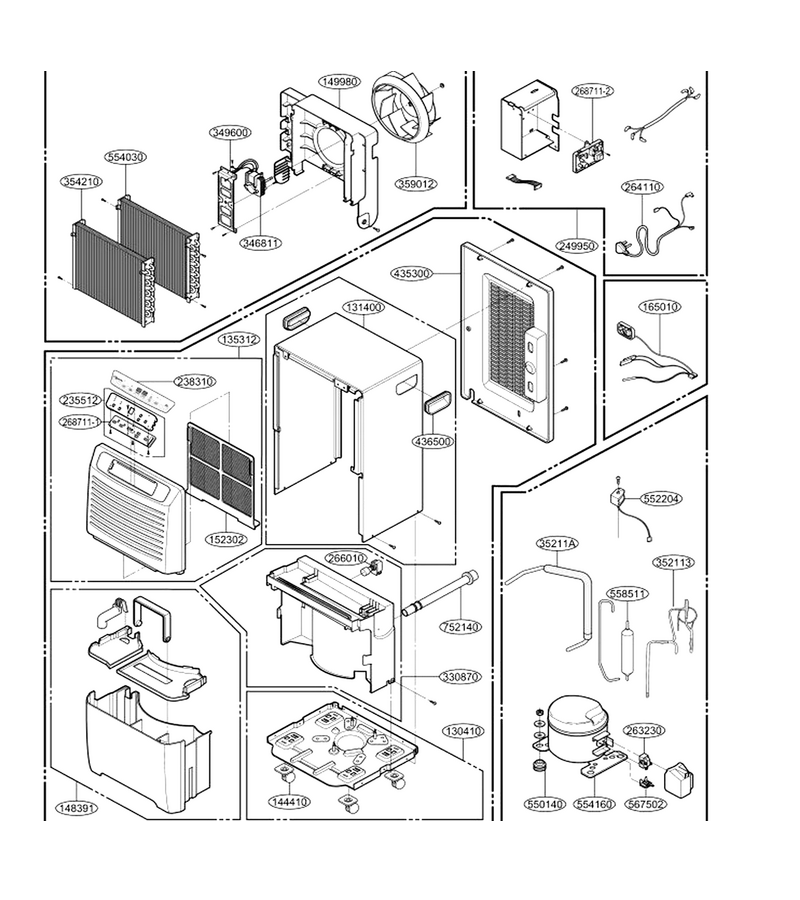

Schematic Image Zoomed
