LG B-MMC12FA-1.AWHAHCI

Model: B-MMC12FA-1.AWHAHCI

Save Part Not Listed?
product name

Indoor Unit

...
...
35211B
Tube Assembly,tubing L-G-5211A15008A
...
131410
Chassis Assembly L-G-3141A20034R
...
135301
Grille Assembly,inlet L-G-AEB32239315
...
135311
Grille Assembly,discharge(indoor) L-G-3531A10362Z
...
135312
Grille Assembly,front(indoor) L-G-AEB32857415
...
135500
Cover L-G-3550A30315F
...
135516
Cover Assembly L-G-3551A20156B
...
146811
Motor Assembly L-G-4681A20055A
...
147581
Louver,horizontal L-G-5990A20068E
...
147582
Louver,verti L-G-4758A30057A
...
152302A
Room Air Conditioner Air Filter L-G-5230A20064A
...
152313
Filter Assembly L-G-5231A20040K
...
249951
Case Assembly,control(indoor) L-G-4995A20831A
...
267110
Remote Controller Assembly L-G-6711A20128K
...
268711A
Pcb Assembly,display L-G-6871A20680F
...
268711B
Pcb Assembly,main L-G-6871A20782A
...
268711C
Pcb Assembly L-G-6871A20989C
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Room Air Conditioner Indoor Fan Motor L-G-4681AR2295L
...
352150
Drain Hose L-G-5251A20011G
...
354210
Evaporator Assembly,final L-G-5421A20282A
...
359011
Room Air Conditioner Blower Wheel L-G-5901A20017H
...
567480A
Thermistor,ntc L-G-6323AQ3226T

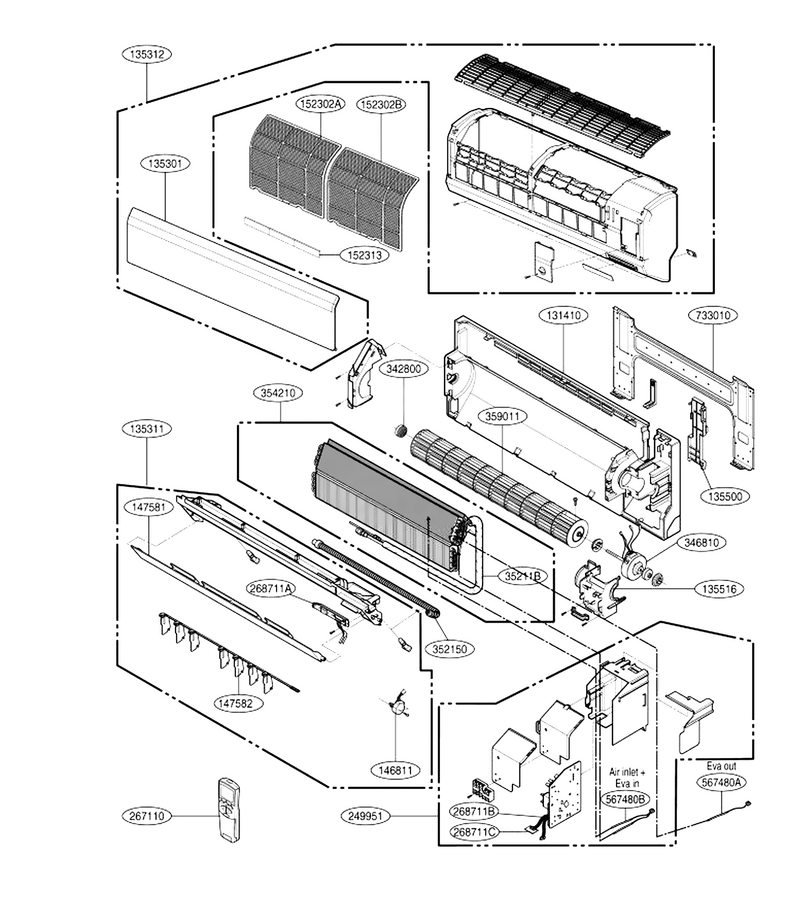

Schematic Image Zoomed
