LG B-MMC09FA-1.AWHAHCI

Model: B-MMC09FA-1.AWHAHCI

Save Part Not Listed?
product name

Indoor Unit

...
...
35211B
Tube Assembly,tubing L-G-5211A21363E
...
131410
Chassis Assembly L-G-3141A20019K
...
135301
Grille Assembly,inlet L-G-AEB32239106
...
135311
Grille Assembly,discharge(indoor) L-G-3531A11307P
...
135312
Grille Assembly,front(indoor) L-G-AEB32794524
...
135500
Cover L-G-3550A30262E
...
135516
Cover Assembly L-G-3551A20156B
...
146811
Motor Assembly L-G-4681A20055A
...
147581
Louver,horizontal L-G-5990A20069D
...
147582
Louver,vertical L-G-4758A30053A
...
152302A
Air Filter L-G-5230A20051B
...
152302B
Air Filter L-G-5230A20051D
...
152313
Filter Assembly, Deodorizer L-G-5231A20040A
...
249951
Case Assembly,control(indoor) L-G-4995A20831A
...
267110
Remote Controller Assembly L-G-6711A20128K
...
268711A
Pcb Assembly,display L-G-6871A20680F
...
268711B
Pcb Assembly,main L-G-6871A20782A
...
268711C
Pcb Assembly L-G-6871A20989D
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Room Air Conditioner Indoor Fan Motor L-G-4681AR2295L
...
352150
Drain Hose Assembly L-G-5251A20011B
...
354210
Evaporator Assembly,final L-G-5421A20222C
...
359011
Fan Assembly, Cross Flow L-G-5901A20017F
...
567480A
Thermistor,ntc L-G-6323AQ3226T
...
567480B
Thermistor,ntc L-G-6323A20004A

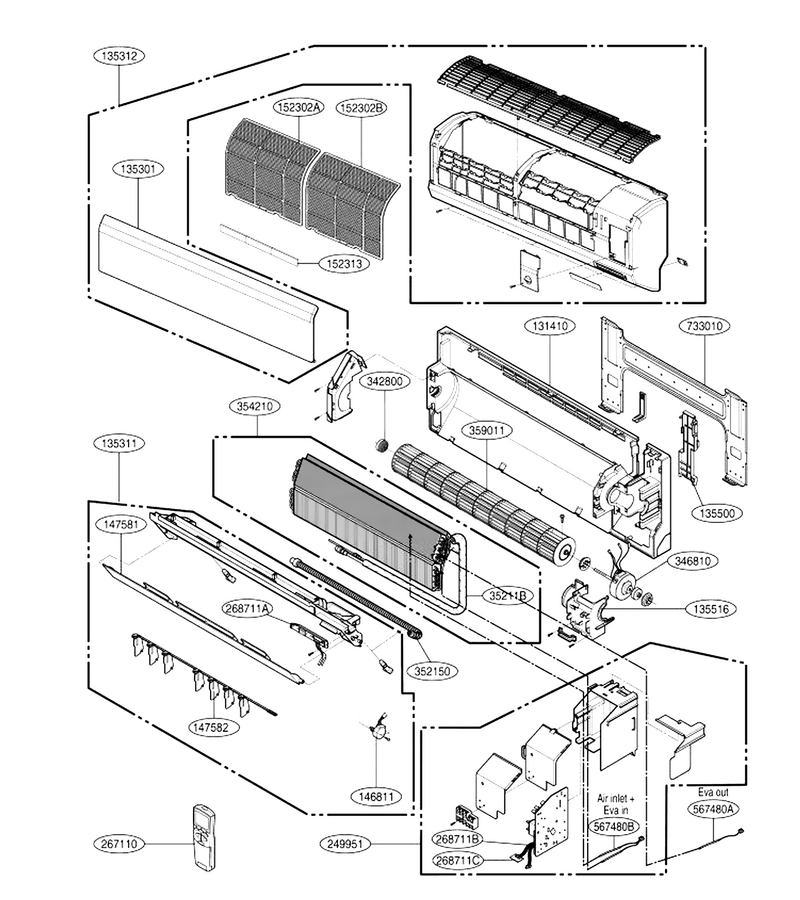

Schematic Image Zoomed
