LG ARWN100LA2.EWGBLEU

Model: ARWN100LA2.EWGBLEU

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
W48602
Clamp,spring L-G-4H01930A
...
W4986A
Sound Proof L-G-3096AP3476G
...
W4986B
Gasket L-G-3096AP3469M
...
W52240A
Strainer L-G-5224A20005H
...
W52240B
Strainer L-G-5224A20005L
...
W52240C
Strainer L-G-5224A20005X
...
W52240D
Strainer L-G-5224A20002R
...
W52240E
Strainer L-G-5224A20005N
...
W6200
Filter,ac Line L-G-EAM39080201
...
W6631
Harness,multi L-G-EAD50587723
...
W6640A
Connector,terminal Block L-G-3A00493D
...
W6640B
Terminal Block 6p Fc L-G-4G00103A
...
55211G
Tube Assembly,expansion L-G-AJR55706401
...
137213B
Panel Assembly,side L-G-AGL41634201
...
137213A
Panel Assembly,side L-G-AGL41634103
...
137214
Panel Assembly,upper L-G-AGL41630701
...
165000A
Sensor,pressure L-G-EBD60663824
...
165000B
Sensor,pressure L-G-EBD62165606
...
237202
Panel,front L-G-MGC47280102
...
261704
Transformer,reactor L-G-EBJ42574003
...
263230A
Thermistor Assembly,ntc L-G-EBG61107306
...
263230B
Thermistor Assembly,ntc L-G-EBG61107105
...
263230C
Thermistor Assembly,ntc L-G-EBG61107005
...
263230D
Thermistor Assembly,ntc L-G-EBG61207101
...
268711B
Pcb Assembly,main L-G-EBR44029310
...
268711C
Pcb Assembly,inverter L-G-EBR73830802
...
346811
Motor Assembly,ac,cooling L-G-EAU38500601
...
352111
Tube Assembly,connector L-G-AJR73802901
...
435511
Cover Assembly,control(outdoor) L-G-ACQ57461411
...
437211
Panel Assembly,front(outdoor) L-G-AGL41630801
...
437212
Panel Assembly,rear(outdoor) L-G-AGL41633901
...
548490
Accumulator L-G-MAA47064701
...
552113
Exchanger Assembly L-G-AJR55754310
...
552116
Tube Assembly,reverse L-G-AJR55749107
...
552200A
Valve,expansion Body L-G-5220A90003C
...
552202
Valve,reverse L-G-5220AP3777C
...
552203A
Valve,service L-G-5220A90012K
...
552203B
Valve,service L-G-5220A90012W
...
552203C
Valve,service L-G-5220A90012C
...
552204C
Valve,solenoid L-G-5220A90008F
...
552204B
Solenoid Valve L-G-5220A90008C
...
552204A
Valve,solenoid L-G-MJX61841306
...
552209
Valve Assembly L-G-AJU73472405
...
553000
Heater,sump L-G-5300A20008R
...
554160
Compressor Set,korea L-G-TBZ35436901
...
559970
Pan,oil L-G-4849A10003J
...
559993
Separator,oil L-G-5998A20002A
...
561410A
Solenoid L-G-6141A20010Y
...
561410B
Solenoid L-G-EBE60658017
...
561410C
Solenoid L-G-EBE61441601
...
561410D
Solenoid L-G-6141A20050W
...
566001B
Switch,pressure L-G-EBF40271405
...
649950
Case Assembly,control(outdoor) L-G-ABQ54120211
...
661400
Coil,expansion L-G-EAP30616911

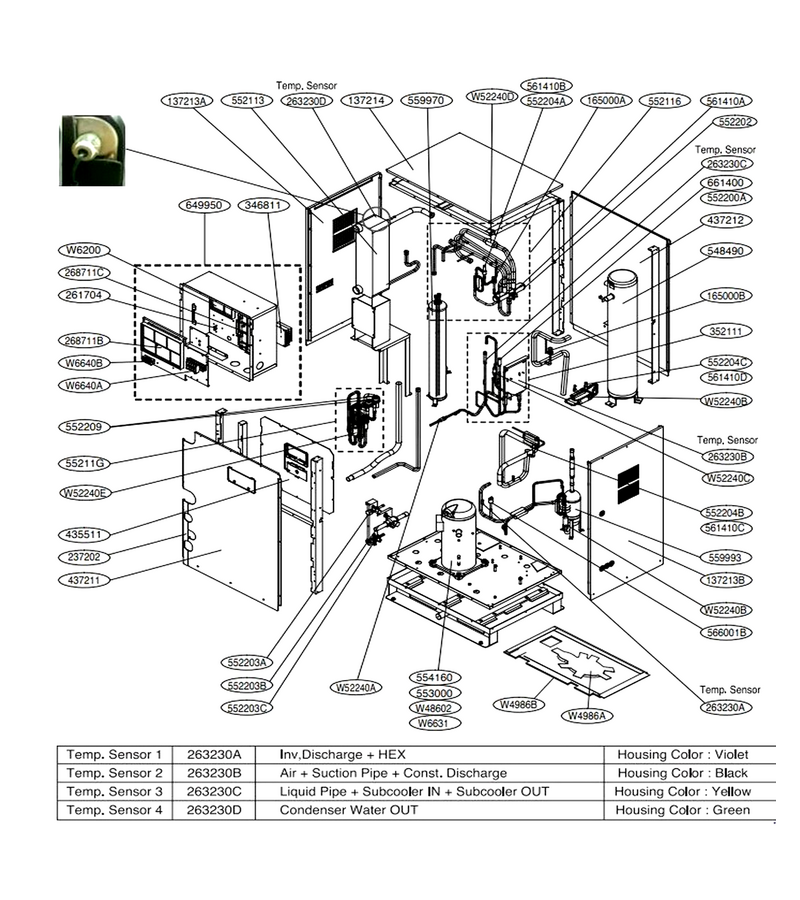

Schematic Image Zoomed
