LG ARWN038GA2.AWGBLUS

Model: ARWN038GA2.AWGBLUS

Save Part Not Listed?
product name

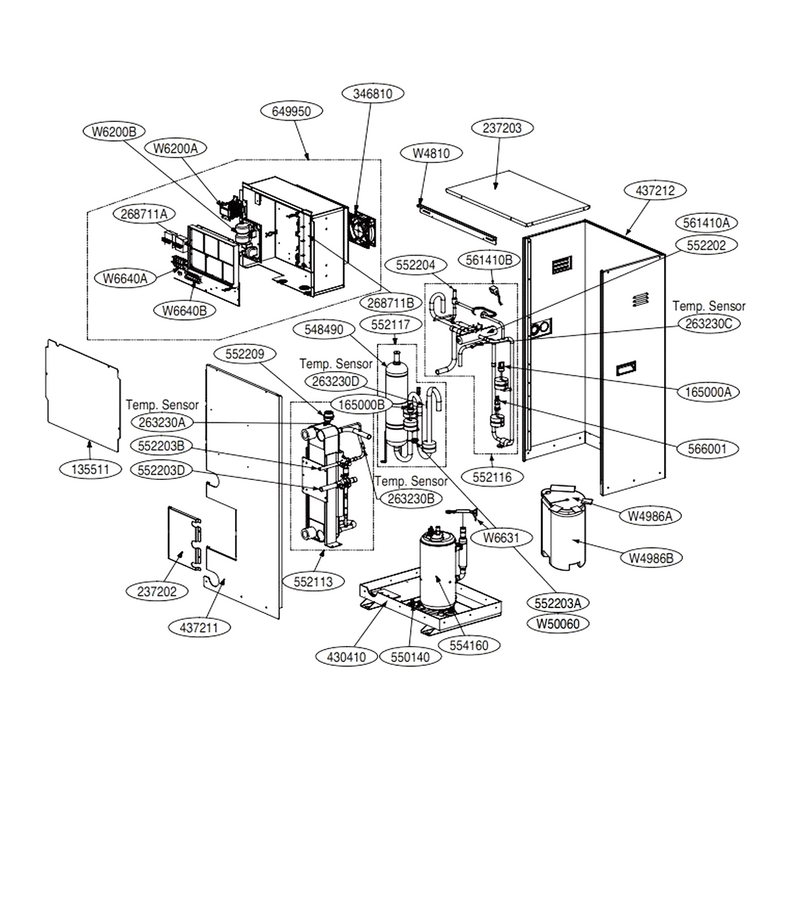

Main

...
...
W4810
Bracket L-G-MAZ62564504
...
W6640B
Terminal Block 6p Fc L-G-4G00103A
...
W6640A
Connector,terminal Block L-G-EAG41846702
...
W6631
Harness,multi L-G-EAD62497301
...
W6200B
Pcb Assembly,filter L-G-EBR81792401
...
W6200A
Filter,line Noise L-G-EAM60751501
...
W50060
Cap L-G-MBL65458001
...
W4986B
Sound Proof L-G-MDS64030602
...
W4986A
Sound Proof L-G-MDS64030701
...
135511
Cover Assembly,control(indoor) L-G-ACQ85639906
...
165000A
Sensor,pressure L-G-EBD60663824
...
165000B
Sensor,pressure L-G-EBD62165606
...
237202
Panel,front L-G-MGC63179702
...
237203
Panel,upper L-G-MGC63180002
...
263230A
Thermistor Assembly,ntc L-G-EBG61207101
...
263230B
Thermistor Assembly,ntc L-G-EBG61110713
...
263230C
Thermistor Assembly,ntc L-G-EBG61107105
...
263230D
Thermistor Assembly,ntc L-G-EBG61107005
...
268711B
Pcb Assembly,inverter L-G-EBR75228201
...
268711A
Pcb Assembly,main L-G-EBR76963801
...
346810
Motor Assembly,ac,cooling L-G-EAU38500601
...
430410
Base Assembly,outdoor L-G-AAN74295501
...
437211
Panel Assembly,front(outdoor) L-G-AGL74253001
...
437212
Panel Assembly,rear(outdoor) L-G-AGL74253502
...
548490
Accumulator L-G-4848A20007B
...
550140
Damper,rubber L-G-MCQ68888201
...
552113
Tube Assembly,condenser(out) L-G-AJR74171002
...
552116
Tube Assembly,reverse L-G-AJR74170901
...
552117
Tube Assembly,suction(outdoor) L-G-AJR74171301
...
552202
Valve,reverse L-G-3A02080B
...
552203A
Valve,service L-G-MJX62711301
...
552203B
Valve,service L-G-MJX62572802
...
552203D
Valve,service L-G-MJX62572803
...
552204
Valve,solenoid L-G-MJX61841306
...
552209
Valve Assembly L-G-AJU73472405
...
554160
Compressor Set,korea L-G-TBZ37955101
...
561410A
Solenoid L-G-6141A20010W
...
561410B
Solenoid L-G-EBE60661401
...
566001
Switch,pressure L-G-EBF40271416
...
649950
Case Assembly,control(outdoor) L-G-ABQ74262803
