LG ARWB192DA2.AWGBLUS

Model: ARWB192DA2.AWGBLUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
W0DSA
Diode,bridge L-G-EAH37374701
...
W6640B
Connector,terminal Block L-G-4G00103G
...
W6640A
Connector,terminal Block L-G-6640A30004E
...
W6631B
Multi Harness L-G-EAD50587711
...
W6631A
Harness,multi L-G-EAD50587723
...
W6200
Filter,ac Line L-G-EAM39080202
...
W52240D
Strainer L-G-5224A20005A
...
W52240C
Strainer L-G-5224A20005M
...
W52240B
Strainer L-G-5224A20005L
...
W52240A
Strainer L-G-5224A20005N
...
W5210BB
Connector Tube L-G-MJU42938302
...
W5210BA
Connector Tube L-G-MJU42937703
...
W4986B
Gasket L-G-3096AP3469M
...
W4986A
Sound Proof L-G-3096AP3476G
...
W48602
Clamp,spring L-G-4H01930A
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028C
...
35211A
Suction (indoor) Tube Assembly L-G-AJR37161201
...
55211G
Expansion Tube Assembly L-G-AJR68819101
...
135501
Cover Assembly L-G-ACQ33787701
...
137213B
Panel Assembly,side L-G-AGL41634203
...
137213A
Panel Assembly,side L-G-AGL41634103
...
137214
Panel Assembly,upper L-G-AGL41630701
...
165000A
Sensor,pressure L-G-EBD60663824
...
165000B
Sensor,pressure L-G-EBD62165606
...
237202
Front Panel L-G-MGC47280104
...
261704
Transformer,reactor L-G-EBJ42574003
...
263230A
Thermistor Assembly,ntc L-G-EBG61107105
...
263230B
Thermistor Assembly,ntc L-G-EBG61107501
...
263230C
Thermistor Assembly,ntc L-G-EBG61107306
...
263230D
Thermistor Assembly,ntc L-G-EBG61207101
...
265021
Plug,fusible L-G-MKW30000002
...
268711D
Pcb Assembly,sub L-G-6871A30042D
...
268711C
Pcb Assembly,inverter L-G-EBR36932807
...
268711B
Main Pcb Assembly L-G-EBR64718409
...
340090A
Exchanger Assembly L-G-AJR73463201
...
340090B
Exchanger Assembly L-G-AJR55754311
...
352111
Connector Tube Assembly L-G-AJR37161601
...
430410
Base Assembly,outdoor L-G-AAN52652501
...
430410A
Outdoor Base Assembly L-G-AAN52650301
...
435511
Control (outdoor) Cover Assembly L-G-ACQ57461431
...
437211
Panel Assembly,front(outdoor) L-G-AGL41630801
...
437212
Panel Assembly,rear(outdoor) L-G-AGL41633901
...
546810
Motor Assembly,ac,cooling L-G-EAU38500601
...
548490
Accumulator L-G-MAA47064701
...
552114
Discharge (outdoor) Tube Assembly L-G-AJR41628803
...
552114A
Discharge (outdoor) Tube Assembly L-G-AJR41628802
...
552116
Reverse Tube Assembly L-G-AJR68792603
...
552117
Tube Assembly,suction(outdoor) L-G-AJR41630601
...
552117A
Suction (outdoor) Tube Assembly L-G-AJR37161107
...
552120
Tube Assembly L-G-AJR70594401
...
552200A
Valve,expansion Body L-G-5220A90003C
...
552202
Valve,reverse L-G-5220A20039A
...
552203A
Valve,service L-G-5220A90012D
...
552203B
Valve,service L-G-5220A90012N
...
552203C
Valve,service L-G-5220A90012W
...
552204C
Valve,solenoid L-G-5220A90008F
...
552204B
Solenoid Valve L-G-5220A90008C
...
552204A
Solenoid Valve L-G-5220A90007B
...
552209
Valve Assembly L-G-AJU73472405
...
553000A
Heater,sump L-G-5300A20008R
...
553000B
Heater,sump L-G-5300A20008S
...
554160A
Compressor Set,korea L-G-TBZ35436901
...
554160B
Compressor Set,korea L-G-TBZ31726401
...
559970
Pan,oil L-G-4849A10003J
...
559993
Separator,oil L-G-5998A20002A
...
561410A
Solenoid L-G-6141A20010Y
...
561410E
Solenoid L-G-6141A20050W
...
561410D
Solenoid L-G-EBE61441602
...
561410C
Solenoid L-G-EBE61441601
...
561410B
Solenoid L-G-EBE60658017
...
566001A
Switch,magnet L-G-EBF33717201
...
566001B
Switch,pressure L-G-EBF40271405
...
649950
Control (outdoor) Case Assembly L-G-ABQ73221703
...
661400
Coil,expansion L-G-EAP30616911

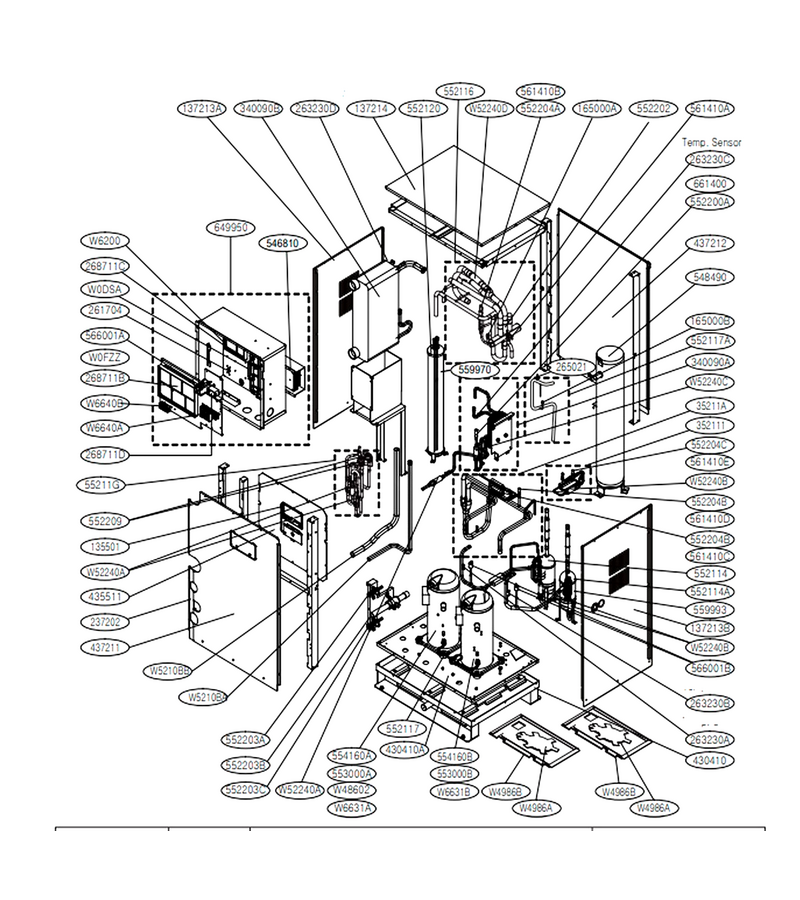

Schematic Image Zoomed
