LG ARWB096DAS4.AWGBLUS

Model: ARWB096DAS4.AWGBLUS

Save Part Not Listed?
product name

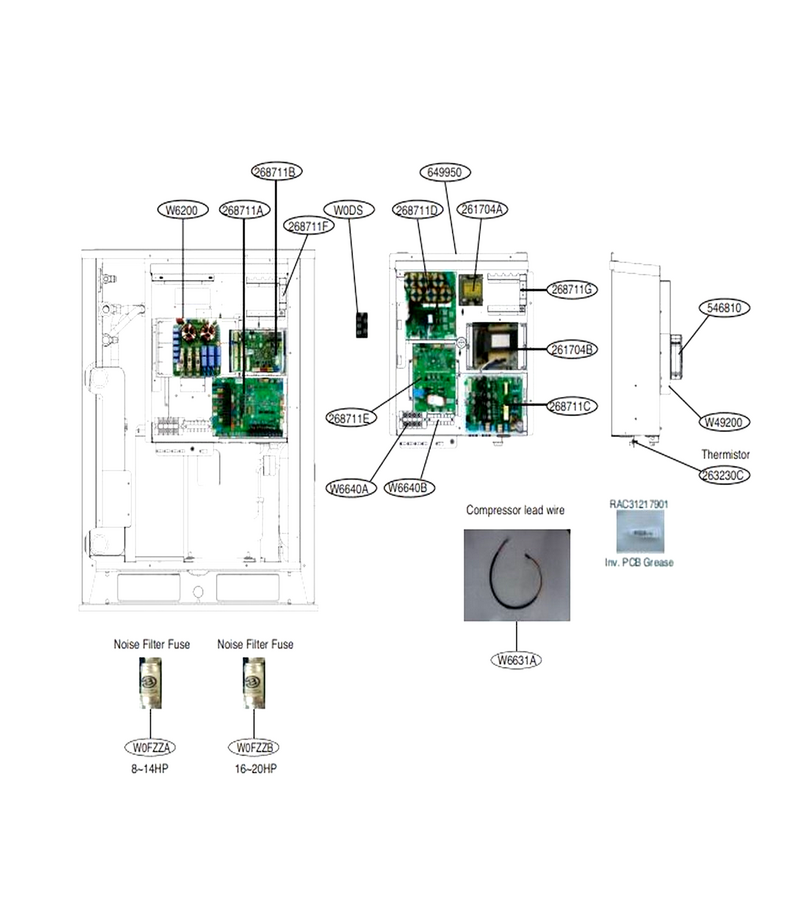

Outside Unit

...
...
W0DS
Diode,bridge L-G-EAH61772601
...
W6640A
Connector,terminal Block L-G-EAG63111409
...
W6631A
Harness,multi L-G-EAD62488801
...
W49200
Heat Sink L-G-MED37293905
...
W0FZZA
Fuse,time Delay L-G-EAF62630201
...
W6200
Filter,ac Line L-G-EAM62632201
...
261704A
Transformer,reactor L-G-EBJ61711302
...
261704B
Transformer,linear L-G-EBJ61631002
...
263230C
Thermistor Assembly,ntc L-G-EBG61285701
...
268711A
Pcb Assembly,main L-G-EBR74363402
...
268711B
Pcb Assembly,main L-G-EBR78277402
...
268711C
Pcb Assembly,main L-G-EBR74365001
...
268711D
Pcb Assembly,main L-G-EBR76546001
...
268711E
Pcb Assembly,main L-G-EBR76166007
...
268711F
Pcb Assembly,sub L-G-EBR74374302
...
268711G
Pcb Assembly,sub L-G-EBR74801101
...
546810
Motor Assembly,ac,cooling L-G-EAU38500601
...
649950
Case Assembly,control(outdoor) L-G-ABQ74272011

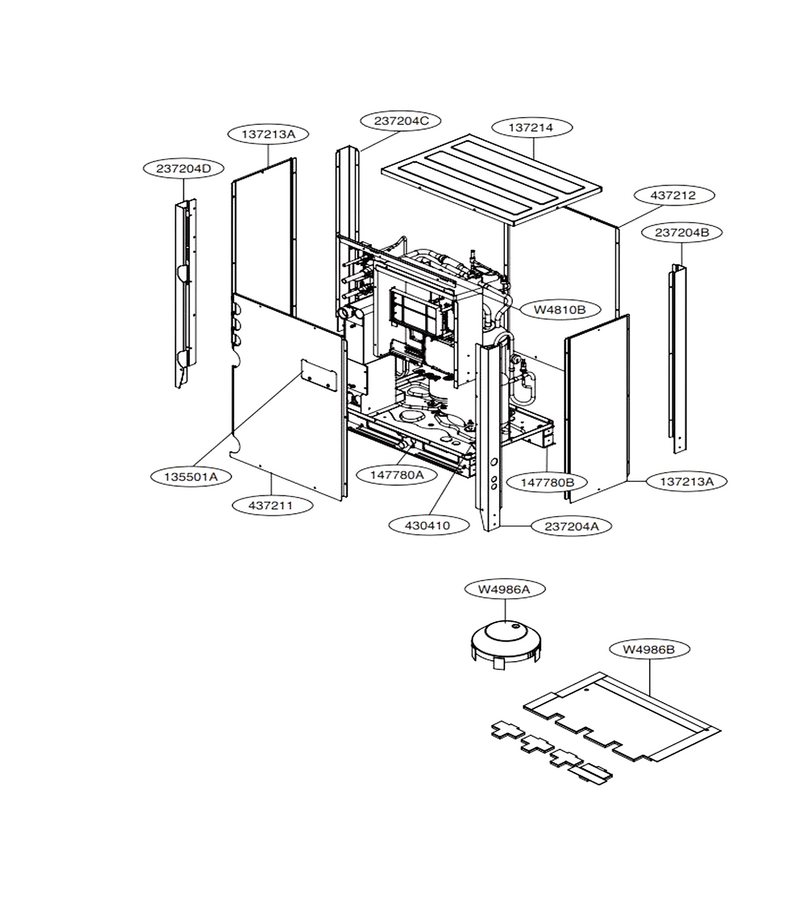

Pannel Part

...
...
W4810B
Bracket L-G-MAZ63479601
...
W4986A
Sound Proof L-G-MMC00280202
...
W4986B
Sound Proof L-G-MMC00280102
...
135501A
Cover Assembly L-G-ACQ34723601
...
137213A
Panel Assembly,side L-G-AGL73957502
...
137214
Panel Assembly,upper L-G-AGL74134401
...
147780A
Leg L-G-MFA61841405
...
147780B
Leg L-G-MFA61841406
...
237204A
Panel,side L-G-MGC62920304
...
237204B
Panel,side L-G-MGC62920402
...
237204C
Panel,side L-G-MGC62920502
...
237204D
Panel,side L-G-MGC62920602
...
430410
Base Assembly,outdoor L-G-AAN74139503
...
437211
Panel Assembly,front(outdoor) L-G-AGL73919703
...
437212
Panel Assembly,rear(outdoor) L-G-AGL73957601

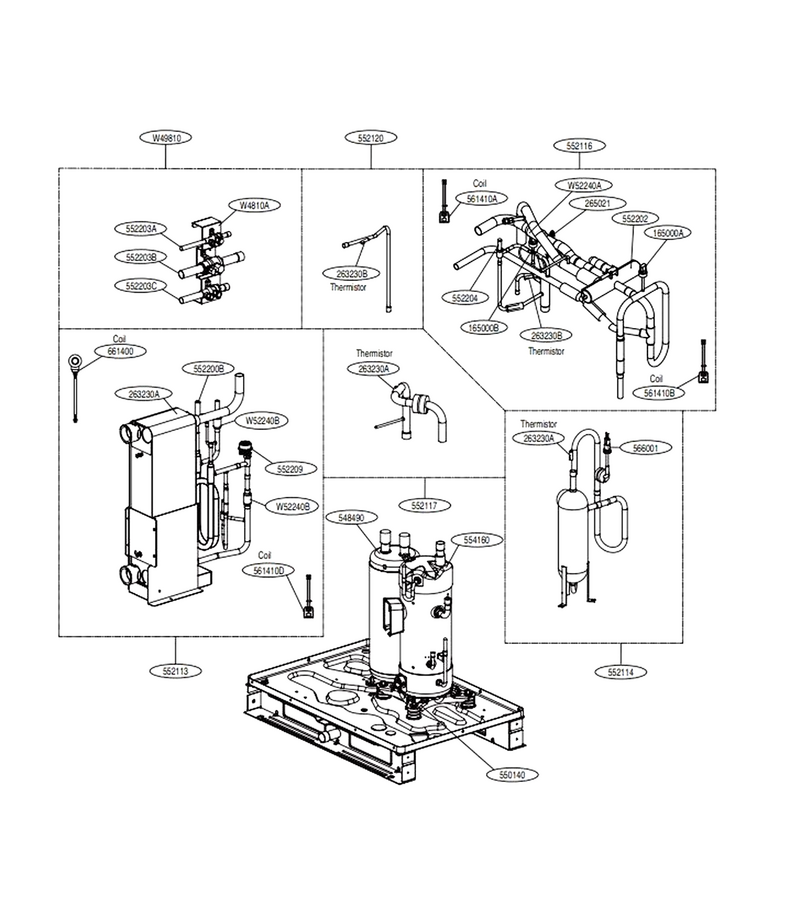

Cycle Part

...
...
W4810A
Bracket L-G-MAZ63589504
...
W49810
Supporter Assembly L-G-AJJ74578704
...
W52240A
Strainer L-G-5224A20002R
...
W52240B
Strainer L-G-3H03659N
...
165000A
Sensor,pressure L-G-EBD60663824
...
165000B
Sensor,pressure L-G-EBD62165606
...
263230A
Thermistor Assembly,ntc L-G-EBG61585801
...
263230B
Thermistor Assembly,ntc L-G-EBG61106910
...
265021
Plug,fusible L-G-MKW30000003
...
548490
Accumulator L-G-4848A20001N
...
550140
Damper,compressor L-G-MCQ62569601
...
552113
Tube Assembly,condenser(out) L-G-AJR73989902
...
552114
Tube Assembly,discharge(outdoor) L-G-AJR73989602
...
552116
Tube Assembly,reverse L-G-AJR74445001
...
552117
Tube Assembly,suction(outdoor) L-G-AJR73949101
...
552120
Tube Assembly L-G-AJR74145402
...
552200B
Valve,expansion Body L-G-5220A90003C
...
552203A
Valve,service L-G-MJX62572803
...
552203B
Valve,service L-G-5220A90012W
...
552203C
Valve,service L-G-MJX62572802
...
552204
Valve,solenoid L-G-MJX61841306
...
552209
Valve Assembly L-G-AJU36719715
...
554160
Compressor Set,korea L-G-TBZ37955201
...
561410A
Solenoid L-G-EBE60661401
...
561410B
Solenoid L-G-6141A20010W
...
561410D
Solenoid L-G-EBE61441606
...
566001
Switch,pressure L-G-EBF40271416
...
661400
Coil,expansion L-G-EAP30616911
