product name

LG ARVU053ZEA2.ENWALUS

Model: ARVU053ZEA2.ENWALUS

Save Part Not Listed?
product name

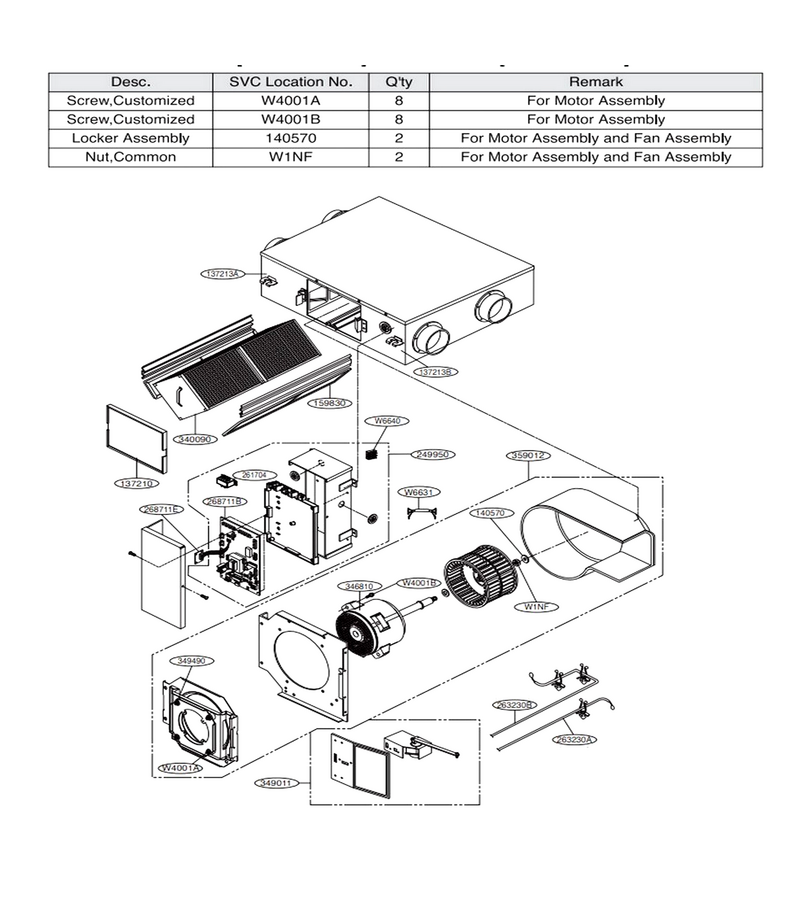

Main

...
...
W1NF
Nut,common L-G-4H00947D
...
W4001A
Screw,customized L-G-4A00637D
...
W4001B
Screw,customized L-G-4H00006A
...
W6631
Harness,multi L-G-6877A20044Y
...
137210
Panel Assembly,front L-G-3721A20196D
...
137213A
Panel Assembly,side L-G-3721A20195M
...
137213B
Panel Assembly,side L-G-3721A20194H
...
140570
Locker Assembly L-G-4A01405C
...
159830
Filter Assembly,air Cleaner L-G-5231A30003B
...
249950
Case Assembly,control L-G-ABQ30986519
...
261704
Transformer,reactor L-G-5874FR2112G
...
263230A
Thermistor Assembly,ntc L-G-EBG61106811
...
263230B
Thermistor Assembly,ntc L-G-EBG61106812
...
268711B
Pcb Assembly,main L-G-EBR60786404
...
268711E
Pcb Assembly,sub L-G-EBR77031201
...
340090
Exchanger Assembly L-G-ADM34380910
...
346810
Motor Assembly,dc,indoor L-G-4681A20169E
...
349011
Damper Assembly L-G-4901A20002A
...
349490
Orifice Assembly L-G-4949A20006F
...
359012
Fan Assembly,blower L-G-ADP73674101
